1 |
SLEEVE; RUBBER
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)
AIR CONDITIONER MANUAL CONTROL(C60)
ID=6 L=30
|
5-09360-352-0 |
01 |
1 |
0010- |
● |
● |
|
| |
14 |

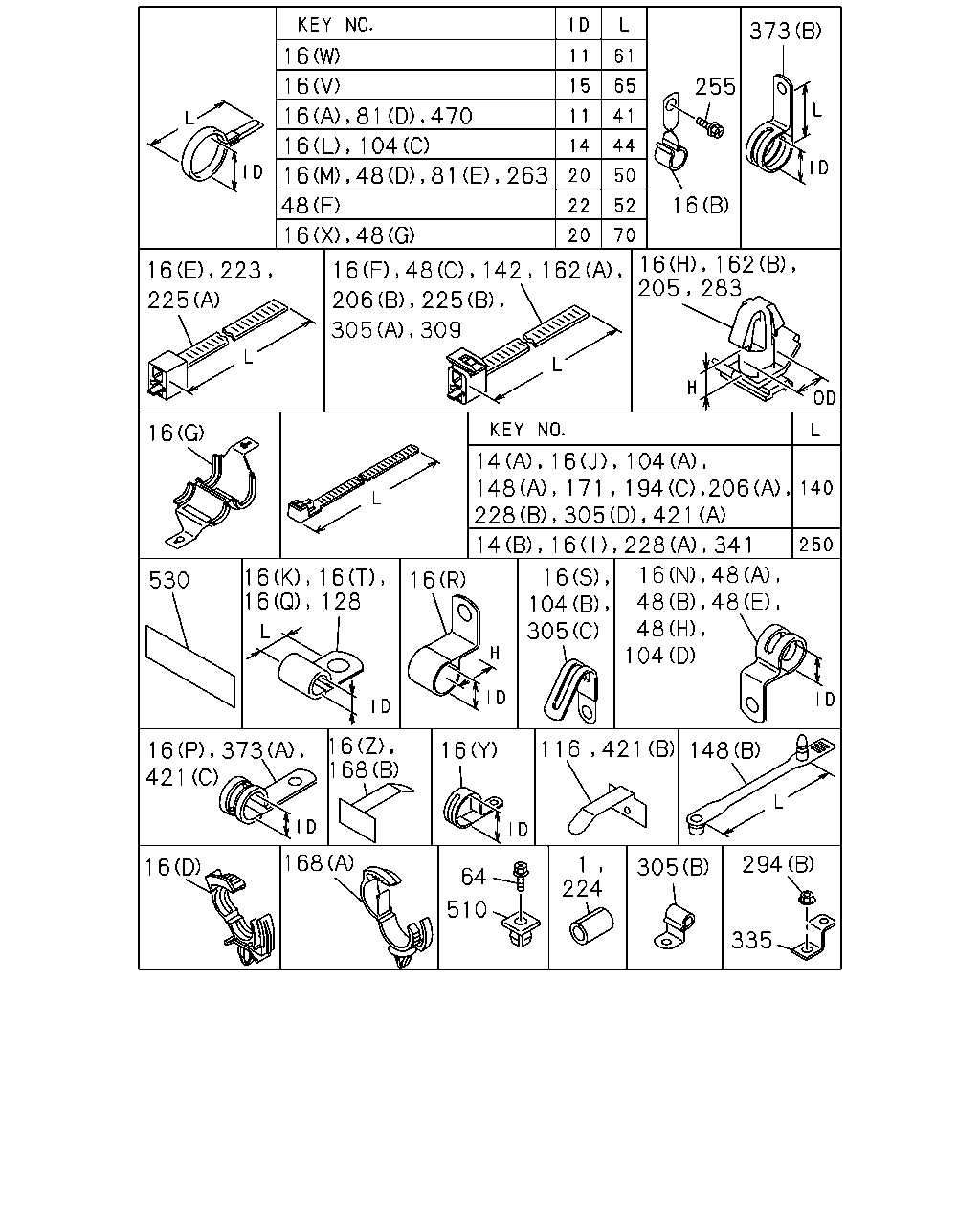

CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5)
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),
AIR BAG(TFQ)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
14 |
CLIP; BAND,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9905- |
|
● |
|
| |
14 |
CLIP; BAND,HARNESS
10PE1S(60L)
(A)
L=140
|
5-09707-031-0 |
04 |
1 |
9603-9610 |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L)
(A)
L=140
|
5-09707-031-0 |
04 |
1 |
9611-9611 |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
10PE1S(60L)
(A)
L=140
|
5-09707-031-0 |
04 |
1 |
9612-9901 |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L)
(A)
L=140
|
5-09707-031-1 |
04 |
1 |
9905- |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
8PE1S(59L)
(A)
L=140
|
5-09707-031-0 |
05 |
1 |
9603-9901 |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
8PE1S(59L)
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(A)
L=140
|
5-09707-031-1 |
05 |
1 |
9905- |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L)
(B)
L=250
|
5-09707-030-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
9905- |
● |
● |
|
| |
14 |
CLIP; BAND,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
5-09707-030-1 |
02 |
1 |
9905- |
|
● |
|
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
(H) B=18.0
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(H) B=18.0
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9902-9903 |
● |
● |
|
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(H) B=18.0
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9904-9904 |
|
● |
|
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(H) B=18.0
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9905-0004 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(H) B=18.0
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 5700MM(57W)
(L)
ID=14 L=44
|
9-09917-427-0 |
12 |
1 |
9603-9901 |
|
|
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L)
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9902-9904 |
|
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-R(75L)
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9905-9909 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9905-9909 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9905-9909 |
|
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9910-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9910-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9910-0005 |
|
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0006- |
|
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5700MM(57W)
(L)
ID=14 L=44
|
9-09917-427-0 |
12 |
1 |
9905- |
|
|
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 6600MM(66W)
(L)
ID=14 L=44
|
9-09917-427-0 |
16 |
1 |
9603-9901 |
|
|
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
ID=11 L=41
|
1-09700-403-0 |
07 |
1 |
9902-0005 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
ID=11 L=41
|
1-09700-403-0 |
06 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6600MM(66W)
(L)
ID=14 L=44
|
9-09917-427-0 |
16 |
1 |
9905-0006 |
|
|
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 6100MM(61W),WHEEL BASE 6600MM(66W)
(L)
ID=14 L=44
|
9-09917-427-0 |
16 |
1 |
0007-0012 |
|
|
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 6100MM(61W)
(L)
ID=14 L=44
|
9-09917-427-0 |
14 |
1 |
0101- |
|
|
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 6600MM(66W)
(L)
ID=14 L=44
|
9-09917-427-0 |
16 |
1 |
0101- |
|
|
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 4500MM(45W)
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-9606 |
● |
|
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9905-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9905-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9905-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9905-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
0002-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-1 |
03 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9603-9603 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9603-9603 |
● |
|
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9604-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(B)
ID=15 L=42
|
1-09700-479-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(B)
ID=15 L=42
|
1-09700-479-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(B)
ID=15 L=42
|
1-09700-479-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(C)
ID=15 L=35
|
1-09700-507-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(C)
ID=15 L=35
|
1-09700-507-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(C)
ID=15 L=35
|
1-09700-507-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
9905-0004 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
CAB UP +110MM<TGG>
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(U)
ID=4.8
|
1-09701-218-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(U)
ID=4.8
|
1-09701-218-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(U)
ID=4.8
|
1-09701-218-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-0 |
03 |
1 |
9603-9605 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-0 |
03 |
1 |
9606-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-0 |
03 |
1 |
9606-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-1 |
03 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(E)
L=300
|
1-09707-001-1 |
03 |
1 |
9902-9904 |
|
● |
|
| |
16 |
CLIP; HARNESS
(E)
L=300
|
1-09707-001-1 |
03 |
1 |
9905-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(E)
L=300
|
1-09707-001-1 |
03 |
1 |
9905-0005 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(E)
L=300
|
1-09707-001-1 |
01 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
(F)
L=180
|
1-09707-162-1 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(F)
L=180
|
1-09707-162-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(F)
L=180
|
1-09707-162-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(G)
WO/SPONGE RUBBER
|
1-09709-103-1 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(G)
WO/SPONGE RUBBER
|
1-09709-103-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(G)
WO/SPONGE RUBBER
|
1-09709-103-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
MJA7 M/T<X9Q>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9905-9907 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9905-9907 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9908- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9908- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(I)
L=250
|
5-09707-030-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(I)
L=250
|
5-09707-030-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9905- |
● |
● |
|
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9708 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2>
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9708 |
|
● |
● |
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9708 |
● |
|
|
| |
16 |
CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2>
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9709-9901 |
|
● |
● |
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(J)
L=140
|
5-09707-031-0 |
01 |
1 |
9709-9901 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(V)
ID=15 L=65
|
1-09700-466-0 |
15 |
1 |
9902- |
|
● |
|
| |
16 |
CLIP; HARNESS
(D)
ID=7-10
|
8-94472-578-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(D)
ID=7-10
|
8-94472-578-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(D)
ID=7-10
|
8-94472-578-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9603-9603 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9604-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9604-9606 |
● |
|
|
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
07 |
1 |
9902-9903 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9904-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9905-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
0006- |
|
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
0006- |
|
|
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
07 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV>
HIGH ROOF<S2F>
(Z)
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV>
HIGH ROOF<S2F>
(Z)
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-0 |
02 |
1 |
9709-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
02 |
1 |
9905-9907 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9908-9908 |
● |
|
|
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9909-0001 |
● |
|
|
| |
16 |
CLIP; HARNESS
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
0002- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
ISUZU M/T<X9A>
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
0002- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
0002- |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(N)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
06 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
06 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
06 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(O)
|
8-94403-348-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(O)
|
8-94403-348-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(O)
|
8-94403-348-0 |
01 |
1 |
9905-0004 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
EXC. CAB UP +110MM<TGG>
(O)
|
8-94403-348-0 |
01 |
1 |
0005- |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9603-9603 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9603-9603 |
|
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9603-9603 |
|
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9604-9606 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9604-9606 |
|
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9607-9901 |
|
|
● |
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(S)
L=36
|
8-94224-891-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(S)
L=36
|
8-94224-891-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(S)
L=36
|
8-94224-891-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(K)
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(T)
ID=16 L=40
|
9-09525-576-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(T)
ID=16 L=40
|
9-09525-576-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
EXC. ZF M/T<X9E>
(T)
ID=16 L=40
|
9-09525-576-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9603-9603 |
|
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9604-9606 |
|
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9607-9608 |
|
|
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9609-9901 |
|
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9905-9909 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-R(75L)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9905-9909 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9910-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9910-0001 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
(M)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
0002- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(L)
ID=14 L=44
|
9-09917-427-0 |
06 |
1 |
9603-9603 |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
12 |
1 |
9604-9606 |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(X)
ID=20 L=70
|
1-09700-485-0 |
12 |
1 |
9607-9901 |
● |
|
|
| |
16 |
CLIP; HARNESS
(X)
ID=20 L=70
|
1-09700-485-0 |
12 |
1 |
9902-9904 |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(X)
ID=20 L=70
|
1-09700-485-0 |
12 |
1 |
9905-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(X)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(X)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
15 |
1 |
9603-9606 |
● |
|
|
| |
16 |
CLIP; HARNESS
(W)
ID=11 L=61
|
1-09700-484-0 |
01 |
1 |
9607-9901 |
● |
|
|
| |
16 |
CLIP; HARNESS
(V)
ID=15 L=65
|
1-09700-466-0 |
03 |
1 |
9607-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(V)
ID=15 L=65
|
1-09700-466-0 |
02 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
(X)
ID=20 L=70
|
1-09700-485-0 |
15 |
1 |
9607-9901 |
● |
|
|
| |
16 |
CLIP; HARNESS
(W)
ID=11 L=61
|
1-09700-484-0 |
01 |
1 |
9905-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 4500MM(45W)
(W)
ID=11 L=61
|
1-09700-484-0 |
01 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(W)
ID=11 L=61
|
1-09700-484-0 |
01 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
(W)
ID=11 L=61
|
1-09700-484-0 |
01 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
(X)
ID=20 L=70
|
1-09700-485-0 |
15 |
1 |
9905-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(X)
ID=20 L=70
|
1-09700-485-0 |
01 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 4500MM(45W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(M)
ID=20 L=50
|
9-09917-430-0 |
17 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 4900MM(49W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(M)
ID=20 L=50
|
9-09917-430-0 |
13 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(J)
L=140
|
5-09707-031-1 |
01 |
1 |
9905-9907 |
● |
|
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(I)
L=250
|
5-09707-030-1 |
03 |
1 |
9908- |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 4500MM(45W)
(X)
ID=20 L=70
|
1-09700-485-0 |
14 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 4900MM(49W)
(W)
ID=11 L=61
|
1-09700-484-0 |
04 |
1 |
9905-0001 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(W)
ID=11 L=61
|
1-09700-484-0 |
04 |
1 |
0002-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 4900MM(49W)
(X)
ID=20 L=70
|
1-09700-485-0 |
15 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(M)
ID=20 L=50
|
9-09917-430-0 |
16 |
1 |
9603-9606 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(X)
ID=20 L=70
|
1-09700-485-0 |
16 |
1 |
9607-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 4500MM(45W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(X)
ID=20 L=70
|
1-09700-485-0 |
17 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(A)
ID=11 L=41
|
1-09700-403-0 |
03 |
1 |
9604-9606 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(W)
ID=11 L=61
|
1-09700-484-0 |
03 |
1 |
9607-9901 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(W)
ID=11 L=61
|
1-09700-484-0 |
03 |
1 |
9902-9904 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
(W)
ID=11 L=61
|
1-09700-484-0 |
03 |
1 |
9905-0001 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(W)
ID=11 L=61
|
1-09700-484-0 |
03 |
1 |
0002-0005 |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 4900MM(49W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(W)
ID=11 L=61
|
1-09700-484-0 |
03 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
05 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(P)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9904-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(P)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(AA)
ID=14-20
|
8-97061-603-0 |
01 |
1 |
9904-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(AA)
ID=14-20
|
8-97061-603-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
05 |
1 |
9905- |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9607-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9905-0001 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0002- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0002- |
● |
● |
|
| |
16 |
CLIP; HARNESS
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L)
(Y)
ID=42.7 L=38
|
1-09700-583-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-R(75L)
(Y)
ID=42.7 L=38
|
1-09700-583-1 |
01 |
1 |
9905-9909 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
(Y)
ID=42.7 L=38
|
1-09700-583-1 |
01 |
1 |
9910- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
02 |
1 |
9905-9908 |
● |
● |
|
| |
16 |
CLIP; HARNESS
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>,MAP5
M/T<Y9F>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
02 |
1 |
9909- |
● |
● |
|
| |
16 |
CLIP; HARNESS
POWER BRAKE LOCK SYSTEM(J50)
(F)
L=180
|
1-09707-162-1 |
01 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
REVERSING WARNING BUZZER<YM9>
(H) B=26.0
OD=9 H=17.5
|
1-09709-181-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
REVERSING WARNING BUZZER<YM9>
(H) B=26.0
OD=9 H=17.5
|
1-09709-181-0 |
01 |
1 |
9902-0004 |
● |
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
REVERSING WARNING BUZZER<YM9>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(H) B=26.0
OD=9 H=17.5
|
1-09709-181-0 |
01 |
1 |
0005- |
● |
● |
|
| |
16 |
CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U)
(N)
ID=14.5 H=23 L=30
|
1-09700-859-0 |
01 |
1 |
0009- |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(A)
ID=11 L=41
|
1-09700-403-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
HIGH ROOF<S2F>
(Z)
L=20 SET=10 PIECE
|
1-09987-246-2 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
HIGH ROOF<S2F>
(Z)
L=20 SET=10 PIECE
|
1-09987-246-2 |
02 |
1 |
9905- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(P)
ID=21 L=24
|
1-09701-201-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L)
(N)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-R(75L)
(N)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
9905-9909 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
(N)
ID=20 H=23 L=27
|
1-09700-861-0 |
01 |
1 |
9910- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(Q)
ID=11 L=20
|
9-09525-035-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(A)
ID=11 L=41
|
1-09700-403-0 |
02 |
1 |
9905-0001 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0002-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0002-0005 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0006- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(P)
ID=21 L=24
|
1-09701-201-0 |
02 |
1 |
9905- |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(Q)
ID=11 L=20
|
9-09525-035-0 |
01 |
1 |
9905- |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
(X)
ID=20 L=70
|
1-09700-485-0 |
02 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W),
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
(N)
ID=25 L=75
|
1-09701-275-0 |
02 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(R)
ID=15 H=30 L=30
|
1-09700-832-0 |
02 |
1 |
9603-9605 |
● |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(R)
ID=15 H=30 L=30
|
1-09700-832-0 |
01 |
1 |
9606-0008 |
● |
● |
|
| |
16 |
CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF
8S151 OD(Y3N)
(R)
ID=15 H=30 L=30
|
1-09700-832-0 |
01 |
1 |
0009- |
● |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(H) B=14.5
OD=9 H=6
|
1-09709-178-0 |
03 |
1 |
9603- |
● |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(B)
ID=15 L=42
|
9-09716-203-1 |
01 |
1 |
9606-9901 |
● |
● |
|
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9905-9907 |
● |
● |
● |
| |
16 |
CLIP; HARNESS
ZF M/T<X9E>
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9905-9907 |
● |
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9905-9907 |
● |
● |
|
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9908- |
● |
● |
● |
| |
16 |
CLIP; HARNESS
(I)
L=250
|
5-09707-030-1 |
01 |
1 |
9908- |
● |
● |
|
| |
16 |
CLIP; HARNESS
(V)
ID=15 L=65
|
1-09700-466-0 |
01 |
1 |
9607-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9902-9904 |
|
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(M)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9905-0005 |
|
● |
● |
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
(X)
ID=20 L=70
|
1-09700-485-0 |
05 |
1 |
0006- |
|
● |
● |
| |
16 |
CLIP; HARNESS
(X)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
9607-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(X)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
9902-0005 |
|
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 4900MM(49W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(X)
ID=20 L=70
|
1-09700-485-0 |
13 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(Q)
ID=11 L=16
|
9-09525-025-0 |
02 |
1 |
9905- |
|
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 5900MM(59W)
(L)
ID=14 L=44
|
9-09917-427-0 |
15 |
1 |
9609-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(X)
ID=20 L=70
|
1-09700-485-0 |
03 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
V TYPE ENG<91L>
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
(X)
ID=20 L=70
|
1-09700-485-0 |
06 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
(A)
ID=11 L=41
|
1-09700-403-0 |
07 |
1 |
9603-9606 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
(W)
ID=11 L=61
|
1-09700-484-0 |
07 |
1 |
9607-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(W)
ID=11 L=61
|
1-09700-484-0 |
07 |
1 |
9902-0005 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(W)
ID=11 L=61
|
1-09700-484-0 |
06 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
(L)
ID=14 L=44
|
9-09917-427-0 |
15 |
1 |
9603-9606 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
(V)
ID=15 L=65
|
1-09700-466-0 |
15 |
1 |
9607-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
(L)
ID=14 L=44
|
9-09917-427-0 |
15 |
1 |
9902-9904 |
|
● |
|
| |
16 |
CLIP; HARNESS
L TYPE ENG<90L>
WHEEL BASE 5900MM(59W)
(L)
ID=14 L=44
|
9-09917-427-0 |
15 |
1 |
9905-0005 |
|
● |
|
| |
16 |
CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
02 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
15 |
1 |
0006- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(E)
L=300
|
1-09707-001-1 |
02 |
1 |
0006-0008 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6100MM(61W)
(E)
L=300
|
1-09707-001-1 |
02 |
1 |
0009-0012 |
|
|
● |
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(E)
L=300
|
1-09707-001-1 |
02 |
1 |
0009-0012 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(E)
L=300
|
1-09707-001-1 |
02 |
1 |
0101- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
(A)
ID=11 L=41
|
1-09700-403-0 |
08 |
1 |
9603-9606 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
(W)
ID=11 L=61
|
1-09700-484-0 |
08 |
1 |
9607-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
(L)
ID=14 L=44
|
9-09917-427-0 |
17 |
1 |
9603-9606 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
(V)
ID=15 L=65
|
1-09700-466-0 |
17 |
1 |
9607-9901 |
|
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(V)
ID=15 L=65
|
1-09700-466-0 |
01 |
1 |
9902-0005 |
|
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(V)
ID=15 L=65
|
1-09700-466-0 |
01 |
1 |
0006- |
● |
● |
|
| |
16 |
CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(V)
ID=15 L=65
|
1-09700-466-0 |
01 |
1 |
0006- |
● |
|
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(V)
ID=15 L=65
|
1-09700-466-0 |
17 |
1 |
9905- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(W)
ID=11 L=61
|
1-09700-484-0 |
08 |
1 |
9905-0012 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
FRAME EQUIPMENT HEAVY DUTY<F03>
(W)
ID=11 L=61
|
1-09700-484-0 |
09 |
1 |
0101- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
ID=11 L=41
|
1-09700-403-0 |
08 |
1 |
9905-0012 |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(A)
ID=11 L=41
|
1-09700-403-0 |
09 |
1 |
0101- |
|
● |
|
| |
16 |
CLIP; HARNESS
WHEEL BASE 6300MM(63W)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(L)
ID=14 L=44
|
9-09917-427-0 |
17 |
1 |
9905- |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9603-9603 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
03 |
1 |
9604-9901 |
|
|
● |
| |
48 |
CLIP; FRAME HARNESS
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9902-9904 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
03 |
1 |
9905-9910 |
|
|
● |
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9911- |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9603-9603 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. ZF M/T<X9E>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9603-9603 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9604-9704 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
WHEEL BASE 4900MM(49W)
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9604-9704 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9705-9901 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9905-9910 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
CAB UP +110MM<TGG>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
01 |
1 |
9911- |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(C)
L=300
|
1-09707-001-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-0 |
06 |
1 |
9603-9901 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(C)
L=300
|
1-09707-001-1 |
06 |
1 |
9902-9904 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(C)
L=300
|
1-09707-001-1 |
06 |
1 |
9905- |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
05 |
1 |
9603-9606 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(D)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9607-9608 |
|
|
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9609-9901 |
|
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(D)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9902-9904 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9905-9910 |
|
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9911-0001 |
|
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
0002-0005 |
|
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
0002-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(D)
ID=20 L=50
|
9-09917-430-0 |
03 |
1 |
9603-9606 |
|
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(D)
ID=20 L=50
|
9-09917-430-0 |
05 |
1 |
9607-9901 |
|
|
● |
| |
48 |
CLIP; FRAME HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
05 |
1 |
9902-9904 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
05 |
1 |
9905-0001 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
05 |
1 |
0002-0005 |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
02 |
1 |
9705-9901 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
02 |
1 |
9902-9904 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
02 |
1 |
9905-9910 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
03 |
1 |
9911-0004 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
03 |
1 |
0005- |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
(E)
ID=31.5 H=23 L=25
|
1-09701-017-0 |
07 |
1 |
9603-9603 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
(F)
ID=22 L=52
|
9-09917-431-0 |
01 |
1 |
9603-9606 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
(G)
ID=20 L=70
|
1-09700-485-0 |
02 |
1 |
9607-9901 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(G)
ID=20 L=70
|
1-09700-485-0 |
05 |
1 |
9607-9901 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
05 |
1 |
9902-9904 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
05 |
1 |
9905-0001 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
05 |
1 |
0002-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
ZF M/T<X9E>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
01 |
1 |
9603-9603 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9604-9901 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9902-9904 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
02 |
1 |
9905-9910 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
9911- |
● |
● |
● |
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
EXC. CAB UP +110MM<TGG>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
9911- |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9603-9603 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9604-9901 |
● |
|
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9604-9901 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(H)
ID=24 H=40 L=24
|
1-09701-243-0 |
06 |
1 |
9603-9901 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(C)
L=300
|
1-09707-001-0 |
10 |
1 |
9603-9901 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9603-9606 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
(G)
ID=20 L=70
|
1-09700-485-0 |
01 |
1 |
9607-9901 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(A)
ID=24.5 H=23 L=25
|
1-09700-862-0 |
04 |
1 |
9905-9910 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(H)
ID=24 H=40 L=24
|
1-09701-243-0 |
06 |
1 |
9905- |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(C)
L=300
|
1-09707-001-1 |
10 |
1 |
9905- |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
01 |
1 |
9905-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
02 |
1 |
9905-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
02 |
1 |
9905-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(F)
ID=22 L=52
|
9-09917-431-0 |
01 |
1 |
9905-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
(G)
ID=20 L=70
|
1-09700-485-0 |
03 |
1 |
9607-9901 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
03 |
1 |
9902-9904 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
03 |
1 |
9905-9910 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
9911-0001 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
0002-0005 |
● |
● |
|
| |
48 |
CLIP; FRAME HARNESS
L TYPE ENG<90L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
04 |
1 |
0002-0005 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(D)
ID=20 L=50
|
9-09917-430-0 |
07 |
1 |
9603-9606 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
(G)
ID=20 L=70
|
1-09700-485-0 |
07 |
1 |
9607-9901 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
FRAME EQUIPMENT HEAVY DUTY<F03>
(G)
ID=20 L=70
|
1-09700-485-0 |
07 |
1 |
9905-0005 |
|
● |
|
| |
48 |
CLIP; FRAME HARNESS
V TYPE ENG<91L>
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
(D)
ID=20 L=50
|
9-09917-430-0 |
07 |
1 |
9905-0005 |
|
● |
|
| |
64 |
SCREW; CLIP
ELECTRONIC GOV RED3(KG5)
M6X12 TAPPING W/PL WASHER
|
0-74100-612-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
64 |
SCREW; CLIP
ELECTRONIC GOV RED3(KG5)
M6X12 TAPPING W/PL WASHER
|
0-74100-612-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
64 |
SCREW; CLIP
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
M6X12 TAPPING W/PL WASHER
|
0-74100-612-0 |
01 |
1 |
9902- |
● |
● |
|
| |
81 |
CLIP; HARNESS
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9603-9606 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
(C)
L=250
|
5-09707-030-0 |
01 |
1 |
9606-9901 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
81 |
CLIP; HARNESS
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
81 |
CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9902-9907 |
● |
● |
|
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
02 |
1 |
9908- |
● |
● |
|
| |
81 |
CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
9905-0004 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
ID=11 L=41
|
1-09700-403-0 |
04 |
1 |
0005- |
● |
● |
● |
| |
81 |
CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
ID=20 L=50
|
9-09917-430-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
81 |
CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT
BUMPER<VG7>
(C)
L=140
|
5-09707-031-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
81 |
CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT
BUMPER<VG7>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
81 |
CLIP; HARNESS
REINFORCEMENT BUMPER<VG7>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
81 |
CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
81 |
CLIP; HARNESS
REINFORCEMENT BUMPER<VG7>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
81 |
CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9905- |
● |
● |
|
| |
81 |
CLIP; HARNESS
REINFORCEMENT BUMPER<VG7>
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9905- |
● |
● |
|
| |
81 |
CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. FRONT SPOILER<VP1>
(A)
ID=7-10
|
8-94472-578-0 |
06 |
1 |
9908- |
● |
● |
|
| |
81 |
CLIP; HARNESS
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
ID=11 L=41
|
1-09700-403-0 |
05 |
1 |
0005- |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
9603- |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. HEADLAMPS RECTANGULAR<TR4>
(B)
ID=21 L=47.5
|
8-94178-108-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
(B)
ID=21 L=47.5
|
8-94178-108-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. HEADLAMPS RECTANGULAR<TR4>
(B)
ID=21 L=47.5
|
8-94178-108-0 |
02 |
1 |
9905- |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. HEADLAMPS RECTANGULAR<TR4>
(C)
ID=14 L=44
|
9-09917-427-0 |
06 |
1 |
9603-9810 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. HEADLAMPS RECTANGULAR<TR4>
(F)
ID=13-18 L=14.5
|
1-09709-290-0 |
08 |
1 |
9811-9901 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
(F)
ID=13-18 L=14.5
|
1-09709-290-0 |
08 |
1 |
9902-9904 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB>
EXC. HEADLAMPS RECTANGULAR<TR4>
(F)
ID=13-18 L=14.5
|
1-09709-290-0 |
08 |
1 |
9905- |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4>
(E)
ID=12 H=24 L=20
|
1-09700-605-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4>
(D)
ID=18 H=23 L=28
|
1-09700-860-0 |
04 |
1 |
9603-9901 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4>
(G)
ID=4.8
|
1-09701-218-0 |
04 |
1 |
9612-9901 |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4>
(E)
ID=12 H=24 L=20
|
1-09700-605-0 |
02 |
1 |
9905- |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4>
(D)
ID=18 H=23 L=28
|
1-09700-860-0 |
04 |
1 |
9905- |
● |
● |
|
| |
104 |
CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4>
(G)
ID=4.8
|
1-09701-218-0 |
04 |
1 |
9905- |
● |
● |
|
| |
116 |
CLIP; ROOF HARNESS
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
116 |
CLIP; ROOF HARNESS
HIGH ROOF<S2F>
L=20 SET=10 PIECE
|
1-09987-246-2 |
03 |
1 |
9902-9904 |
● |
● |
|
| |
116 |
CLIP; ROOF HARNESS
HIGH ROOF<S2F>
L=20 SET=10 PIECE
|
1-09987-246-2 |
03 |
1 |
9905- |
● |
● |
● |
| |
116 |
CLIP; ROOF HARNESS
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9902-9904 |
● |
● |
|
| |
116 |
CLIP; ROOF HARNESS
L=20 SET=10 PIECE
|
1-09987-246-2 |
04 |
1 |
9905-0009 |
● |
● |
● |
| |
116 |
CLIP; ROOF HARNESS
L=20 SET=10 PIECE
|
1-09987-246-2 |
05 |
1 |
0010- |
● |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20
|
9-09525-535-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32
|
9-09525-862-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32
|
9-09525-862-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32
|
9-09525-862-0 |
01 |
1 |
9905-0011 |
● |
● |
● |
| |
128 |
CLIP; COMB SW HARNESS,STRG COLUMN
ID=14.5 L=30
|
9-09916-893-1 |
01 |
1 |
0012- |
● |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
6WA1 TC-S(56L)
L=180
|
1-09707-162-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
L=180
|
1-09707-162-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
142 |
CLIP; HARNESS,ENG
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L)
L=180
|
1-09707-162-1 |
01 |
1 |
9905- |
● |
● |
|
| |
142 |
CLIP; HARNESS,ENG
6WG1 TC-R(75L)
L=180
|
1-09707-162-1 |
02 |
1 |
9905-9909 |
● |
● |
● |
| |
142 |
CLIP; HARNESS,ENG
6WG1 TC-C(72L),6WG1 TC-R(75L)
L=180
|
1-09707-162-1 |
02 |
1 |
9910- |
● |
● |
● |
| |
148 |
CLIP; BAND,HEADLAMP HARNESS
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9804 |
● |
● |
● |
| |
148 |
CLIP; BAND,HEADLAMP HARNESS
(B)
L=85
|
8-94232-611-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
148 |
CLIP; BAND,HEADLAMP HARNESS
(B)
L=85
|
8-94232-611-0 |
04 |
1 |
9902-9904 |
● |
● |
|
| |
148 |
CLIP; BAND,HEADLAMP HARNESS
(B)
L=85
|
8-94232-611-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
162 |
CLIP; SW HARNESS
(B)
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
162 |
CLIP; SW HARNESS
(B)
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9902-9902 |
● |
● |
|
| |
162 |
CLIP; SW HARNESS
EXC. CAB UP +110MM<TGG>
(B)
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9903- |
● |
● |
|
| |
162 |
CLIP; SW HARNESS
CAB UP +110MM<TGG>
(A)
L=180
|
1-09707-162-1 |
01 |
1 |
9903-9904 |
● |
● |
|
| |
162 |
CLIP; SW HARNESS
CAB UP +110MM<TGG>
(A)
L=180
|
1-09707-162-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
168 |
CLIP; DASH HARNESS
(A)
ID=6 & 10-13
|
8-97069-515-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
168 |
CLIP; DASH HARNESS
(A)
ID=6 & 10-13
|
8-97069-515-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
168 |
CLIP; DASH HARNESS
(A)
ID=6 & 10-13
|
8-97069-515-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
168 |
CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(B)
L=30
|
1-09987-265-0 |
01 |
1 |
0102- |
● |
● |
● |
| |
171 |
CLIP; STARTER HARNESS
L=140
|
5-09707-031-0 |
05 |
1 |
9603-9901 |
● |
● |
● |
| |
171 |
CLIP; STARTER HARNESS
L=140
|
5-09707-031-1 |
05 |
1 |
9902-9904 |
● |
● |
|
| |
171 |
CLIP; STARTER HARNESS
L=140
|
5-09707-031-1 |
05 |
1 |
9905- |
● |
● |
● |
| |
194 |
CLIP; BAND
(A)
L=300
|
1-09707-001-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
194 |
CLIP; BAND
(A)
L=300
|
1-09707-001-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
194 |
CLIP; BAND
(A)
L=300
|
1-09707-001-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
194 |
CLIP; BAND
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
194 |
CLIP; BAND
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
194 |
CLIP; BAND
(B)
L=180
|
1-09707-162-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
194 |
CLIP; BAND
(C)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
194 |
CLIP; BAND
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
194 |
CLIP; BAND
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
194 |
CLIP; BAND
INTAKE HEATER<SL2>
(C)
L=140
|
5-09707-031-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
194 |
CLIP; BAND
INTAKE HEATER<SL2>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
9905- |
● |
● |
|
| |
194 |
CLIP; BAND
V TYPE ENG<91L>
(A)
L=300
|
1-09707-001-0 |
03 |
1 |
9603-9901 |
● |
● |
|
| |
194 |
CLIP; BAND
V TYPE ENG<91L>
(A)
L=300
|
1-09707-001-1 |
03 |
1 |
9905- |
● |
● |
|
| |
205 |
CLIP; BACK LAMP HARNESS
B=18
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9603-9901 |
|
|
● |
| |
205 |
CLIP; BACK LAMP HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
B=18
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9902-9903 |
● |
● |
|
| |
205 |
CLIP; BACK LAMP HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9904-9904 |
|
● |
|
| |
205 |
CLIP; BACK LAMP HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
B=18
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
9905-0004 |
● |
● |
● |
| |
205 |
CLIP; BACK LAMP HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
OD=9 H=9.5
|
1-09709-179-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
205 |
CLIP; BACK LAMP HARNESS
B=26
OD=9 H=17.5
|
1-09709-181-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
205 |
CLIP; BACK LAMP HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
B=26
OD=9 H=17.5
|
1-09709-181-0 |
01 |
1 |
9902-0004 |
● |
● |
|
| |
205 |
CLIP; BACK LAMP HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
OD=9 H=17.5
|
1-09709-181-0 |
01 |
1 |
0005- |
● |
● |
|
| |
206 |
CLIP; FUEL TANK HARNESS
(A)
L=140
|
5-09707-031-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
206 |
CLIP; FUEL TANK HARNESS
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
206 |
CLIP; FUEL TANK HARNESS
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
9905- |
● |
● |
● |
| |
206 |
CLIP; FUEL TANK HARNESS
L TYPE ENG<90L>
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9806-9901 |
● |
|
|
| |
206 |
CLIP; FUEL TANK HARNESS
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9902-9904 |
● |
|
|
| |
206 |
CLIP; FUEL TANK HARNESS
L TYPE ENG<90L>
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9905- |
● |
|
|
| |
223 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
L=500
|
1-09707-082-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
223 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
L=500
|
1-09707-082-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
223 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
L=600
|
1-09707-107-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
223 |
CLIP; AIR TANK HARNESS
AIR DRYER<PS7>
L=600
|
1-09707-107-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
223 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
L=600
|
1-09707-107-1 |
01 |
1 |
9905- |
● |
● |
|
| |
224 |
SLEEVE; RUBBER,HARNESS
6WA1 TC-N(54L),6WA1 TC-R(93L)
ID=14 OD=18 L=60
|
1-09337-030-0 |
01 |
1 |
0102- |
● |
● |
|
| |
224 |
SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=32 OD=36 L=50
|
1-09337-023-0 |
01 |
1 |
9905-9910 |
|
● |
|
| |
224 |
SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A)
P115 PROP SHAFT<C5X>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
REAR AXLE RT210<C2A>
LOAD SENSING PROPORTIONING VALVE<JR7>
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
BRAKE REGULATION ECE<TDV>
EXC. LIMITED SLIP DIFF VAR2<G86>,WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>
ID=32 OD=36 L=50
|
1-09337-023-0 |
01 |
1 |
9911- |
|
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
(B)
L=180
|
1-09707-162-1 |
03 |
1 |
9603-9901 |
● |
● |
● |
| |
225 |
CLIP; AIR TANK HARNESS
(B)
L=180
|
1-09707-162-1 |
03 |
1 |
9902-9904 |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
(B)
L=180
|
1-09707-162-1 |
03 |
1 |
9905- |
● |
● |
● |
| |
225 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
225 |
CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9905-0004 |
● |
● |
● |
| |
225 |
CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
9905-0004 |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
L TYPE ENG<90L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
0005- |
|
|
● |
| |
225 |
CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
0005- |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
L TYPE ENG<90L>,V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=180
|
1-09707-162-1 |
01 |
1 |
0005- |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
9905-0004 |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0005- |
● |
● |
|
| |
225 |
CLIP; AIR TANK HARNESS
V TYPE ENG<91L>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0005- |
● |
● |
|
| |
228 |
CLIP; COOLER HARNESS
V TYPE ENG<91L>
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
L=250
|
5-09707-030-0 |
03 |
1 |
9603-9810 |
● |
● |
|
| |
228 |
CLIP; COOLER HARNESS
V TYPE ENG<91L>
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
L=140
|
5-09707-031-0 |
03 |
1 |
9603-9810 |
● |
● |
|
| |
228 |
CLIP; COOLER HARNESS
V TYPE ENG<91L>
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
L=140
|
5-09707-031-0 |
06 |
1 |
9811-9901 |
● |
● |
|
| |
228 |
CLIP; COOLER HARNESS
V TYPE ENG<91L>
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
L=140
|
5-09707-031-1 |
06 |
1 |
9905- |
● |
● |
|
| |
255 |
SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER
|
0-74305-620-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
255 |
SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER
|
0-74305-620-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
255 |
SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER
|
0-74305-620-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
263 |
CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
263 |
CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
263 |
CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
283 |
CLIP; SUB SW HARNESS
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
283 |
CLIP; SUB SW HARNESS
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
283 |
CLIP; SUB SW HARNESS
OD=9 H=6
|
1-09709-178-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
294 |
NUT
(A)
M8
|
9-09110-408-0 |
01 |
1 |
9603-9606 |
● |
● |
● |
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9901 |
● |
● |
● |
| |
294 |
NUT
6WA1 TC-C(55L)
EXC. CAB UP +110MM<TGG>
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
294 |
NUT
6WA1 TC-C(55L),6WG1 TC-R(75L)
EXC. CAB UP +110MM<TGG>
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-9909 |
● |
● |
● |
| |
294 |
NUT
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L)
EXC. CAB UP +110MM<TGG>
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9910- |
● |
● |
|
| |
294 |
NUT
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
(B)
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9603-9606 |
● |
● |
|
| |
294 |
NUT
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
(B)
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9607-9901 |
● |
● |
|
| |
294 |
NUT
CAB UP +110MM<TGG>
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
294 |
NUT
6WA1 TC-C(55L)
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
● |
| |
294 |
NUT
CAB UP +110MM<TGG>
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
● |
| |
294 |
NUT
6WA1 TC-C(55L),6WG1 TC-R(75L)
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9907 |
● |
● |
|
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-0004 |
● |
● |
● |
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-0004 |
|
|
● |
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-0004 |
|
|
● |
| |
294 |
NUT
L TYPE ENG<90L>
ISUZU M/T<X9A>
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-0004 |
● |
● |
|
| |
294 |
NUT
CAB UP +110MM<TGG>
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9908-0004 |
● |
● |
|
| |
294 |
NUT
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
294 |
NUT
L TYPE ENG<90L>
ISUZU M/T<X9A>
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005- |
● |
● |
● |
| |
294 |
NUT
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
(B)
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9905-9908 |
● |
● |
|
| |
294 |
NUT
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>,MAP5
M/T<Y9F>
(B)
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9909- |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
8PE1S(59L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
04 |
1 |
9905- |
|
● |
|
| |
305 |
CLIP; ENG HARNESS
(A)
L=180
|
1-09707-162-1 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
305 |
CLIP; ENG HARNESS
(A)
L=180
|
1-09707-162-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
(A)
L=180
|
1-09707-162-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
305 |
CLIP; ENG HARNESS
10PE1S(60L)
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
07 |
1 |
9603-9604 |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
GOVERNOR CONTROL<W69>
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
06 |
1 |
9605-9612 |
|
● |
|
| |
305 |
CLIP; ENG HARNESS
10PE1S(60L)
GOVERNOR CONTROL<W69>
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
06 |
1 |
9701-9901 |
|
● |
|
| |
305 |
CLIP; ENG HARNESS
10PE1S(60L)
EXC. GOVERNOR CONTROL<W69>
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
07 |
1 |
9605-9901 |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
10PE1S(60L),10PE1N(61L),10PE1H(68L)
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
07 |
1 |
9905- |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
6WA1 TC-N(54L),6WA1 TC-R(93L)
(D)
L=140
|
5-09707-031-1 |
01 |
1 |
0102- |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
8PE1S(59L)
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
05 |
1 |
9603-9901 |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
8PE1S(59L)
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
05 |
1 |
9905- |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
8PE1S(59L),10PE1S(60L)
(C)
L=36
|
8-94224-891-1 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)
(C)
L=36
|
8-94224-891-1 |
02 |
1 |
9905- |
● |
● |
|
| |
305 |
CLIP; ENG HARNESS
10PE1S(60L)
ENGINE OIL TEMPERATURE GAUGE<UG3>
(B)
ID=11 H=20 L=17.5
|
1-09700-562-1 |
06 |
1 |
9905- |
|
● |
|
| |
309 |
CLIP; HARNESS,HAND BRAKE CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=180
|
1-09707-162-1 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
309 |
CLIP; HARNESS,HAND BRAKE CABLE
L=180
|
1-09707-162-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
309 |
CLIP; HARNESS,HAND BRAKE CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=180
|
1-09707-162-1 |
01 |
1 |
9905- |
● |
● |
|
| |
335 |
BRACKET; CONNECTOR
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
|
1-82699-425-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
335 |
BRACKET; CONNECTOR
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>
|
1-82699-425-0 |
01 |
1 |
9905-9908 |
● |
● |
|
| |
335 |
BRACKET; CONNECTOR
MAL5 M/T<X9F>,MAL6 M/T<X9G>,MAG6 M/T<X9T>,MAP5
M/T<Y9F>
|
1-82699-425-0 |
01 |
1 |
9909- |
● |
● |
|
| |
341 |
CLIP; BAND,STARTER RELAY
L=250
|
5-09707-030-0 |
02 |
1 |
9603-9608 |
● |
● |
● |
| |
341 |
CLIP; BAND,STARTER RELAY
L=250
|
5-09707-030-0 |
03 |
1 |
9609-9901 |
● |
● |
● |
| |
341 |
CLIP; BAND,STARTER RELAY
L=250
|
5-09707-030-1 |
03 |
1 |
9902-9904 |
● |
● |
|
| |
341 |
CLIP; BAND,STARTER RELAY
L=250
|
5-09707-030-1 |
03 |
1 |
9905- |
● |
● |
● |
| |
373 |
CLIP; BAND,GEN HARNESS
V TYPE ENG<91L>
(A)
ID=26 L=27
|
1-09701-006-0 |
02 |
1 |
9603-9901 |
● |
● |
|
| |
373 |
CLIP; BAND,GEN HARNESS
V TYPE ENG<91L>
(B)
ID=25 L=50
|
1-09701-019-0 |
01 |
1 |
9603-9901 |
● |
● |
|
| |
373 |
CLIP; BAND,GEN HARNESS
V TYPE ENG<91L>
(A)
ID=26 L=27
|
1-09701-006-0 |
02 |
1 |
9905- |
● |
● |
|
| |
373 |
CLIP; BAND,GEN HARNESS
V TYPE ENG<91L>
(B)
ID=25 L=50
|
1-09701-019-0 |
01 |
1 |
9905- |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
(B)
L=20 SET=10 PIECE
|
1-09987-246-2 |
12 |
1 |
9603-9901 |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
(B)
L=20 SET=10 PIECE
|
1-09987-246-2 |
12 |
1 |
9902-9904 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
(B)
L=20 SET=10 PIECE
|
1-09987-246-2 |
12 |
1 |
9905-0101 |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
(B)
L=20 SET=10 PIECE
|
1-09987-246-2 |
01 |
1 |
0102- |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW>
(B)
L=20 SET=10 PIECE
|
1-09987-246-2 |
05 |
1 |
0102- |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
V TYPE ENG<91L>
POWER BRAKE LOCK SYSTEM(J50)
(B)
L=20 SET=10 PIECE
|
1-09987-246-2 |
05 |
1 |
0102- |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER
VENTILATION AIR CONDITIONING DELETE(TFA)
(A)
L=140
|
5-09707-031-0 |
01 |
1 |
9603-9901 |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER
VENTILATION AIR CONDITIONING DELETE(TFA)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER
VENTILATION AIR CONDITIONING DELETE(TFA)
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9905- |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
(C)
ID=16 L=20
|
9-09525-532-0 |
02 |
1 |
9902-9903 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5)
(C)
ID=16 L=20
|
9-09525-532-0 |
02 |
1 |
9902-9903 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9904-9904 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9904-9904 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9905-9905 |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=32
|
1-09701-235-0 |
02 |
1 |
9905-9905 |
● |
● |
|
| |
421 |
CLIP; FLOOR HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=20
|
9-09525-832-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
421 |
CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5)
(C)
ID=19 L=20
|
9-09525-832-0 |
02 |
1 |
9905- |
● |
● |
|
| |
470 |
CLIP; HARNESS,LICENSE LAMP
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9603-9706 |
● |
● |
● |
| |
470 |
CLIP; HARNESS,LICENSE LAMP
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9707-9901 |
● |
● |
● |
| |
470 |
CLIP; HARNESS,LICENSE LAMP
LIGHTING SYSTEM ECE<SLC>
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9707-9901 |
● |
|
|
| |
470 |
CLIP; HARNESS,LICENSE LAMP
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
470 |
CLIP; HARNESS,LICENSE LAMP
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9905- |
● |
● |
● |
| |
470 |
CLIP; HARNESS,LICENSE LAMP
LIGHTING SYSTEM ECE<SLC>
ID=11 L=41
|
1-09700-403-0 |
01 |
1 |
9905- |
● |
|
|
| |
510 |
GROMMET; SCREW
ELECTRONIC GOV RED3(KG5)
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
9902-9904 |
● |
● |
|
| |
510 |
GROMMET; SCREW
ELECTRONIC GOV RED3(KG5)
D=9.7X9.7 L=8
|
8-94222-314-0 |
02 |
1 |
9905- |
● |
● |
● |
| |
510 |
GROMMET; SCREW
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
D=9.7X9.7 L=8
|
8-94222-314-0 |
01 |
1 |
9902- |
● |
● |
|
| |
530 |
SEAL; HARNESS
100X30
|
1-72498-014-1 |
01 |
1 |
9603-9702 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
100X30
|
1-72498-014-1 |
01 |
1 |
9603-9702 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9703-9901 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9703-9901 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
180X40
|
1-72498-019-0 |
06 |
1 |
9902-9904 |
● |
● |
|
| |
530 |
SEAL; HARNESS
ELECTRONIC GOV RED3(KG5)
180X40
|
1-72498-019-0 |
06 |
1 |
9902-9904 |
● |
● |
|
| |
530 |
SEAL; HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
180X40
|
1-72498-019-0 |
06 |
1 |
9905-0101 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
ELECTRONIC GOV RED3(KG5)
180X40
|
1-72498-019-0 |
06 |
1 |
9905-0101 |
● |
● |
|
| |
530 |
SEAL; HARNESS
6WA1 TC-C(55L)
EXC. ELECTRONIC GOV RED3(KG5)
180X40
|
1-72498-019-0 |
04 |
1 |
0102- |
● |
● |
● |
| |
530 |
SEAL; HARNESS
ELECTRONIC GOV RED3(KG5)
180X40
|
1-72498-019-0 |
04 |
1 |
0102- |
● |
● |
|
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9603-9702 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
100X30
|
1-72498-014-1 |
01 |
1 |
9703-9901 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
EXC. HIGH ROOF<S2F>
100X30
|
1-72498-014-1 |
04 |
1 |
9902-9903 |
● |
● |
|
| |
530 |
SEAL; HARNESS
EXC. HIGH ROOF<S2F>
100X40
|
1-72498-022-0 |
04 |
1 |
9904-9904 |
● |
● |
|
| |
530 |
SEAL; HARNESS
EXC. HIGH ROOF<S2F>
100X40
|
1-72498-022-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
07 |
1 |
0102- |
● |
● |
● |
| |
530 |
SEAL; HARNESS
ELEC OUTLET 12V<TAW>
EXC. NIKKO<Y70>
180X40
|
1-72498-019-0 |
01 |
1 |
0102- |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
0102- |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9902-9904 |
● |
● |
|
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9905-0005 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
9905-0005 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
ELEC OUTLET 12V<TAW>
EXC. NIKKO<Y70>
180X40
|
1-72498-019-0 |
01 |
1 |
0006-0101 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
0006-0101 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
180X40
|
1-72498-019-0 |
01 |
1 |
0006-0101 |
● |
● |
● |
| |
530 |
SEAL; HARNESS
ELEC OUTLET 12V<TAW>
180X40
|
1-72498-019-0 |
02 |
1 |
0102- |
● |
● |
● |
| |
530 |
SEAL; HARNESS
V TYPE ENG<91L>
POWER BRAKE LOCK SYSTEM(J50)
180X40
|
1-72498-019-0 |
02 |
1 |
0102- |
● |
● |
|
