1-01 — ACCELERATOR PEDAL AND CONTROL (#49368) — 27 parça

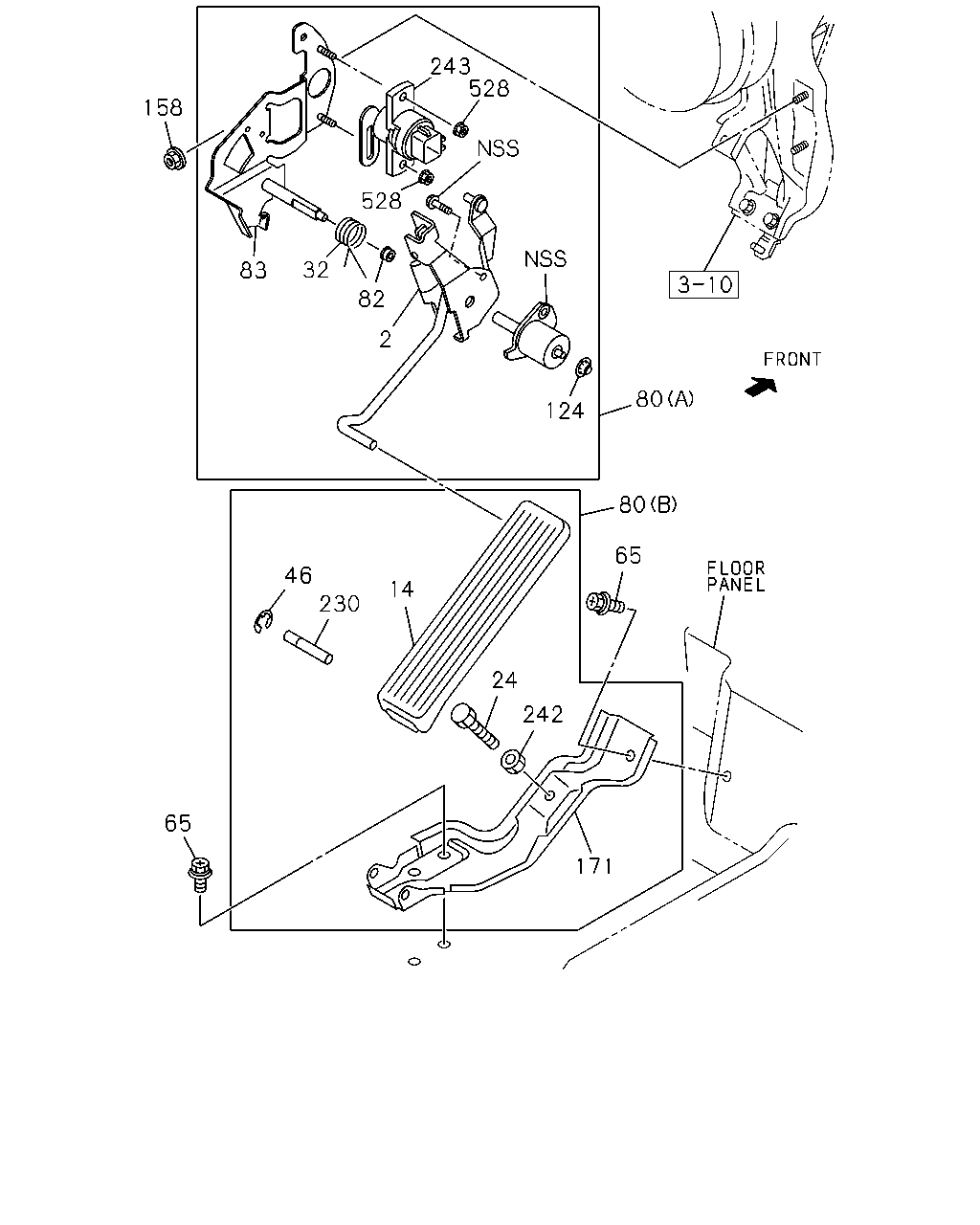

çizim 155647
243 528 158 528 32 83 82 2 80 124 80 65 46 14 230 24 242 65 171
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.454 LEVER; ENG CONT 8-98002-158-2 01 1 0712- ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0712- ● ● ● ●
24 03.483 BOLT; BRKT
09.173 M8X35 FLANGE 		8-98049-562-0 01 1 0712- ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0712- ● ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0712- ● ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0712- ● ● ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0712- ● ● ● ●
80 03.452 LINK ASM; ENG CONT
03.459 (B) 		8-98006-714-1 01 1 0712- ● ● ● ●
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0712- ● ● ● ●
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 0712- ● ● ● ●
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0712- ● ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0712- ● ● ● ●
171 03.483 BRACKET ASM; ACCEL PEDAL 8-98006-716-1 01 1 0712- ● ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 0712- ● ● ● ●
242 03.483 NUT; ACCEL PEDAL
02.559 M8 FLANGE 		8-98040-024-0 01 1 0712- ● ● ● ●
243 03.425 SENSOR; ACCEL 8-97602-416-0 01 1 0712-0910 ● ● ● ●
243 03.425 SENSOR; ACCEL 8-98131-263-0 01 1 0911- ● ● ● ●
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 0712- ● ● ● ●

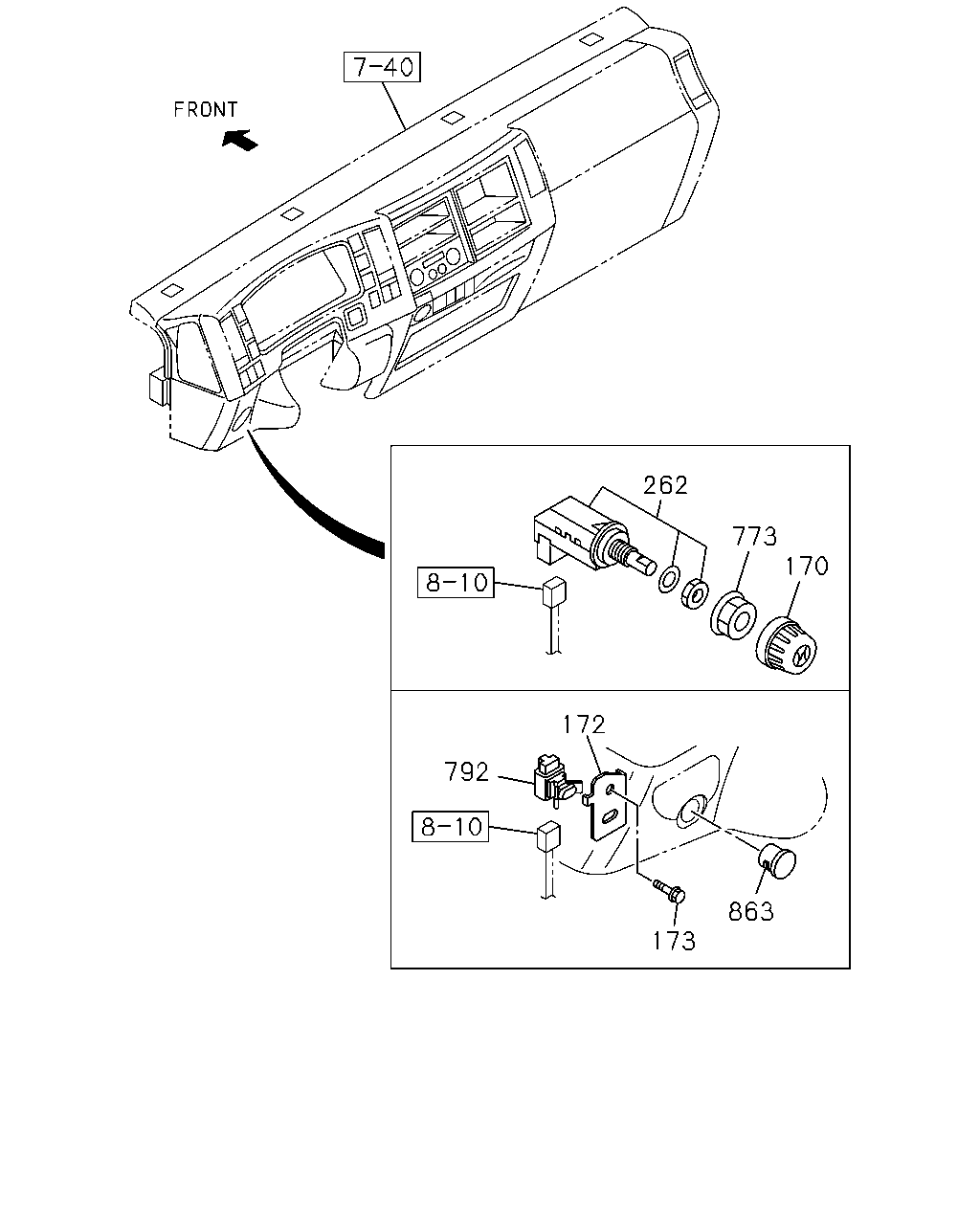

çizim 155648
262 773 170 172 792 863 173
BalonParca AdiParca NoAdetTipApplied Date A B C D
170 03.480 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-420-0 01 1 0712- ● ● ● ●
172 03.483 BRACKET; IDLE CONT
EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> 		8-98100-831-0 01 1 0712-0801 ● ● ● ●
173 03.483 BOLT; IDLE CONT BRKT
EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712-0801 ● ● ● ●
262 03.452 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98013-418-0 01 1 0712- ● ● ● ●
773 03.452 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-97352-127-0 01 1 0712- ● ● ● ●
792 03.483 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> 		8-98013-906-0 01 1 0712-0906 ● ● ● ●
792 03.483 RESISTOR; IDLE
4JJ1-TCS ENG(LFB) EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> 		8-98013-906-0 01 1 0907- ● ●
792 03.483 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> 		8-98013-906-0 01 1 0907- ● ●
863 03.463 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CONT ROL<NMT> GRAY 		8-97408-816-0 01 1 0712- ● ● ● ●
