◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#49362) — 145 parça

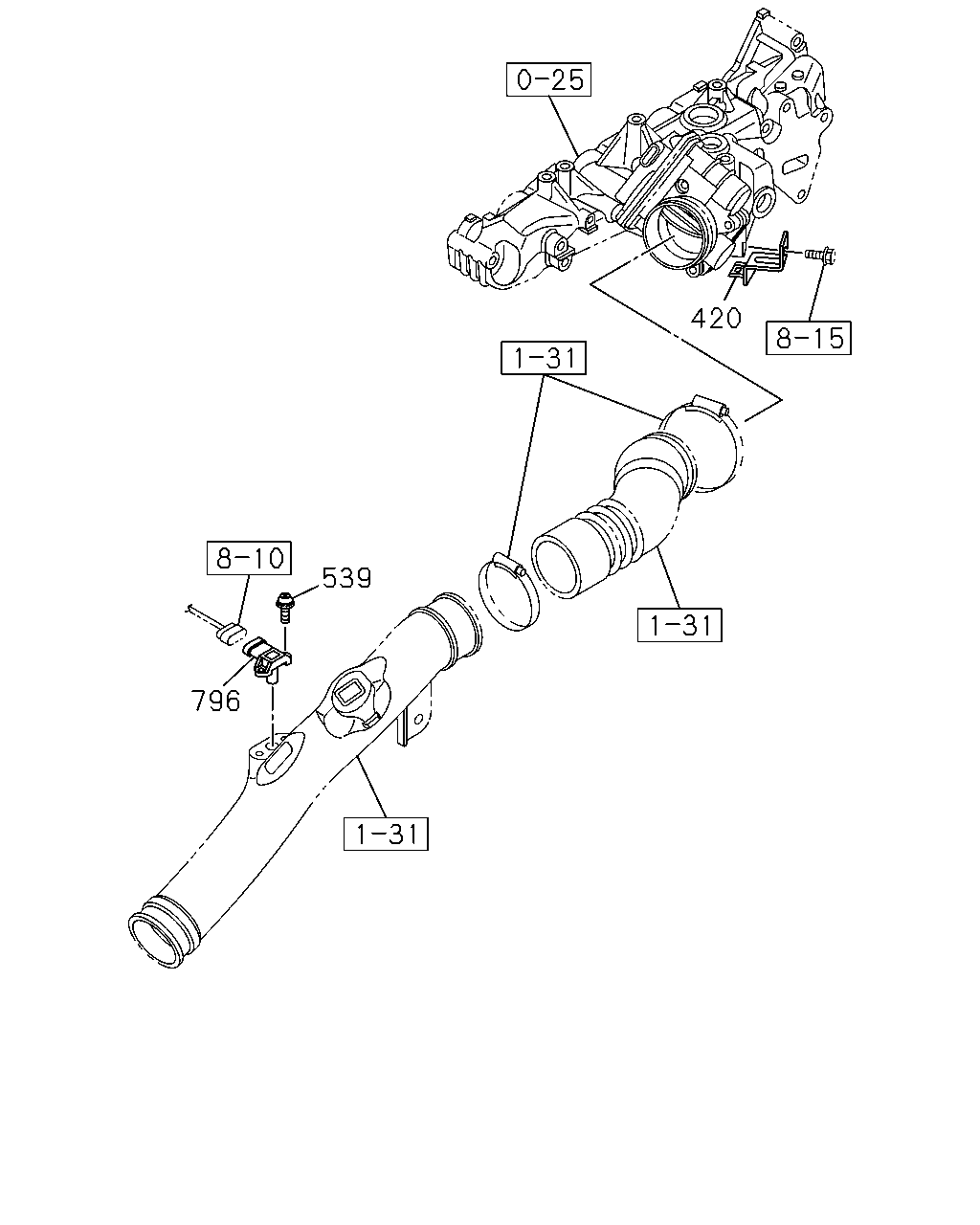

çizim 155629
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 0712- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0712- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0712- ● ●

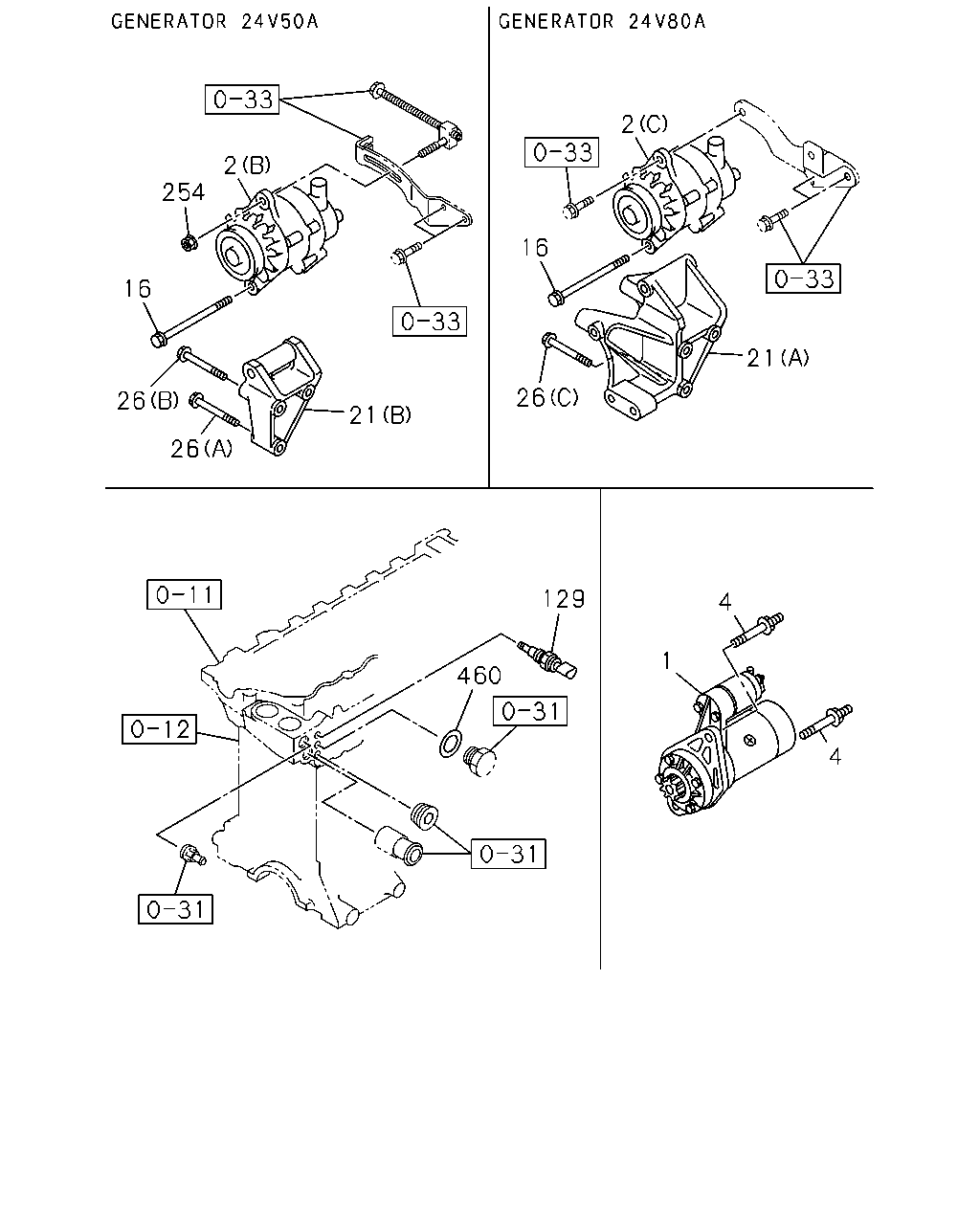

çizim 155630
2 2 254 16 16 21 26 26 21 26 129 4 1 460 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0712-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-1 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-1 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0712-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0712-1010 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-892-2 01 1 0712- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0712- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0712- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (B) 		8-97075-884-2 01 1 0712- ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (A) 		8-98036-551-0 01 1 0712- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0712- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0712- ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0712- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0712- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0712- ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0712- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0712- ●
çizim 155631
539 796
BalonParca AdiParca NoAdetTipApplied Date A B
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0712- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0712- ● ●
çizim 155632
10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0712- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0712-0906 ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0907- ● ●

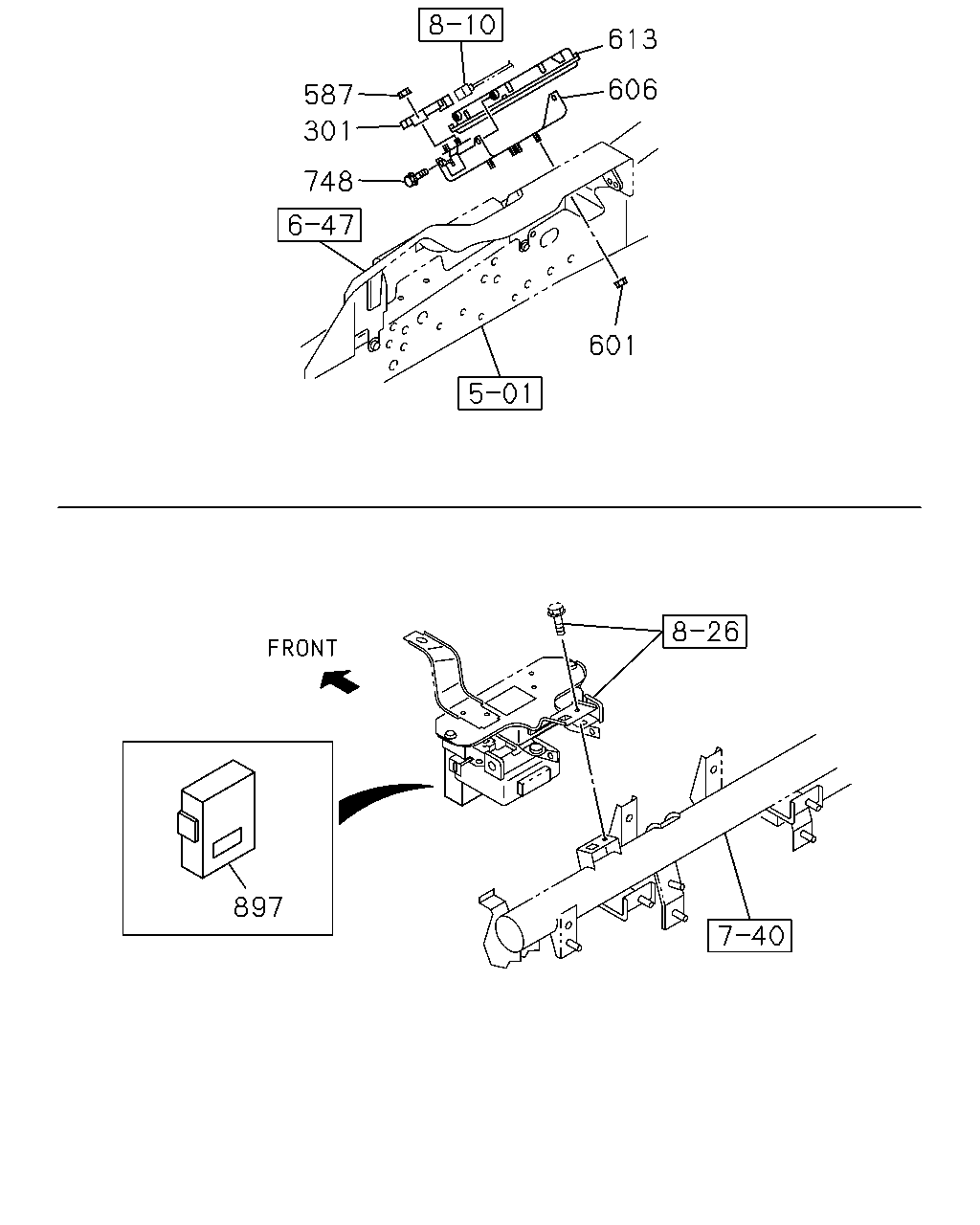

çizim 155633
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0712- ●
301 02.510 RESISTOR; DROPPING
NPR(NP***N) 		8-97357-613-0 01 1 0712- ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0712- ● ●
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0712-0906 ● ●
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0907-1402 ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1403- ● ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM(NMJ), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98066-053-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98066-060-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-063-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY5T(RSM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-056-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-059-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) SPEED LIMITER 90KM(NMJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-052-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SPEED LIMITER 90KM(NMJ), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98066-067-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98066-073-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98070-424-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY5T(RSM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-070-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) M/T MYY6S(RST) FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-066-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) M/T MYY6S(RST) FINAL GEAR RATIO 41/9(HC6) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-072-9 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98081-086-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-087-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-081-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-084-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98081-080-7 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98081-083-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98071-394-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) SPEED LIMITER 90KM(NMJ) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-395-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-299-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-393-6 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98071-297-7 01 1 0712- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98071-392-6 01 1 0712- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0712-0906 ● ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0907- ● ●
897 02.510 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-6 01 1 0712- ● ●

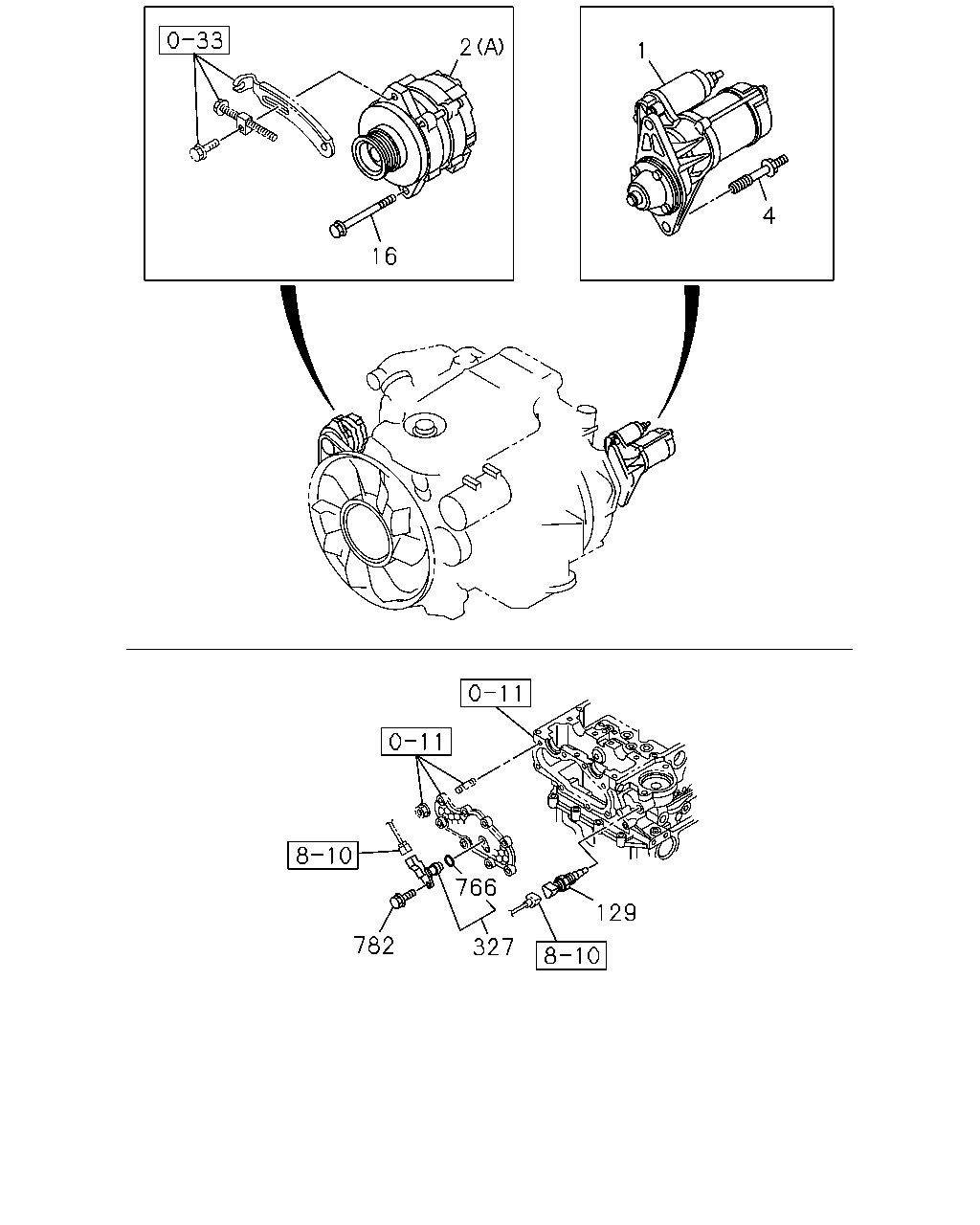

çizim 155634
2 1 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0712-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-1 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-1 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0712-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0712-1010 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-892-2 01 1 0712- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0712- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0712- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0712- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0712- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0712- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0712- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0712- ●

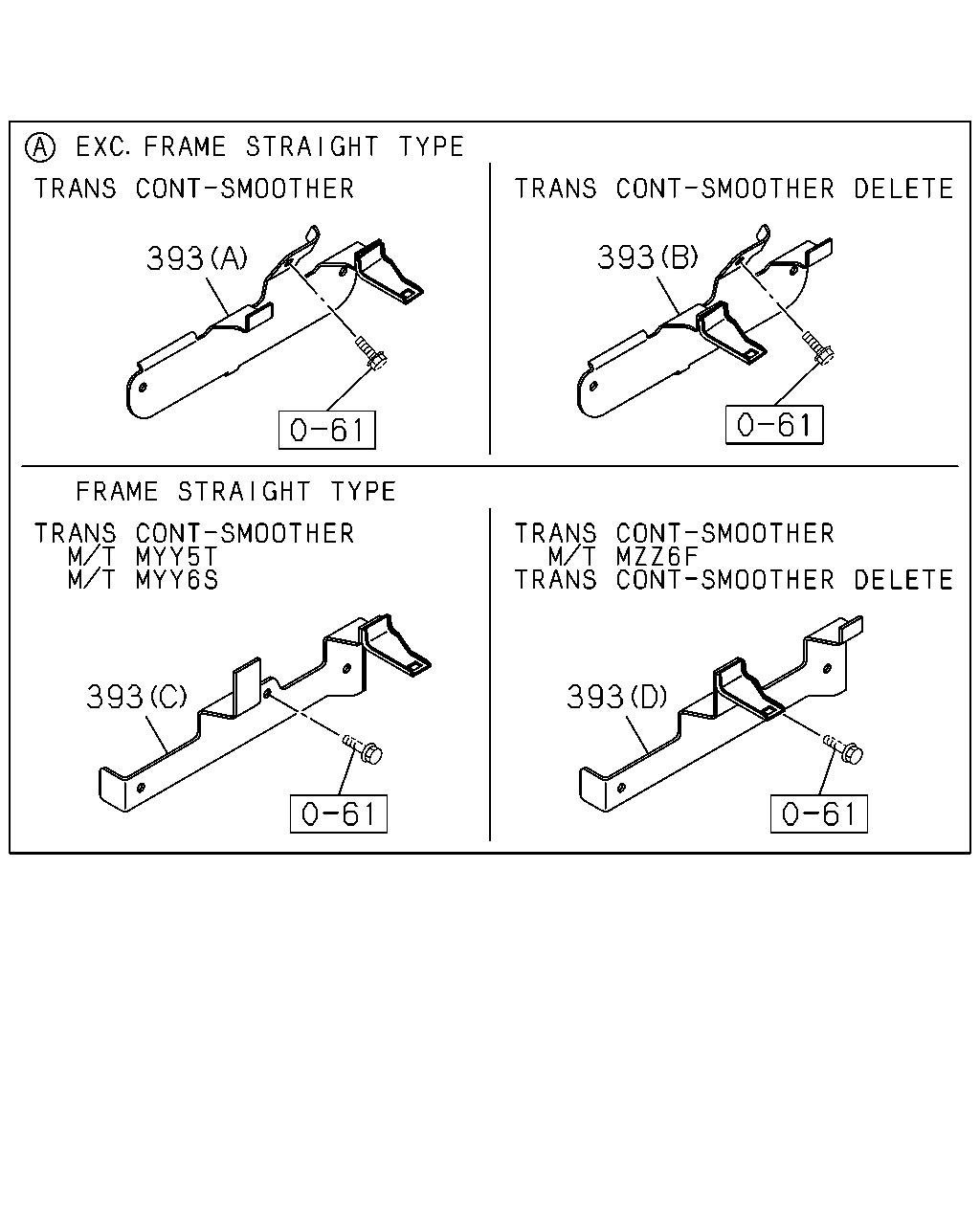

çizim 155636
393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0712-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0712-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (H) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (H) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0712-0909 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0712-0909 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0712-0909 ●
393 02.343 BRACKET; HARNESS TO BODY
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR(NP***N) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NNR DBL CAB(NP**WE) 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR DBL CAB(NP**WN) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 0712- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0712- ●

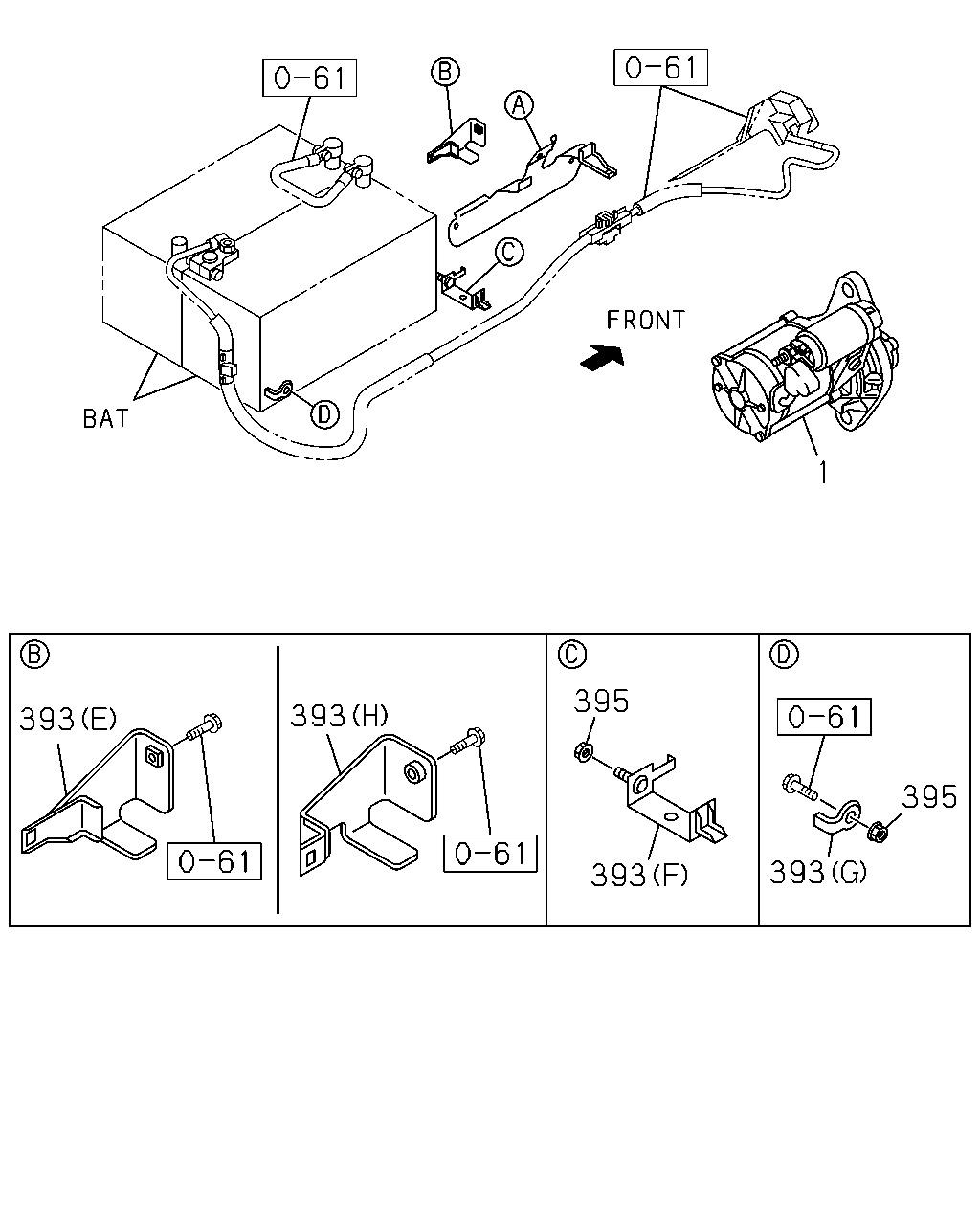

çizim 155640
1 395 393 393 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0712-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-1 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-1 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0712-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0712-1010 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0712-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0712-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (H) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (H) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0712-0909 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0712-0909 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0712-0909 ●
393 02.343 BRACKET; HARNESS TO BODY
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR(NP***N) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NNR DBL CAB(NP**WE) 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR DBL CAB(NP**WN) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0910- ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0712- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 0712- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0712- ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712-0909 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712-0909 ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712-0909 ●
395 02.343 NUT; BRKT FIX
NNR SGL CAB(NP**SE) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910- ●
395 02.343 NUT; BRKT FIX
NPR(NP***N) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910- ●
395 02.343 NUT; BRKT FIX
NNR DBL CAB(NP**WE) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910- ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910- ●
395 02.343 NUT; BRKT FIX
NPR DBL CAB(NP**WN) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910- ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
