◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#49351) — 20 parça

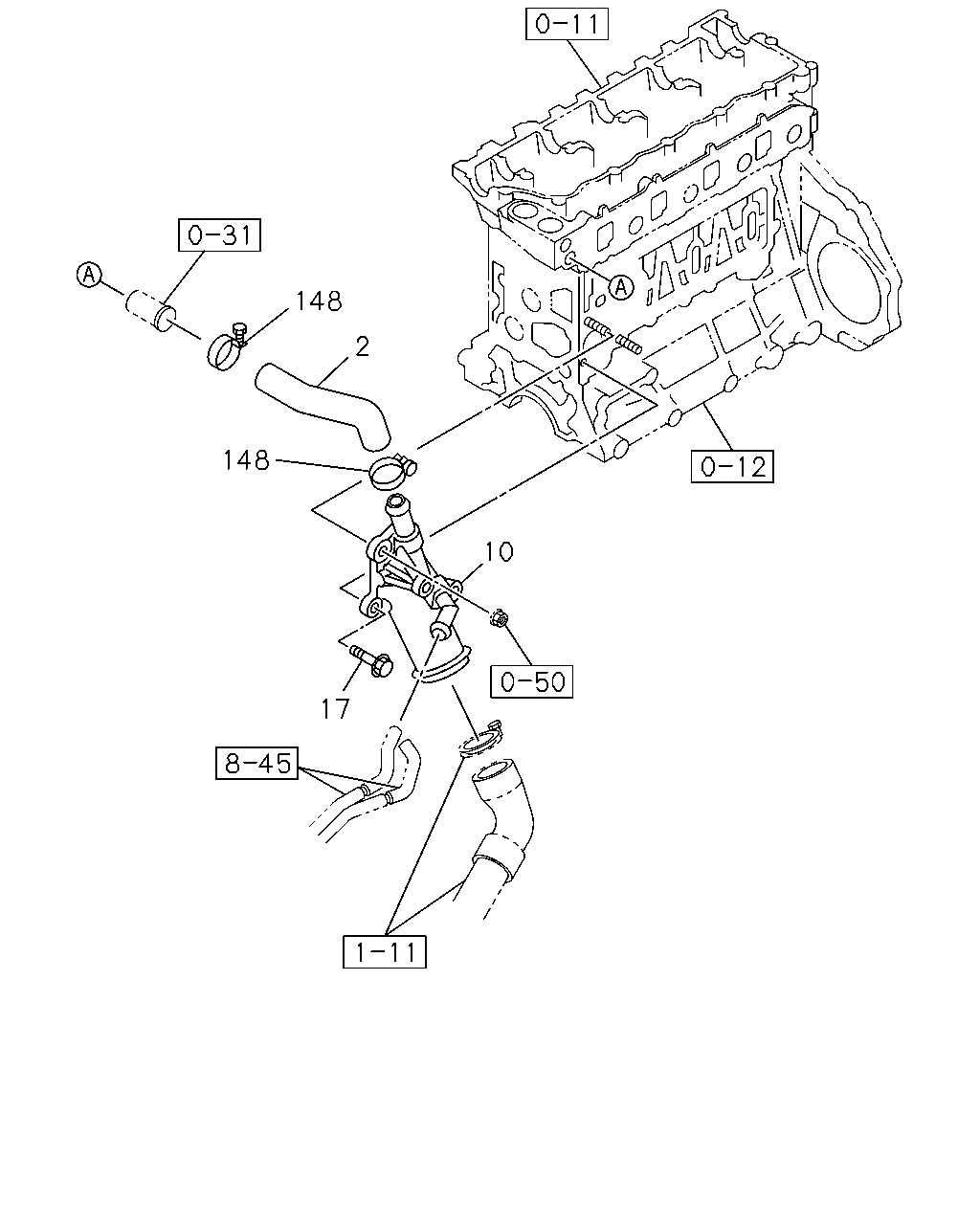

çizim 155605
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 0712- ●
10 01.153 PIPE; SUCTION 8-97371-775-1 01 1 0712-1010 ●
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1011- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0712- ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0712- ●

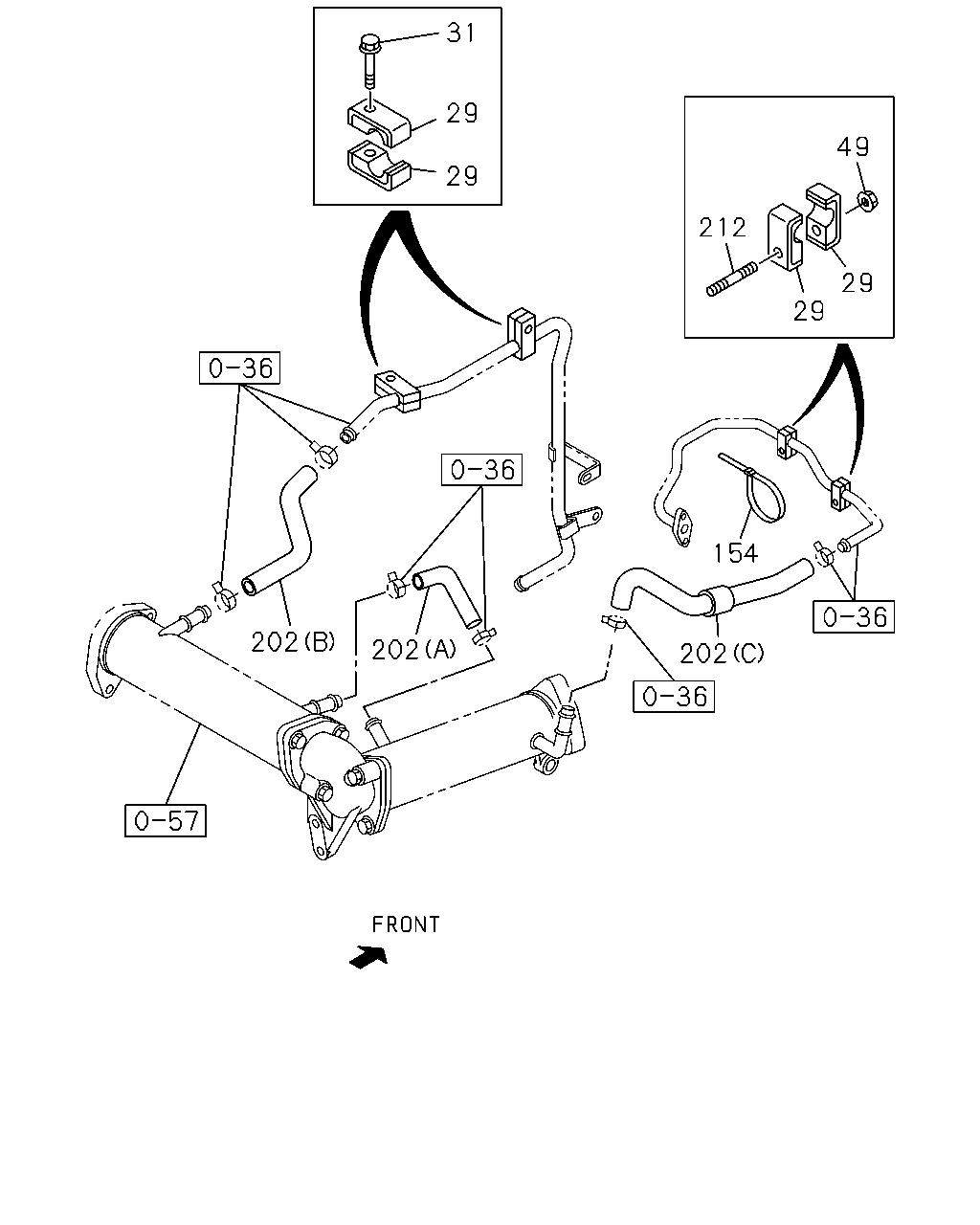

çizim 155606
49 29 29 212 31 29 29 154 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
29 01.166 CLIP; PIPE 1-09701-284-0 08 1 0712- ●
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0712- ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ●
154 01.153 CLIP; WATER HOSE
02.559 L=170.3 		1-09987-182-0 01 1 0712- ●
202 01.240 HOSE; RUBBER,EGR COOLER
(A) 		8-97386-585-0 01 1 0712- ●
202 01.240 HOSE; RUBBER,EGR COOLER
(B) 		8-97386-586-1 01 1 0712- ●
202 01.240 HOSE; RUBBER,EGR COOLER
(C) 		8-98032-268-0 01 1 0712- ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0712- ●

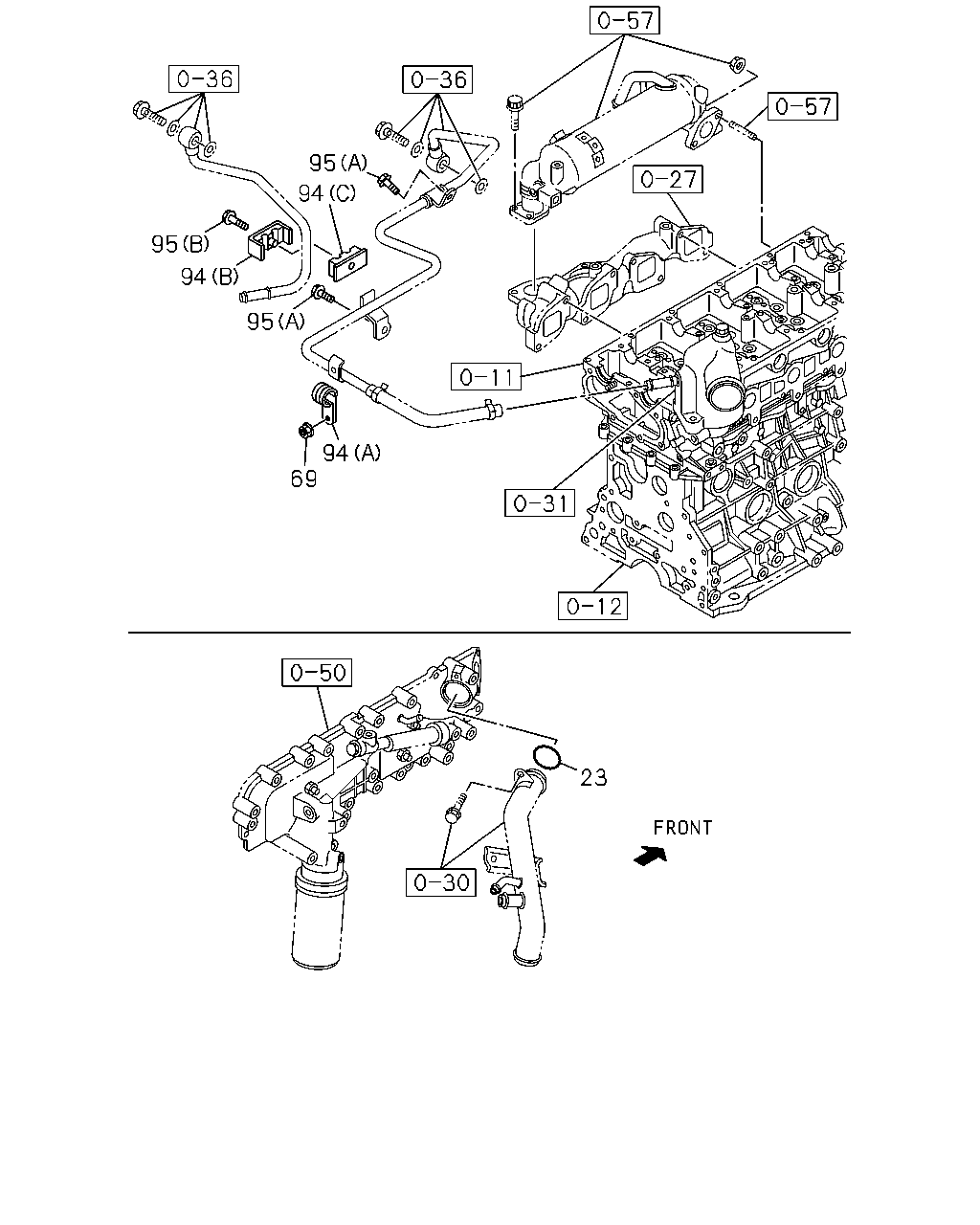

çizim 155607
95 94 95 94 95 94 69 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 0712- ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 0712- ●
94 01.153 CLIP; WATER PIPE
04.047 (A) 		1-09700-911-1 01 1 0712- ●
94 01.153 CLIP; WATER PIPE
01.531 (B) 		1-09701-228-3 01 1 0712- ●
94 01.153 CLIP; WATER PIPE
01.531 (C) 		1-09701-229-2 01 1 0712- ●
95 01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 0712- ●
95 01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE 		0-28650-635-0 01 1 0712- ●
