Sayfa 8-05 - Isuzu EPC

8-05 — INTERIOR LAMP (#4935) — 162 parça

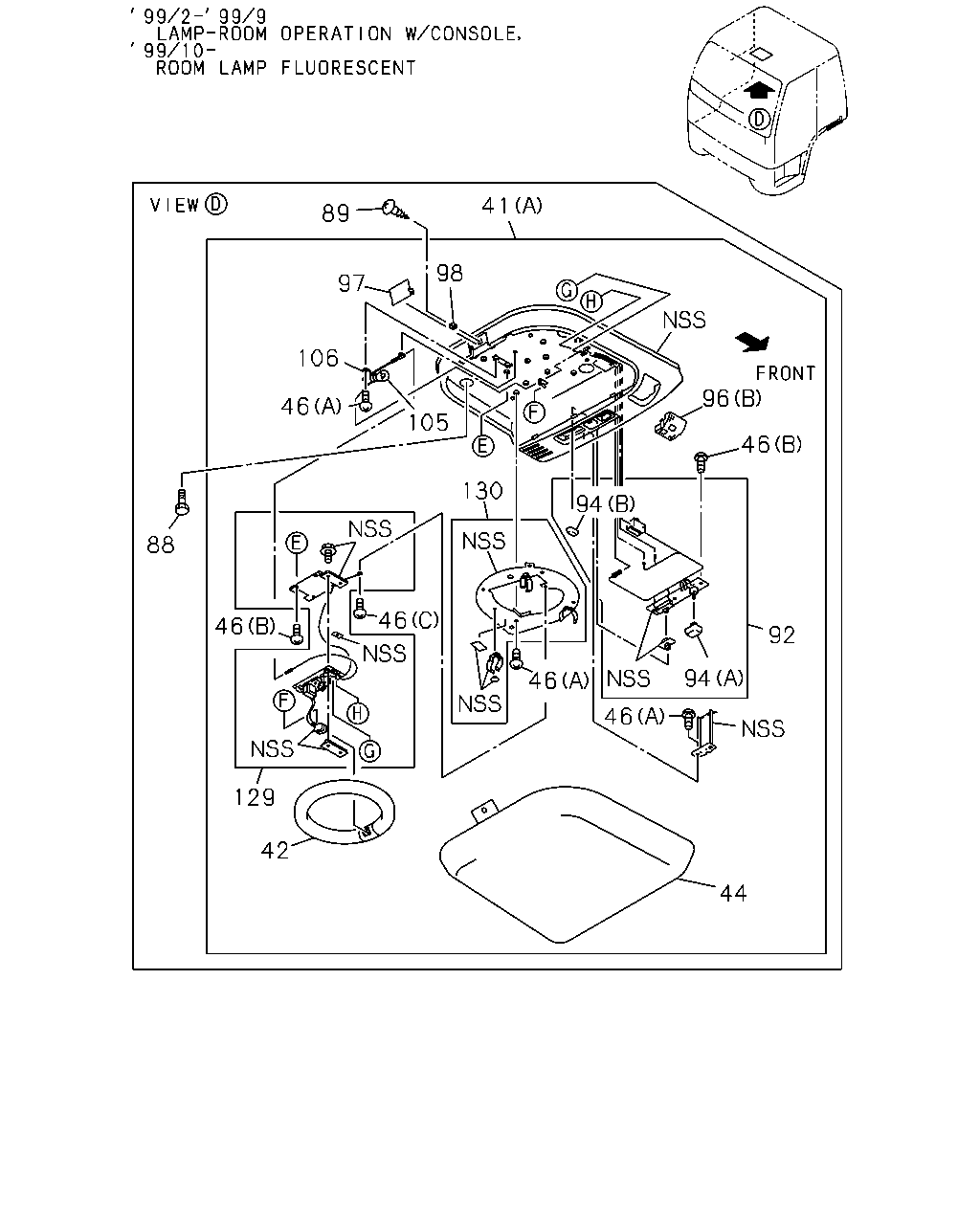

41 89 98 97 106 96 46 105 46 130 94 88 46 46 92 94 46 46 129 42 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-245-2	01	1	9603-9901	●	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-305-2	01	1	9902-9904		●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-305-2	01	1	9905-9909	●	●	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-305-2	01	1	9910-	●	●	●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9603-9901	●	●	●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9902-9904		●	●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9905-9909	●	●	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-	●	●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9603-9901	●	●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9902-9904		●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9905-9909	●	●	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9902-9904		●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9905-9909	●	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9902-9904		●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9905-9909	●	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9902-9904		●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9905-9909	●	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	04	1	9603-9901	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	02	1	9603-9901	●	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9603-9901	●	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9902-9904		●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-9909	●	●	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-	●	●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9603-9901	●	●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9902-9904		●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9905-9909	●	●	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-	●	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9902-9904		●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9905-9909	●	●	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-	●	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-280-0	01	1	9603-9901	●	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9902-9904		●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9905-9909	●	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-	●	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-098-0	01	1	9603-9901	●	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9902-9904		●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9905-9909	●	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-	●	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-100-0	01	1	9603-9901	●	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9603-9901	●	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9902-9904		●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9905-9909	●	●	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-282-0	01	1	9910-	●	●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9603-9901	●	●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9902-9904		●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9905-9909	●	●	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-	●	●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9603-9901	●	●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9902-9904		●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9905-9909	●	●	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-	●	●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9603-9901	●	●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9902-9904		●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9905-9909	●	●	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-	●	●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9603-9901	●	●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9902-9904		●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9905-9909	●	●	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-	●	●	●
129	INVERTER ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-338-0	01	1	9902-9904		●	●
129	INVERTER ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-338-0	01	1	9905-9909	●	●	●
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	9910-	●	●	●
130	PLATE ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-339-0	01	1	9902-9904		●	●
130	PLATE ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-339-0	01	1	9905-9909	●	●	●
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	9910-	●	●	●

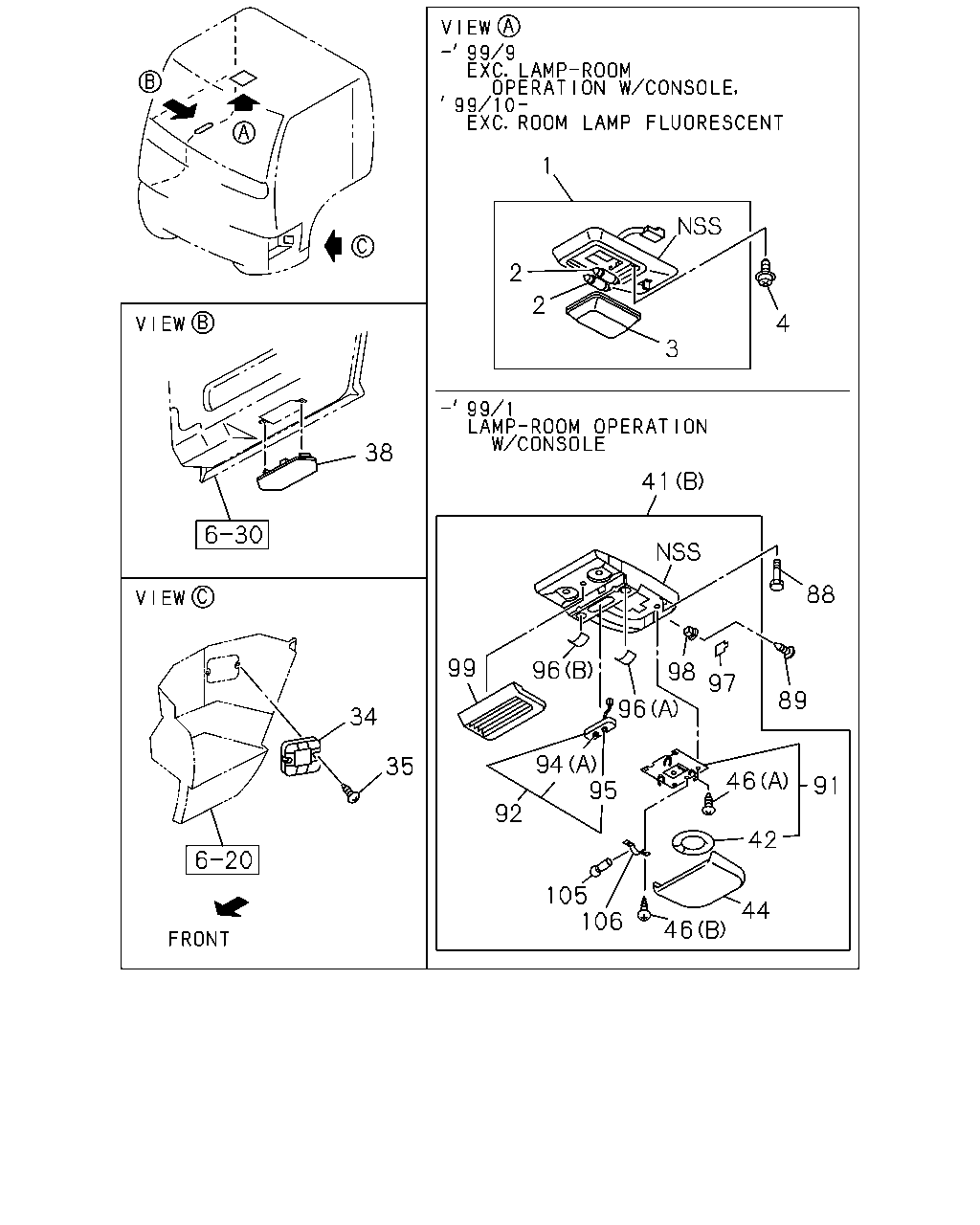

1 2 2 4 3 38 41 88 99 96 98 97 89 96 34 94 95 35 46 91 92 42 105 106 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9603-9901	●	●	●
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9902-9904		●	●
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9905-9909	●	●	●
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	9910-	●	●	●
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9603-9901	●	●	●
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9902-9904		●	●
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9905-9909	●	●	●
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	9910-	●	●	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	8-94206-208-0	01	1	9603-9709	●	●	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9710-9901	●	●	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9902-9904		●	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9905-9909	●	●	●
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	9910-	●	●	●
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> TAPPING W/PL WASHER M5X25	5-09981-093-0	03	1	9603-9901	●	●	●
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> TAPPING W/PL WASHER M5X25	5-09981-093-0	03	1	9902-9904		●	●
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> TAPPING W/PL WASHER M5X25	5-09981-093-0	03	1	9905-9909	●	●	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X25	5-09981-093-0	03	1	9910-9911	●	●	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	9912-	●	●	●
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	01	1	9603-9901	●	●	●
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	01	1	9902-9904		●	●
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	01	1	9905-	●	●	●
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> M4X20 TAPPING W/PL WASHER	0-74310-420-0	02	1	9603-9901	●	●	●
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> M4X20 TAPPING W/PL WASHER	0-74310-420-0	02	1	9902-9904		●	●
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> M4X20 TAPPING W/PL WASHER	0-74310-420-0	02	1	9905-	●	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9603-9901	●	●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9902-9904		●	●
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9905-	●	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-245-2	01	1	9603-9901	●	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-305-2	01	1	9902-9904		●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-305-2	01	1	9905-9909	●	●	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-305-2	01	1	9910-	●	●	●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9603-9901	●	●	●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9902-9904		●	●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9905-9909	●	●	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-	●	●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9603-9901	●	●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9902-9904		●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9905-9909	●	●	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9902-9904		●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9905-9909	●	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9902-9904		●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9905-9909	●	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9902-9904		●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9905-9909	●	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	04	1	9603-9901	●	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	02	1	9603-9901	●	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9603-9901	●	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9902-9904		●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-9909	●	●	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-	●	●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9603-9901	●	●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9902-9904		●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9905-9909	●	●	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-	●	●	●
91	LAMP SUB ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-207-0	01	1	9603-9901	●	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9902-9904		●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9905-9909	●	●	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-	●	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-280-0	01	1	9603-9901	●	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9902-9904		●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9905-9909	●	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-	●	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-098-0	01	1	9603-9901	●	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9902-9904		●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9905-9909	●	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-	●	●	●
95	KNOB; SPOT LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-099-0	01	1	9603-9901	●	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-100-0	01	1	9603-9901	●	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9603-9901	●	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9902-9904		●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9905-9909	●	●	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-282-0	01	1	9910-	●	●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9603-9901	●	●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9902-9904		●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9905-9909	●	●	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-	●	●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9603-9901	●	●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9902-9904		●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9905-9909	●	●	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-	●	●	●
99	COVER; AIR PURIFIER LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-103-0	01	1	9603-9901	●	●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9603-9901	●	●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9902-9904		●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9905-9909	●	●	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-	●	●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9603-9901	●	●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9902-9904		●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9905-9909	●	●	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
