Isuzu WW
▶
TRUCKS
▶
NNR
▶
51155 - NNR/NPR EU-L EXC.EU5
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#49347) — 35 parça
Tümü
A - 4JJ1-TCS ENG
B - 4HK1-TCS ENG
◀

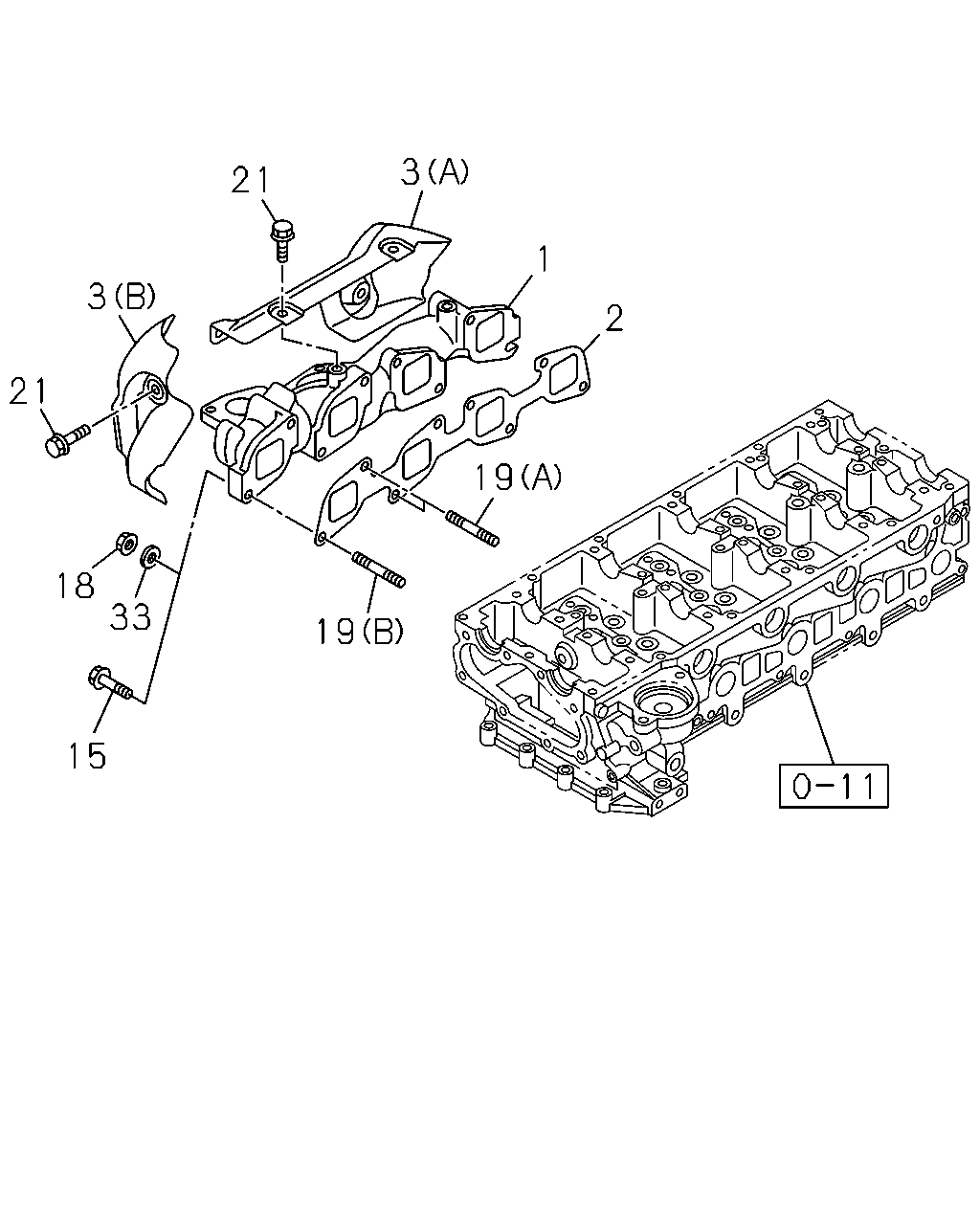

[027A] 4JJ1 (18 parça)

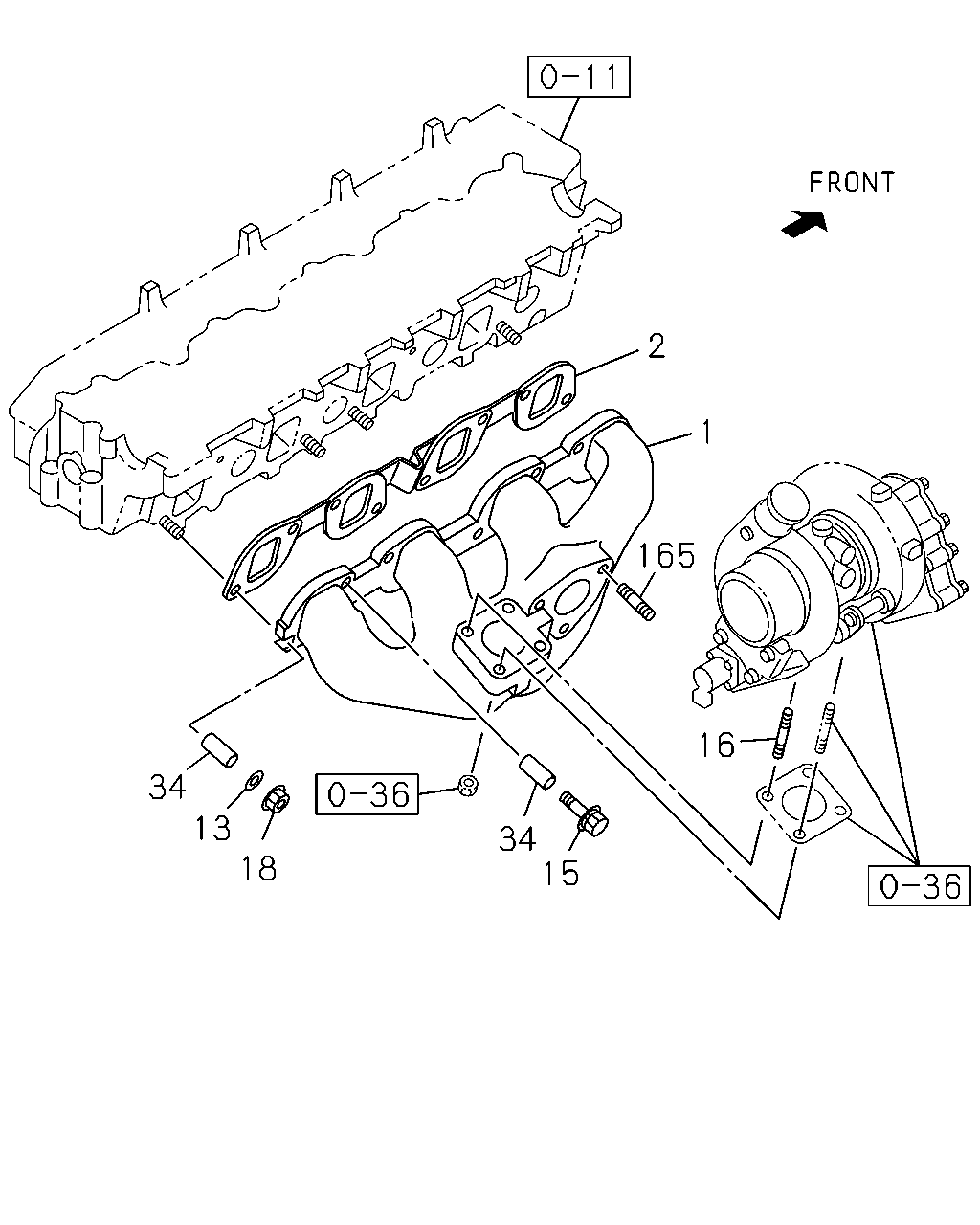

[027A] 4HK1 (17 parça)
▶
15
33
18
21
3
21
3
1
19
19
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0712-
●
1
03.601 MANIFOLD; EXHAUST
8-97387-873-4
01
1
0712-1405
●
1
03.601 MANIFOLD; EXHAUST
8-98271-447-0
01
1
1406-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0712-1204
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1205-1312
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0712-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
0712-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98011-523-0
01
1
0712-
●
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1304-
●
15
03.604 BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0712-
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0712-1303
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1304-
●
18
03.604 NUT; EXH MANIF
00.833 M10
0-91110-510-0
02
1
0712-
●
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0712-1303
●
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0712-
●
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
07
1
0712-
●
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
0712-
●
2
1
165
16
15
34
18
13
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0712-
●
1
03.601 MANIFOLD; EXHAUST
8-97387-873-4
01
1
0712-1405
●
1
03.601 MANIFOLD; EXHAUST
8-98271-447-0
01
1
1406-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0712-1204
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1205-1312
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0712-
●
13
03.613 WASHER; LK,EXH MANIF
03.604 T=2.2
1-09556-015-0
02
1
0712-
●
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1304-
●
15
03.604 BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0712-
●
16
03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40
9-04731-025-0
02
1
0712-0805
●
16
03.604 STUD; EXH PIPE TO MANIF
03.342 M10X30 L=45
1-09302-106-0
02
1
0806-
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0712-1303
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1304-
●
18
03.604 NUT; EXH MANIF
00.833 M10
0-91110-510-0
02
1
0712-
●
34
03.603 COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0712-
●
165
03.417 STUD; EGR PIPE
03.342 M8X25 L=36
8-94476-282-0
03
1
0712-
●
