◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#49345) — 88 parça

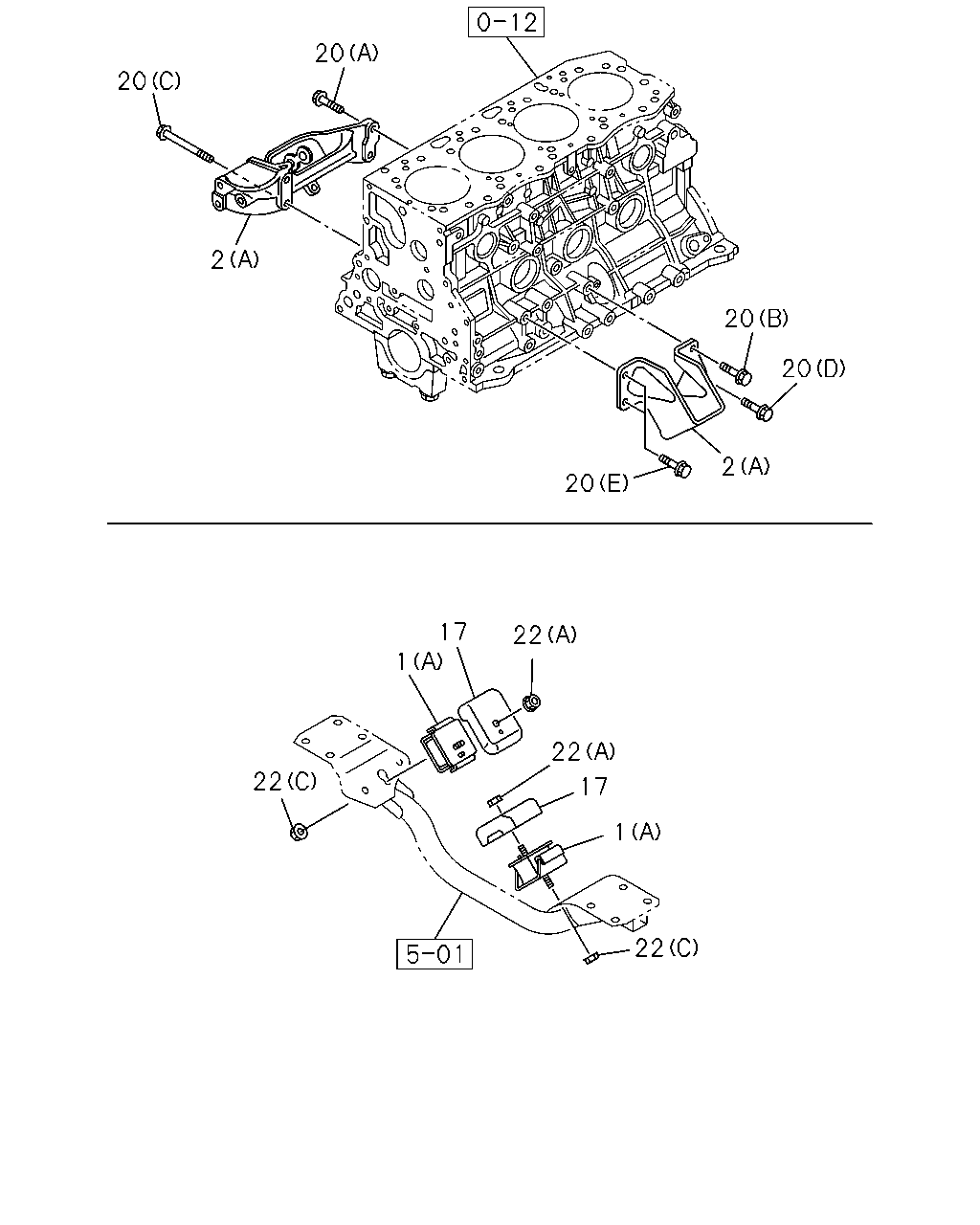

çizim 155585
20 20 2 20 20 2 20 17 22 1 22 22 17 1 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) FOR ITALY(CT6) (A) 		8-97229-822-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) (A) 		8-97229-822-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) FOR ITALY(CT6) (A) 		8-97229-823-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) (A) 		8-97229-823-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98043-001-0 01 1 0712-0912 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FOR ITALY(CT6) (A) 		8-98043-001-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) FOR ITALY(CT6) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) FOR ITALY(CT6) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98043-000-0 01 1 0712-0912 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FOR ITALY(CT6) (A) 		8-98043-000-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) FOR ITALY(CT6) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) FOR ITALY(CT6) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-97387-250-2 01 1 0712-1112 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98203-633-0 01 1 1201- ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98061-232-0 01 1 0712-1112 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98203-634-0 01 1 1201- ●
2 00.029 FOOT; ENG
(A) 		8-97381-513-1 01 1 0712- ●
2 00.029 FOOT; ENG
(A) 		8-97381-514-2 01 1 0712- ●
2 00.029 FOOT; ENG
(B) 		8-97228-669-2 02 1 0712- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 0712- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 0712- ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
(F) M10X20 FLANGE 		0-28161-020-0 08 1 0712- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0712- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0712- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0712- ●
çizim 155593
87 84 76 71 134 78 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B
52 00.027 RUBBER; CUSHION,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94111-903-1 02 1 0712- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97039-277-0 02 1 0712- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98004-324-1 01 1 0712- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98004-325-1 01 1 0712- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97180-457-0 01 1 0712- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97180-458-0 01 1 0712- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6F(RSR) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0712- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6F(RSR) 00.027 (B) 		8-94111-904-0 02 1 0712- ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 0712- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6F(RSR) (A) 		8-97039-947-1 04 1 0712- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 0712- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 0712- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 02 1 0712-1407 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 02 1 1408- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) 		8-97234-719-0 01 1 0712- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) 		8-97211-475-0 01 1 0712- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0712- ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0712- ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0712- ● ●

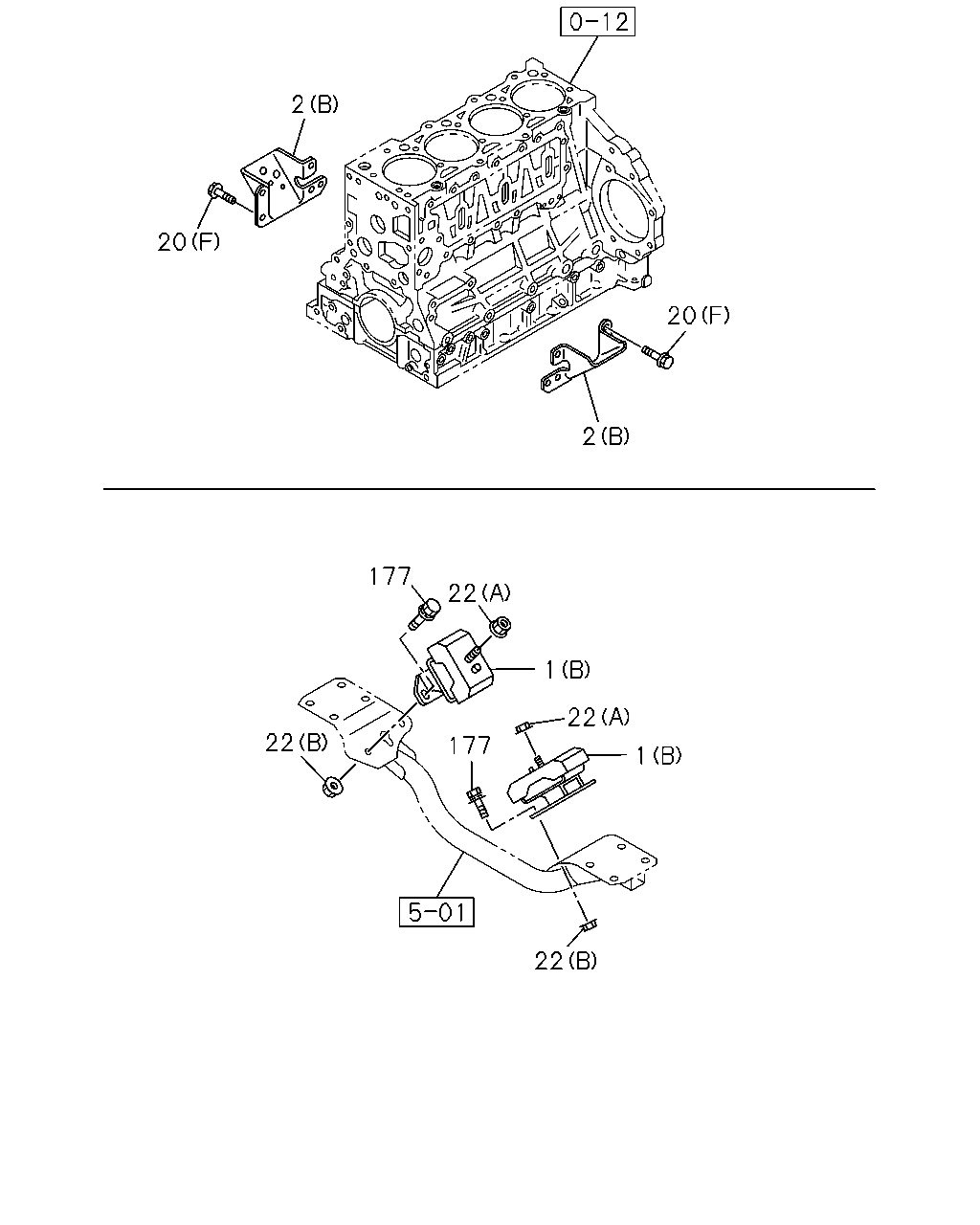

çizim 155596
2 20 20 2 177 22 1 22 22 177 1 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) FOR ITALY(CT6) (A) 		8-97229-822-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) (A) 		8-97229-822-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) FOR ITALY(CT6) (A) 		8-97229-823-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NNR(NP***E) (A) 		8-97229-823-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98043-001-0 01 1 0712-0912 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FOR ITALY(CT6) (A) 		8-98043-001-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) FOR ITALY(CT6) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) FOR ITALY(CT6) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-001-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98043-000-0 01 1 0712-0912 ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. FOR ITALY(CT6) (A) 		8-98043-000-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) FOR ITALY(CT6) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) FOR ITALY(CT6) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001-1001 ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR SGL CAB(NP**SN) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
NPR DBL CAB(NP**WN) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) 		8-98043-000-0 01 1 1001- ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-97387-250-2 01 1 0712-1112 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98203-633-0 01 1 1201- ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98061-232-0 01 1 0712-1112 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98203-634-0 01 1 1201- ●
2 00.029 FOOT; ENG
(A) 		8-97381-513-1 01 1 0712- ●
2 00.029 FOOT; ENG
(A) 		8-97381-514-2 01 1 0712- ●
2 00.029 FOOT; ENG
(B) 		8-97228-669-2 02 1 0712- ●
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ●
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 0712- ●
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
20 00.029 BOLT; ENG FOOT
(F) M10X20 FLANGE 		0-28161-020-0 08 1 0712- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0712- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0712- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0712- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
