0-12 — CYLINDER BLOCK (#49340) — 123 parça

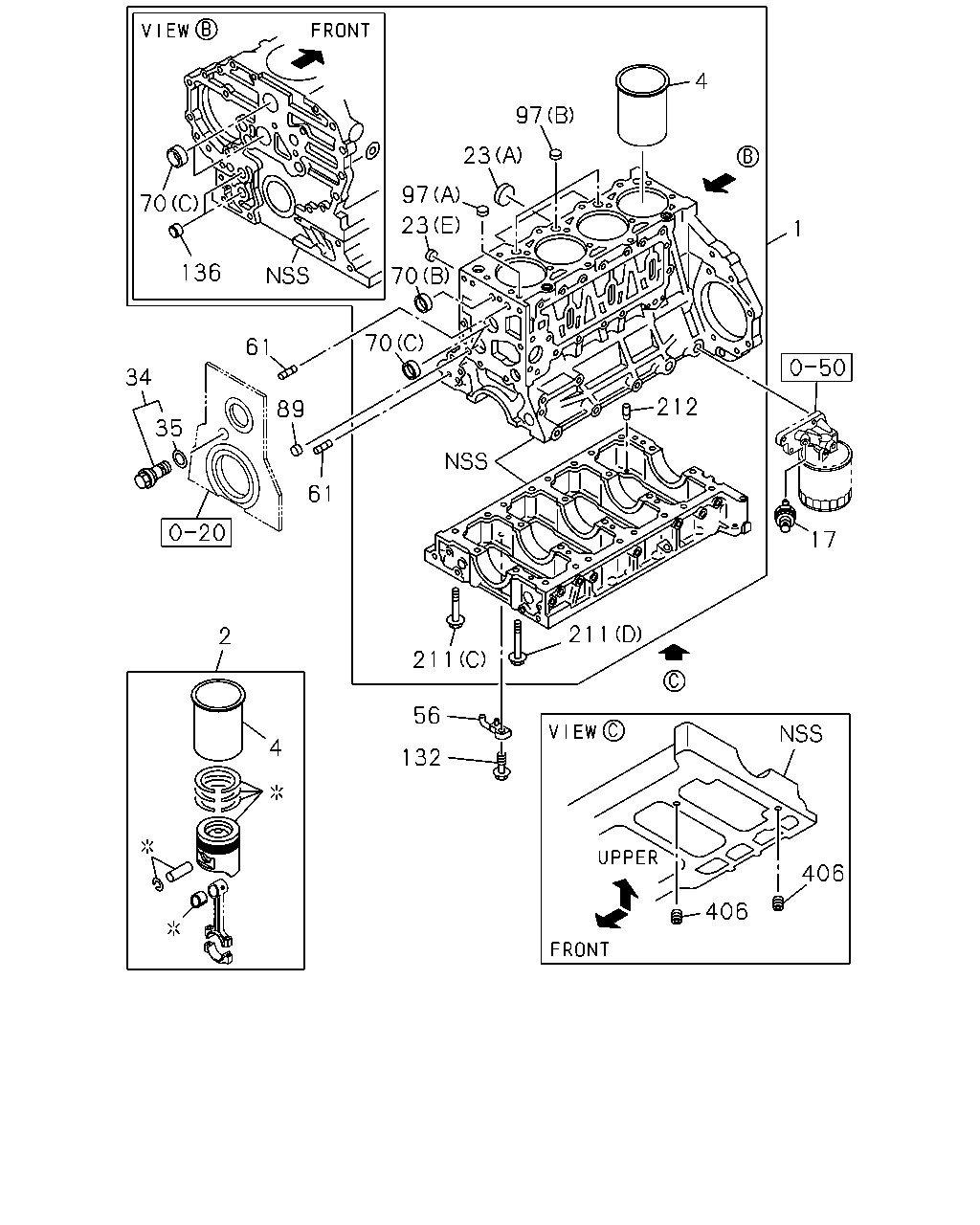

406 406 132 56 211 211 17 212 1 4 97 23 97 70 23 70 61 89 61 35 34 2 4 136 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0712-1209	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302	●
1	00.033 BLOCK ASM; CYL	8-98223-994-1	01	1	1303-	●
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	0712-1405		●
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-		●
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	0712-1405		●
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	0712-1405		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	0712-1405		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (E) OD=25	1-09600-016-0	01	1	0712-		●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0712-		●
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0712-		●
56	01.519 JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0712-1007		●
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-		●
61	00.206 PIN; STRAIGHT 01.428	9-09878-597-0	02	1	0712-	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0712-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0712-	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0712-		●
70	00.034 CUP; SEALING,FRT & RR (C) OD=40	8-97096-824-0	04	1	0712-		●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0712-		●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0712-		●
97	00.034 CUP; SEALING 00.253 (C) OD=12	8-97036-335-1	01	1	0712-		●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0712-		●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0712-		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0712-0812		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-		●
211	01.428 BOLT; CRANKCASE 06.216 (A) M8X25 FLANGE	0-28650-825-0	19	1	0712-	●
211	01.428 BOLT; CRANKCASE 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	0712-	●
211	01.428 BOLT; CRANKCASE (C) M10X82	8-94399-553-2	17	1	0712-		●
211	01.428 BOLT; CRANKCASE 00.293 (D) M14X115 W/FLANGE	8-97077-638-0	10	1	0712-		●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0712-		●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0712-		●

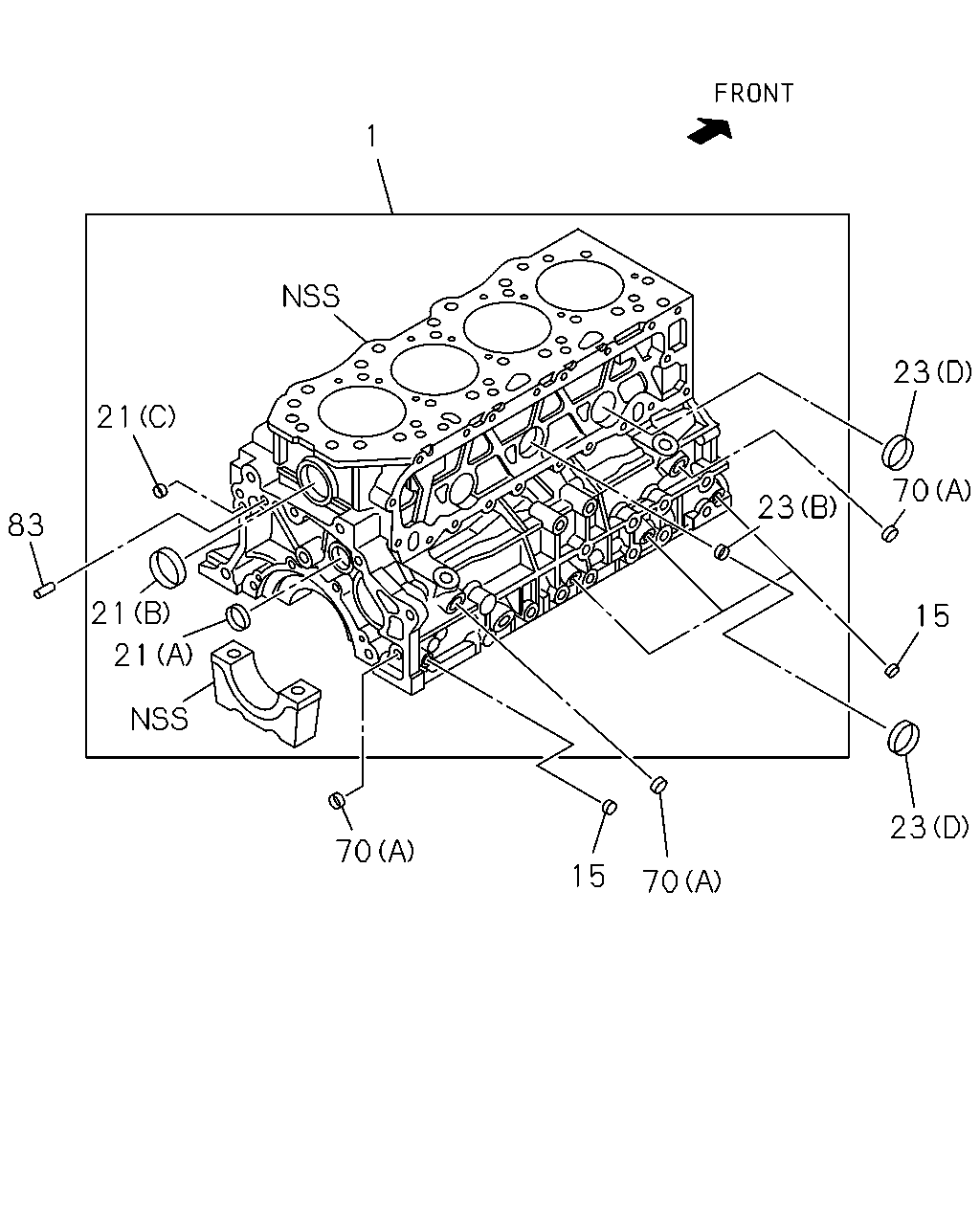

1 23 21 70 23 83 21 15 21 23 70 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0712-1209	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302	●
1	00.033 BLOCK ASM; CYL	8-98223-994-1	01	1	1303-	●
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0712-	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0712-	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0712-	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (E) OD=25	1-09600-016-0	01	1	0712-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0712-	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0712-		●
70	00.034 CUP; SEALING,FRT & RR (C) OD=40	8-97096-824-0	04	1	0712-		●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	0712-	●

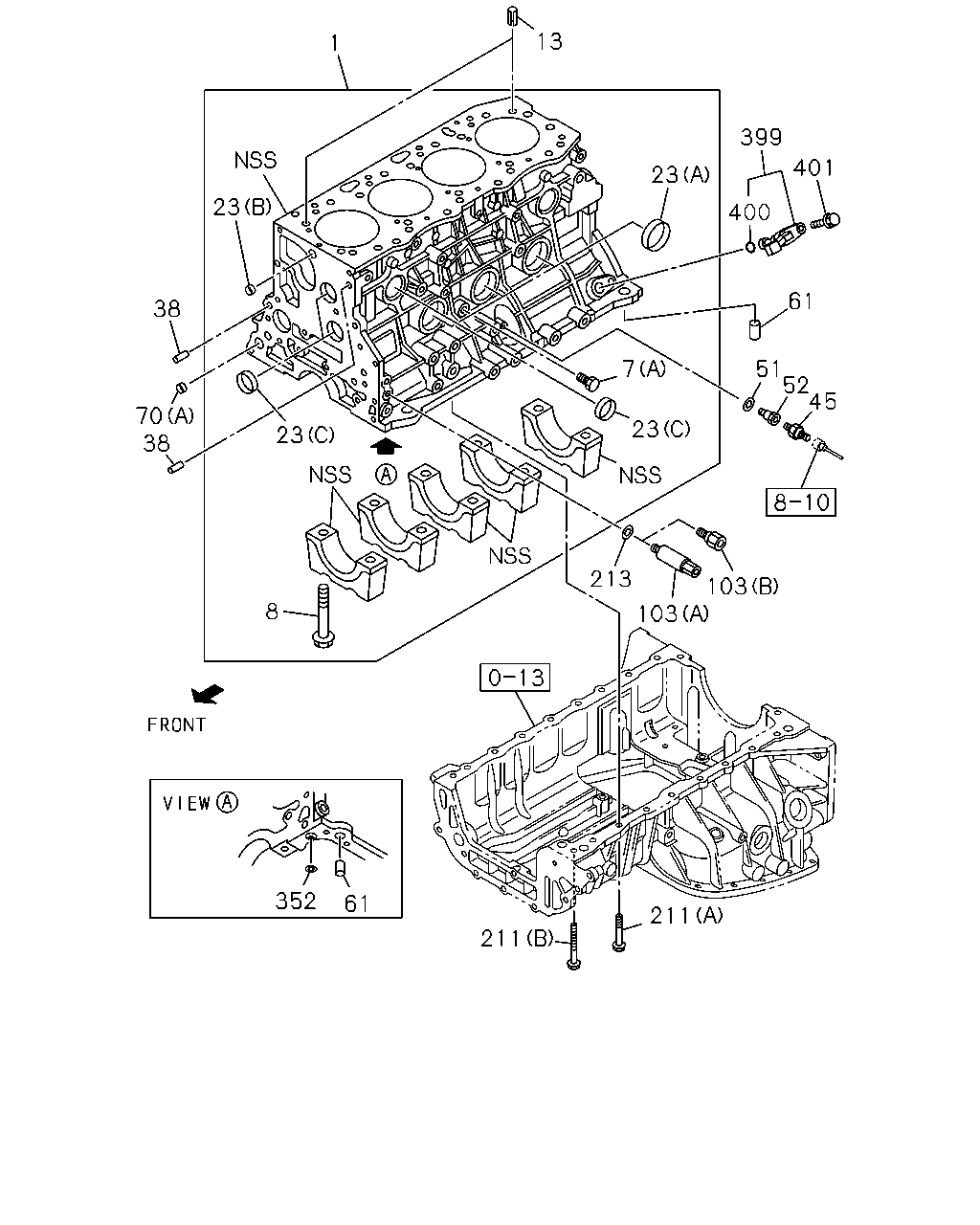

211 211 103 103 213 23 7 61 352 45 52 51 61 401 400 399 23 13 1 23 38 70 38 23 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0712-1209	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302	●
1	00.033 BLOCK ASM; CYL	8-98223-994-1	01	1	1303-	●
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
7	00.034 PLUG; WATER DRAIN (A) PT1/4	9-09664-001-0	01	1	0712-	●
7	00.034 PLUG; WATER DRAIN (B) M10X10	8-97352-537-0	01	1	0712-		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0712-	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0712-	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	02	1	0712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (E) OD=25	1-09600-016-0	01	1	0712-		●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0712-	●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0712-	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0712-	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0712-	●
61	00.206 PIN; STRAIGHT 01.428	9-09878-597-0	02	1	0712-	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0712-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	06	1	0712-	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0712-		●
70	00.034 CUP; SEALING,FRT & RR (C) OD=40	8-97096-824-0	04	1	0712-		●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	0712-1212	●
103	01.531 NIPPLE; OIL FEED 00.293 (B)	8-94469-596-0	01	1	1301-	●
211	01.428 BOLT; CRANKCASE 06.216 (A) M8X25 FLANGE	0-28650-825-0	19	1	0712-	●
211	01.428 BOLT; CRANKCASE 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	0712-	●
211	01.428 BOLT; CRANKCASE (C) M10X82	8-94399-553-2	17	1	0712-		●
211	01.428 BOLT; CRANKCASE 00.293 (D) M14X115 W/FLANGE	8-97077-638-0	10	1	0712-		●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0712-	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0712-	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0712-	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0712-	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0712-	●

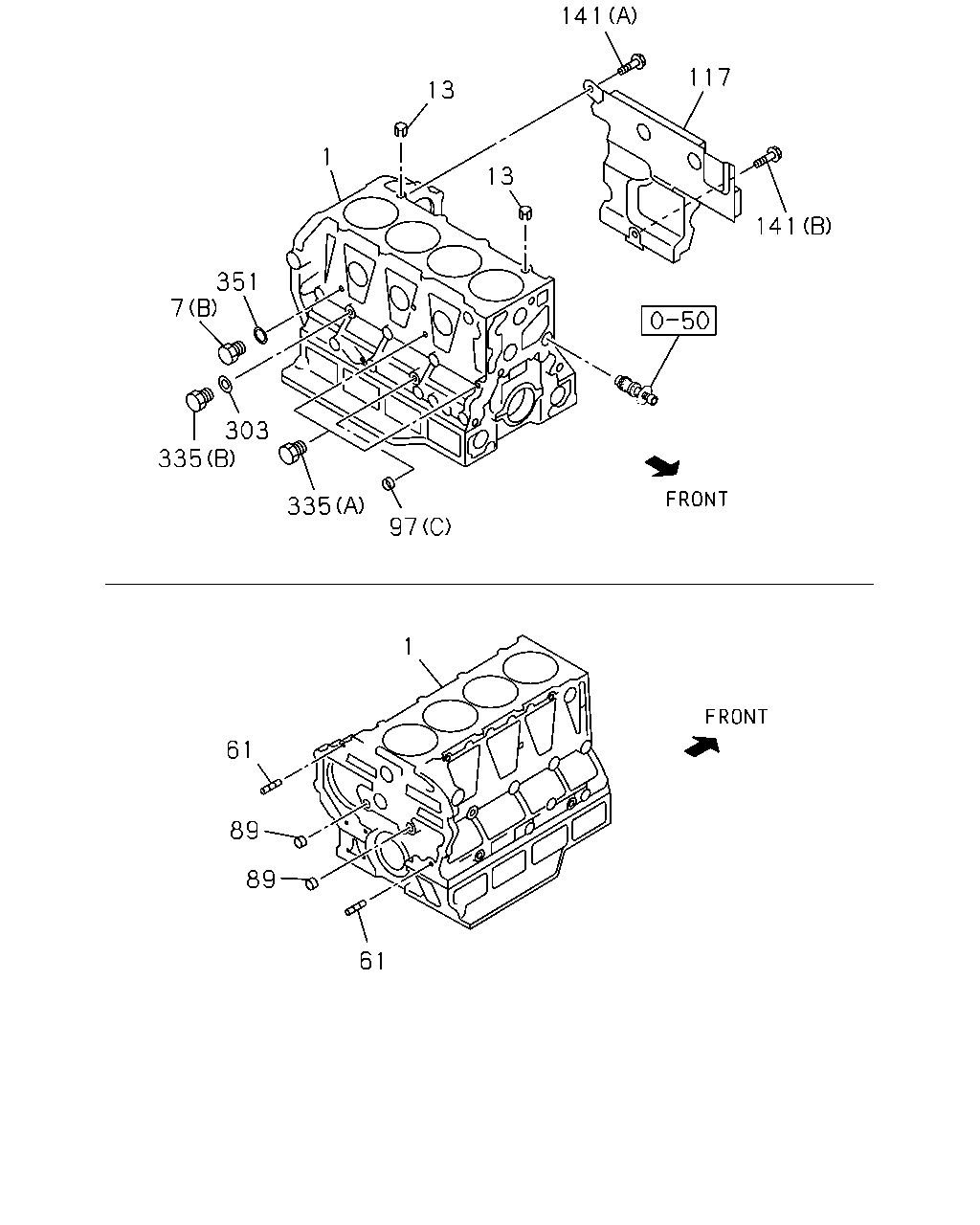

7 351 303 335 335 97 141 13 13 1 141 117 1 61 89 89 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0712-1209	●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302	●
1	00.033 BLOCK ASM; CYL	8-98223-994-1	01	1	1303-	●
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0712-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-		●
7	00.034 PLUG; WATER DRAIN (A) PT1/4	9-09664-001-0	01	1	0712-	●
7	00.034 PLUG; WATER DRAIN (B) M10X10	8-97352-537-0	01	1	0712-		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0712-	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0712-		●
61	00.206 PIN; STRAIGHT 01.428	9-09878-597-0	02	1	0712-	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0712-		●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0712-		●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0712-		●
97	00.034 CUP; SEALING 00.253 (C) OD=12	8-97036-335-1	01	1	0712-		●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0712-		●
117	00.030 COVER ASM; C/BL	8-98039-564-0	01	1	0712-		●
141	01.531 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-		●
141	01.531 BOLT; COVER 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0712-		●
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	0712-1312		●
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●
335	01.531 PLUG; C/BL,SIDE (B) M14X18	0-20801-418-0	01	1	0712-0805		●
335	01.531 PLUG; C/BL,SIDE 04.866 (B) M14X18	8-98038-403-0	01	1	0806-		●
335	01.531 PLUG; C/BL,SIDE (A) M14X16.5	8-97018-606-0	02	1	0712-0712		●
335	01.531 PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0801-		●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-		●
