◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51154 - NN/NP/NQR-LHDEXC.EU1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#49328) — 31 parça

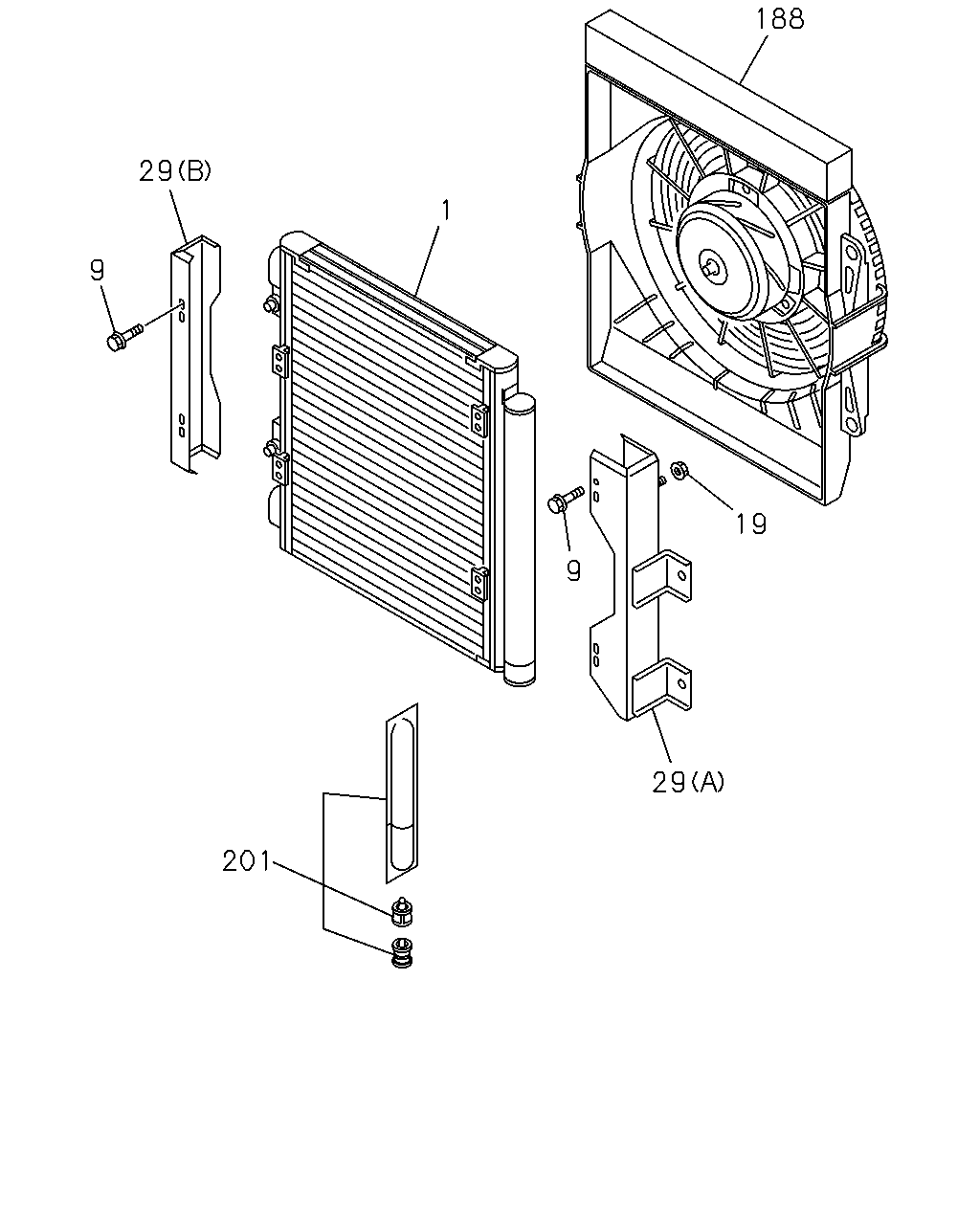

çizim 120449
188 29 1 9 19 9 29 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-682-0 01 1 0803-0803 ● ●
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-682-0 01 1 0803-0803 ●
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-682-0 01 1 0804-0808 ● ● ●
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-682-0 01 1 0809-1409 ● ● ● ●
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98051-817-1 01 1 1410- ● ● ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 0803-0803 ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 0803-0803 ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 0804-0808 ● ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 0809- ● ● ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 0803-0803 ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 0803-0803 ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 0804-0808 ● ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 0809- ● ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98090-685-0 01 1 0803-0803 ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98090-685-0 01 1 0803-0803 ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98090-685-0 01 1 0804-0808 ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98090-685-0 01 1 0809- ● ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98090-686-0 01 1 0803-0803 ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98090-686-0 01 1 0803-0803 ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98090-686-0 01 1 0804-0808 ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98090-686-0 01 1 0809-1409 ● ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98051-820-0 01 1 1410- ● ● ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-684-0 01 1 0803-0803 ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-684-0 01 1 0803-0803 ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-684-0 01 1 0804-0808 ● ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-684-0 01 1 0809- ● ● ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 0803-0803 ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 0803-0803 ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 0804-0808 ● ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 0809-1409 ● ● ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98282-482-0 01 1 1410- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
