Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11413 - FORWARD1500(MEXICO)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#49321) — 18 parça
◀

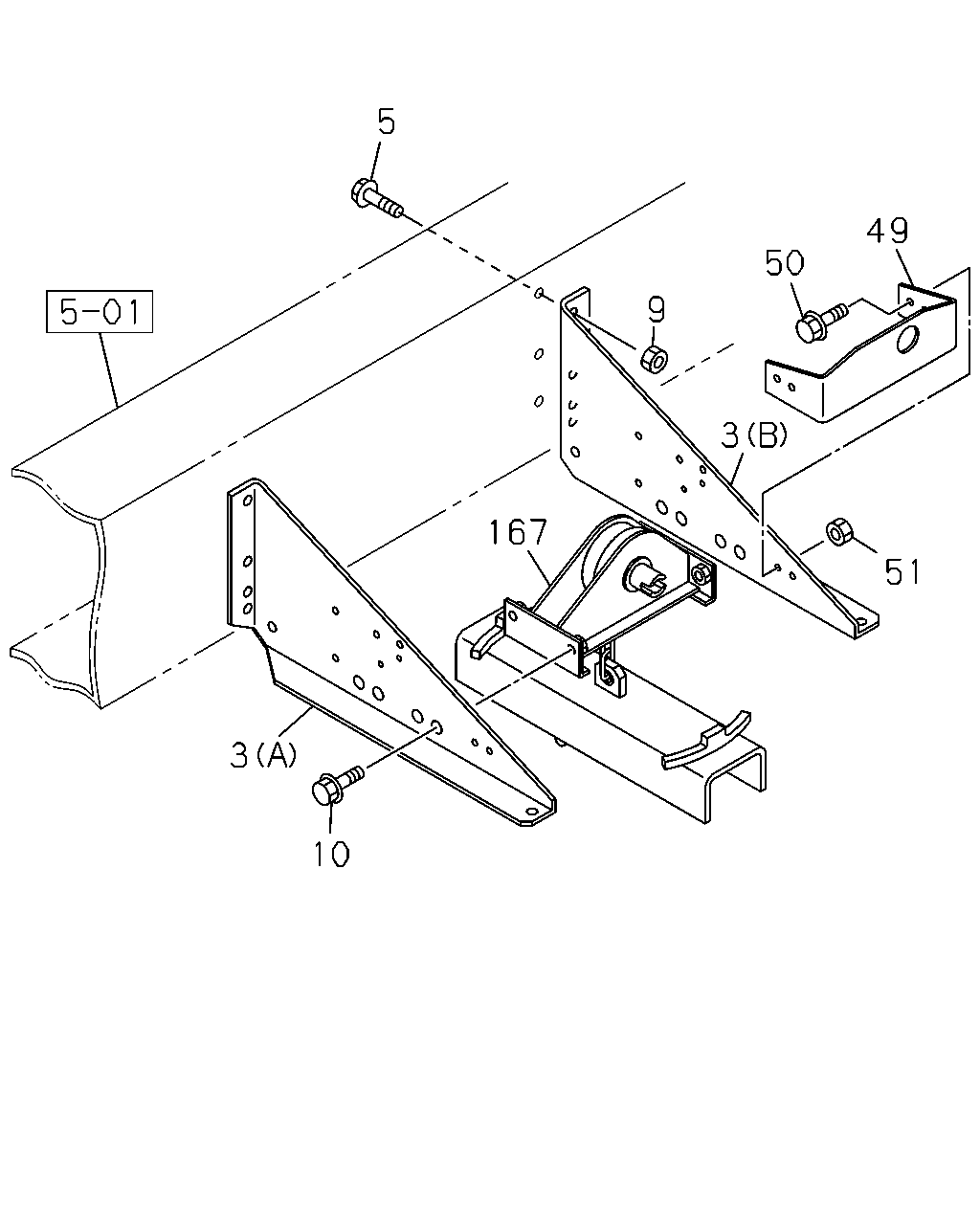

[530A] SPARE WHEEL CARRIER FRAME SIDE (12 parça)

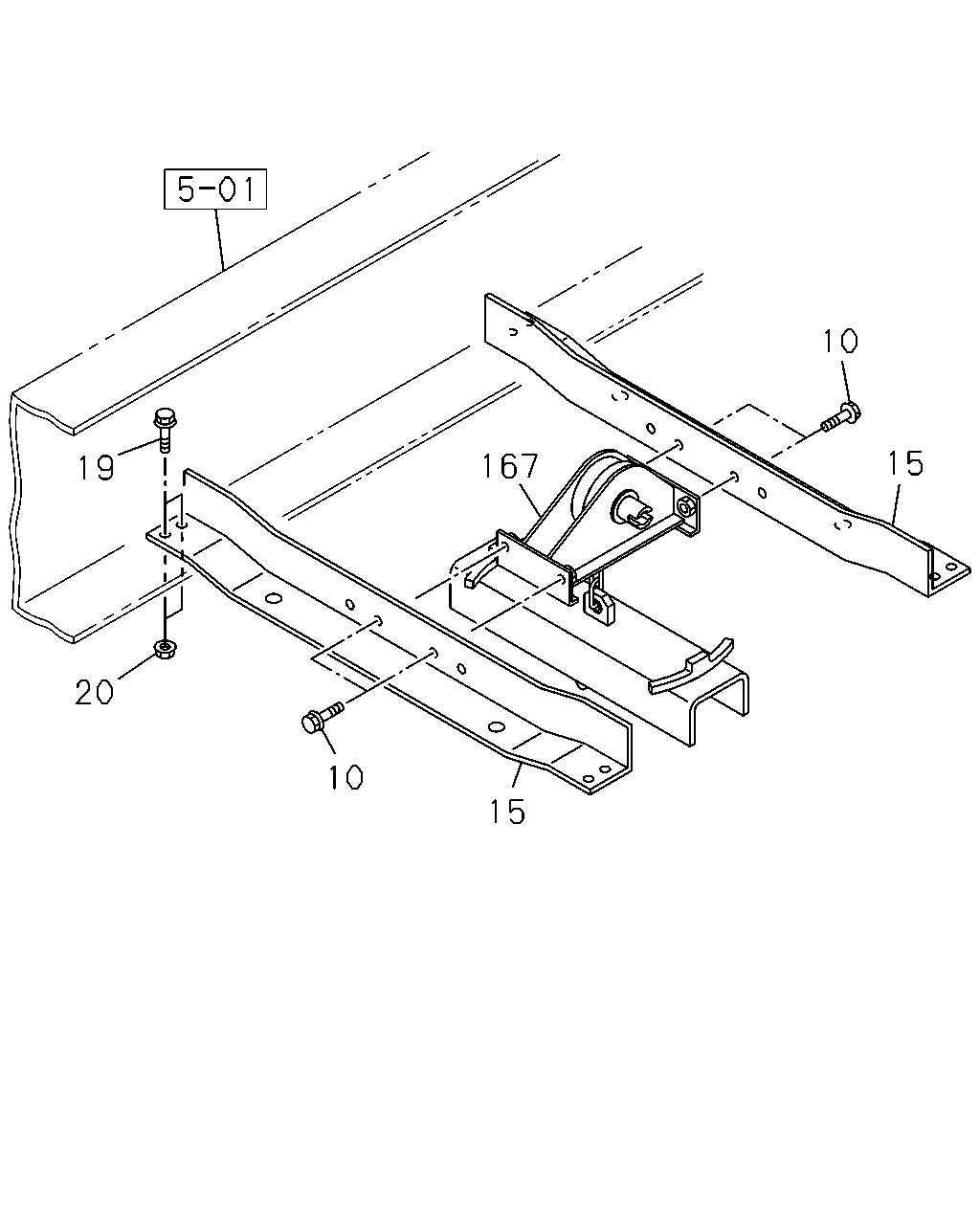

[530A] SPARE WHEEL CARRIER FRAME REAR (6 parça)
▶
5
49
50
9
3
167
51
3
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98106-690-0
01
1
1106-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-98106-691-0
01
1
1106-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE
0-28051-245-0
06
1
1106-
9
NUT; BRKT TO FRAME
WHEEL BASE 3900MM(39W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
06
1
1106-
9
NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
01
1
1106-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
1106-1107
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
1108-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-466-1
01
1
1106-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE
0-28650-830-0
04
1
1106-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8
0-91110-508-0
04
1
1106-1203
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1204-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
1106-
10
15
167
19
20
10
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
1106-1107
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
1108-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-395-1
02
1
1106-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28051-030-0
08
1
1106-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
1106-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
1106-
