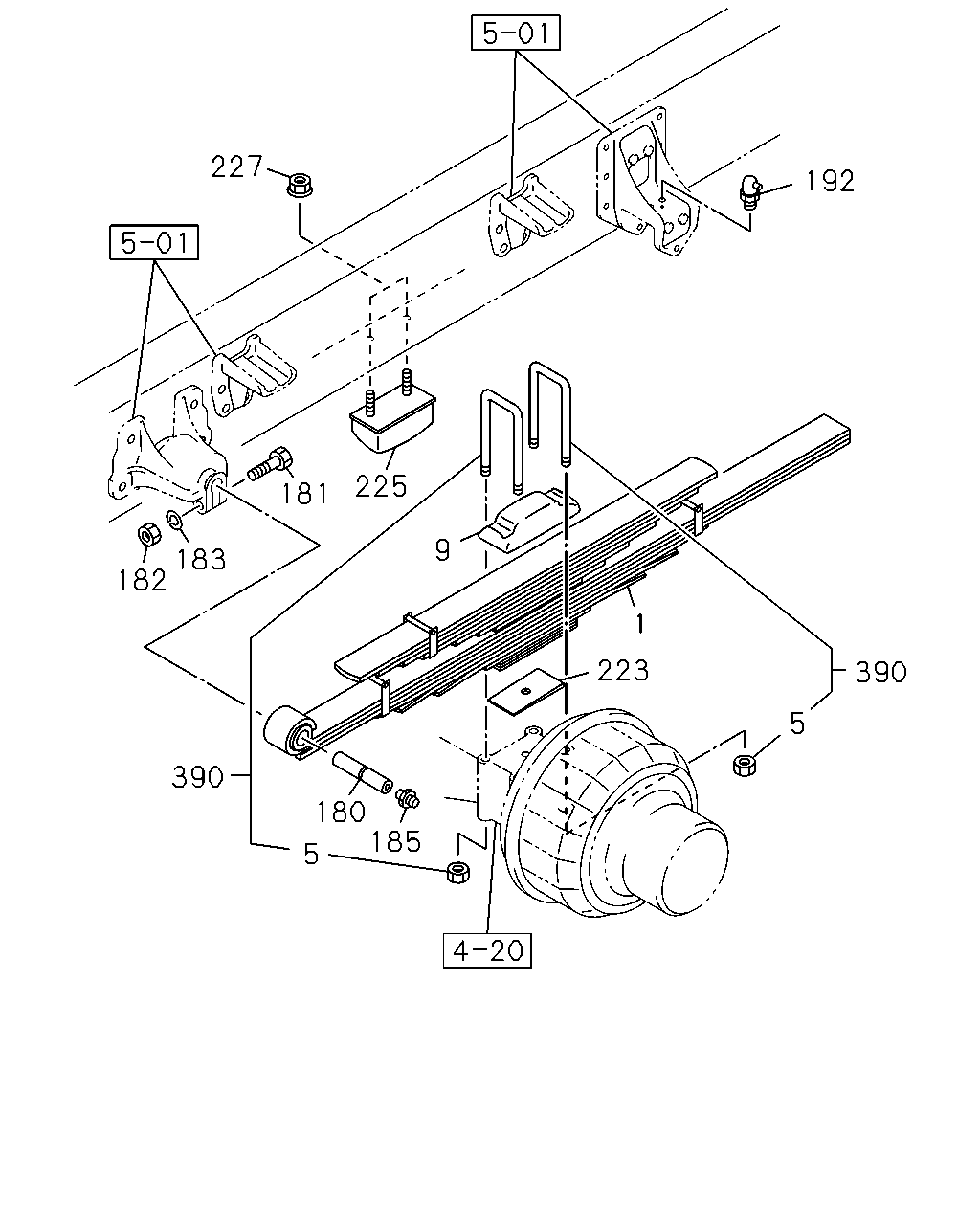

4-60 — REAR SUSPENSION
(#49314) — 18 parça
227
192
225
181
9
183
182
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-566-1
02
1
1106-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1106-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
1106-
180
PIN; RR SPR
1-51361-020-0
02
1
1106-
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
1106-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1106-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1106-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1106-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1106-
223
SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M)
1-51377-385-0
02
1
1106-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) P90 PROP SHAFT(C5T)
1-51377-369-1
02
1
1106-1312
223
SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M)
1-51377-369-1
02
1
1106-1312
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W) P90 PROP SHAFT(C5T)
8-98220-149-0
02
1
1401-
223
SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) P60 PROP SHAFT(C2M)
8-98220-149-0
02
1
1401-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W)
1-51377-371-1
02
1
1106-
225
RUBBER; CUSHION,RR SPR
1-53366-045-1
02
1
1106-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
1106-
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
1106-
