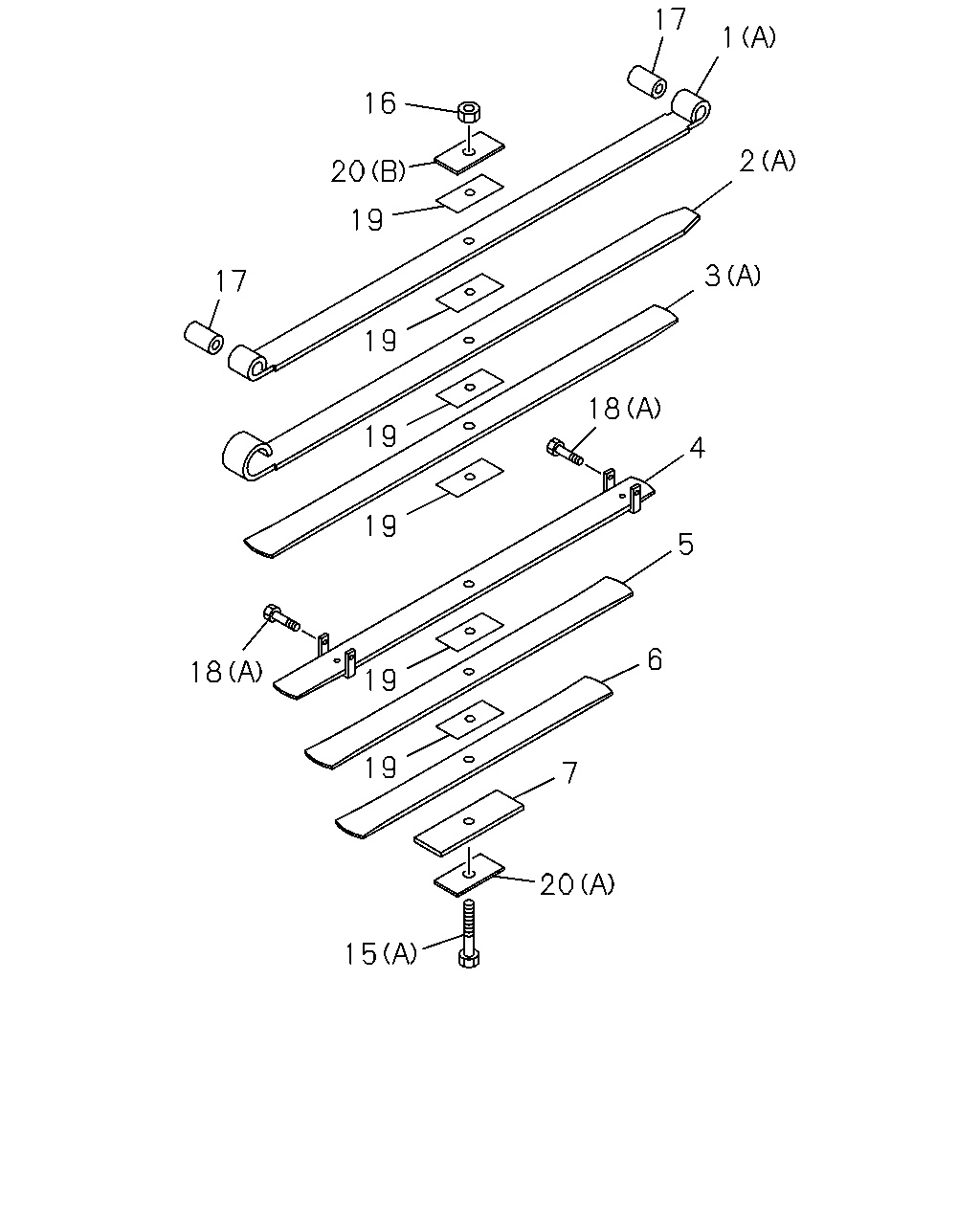

4-55 — FRONT LEAF SPRING (#49313) — 40 parça

17 1 16 2 20 19 3 17 19 18 19 4 19 5 19 6 18 19 7 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98029-096-0	8-98031-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98069-483-0	8-98073-686-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98029-096-0	8-98031-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98069-483-0	8-98073-687-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98029-096-0	8-98031-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98069-483-0	8-98073-688-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98029-096-0	8-98031-830-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98029-096-0	8-98031-831-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98029-096-0	8-98031-832-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 8-98029-096-0	8-98031-833-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: A = 8-98029-096-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=130 ASM PART: B = 8-98069-483-0	8-98048-521-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98029-096-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-98069-483-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98029-096-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-98069-483-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 8-98069-483-0	1-51177-114-0	03	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: B = 8-98069-483-0	1-51177-127-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=10 ASM PART: A = 8-98029-096-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=8 ASM PART: A = 8-98029-096-0	1-51177-178-0	01	1	-

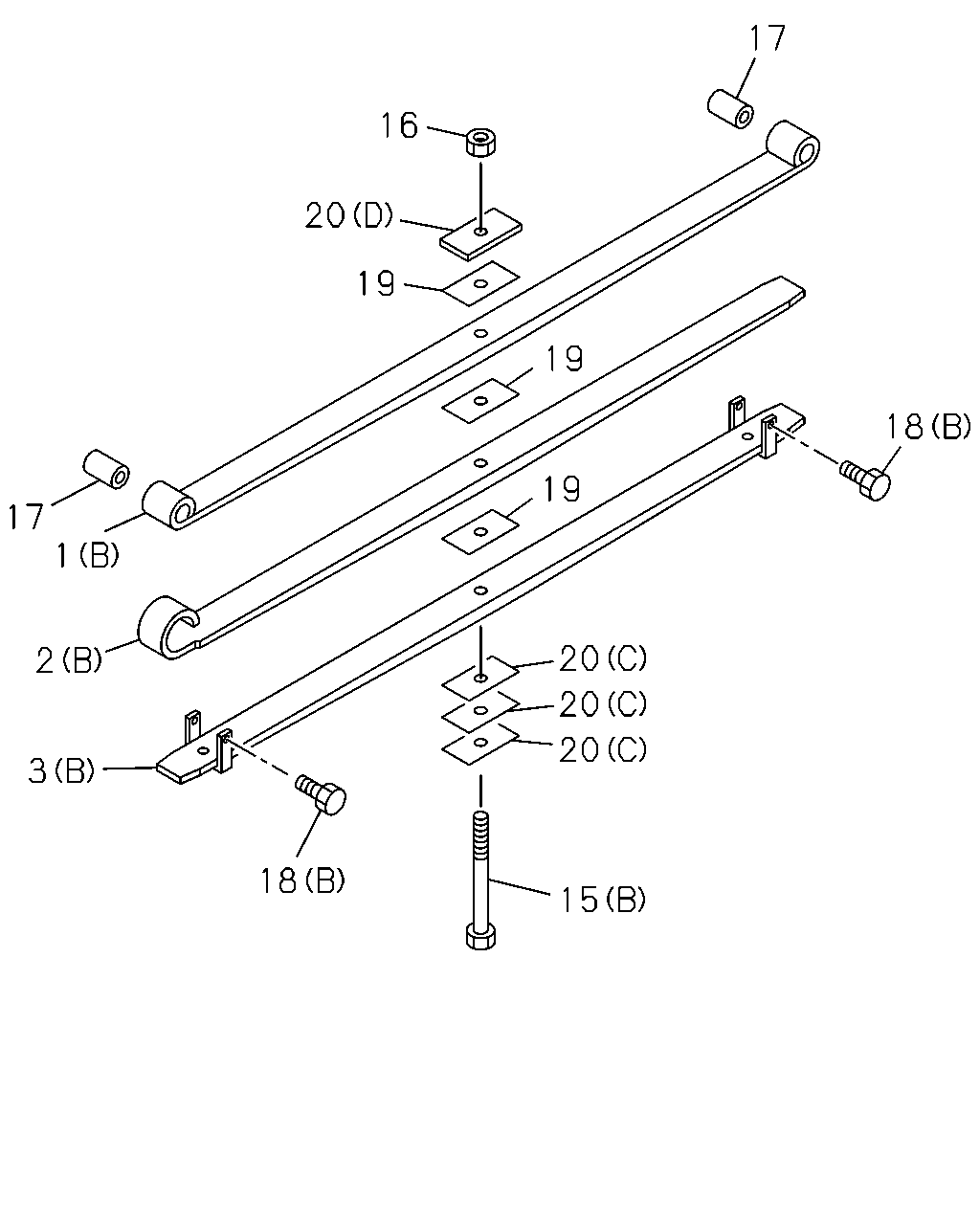

17 16 20 19 19 18 19 17 1 20 2 20 20 3 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98029-096-0	8-98031-827-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98069-483-0	8-98073-686-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98029-096-0	8-98031-828-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98069-483-0	8-98073-687-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98029-096-0	8-98031-829-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98069-483-0	8-98073-688-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=145 ASM PART: A = 8-98029-096-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=130 ASM PART: B = 8-98069-483-0	8-98048-521-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 8-98029-096-0, B = 8-98069-483-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98029-096-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-98069-483-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98029-096-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-98069-483-0	1-51177-071-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 8-98069-483-0	1-51177-114-0	03	1	-
20	SEAT; LEAF SPR,FRT (D), T=14 ASM PART: B = 8-98069-483-0	1-51177-127-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=10 ASM PART: A = 8-98029-096-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=8 ASM PART: A = 8-98029-096-0	1-51177-178-0	01	1	-
