◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#4931) — 31 parça

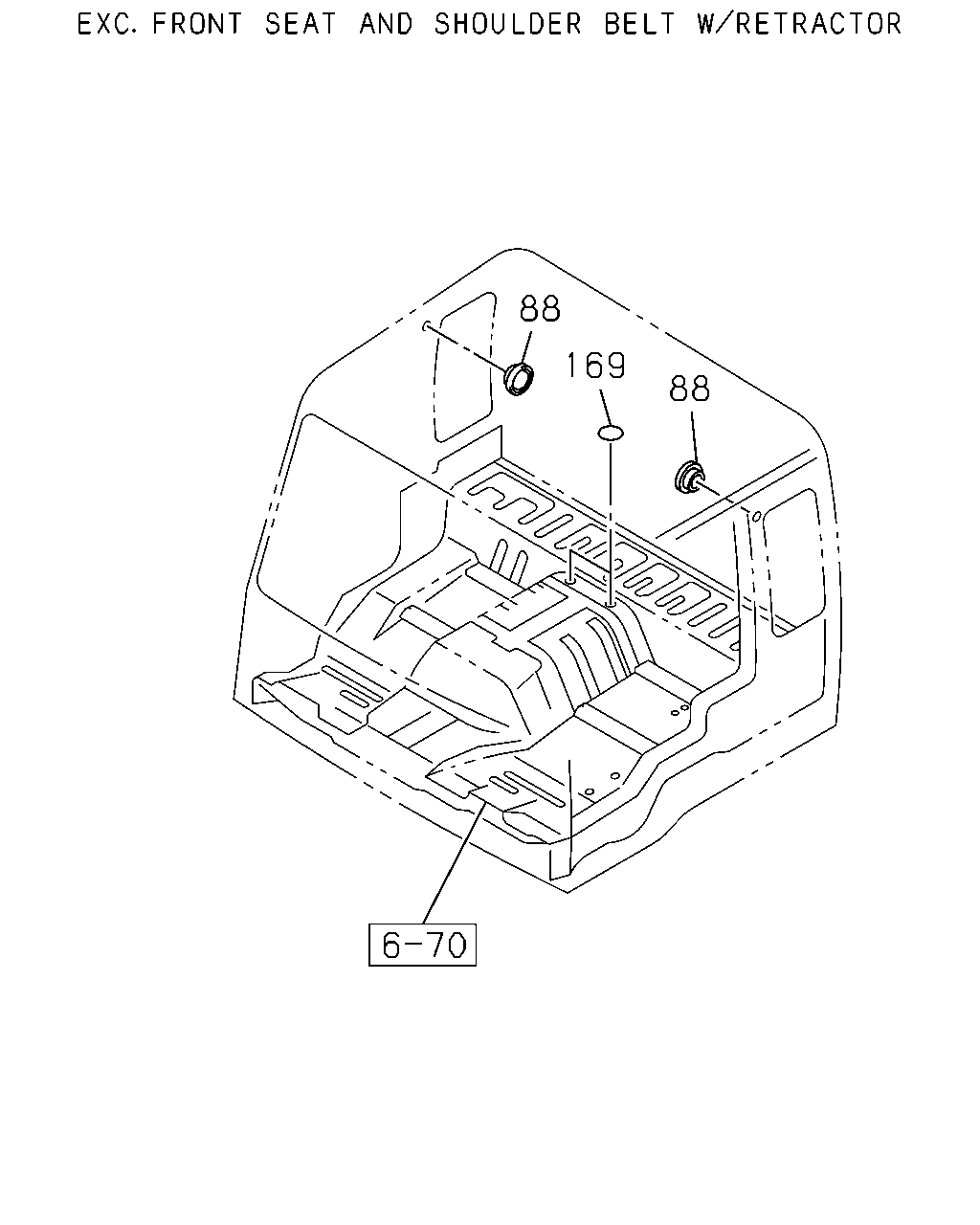

çizim 6215
88 169 88
BalonParca AdiParca NoAdetTipApplied Date A B C
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9603-9709 ● ● ●
88 PLUG; HOLE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=31.6 		8-94198-177-0 02 1 9603-9709 ● ● ●
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9710- ● ● ●
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 05 1 9603-9901 ● ● ●
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK 		1-76798-019-0 04 1 9902-9904 ● ● ●
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), FRONTSEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 9905- ● ● ●

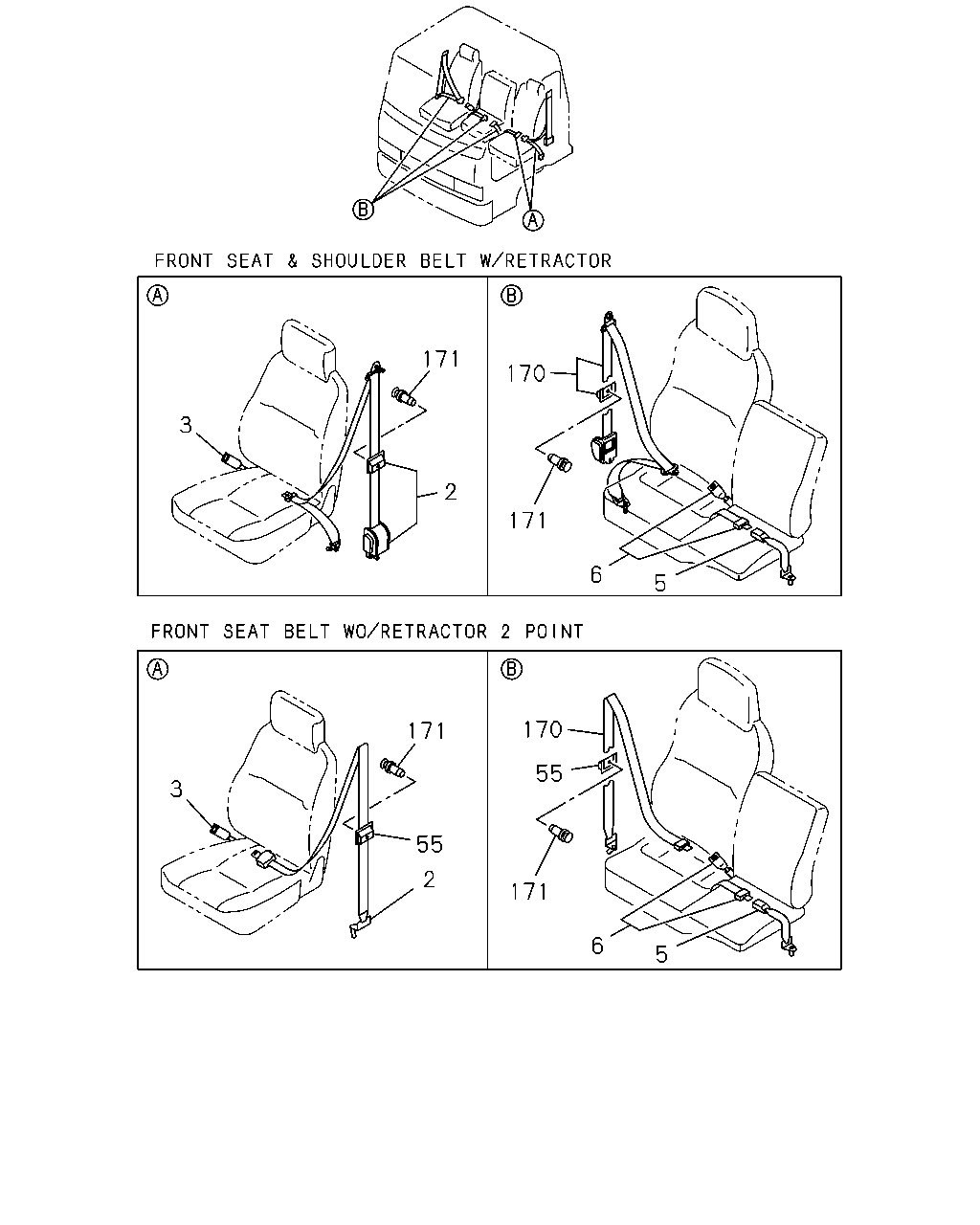

çizim 42435
171 170 3 2 171 6 5 170 171 55 3 55 2 171 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. MIXER TRUCK<RA2> W/RETRACTOR 		1-75617-514-2 01 1 9603-9901 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) W/RETRACTOR 		1-75617-514-5 01 1 9902- ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. MIXER TRUCK<RA2> WO/RETRACTOR 		1-75618-780-2 01 1 9603-9904 ● ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) MIXER TRUCK<RA2> W/RETRACTOR 		1-75617-532-1 01 1 9603-9904 ●
2 BELT; SEAT,TONGUE SIDE
MIXER TRUCK<RA2> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) WO/RETRACTOR 		1-75617-533-1 01 1 9603-9904 ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) WO/RETRACTOR 		1-75618-780-4 01 1 9905- ● ●
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) W/RETRACTOR 		1-75617-559-0 01 1 9905- ● ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-779-0 01 1 9603-9801 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONTSEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 9802- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-831-1 01 1 9905- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONTSEAT BELT WO/RETRACTOR 2 POINT(W25) SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-735-2 01 1 9802- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75618-739-0 01 1 9603-9901 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-739-0 01 1 9902-9904 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEATBELT WO/RETRACTOR 2 POINT(W25) 		1-75618-739-0 01 1 9905- ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75617-511-2 01 1 9603-9901 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-511-4 01 1 9902-9904 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEATBELT WO/RETRACTOR 2 POINT(W25) 		1-75617-511-4 01 1 9905- ● ● ●
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9603-9901 ● ● ●
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9902-9904 ● ●
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-513-0 02 1 9905- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-5 01 1 9603-9904 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-509-5 01 1 9905- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-2 01 1 9603-9901 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9905- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9603- ● ● ●
