4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#49308) — 40 parça

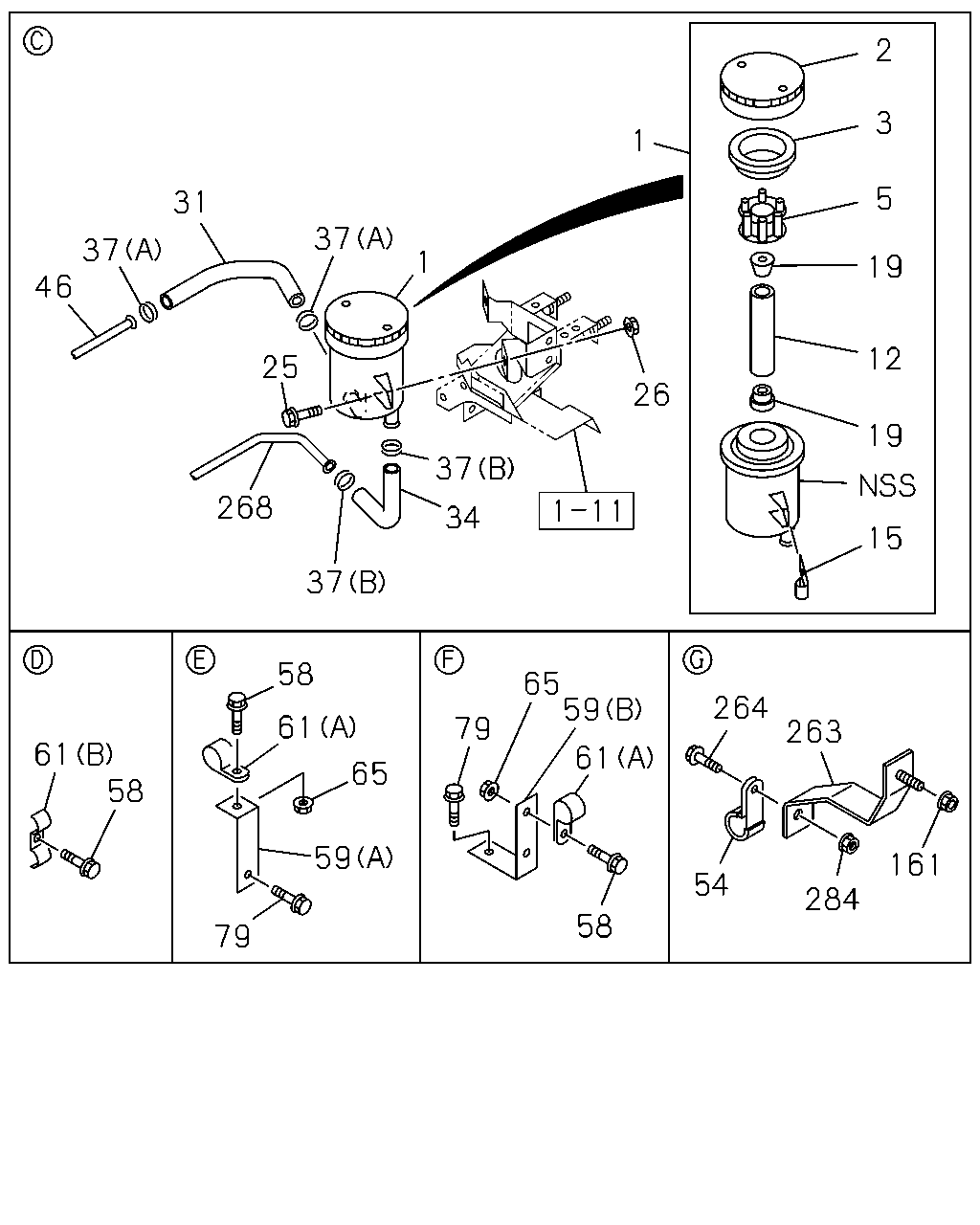

çizim 145259
2 3 1 5 31 37 37 46 1 19 12 25 26 19 37 268 34 15 37 58 65 59 264 61 79 263 61 58 61 65 59 161 54 284 58 79
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1106-
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1106-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1106-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1106-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1106-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1106-
19 SEAT; OIL TANK 1-21249-004-0 02 1 1106-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1106-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1106-
31 HOSE; P/S OIL TANK,INL 8-98092-730-0 01 1 1106-
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1106-
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1106-
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1106-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1874 		8-98126-456-0 01 1 1106-
54 CLIP; OIL PIPE
ID=19 L=20 		0-95235-836-0 01 1 1106-
58 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1106-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1106-
59 BRACKET; CLIP,OIL PIPE
(A) L=95 		1-82699-085-0 01 1 1106-
59 BRACKET; CLIP,OIL PIPE
(B) 		8-98083-607-0 01 1 1106-
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 02 1 1106-
61 CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20 		1-09700-806-1 02 1 1106-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1106-
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1106-
79 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1106-
161 NUT; P/S PIPE
M8 FLANGE 		0-91180-108-0 01 1 1106-
263 BRACKET; P/S PIPE 8-98096-820-1 01 1 1106-
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1106-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98154-047-0 01 1 1106-
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 1106-

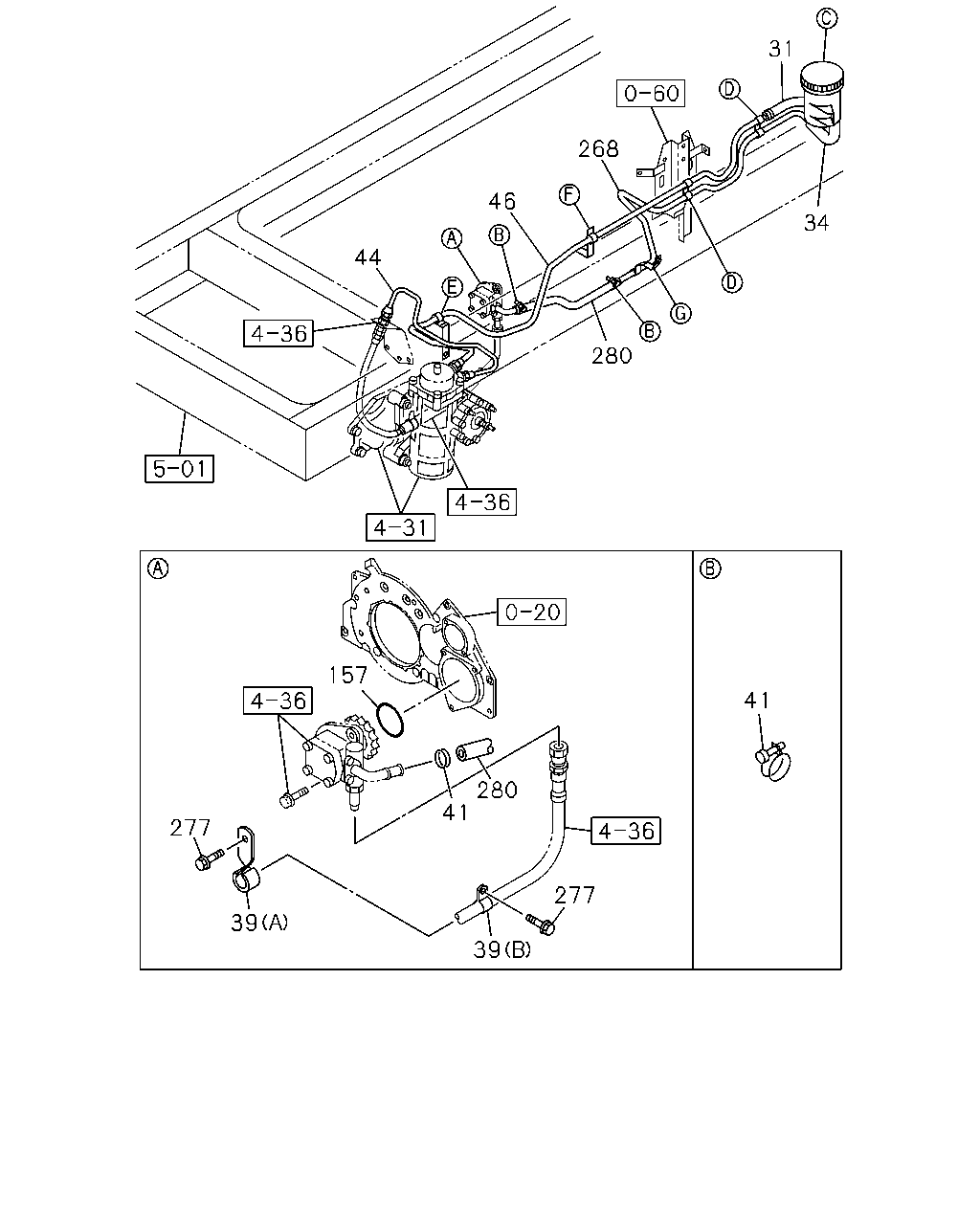

çizim 145309
31 268 46 34 44 280 157 41 280 41 277 277 39 39
BalonParca AdiParca NoAdetTipApplied Date
31 HOSE; P/S OIL TANK,INL 8-98092-730-0 01 1 1106-
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1106-
39 CLIP; FLEX HOSE
(A) ID=19 L=58 		1-09700-733-1 01 1 1106-
39 CLIP; FLEX HOSE
(B) ID=40 		8-94226-553-0 01 1 1106-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1106-
44 PIPE; OIL,P/S UNIT TO NIPPLE 8-98079-653-1 01 1 1106-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1874 		8-98126-456-0 01 1 1106-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-467-0 01 1 1106-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98154-047-0 01 1 1106-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1106-
280 HOSE; P/S OIL PUMP,INL 8-98090-818-0 01 1 1106-
