Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#4930) — 337 parça

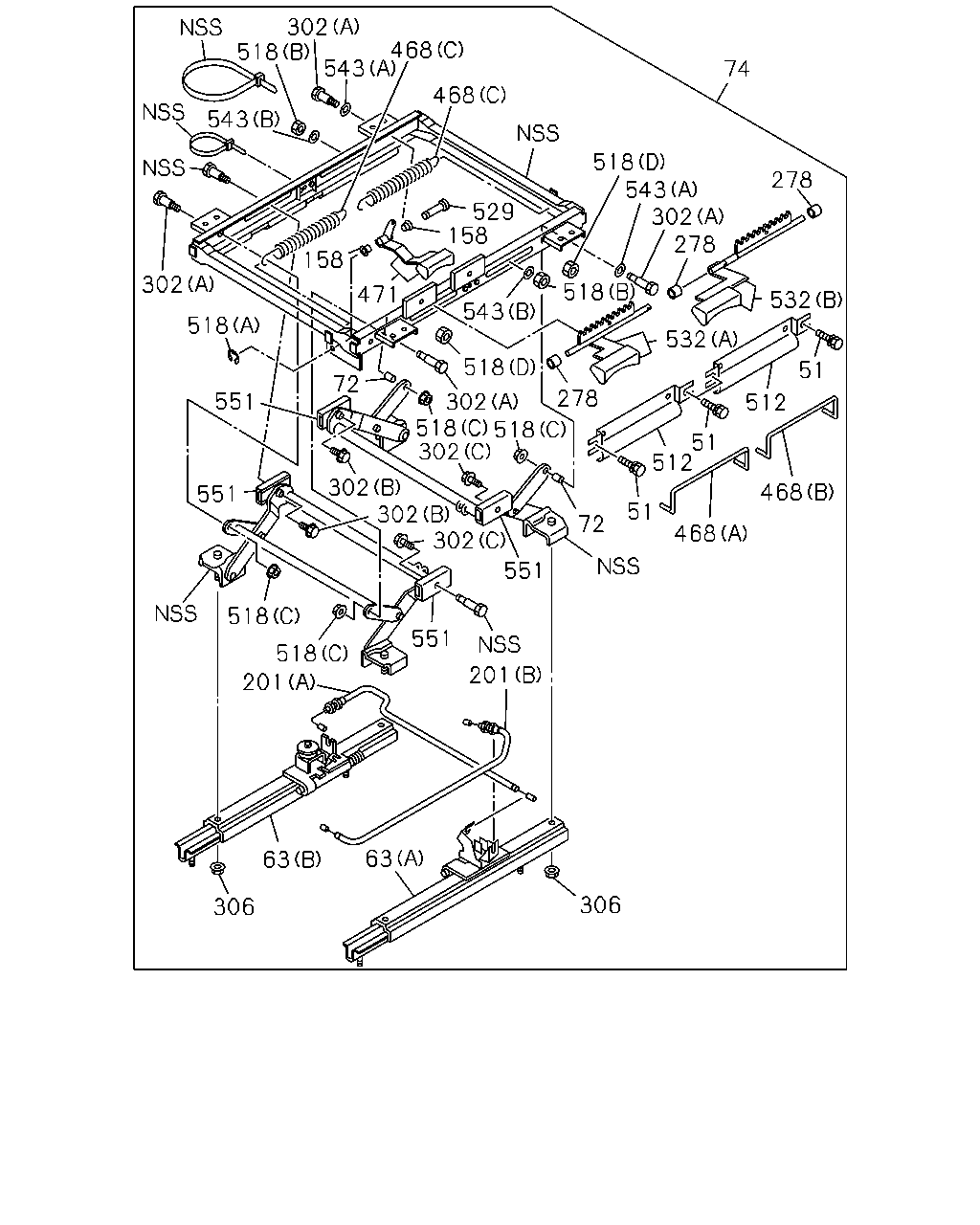

302 518 468 543 74 468 543 518 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	SCREW; COVER M6X12 W/LK WASHER	9-03910-612-0	04	1	9603-0102	●	●	●
51	SCREW; COVER	1-75518-325-0	04	1	0103-	●	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9603-9910	●	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	9911-	●	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-0	01	1	9603-9705	●	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-295-0	01	1	9706-9912	●	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	0001-	●	●	●
72	SPACER; SEAT ADJ	1-75518-269-0	02	1	9603-0102	●	●	●
72	SPACER; SEAT ADJ	1-75518-334-0	02	1	0103-	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-255-1	01	1	9603-9705	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-276-0	01	1	9706-9712	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9801-9912	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0001-0102	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-0	01	1	0103-	●	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9603-	●	●	●
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9603-9705	●	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-	●	●	●
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9603-9705	●	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-	●	●	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	9603-	●	●	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-0	04	1	9603-	●	●	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-1	02	1	9603-	●	●	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-271-1	02	1	9603-0102	●	●	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-0	02	1	0103-	●	●	●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9603-9912	●	●	●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	06	1	0001-0003	●	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	06	1	0004-	●	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	9603-	●	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	9603-	●	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	9603-	●	●	●
468	SPRING; RETURN SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9603-9901	●	●	●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9902-	●	●	●
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9603-9705	●	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-	●	●	●
512	COVER; LEVER	1-75518-245-1	02	1	9603-	●	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9603-	●	●	●
518	NUT; TILT ADJ (B)	1-75518-264-0	04	1	9603-	●	●	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-	●	●	●
518	NUT; TILT ADJ (C) M8 FLANGE	8-94152-886-0	04	1	9603-	●	●	●
529	PIN; LINK	1-75518-262-0	01	1	9603-	●	●	●
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	9603-	●	●	●
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	9603-	●	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	9603-	●	●	●
543	WASHER; HEIGHT ADJUSTER (A) ID=10.5	9-09164-510-0	02	1	9603-0102	●	●	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	0103-	●	●	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	9603-	●	●	●

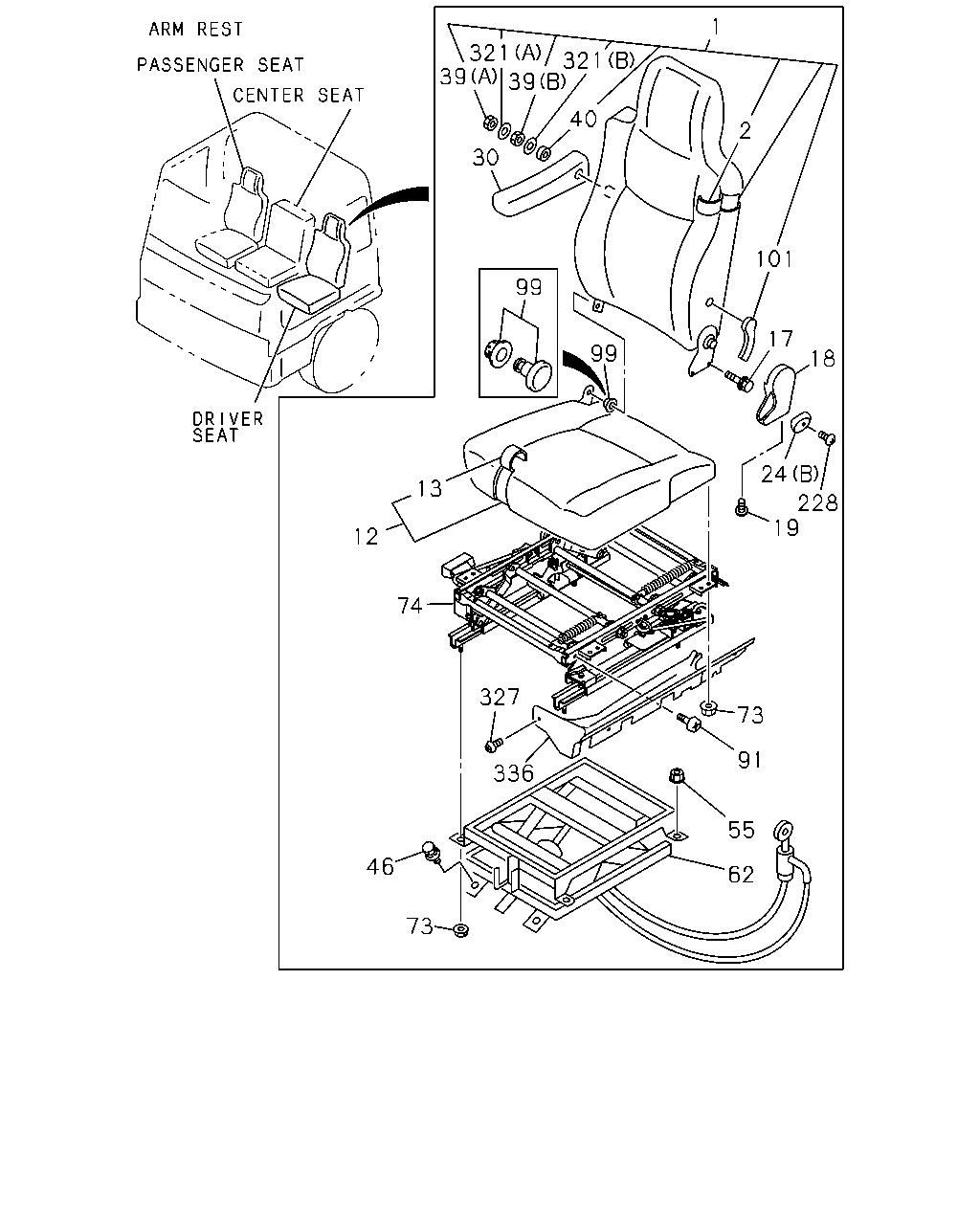

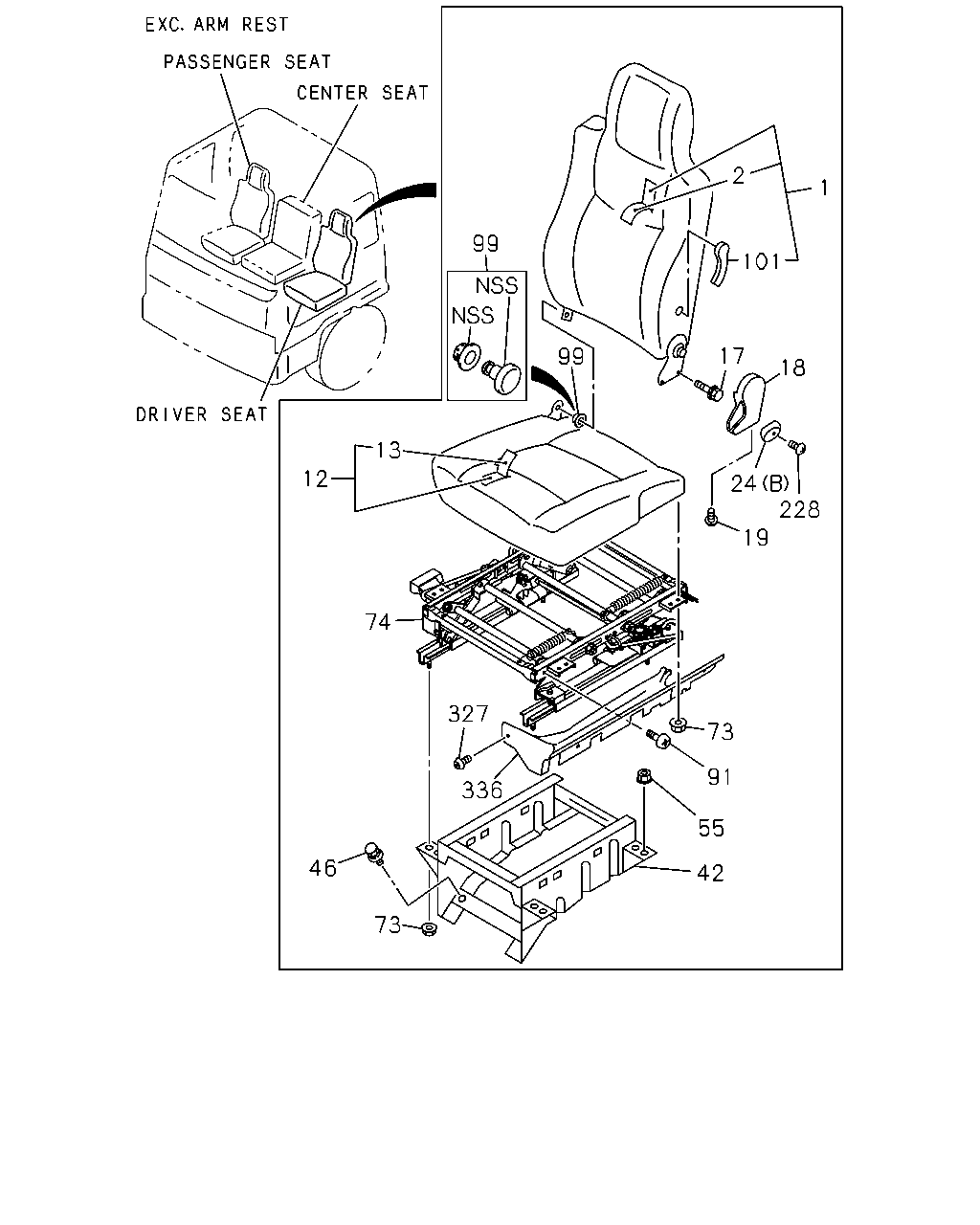

2 1 99 101 17 99 18 13 24 228 12 19 74 327 73 91 336 55 46 42 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-624-2	01	1	9603-9901	●	●	●
1	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-576-1	01	1	9603-9901	●	●	●
1	BACK ASM; SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9902-9910	●	●	●
1	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9911-0003	●	●	●
1	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0004-	●	●	●
1	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-559-1	01	1	9603-9901	●	●	●
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9902-9910	●	●	●
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-831-0	01	1	9911-0003	●	●	●
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-169-0	01	1	0004-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-236-1	01	1	9603-9901	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9902-9910	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003	●	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-041-0	01	1	0004-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-276-2	01	1	9603-9901	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-253-1	01	1	9603-9901	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9902-9910	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9911-0003	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0004-	●	●	●
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9902-9910	●	●	●
12	CUSHION; SEAT,FRT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003	●	●	●
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003	●	●	●
12	CUSHION; SEAT,FRT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-152-0	01	1	0004-	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9603-9901	●	●	●
12	CUSHION; SEAT,FRT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-600-1	01	1	9603-0001	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9902-9910	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9911-0003	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	01	1	0004-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9603-9901	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-842-0	01	1	9603-9901	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9902-9910	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9911-0003	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0004-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9902-9910	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-100-0	01	1	0004-	●	●	●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9603-0003	●	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-	●	●	●
18	COVER; RECLINING	1-75418-052-0	01	1	9603-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9603-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9603-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9603-	●	●	●
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-491-4	01	1	9603-0003	●	●	●
42	STAND; DRIVER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0004-0102	●	●	●
42	STAND; DRIVER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75558-604-0	01	1	0004-0102	●	●	●
42	STAND; DRIVER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0103-	●	●	●
42	STAND; DRIVER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC)	1-75558-604-0	01	1	0103-	●	●	●
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0103-	●	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9603-	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9603-	●	●	●
73	NUT; ADJ,HEIGHT CONT PASSENGER M8 FLANGE	8-94279-518-0	04	1	9603-0003	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER M8 FLANGE	8-94279-518-0	08	1	9603-0003	●	●	●
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M8 FLANGE	1-75538-207-0	08	1	0004-0012	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M8 FLANGE	1-75538-207-0	08	1	0101-	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER M8 FLANGE	1-75538-207-0	08	1	0101-	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-255-1	01	1	9603-9705	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-276-0	01	1	9706-9712	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9801-9912	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0001-0102	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-0	01	1	0103-	●	●	●
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9603-	●	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9603-	●	●	●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	9603-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9603-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9603-	●	●	●
327	CLIP; COVER	1-09987-249-0	01	1	9603-	●	●	●
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	9603-	●	●	●

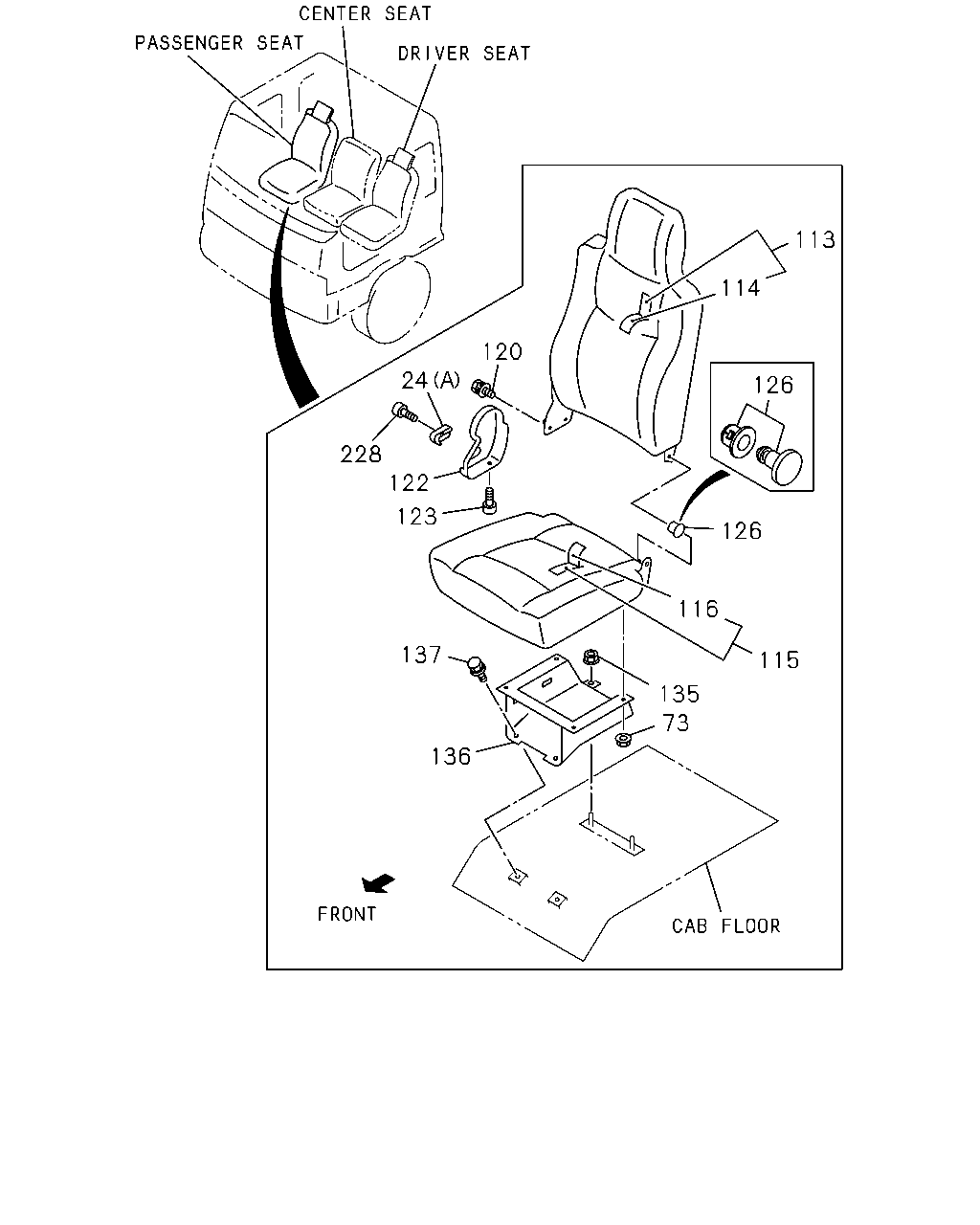

113 114 120 24 126 228 122 123 126 116 137 115 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9603-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9603-	●	●	●
73	NUT; ADJ,HEIGHT CONT PASSENGER M8 FLANGE	8-94279-518-0	04	1	9603-0003	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER M8 FLANGE	8-94279-518-0	08	1	9603-0003	●	●	●
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M8 FLANGE	1-75538-207-0	08	1	0004-0012	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M8 FLANGE	1-75538-207-0	08	1	0101-	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER M8 FLANGE	1-75538-207-0	08	1	0101-	●	●	●
113	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-590-2	01	1	9603-0003	●	●	●
113	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75026-721-0	01	1	0004-	●	●	●
113	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-586-1	01	1	9603-9901	●	●	●
113	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-832-0	01	1	9902-0003	●	●	●
113	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-226-0	01	1	0004-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-277-2	01	1	9603-0003	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-600-0	01	1	0004-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-256-0	01	1	9603-9901	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-939-0	01	1	9902-0003	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-056-0	01	1	0004-	●	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-531-2	01	1	9603-0003	●	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75026-771-0	01	1	0004-	●	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-583-2	01	1	9603-9901	●	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-829-0	01	1	9902-0003	●	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-210-0	01	1	0004-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-225-1	01	1	9603-0003	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-575-0	01	1	0004-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-841-1	01	1	9603-9901	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-929-0	01	1	9902-0003	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-026-0	01	1	0004-	●	●	●
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9603-0003	●	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-	●	●	●
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9603-	●	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9603-	●	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9603-	●	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9603-	●	●	●
136	STAND; PASSENGER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75558-521-5	01	1	9603-9609	●	●	●
136	STAND; PASSENGER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75558-547-1	01	1	9603-9609	●	●	●
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	9610-0003	●	●	●
136	STAND; PASSENGER SEAT EXC. POWER BRAKE LOCK SYSTEM(J50)	1-75558-550-4	01	1	0004-	●	●	●
136	STAND; PASSENGER SEAT POWER BRAKE LOCK SYSTEM(J50)	1-75558-587-0	01	1	0004-		●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9603-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9603-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9603-	●	●	●

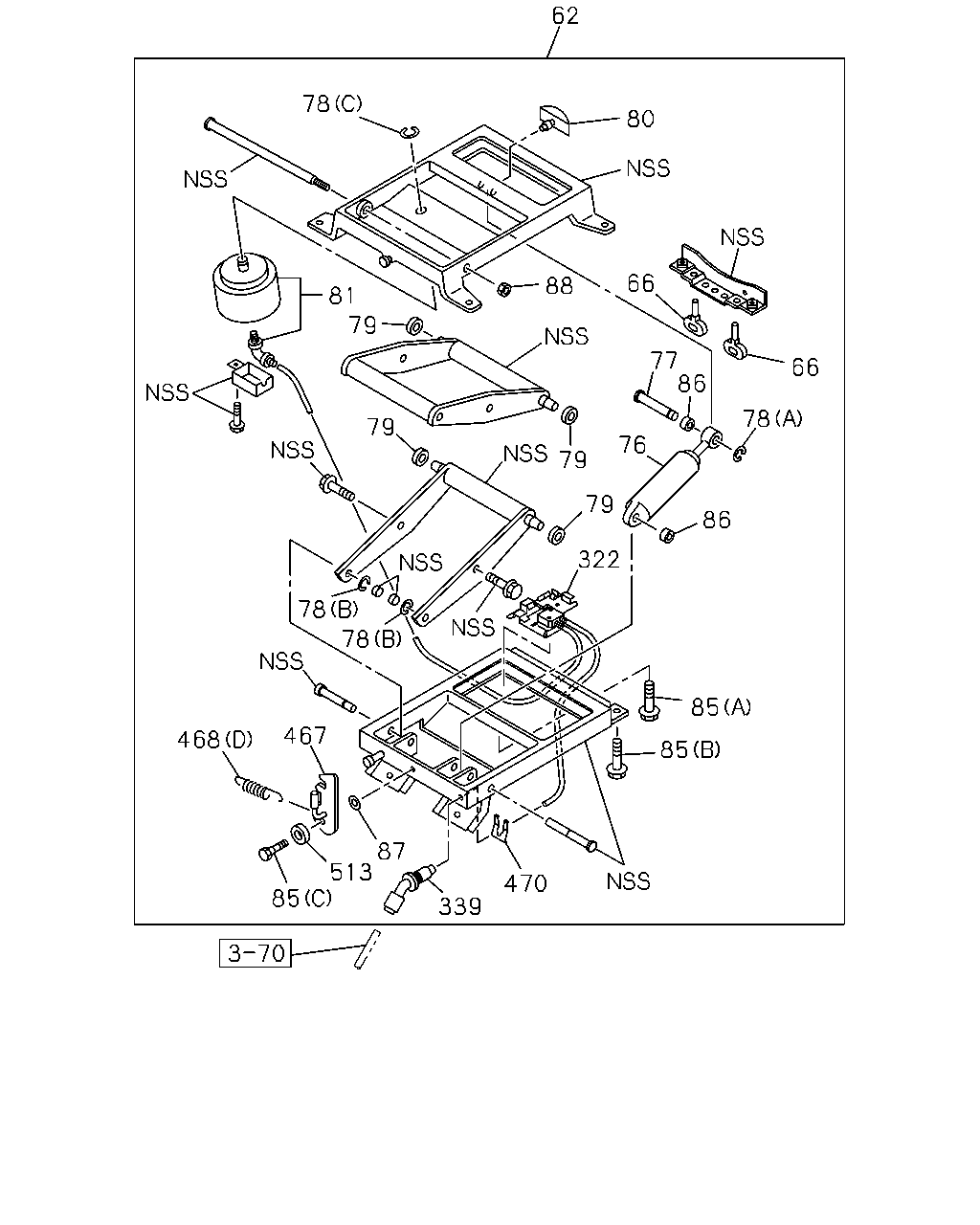

62 78 80 66 88 81 79 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
62	DAMPER ASM; SEAT SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-241-3	01	1	9603-9712	●	●	●
62	DAMPER ASM; SEAT SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-255-0	01	1	9801-9901	●	●	●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-4	01	1	9902-	●	●	●
66	RUBBER; LWR STOPPER SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	9603-9901	●	●	●
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	9902-	●	●	●
76	DAMPER; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	9603-9901	●	●	●
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	9902-	●	●	●
77	PIN; DAMPER SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	9603-9804	●	●	●
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	9902-	●	●	●
78	RING; SNAP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	9603-9901	●	●	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	9902-	●	●	●
78	RING; SNAP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	9603-9901	●	●	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	9902-	●	●	●
78	RING; SNAP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	9603-9901	●	●	●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	9902-	●	●	●
79	ROLLER ASM; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	9603-9901	●	●	●
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	9902-	●	●	●
80	RUBBER; STOPPER SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	9603-9901	●	●	●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	9902-	●	●	●
81	SPRING; AIR SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-1	01	1	9603-9901	●	●	●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-1	01	1	9902-	●	●	●
85	BOLT; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9603-9901	●	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9902-0102	●	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-0	02	1	0103-	●	●	●
85	BOLT; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9603-9901	●	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9902-0003	●	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-	●	●	●
85	BOLT; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	9603-9901	●	●	●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	9902-	●	●	●
86	BUSHING; GUIDE SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9603-9901	●	●	●
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9902-	●	●	●
87	WASHER; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	9603-9901	●	●	●
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	9902-	●	●	●
88	NUT; AIR SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	8-94279-519-0	01	1	9603-9901	●	●	●
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-273-1	01	1	9902-	●	●	●
322	VALVE; AIR SPRING SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-148-1	01	1	9603-9901	●	●	●
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-2	01	1	9902-	●	●	●
339	UNION; DRIVER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-0	01	1	9603-9901	●	●	●
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-1	01	1	9902-	●	●	●
467	LEVER; LOCK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75538-134-0	01	1	9603-9901	●	●	●
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	1-75538-134-0	01	1	9902-	●	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	9603-	●	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	9603-	●	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	9603-	●	●	●
468	SPRING; RETURN SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9603-9901	●	●	●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	9902-	●	●	●
470	CLIP; HOSE SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	9603-9901	●	●	●
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	9902-	●	●	●
513	SPACER; LEVER SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	9603-9901	●	●	●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	9902-	●	●	●

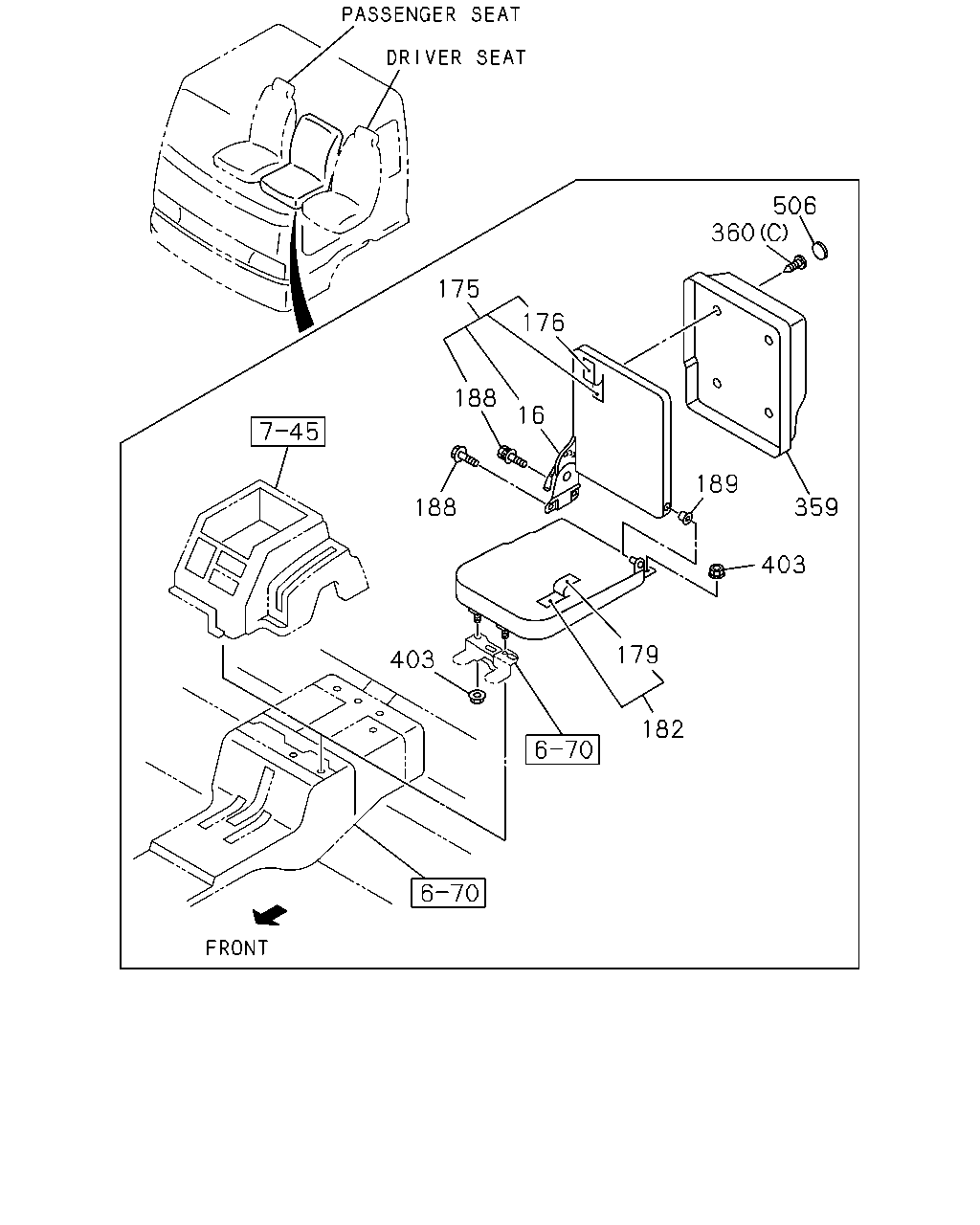

506 360 175 176 188 16 189 359 188 403 179 403 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	ADJUSTER ASM; RECLINING CENTER SEAT	1-75418-057-1	01	1	9603-9605	●	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT	1-75418-062-0	01	1	9606-	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-592-0	01	1	9603-9605	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-924-0	01	1	9606-9901	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-598-1	01	1	9902-0003	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-255-0	01	1	0004-	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-587-1	01	1	9603-9605	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-925-0	01	1	9606-9901	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-864-0	01	1	9902-0003	●	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-257-0	01	1	0004-	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-257-0	01	1	9603-9901	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-884-0	01	1	9902-0003	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-075-0	01	1	0004-	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75116-258-1	01	1	9603-9901	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-941-0	01	1	9902-0003	●	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-077-0	01	1	0004-	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-859-0	01	1	9603-9901	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-931-0	01	1	9902-0003	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-068-0	01	1	0004-	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-858-1	01	1	9603-9901	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-932-0	01	1	9902-0003	●	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-069-0	01	1	0004-	●	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-519-0	01	1	9603-9901	●	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-830-0	01	1	9902-0003	●	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-247-1	01	1	0004-	●	●	●
182	CUSHION ASM; CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-518-1	01	1	9603-9901	●	●	●
182	CUSHION ASM; CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-858-0	01	1	9902-0003	●	●	●
182	CUSHION ASM; CENTER SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-248-1	01	1	0004-	●	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	9603-	●	●	●
189	BUSHING; HINGE,CENTER SEAT BACK ID=14 L=10 CENTER	8-97854-900-0	01	1	9603-	●	●	●
359	BOX; PARCEL	1-72538-157-4	01	1	9603-	●	●	●
360	SCREW; PARCEL (A) TAPPING CENTER M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9603-	●	●	●
360	SCREW; PARCEL (B) TAPPING CENTER M4X16	0-70080-416-0	06	1	9603-	●	●	●
360	SCREW; PARCEL (C) PARCEL BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9603-	●	●	●
360	SCREW; PARCEL (D) GROMMET CENTER	1-09983-165-0	02	1	9603-	●	●	●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-504-1	04	1	9603-	●	●	●
506	CAP; PARCEL BOX	1-09983-164-2	04	1	9603-	●	●	●

1 321 39 321 39 40 2 30 101 99 17 99 18 24 13 228 19 12 74 327 73 91 336 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-624-2	01	1	9603-9901	●	●	●
1	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-576-1	01	1	9603-9901	●	●	●
1	BACK ASM; SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9902-9910	●	●	●
1	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-861-0	01	1	9911-0003	●	●	●
1	BACK ASM; SEAT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-170-0	01	1	0004-	●	●	●
1	BACK ASM; SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-559-1	01	1	9603-9901	●	●	●
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-831-0	01	1	9902-9910	●	●	●
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75027-831-0	01	1	9911-0003	●	●	●
1	BACK ASM; SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-169-0	01	1	0004-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-236-1	01	1	9603-9901	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9902-9910	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-936-0	01	1	9911-0003	●	●	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-041-0	01	1	0004-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-276-2	01	1	9603-9901	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-253-1	01	1	9603-9901	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9902-9910	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-907-0	01	1	9911-0003	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-042-0	01	1	0004-	●	●	●
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9902-9910	●	●	●
12	CUSHION; SEAT,FRT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003	●	●	●
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-828-0	01	1	9911-0003	●	●	●
12	CUSHION; SEAT,FRT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75207-152-0	01	1	0004-	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9603-9901	●	●	●
12	CUSHION; SEAT,FRT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75028-600-1	01	1	9603-0001	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9902-9910	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75028-529-2	01	1	9911-0003	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-148-0	01	1	0004-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9603-9901	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75117-842-0	01	1	9603-9901	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9902-9910	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-224-1	01	1	9911-0003	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-713-0	01	1	0004-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9902-9910	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75117-928-0	01	1	9911-0003	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-100-0	01	1	0004-	●	●	●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9603-0003	●	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-	●	●	●
18	COVER; RECLINING	1-75418-052-0	01	1	9603-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9603-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9603-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9603-	●	●	●
30	REST ASM; ARM,FRT SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75116-320-0	01	1	9603-9901	●	●	●
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9902-9910	●	●	●
30	REST ASM; ARM,FRT SEAT SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9911-0003	●	●	●
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75027-834-0	01	1	9911-0003	●	●	●
30	REST ASM; ARM,FRT SEAT RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	1-75127-012-0	01	1	0004-	●	●	●
39	NUT; ARM REST SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-94279-521-0	01	1	9603-9804	●	●	●
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-94279-521-0	01	1	9902-9910	●	●	●
39	NUT; ARM REST SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-94279-521-0	01	1	9911-0003	●	●	●
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-94279-521-0	01	1	9911-0003	●	●	●
39	NUT; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) (A) M8	1-75147-657-0	01	1	0004-	●	●	●
39	NUT; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) (B) M10	9-09110-410-0	01	1	0004-	●	●	●
40	SPACER; ARM REST SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	8-94285-921-0	02	1	9603-9901	●	●	●
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER	8-94285-921-0	02	1	9902-9910	●	●	●
40	SPACER; ARM REST SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9911-0003	●	●	●
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	9911-0003	●	●	●
40	SPACER; ARM REST RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SEAT ASSEMBLY FABRIC W/RECLINING(SFQ)	8-94285-921-0	02	1	0004-	●	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9603-	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9603-	●	●	●
62	DAMPER ASM; SEAT SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-241-3	01	1	9603-9712	●	●	●
62	DAMPER ASM; SEAT SUSP SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-255-0	01	1	9801-9901	●	●	●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-4	01	1	9902-	●	●	●
73	NUT; ADJ,HEIGHT CONT PASSENGER M8 FLANGE	8-94279-518-0	04	1	9603-0003	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER M8 FLANGE	8-94279-518-0	08	1	9603-0003	●	●	●
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M8 FLANGE	1-75538-207-0	08	1	0004-0012	●	●	●
73	NUT; ADJ,HEIGHT CONT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M8 FLANGE	1-75538-207-0	08	1	0101-	●	●	●
73	NUT; ADJ,HEIGHT CONT DRIVER M8 FLANGE	1-75538-207-0	08	1	0101-	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-255-1	01	1	9603-9705	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-276-0	01	1	9706-9712	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-300-0	01	1	9801-9912	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-318-1	01	1	0001-0102	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-0	01	1	0103-	●	●	●
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9603-	●	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9603-	●	●	●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	9603-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9603-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9603-	●	●	●
321	WASHER; PL,ARM REST (A) ID=8.4 OD=22	9-09164-708-0	01	1	9603-	●	●	●
321	WASHER; PL,ARM REST (B) ID=10.5 OD=22	9-09160-610-0	01	1	0004-	●	●	●
327	CLIP; COVER	1-09987-249-0	01	1	9603-	●	●	●
336	COVER; DRIVER SEAT	1-75518-194-2	01	1	9603-	●	●	●

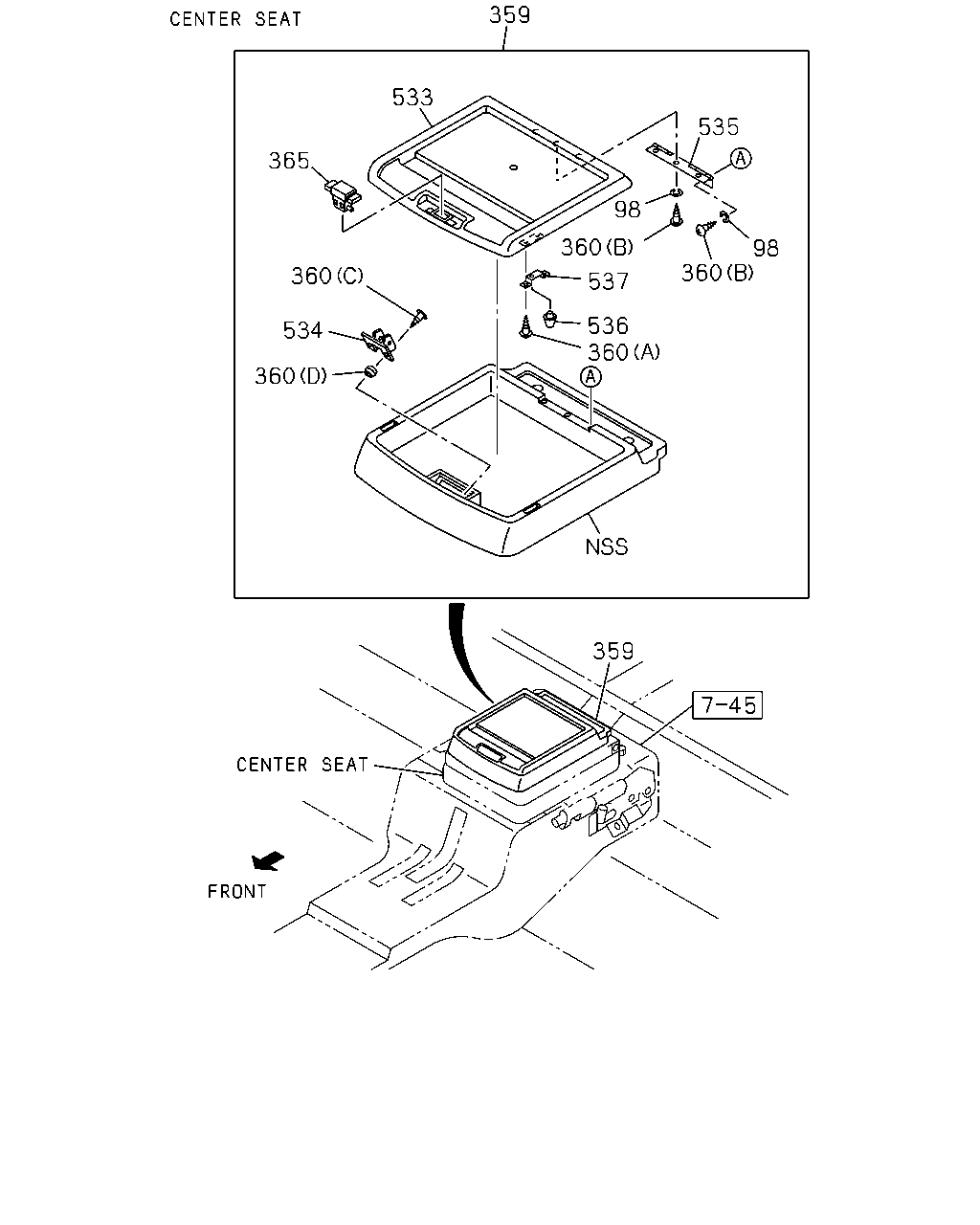

359 533 535 365 98 360 98 360 360 537 536 360 534 360 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
98	WASHER; HINGE PARCEL BOX ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9603-	●	●	●
359	BOX; PARCEL	1-72538-157-4	01	1	9603-	●	●	●
360	SCREW; PARCEL (A) TAPPING CENTER M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9603-	●	●	●
360	SCREW; PARCEL (B) TAPPING CENTER M4X16	0-70080-416-0	06	1	9603-	●	●	●
360	SCREW; PARCEL (C) PARCEL BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9603-	●	●	●
360	SCREW; PARCEL (D) GROMMET CENTER	1-09983-165-0	02	1	9603-	●	●	●
365	LOCK ASM; SEAT PARCEL BOX	1-72538-180-0	01	1	9603-	●	●	●
533	LID; PARCEL BOX	1-72538-194-2	01	1	9603-	●	●	●
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	9603-	●	●	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	9603-	●	●	●
536	RUBBER; CUSHION	5-09983-002-1	02	1	9603-	●	●	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	9603-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
