3-46 — AIR DRYER
(#49293) — 55 parça
◀

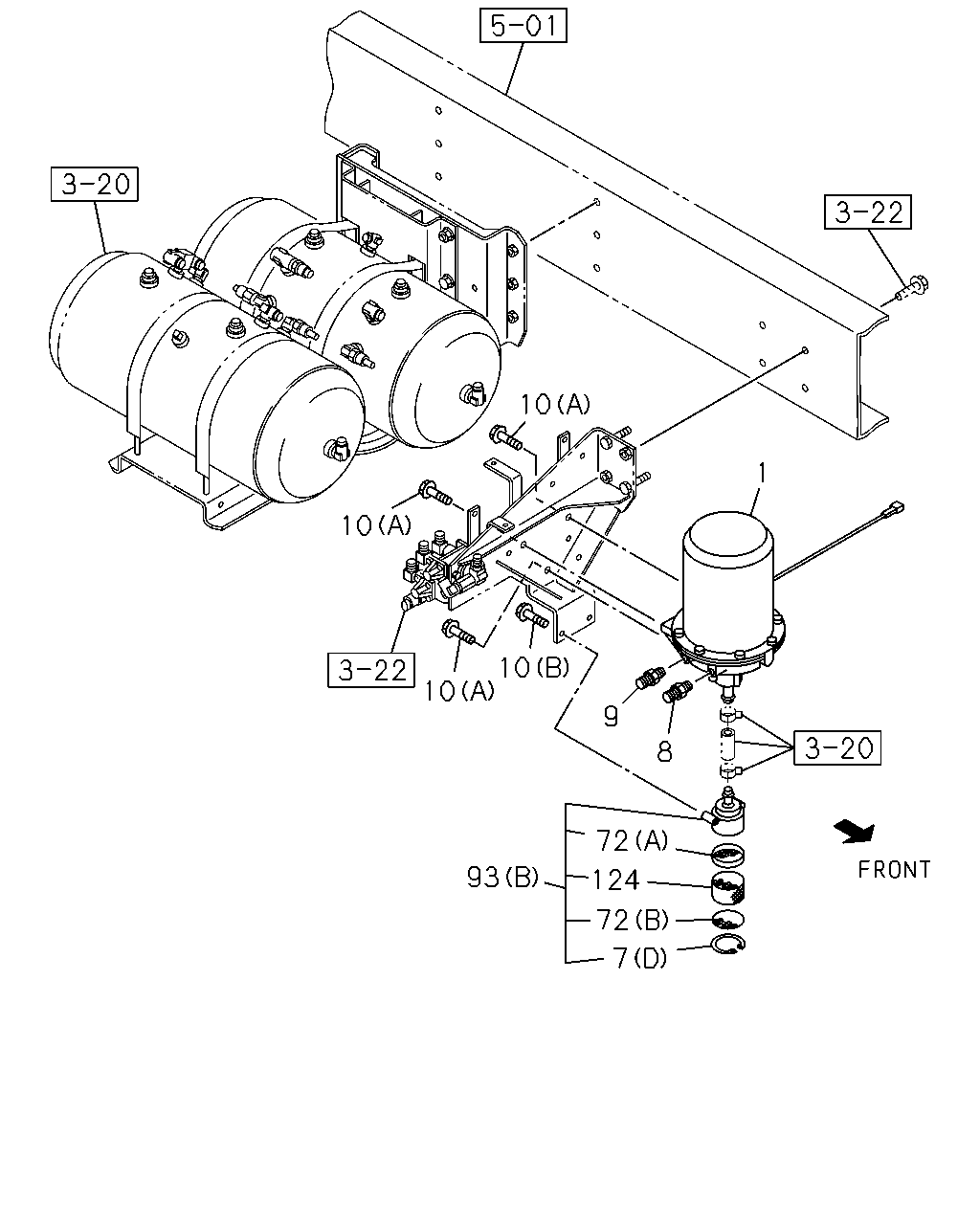

[346A] FIXING (15 parça)

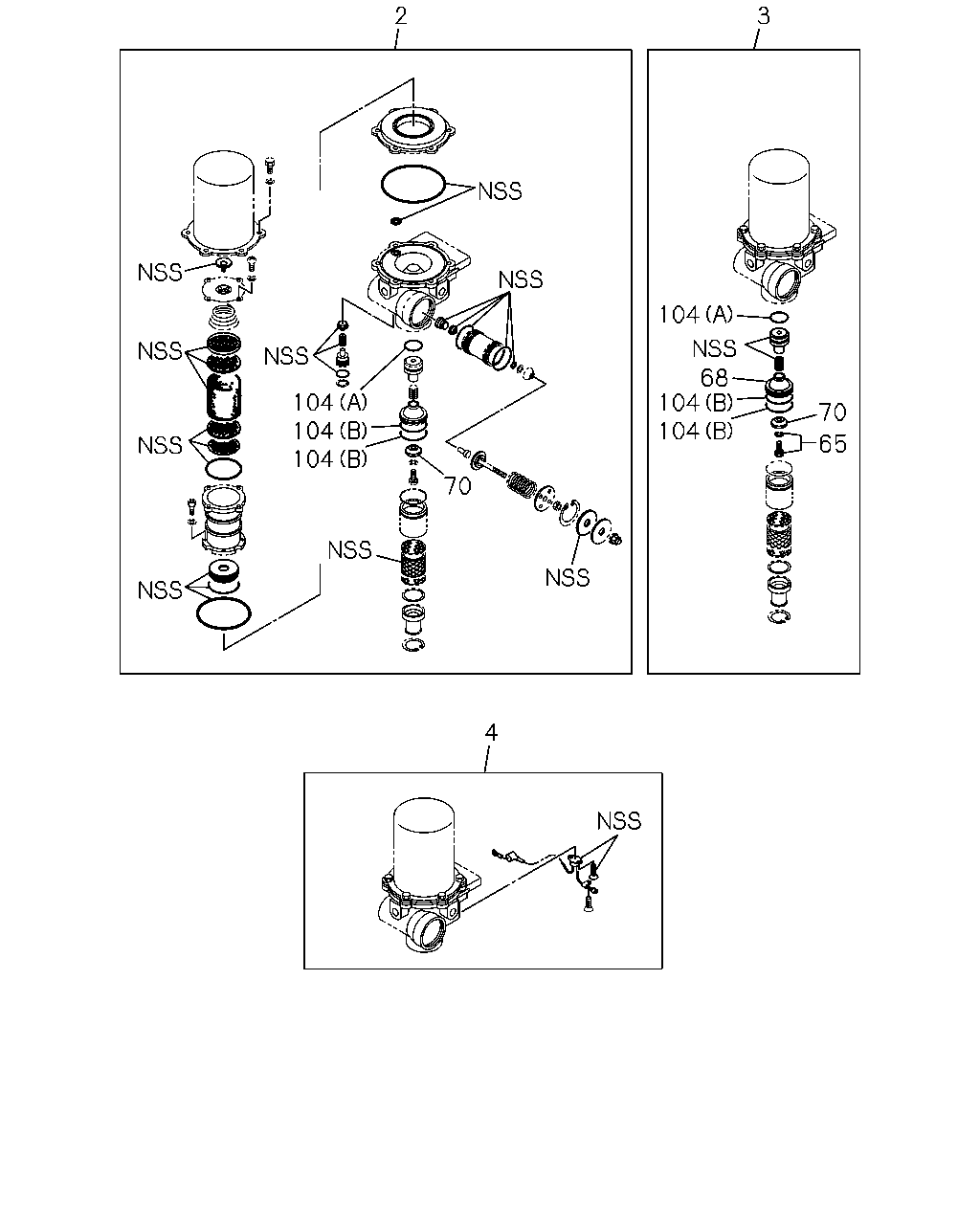

[346A] THERMOSTAT,PISTON AND REPAIR KIT (12 parça)

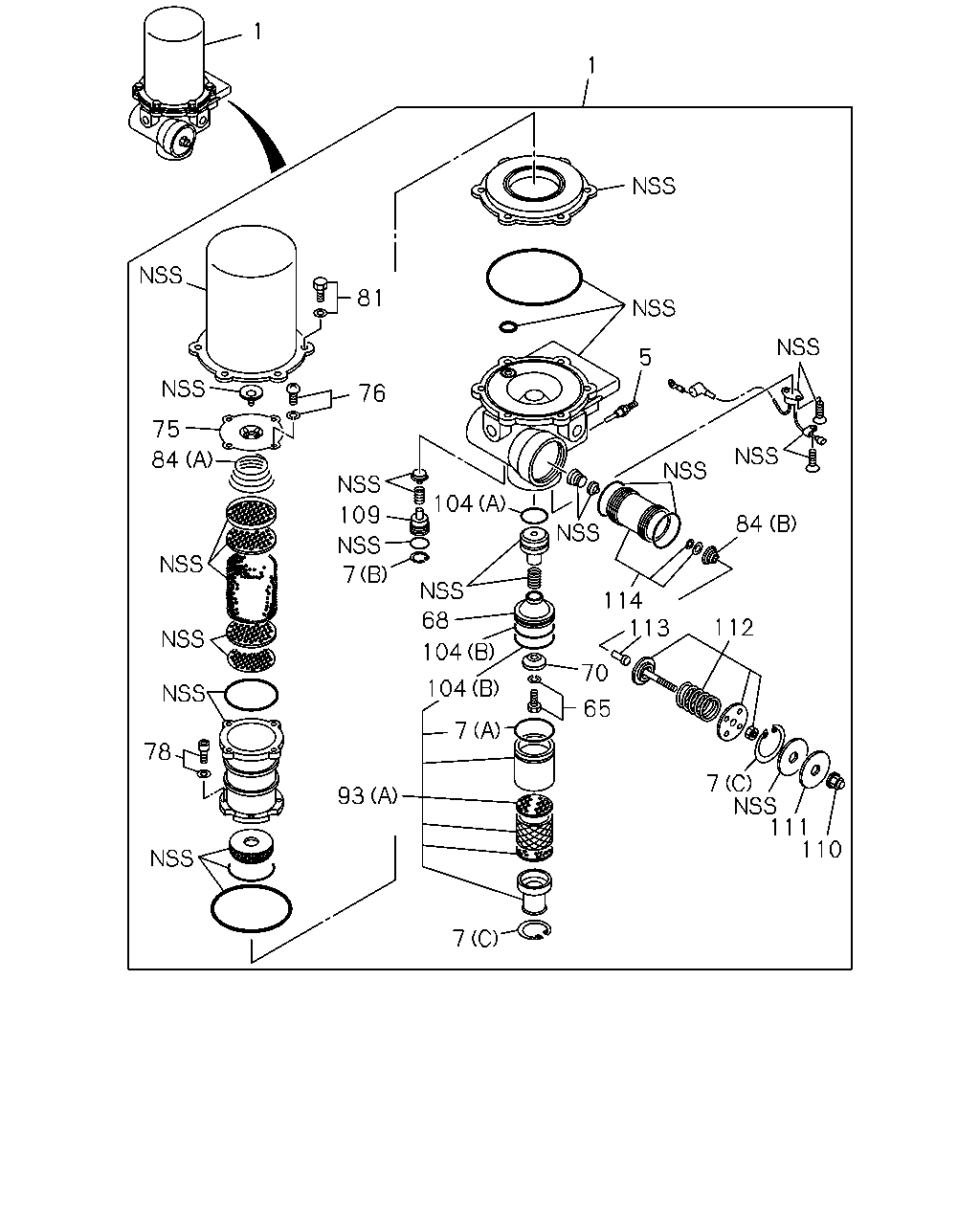

[346A] COMPONENT (28 parça)
▶
10
1
10
10
10
9
8
72
93
124
72
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-371-2
01
1
1106-1211
1
DRYER; AIR
8-98225-292-0
01
1
1212-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1106-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1106-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1106-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1106-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
1106-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1106-
10
BOLT; AIR DRYER
(A) M12X25 FLANGE
0-28051-225-0
03
1
1106-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28650-820-0
02
1
1106-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-585-0
01
1
1106-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-602-0
01
1
1106-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1106-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1106-
124
FILTER; SILENCER
1-48199-465-0
01
1
1106-
4
104
104
104
2
3
104
68
104
104
70
65
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-448-0
01
1
1106-1211
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1106-1211
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
1106-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1106-
68
BODY; VALVE
1-48199-515-0
01
1
1106-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1106-
104
GASKET
(A)
1-48199-495-0
01
1
1106-1211
104
GASKET
(A)
8-98226-321-0
01
1
1212-
104
GASKET
(B)
1-48199-496-0
02
1
1106-1211
104
GASKET
(B)
1-48199-496-0
01
1
1212-
1
1
81
75
76
84
109
7
78
93
104
68
104
104
7
7
114
113
70
65
5
84
112
7
111
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-371-2
01
1
1106-1211
1
DRYER; AIR
8-98225-292-0
01
1
1212-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1106-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1106-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1106-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1106-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1106-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1106-
68
BODY; VALVE
1-48199-515-0
01
1
1106-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1106-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1106-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1106-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1106-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
1106-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1106-
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1106-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1106-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1106-
104
GASKET
(A)
1-48199-495-0
01
1
1106-1211
104
GASKET
(A)
8-98226-321-0
01
1
1212-
104
GASKET
(B)
1-48199-496-0
02
1
1106-1211
104
GASKET
(B)
1-48199-496-0
01
1
1212-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1106-
110
NUT; CAP
1-48199-527-0
01
1
1106-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1106-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1106-
113
STEM; EXHAUST
1-48199-522-0
01
1
1106-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1106-
