3-41 — REAR BRAKE POWER CHAMBER (#49292) — 16 parça

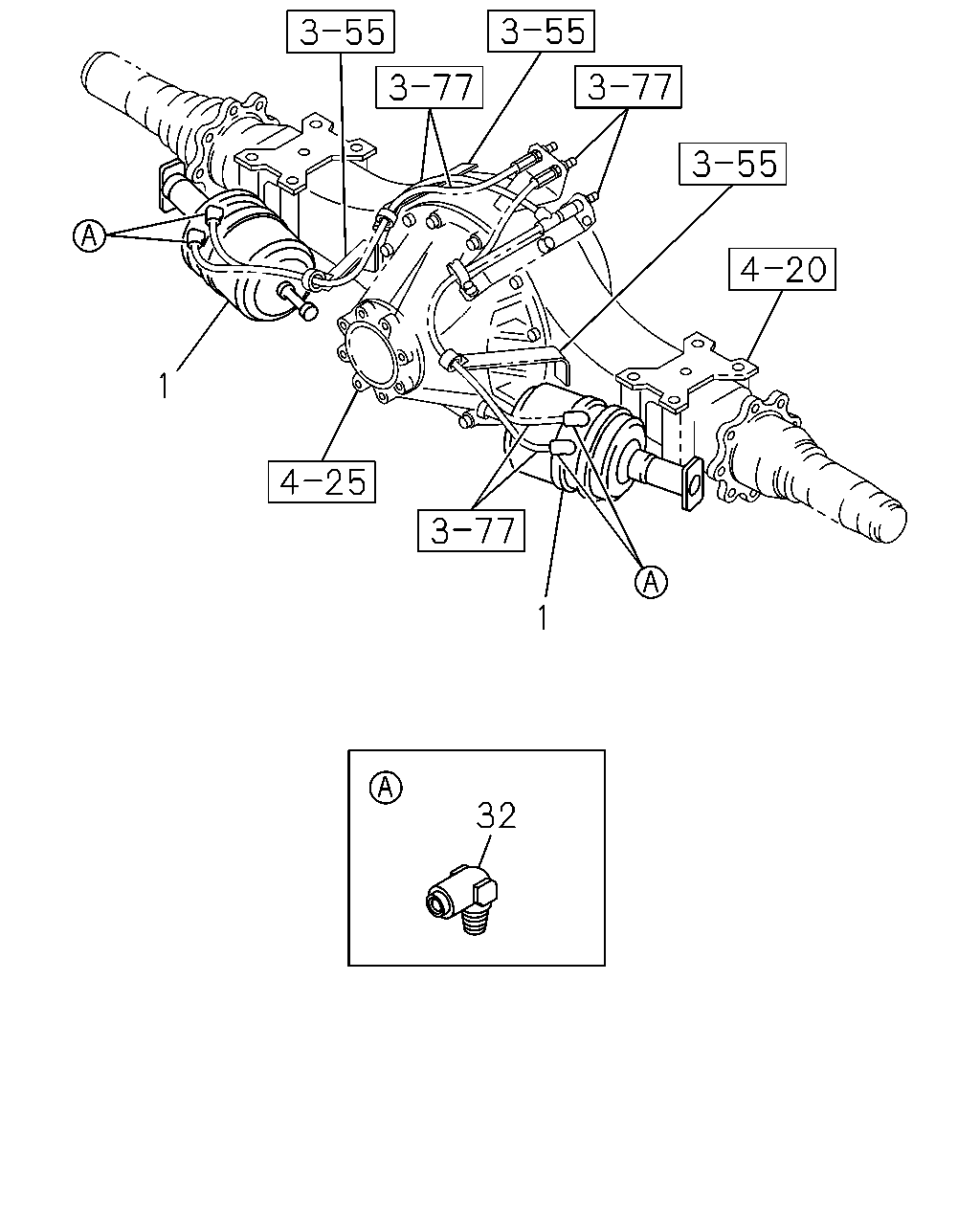

çizim 145298
1 1 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-877-4 01 1 1106-
1 CHAMBER ASM; SPRING 1-48250-878-4 01 1 1106-
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1106-

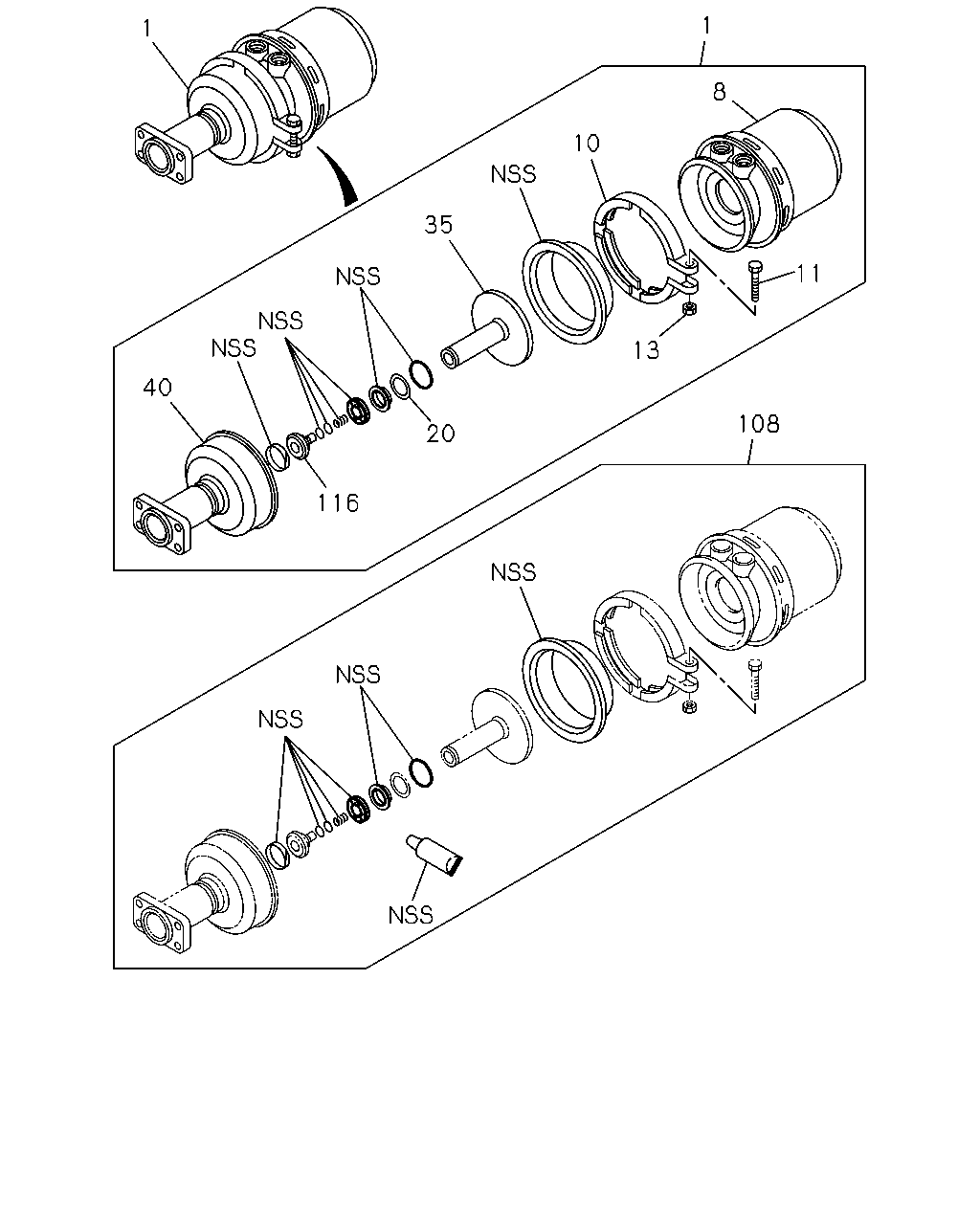

çizim 145407
1 1 8 10 35 11 13 40 108 20 116
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-877-4 01 1 1106-
1 CHAMBER ASM; SPRING 1-48250-878-4 01 1 1106-
8 SHELL; CYL,SPR CHAMBER 1-48251-173-2 01 1 1106-
8 SHELL; CYL,SPR CHAMBER 1-48251-174-2 01 1 1106-
10 RING; CLAMP,SPR CHAMBER 1-48269-231-0 02 1 1106-
11 BOLT; CLAMP RING 1-48269-232-0 02 1 1106-
13 NUT; CLAMP RING 1-48269-233-0 02 1 1106-
20 RING; RET 1-48269-236-0 02 1 1106-
35 PLATE; ROD END,SPR CHAMBER 1-48269-253-0 02 1 1106-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-179-0 01 1 1106-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-180-0 01 1 1106-
108 REPAIR KIT; SPR CHAMBER 1-85576-407-1 02 1 1106-
116 GUIDE; SPR CHAMBER 1-48269-237-0 02 1 1106-
