Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11413 - FORWARD1500(MEXICO)
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#49287) — 30 parça
◀

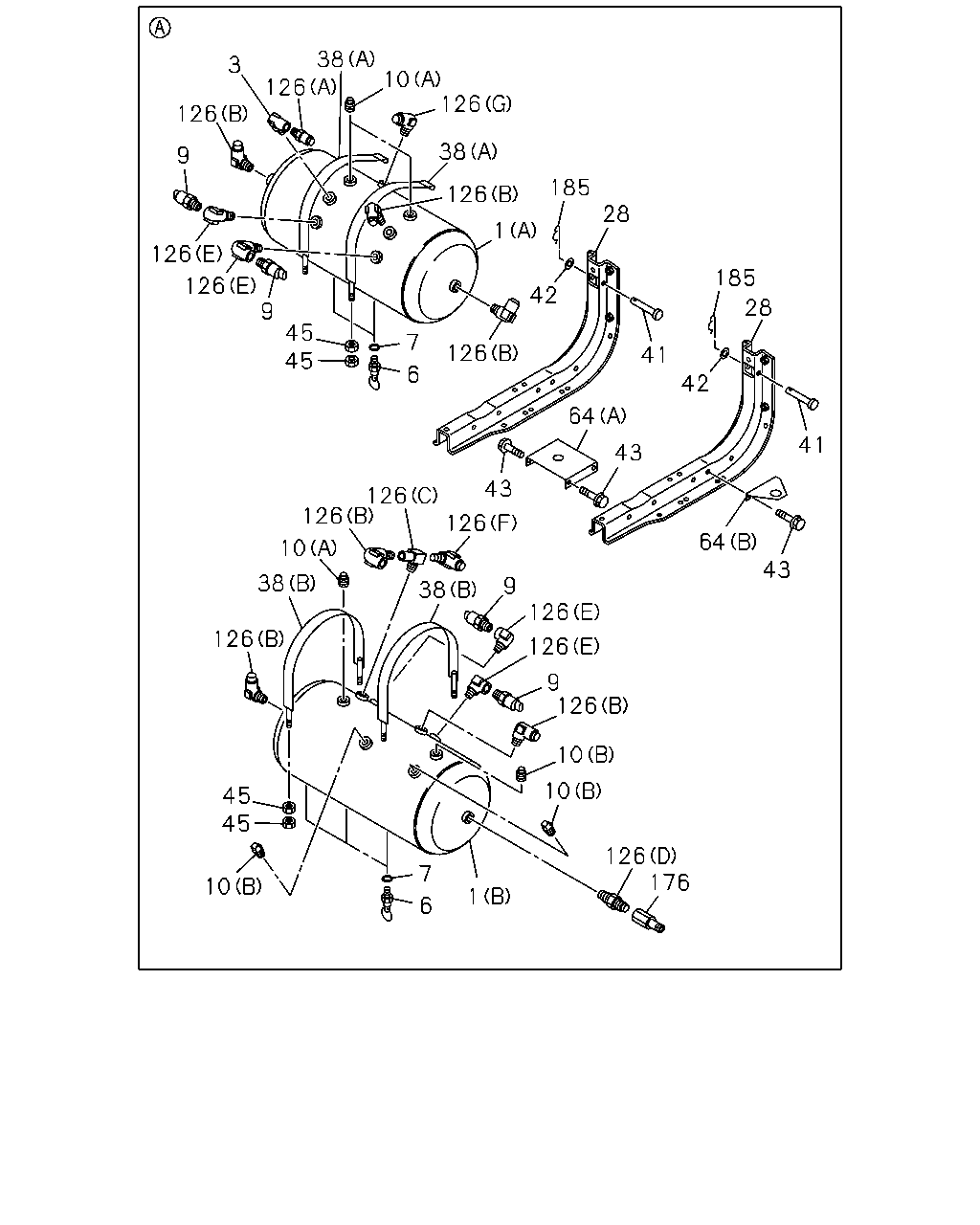

[320A] COMPONENT (26 parça)

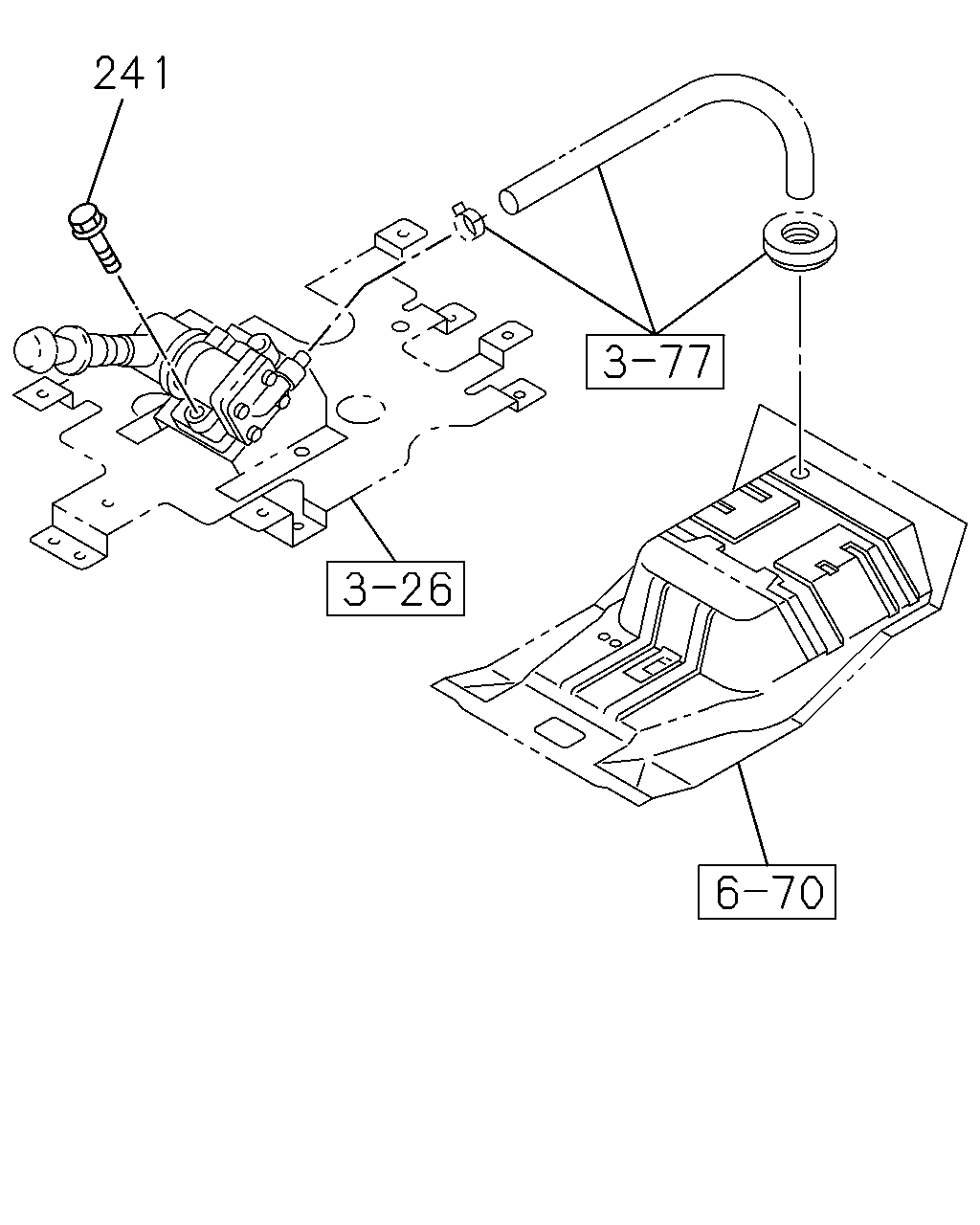

[320A] CAB SIDE (1 parça)

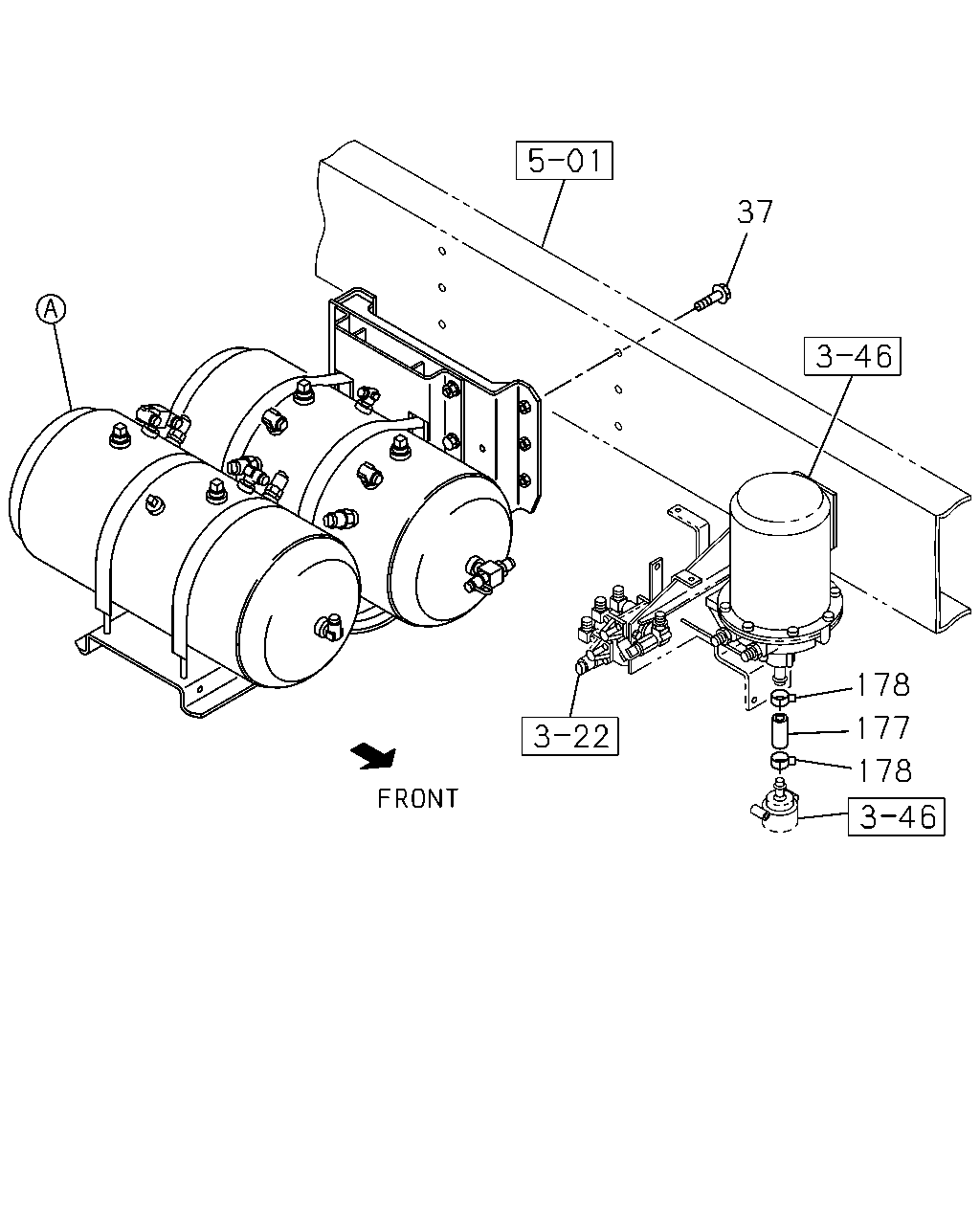

[320A] FIXING (3 parça)
▶
38
126
3
10
126
126
38
9
185
126
28
126
185
126
9
42
28
45
45
7
126
41
6
42
64
41
43
43
126
126
126
64
43
10
38
9
38
126
126
126
9
126
10
10
45
45
126
176
10
7
1
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
1-48370-181-1
01
1
1106-
1
TANK ASM; AIR
(B)
8-98184-783-0
01
1
1106-
3
VALVE; CHECK,AIR TANK
1-48320-031-1
01
1
1106-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
05
1
1106-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
05
1
1106-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
04
1
1106-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
03
1
1106-
10
PLUG; AIR TANK
(A) PT3/4
9-09204-526-0
03
1
1106-
28
BRACKET; AIR TANK
1-48317-601-5
02
1
1106-
38
BAND; AIR TANK
(A)
1-48317-108-2
02
1
1106-
38
BAND; AIR TANK
(B)
1-48317-109-2
02
1
1106-
41
PIN; BAND FIX
OD=10 L=60
0-82254-060-0
02
1
1106-
42
WASHER; PL
ID=10.5
0-91614-510-0
02
1
1106-
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE
0-28650-825-0
06
1
1106-
45
NUT; AIR TANK,MAIN
M8
0-91110-508-0
12
1
1106-
64
STAY; AIR TANK,MAIN
(A)
1-48317-607-0
01
1
1106-
64
STAY; AIR TANK,MAIN
(B)
1-48317-691-0
01
1
1106-
126
CONNECTOR; ELBOW
(D)
1-09650-275-1
01
1
1106-
126
CONNECTOR; ELBOW
(E) PT1/4 2WAY
1-09660-693-0
04
1
1106-
126
CONNECTOR; ELBOW
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1106-
126
CONNECTOR; ELBOW
(G) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1106-
126
CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
06
1
1106-
126
CONNECTOR; ELBOW
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1106-
126
CONNECTOR; ELBOW
(C)
8-98166-127-0
01
1
1106-
176
ADAPTER
DIN12 & M12 STRAIGHT
1-09660-878-0
01
1
1106-
185
PIN; SNAP
L=32.6
8-98062-280-0
02
1
1106-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE
0-28050-870-0
02
1
1106-
37
178
177
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
08
1
1106-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1106-
178
CLIP; HOSE
ID=21
8-94242-034-0
02
1
1106-
