Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#4928) — 186 parça

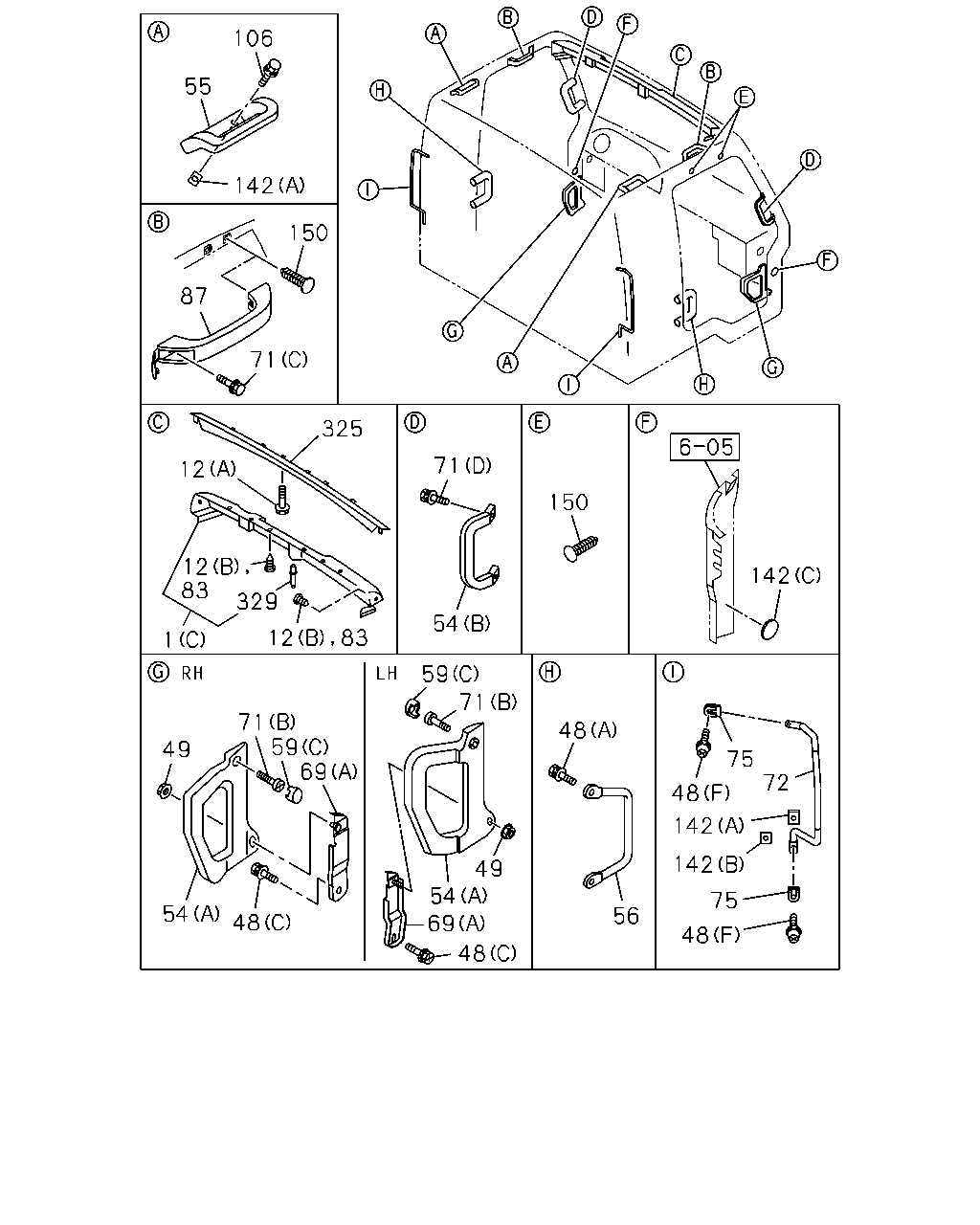

106 55 142 150 87 71 325 71 12 150 12 83 142 329 54 1 59 71 71 59 69 48 49 75 72 48 142 142 49 54 69 75 54 56 48 48 48 12 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9603-	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9603-9704	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9603-	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9705-9904	●	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	0012-	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-		●	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011		●	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-		●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9902-	●	●	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9902-	●	●	●
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (B) FRONT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607	●	●	●
48	BOLT; ASSIST GRIP (B) FRONT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-	●	●	●
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (D) FRONT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (E) FRONT ROOF GRIP M6X40 LK&PL WASHER	8-94279-215-0	02	1	9603-9603	●	●	●
48	BOLT; ASSIST GRIP (E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-9702	●	●	●
48	BOLT; ASSIST GRIP EXC. SAKHALIN EQUIPMENT(TLE) (E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9703-9901	●	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9902-	●	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) CAB ENTRY M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9901	●	●	●
48	BOLT; ASSIST GRIP SAKHALIN EQUIPMENT(TLE) (E) ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9703-9901		●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9902-		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9603-	●	●	●
49	NUT; ASSIST GRIP 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9701-9702		●	●
49	NUT; ASSIST GRIP 8PE1S(59L),10PE1S(60L) PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9703-9709		●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9710-9901	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9603-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9603-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9902-	●	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9603-	●	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9603-	●	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9603-	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9603-	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9603-	●	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9603-	●	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9603-	●	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-	●	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9603-	●	●	●
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702	●	●	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-	●	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9901	●	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9902-	●	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9902-	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9902-	●	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-400-0	01	1	9603-9612	●	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-400-0	01	1	9701-9711	●	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	9712-9901	●	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> PRE CLEANER<W17>	1-71907-495-0	01	1	9701-9711	●	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> PRE CLEANER<W17>	1-71907-545-0	01	1	9712-9901	●	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9603-9901	●	●	●
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-	●	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9603-	●	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●	●
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-	●	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9603-	●	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9603-9901	●	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	9603-9709	●	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9603-0009	●	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	0010-	●	●	●
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	9902-	●	●	●
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	9902-	●	●	●

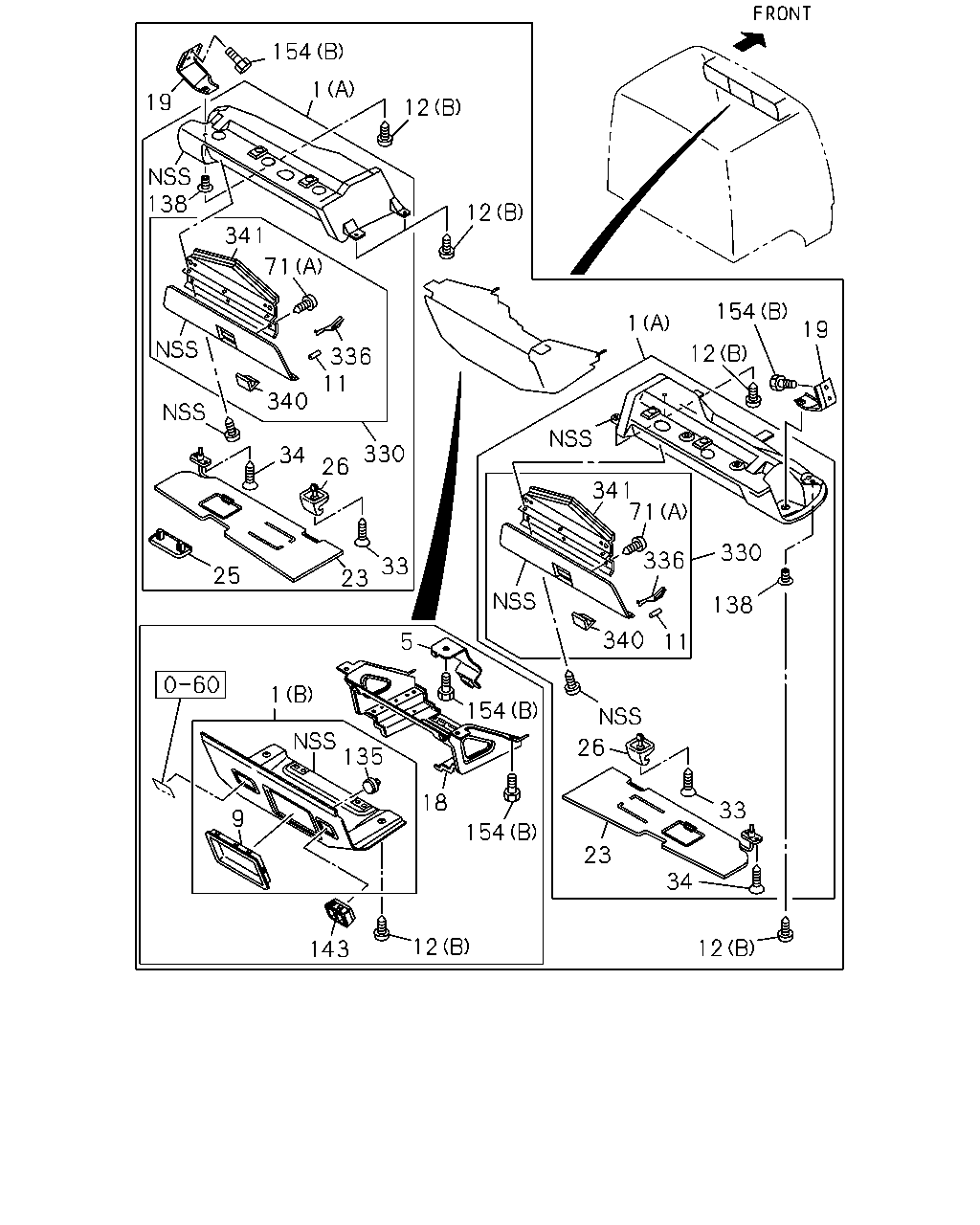

154 1 19 12 138 12 341 71 154 1 19 12 336 11 340 330 34 26 341 71 330 336 33 25 23 138 340 5 11 1 154 135 26 18 33 9 154 23 34 12 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9603-	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9603-9704	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9603-	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9705-9904	●	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011	●	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	0012-	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-		●	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011		●	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-		●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9902-	●	●	●
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9603-9901	●	●	●
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	9902-	●	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	9902-	●	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9603-	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9603-9901	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9902-	●	●	●
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9902-	●
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9902-	●	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-702-2	01	1	9603-9604	●	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9605-	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9603-	●	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9603-	●	●	●
23	SUN VISOR	1-73138-150-1	01	1	9603-	●	●	●
23	SUN VISOR	1-73138-148-1	01	1	9603-9904	●	●	●
23	SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-148-1	01	1	9905-0011	●	●	●
23	SUN VISOR	1-73138-148-1	01	1	0012-	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	0012-		●	●
25	COVER; HOLE,SUN VISOR CHEAPER CAB(WY1)	1-73318-614-0	01	1	9905-0011		●	●
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-		●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9603-9901	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9902-9904	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9902-9904	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9905-0011	●	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-142-0	01	1	9905-0011	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-	●	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-		●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9603-9901	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9902-9904	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9902-9904	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011	●	●	●
33	SCREW; HOLDER,SUN VISOR EXC. CHEAPER CAB(WY1) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-		●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9603-9904	●	●	●
34	SCREW; SUN VISOR EXC. CHEAPER CAB(WY1) M6X25	1-09981-441-0	04	1	9905-0011	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0012-	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-		●	●
34	SCREW; SUN VISOR CHEAPER CAB(WY1) M6X25	1-09981-441-0	02	1	9905-0011		●	●
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0012-		●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9603-	●	●	●
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702	●	●	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-	●	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9901	●	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9902-	●	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9902-	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9902-	●	●	●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	05	1	9603-9705	●	●	●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9706-	●	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9603-9901	●	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9902-0011	●	●	●
138	NUT; BRKT,HEADER SHELF EXC. CHEAPER CAB(WY1)	1-09984-166-0	02	1	9902-0011	●	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-	●	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-	●
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-		●	●
143	BEZEL	1-72448-411-0	01	1	9603-	●	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-	●	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-	●	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9603-9901	●	●	●
330	LID; HEADER SHELF	1-72448-360-3	01	1	9902-	●	●	●
330	LID; HEADER SHELF	1-72448-360-3	01	1	9902-	●
336	STAY; LID	1-72448-379-3	04	1	9603-9901	●	●	●
336	STAY; LID	1-72448-379-3	02	1	9902-	●	●	●
336	STAY; LID	1-72448-379-3	02	1	9902-	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9603-9901	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	9902-	●	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	9902-	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9603-9901	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	9902-	●	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	9902-	●

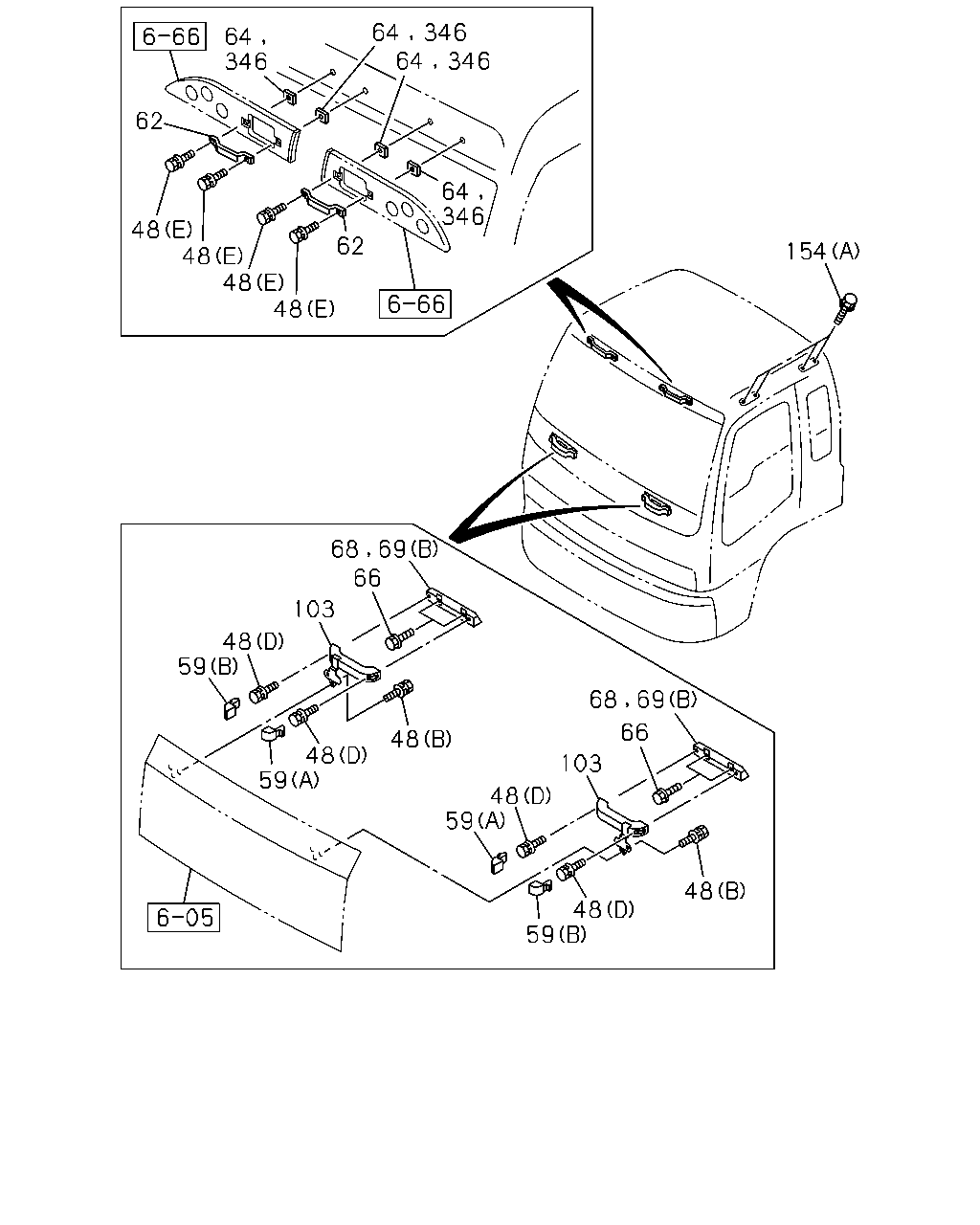

64 346 62 64 346 48 48 48 48 62 154 66 103 48 59 66 48 48 59 103 48 59 48 48 59 64 346 64 346 68 69 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (B) FRONT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607	●	●	●
48	BOLT; ASSIST GRIP (B) FRONT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-	●	●	●
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (D) FRONT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●	●
48	BOLT; ASSIST GRIP (E) FRONT ROOF GRIP M6X40 LK&PL WASHER	8-94279-215-0	02	1	9603-9603	●	●	●
48	BOLT; ASSIST GRIP (E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-9702	●	●	●
48	BOLT; ASSIST GRIP EXC. SAKHALIN EQUIPMENT(TLE) (E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9703-9901	●	●	●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) FRONT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9902-	●	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) CAB ENTRY M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9901	●	●	●
48	BOLT; ASSIST GRIP SAKHALIN EQUIPMENT(TLE) (E) ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9703-9901		●
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9902-		●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9603-	●	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9603-	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9603-	●	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	01	1	9603-9610	●	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	01	1	9611-9702	●	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. SAKHALIN EQUIPMENT(TLE)	1-71907-492-0	01	1	9703-9901	●	●	●
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	01	1	9902-	●	●	●
62	GRIP; ASSIST,ROOF PANEL SAKHALIN EQUIPMENT(TLE)	1-71907-492-0	02	1	9703-9901		●
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	9902-		●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9603-0104	●	●	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 25X25	8-94272-533-0	02	1	0105-	●	●	●
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0105-	●	●	●
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0105-		●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9603-	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9603-0009	●	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9603-	●	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9603-	●	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-	●	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9603-	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9603-	●	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-	●	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-	●	●	●
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09985-344-0	02	1	0105-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
