Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11413 - FORWARD1500(MEXICO)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#49278) — 16 parça
◀

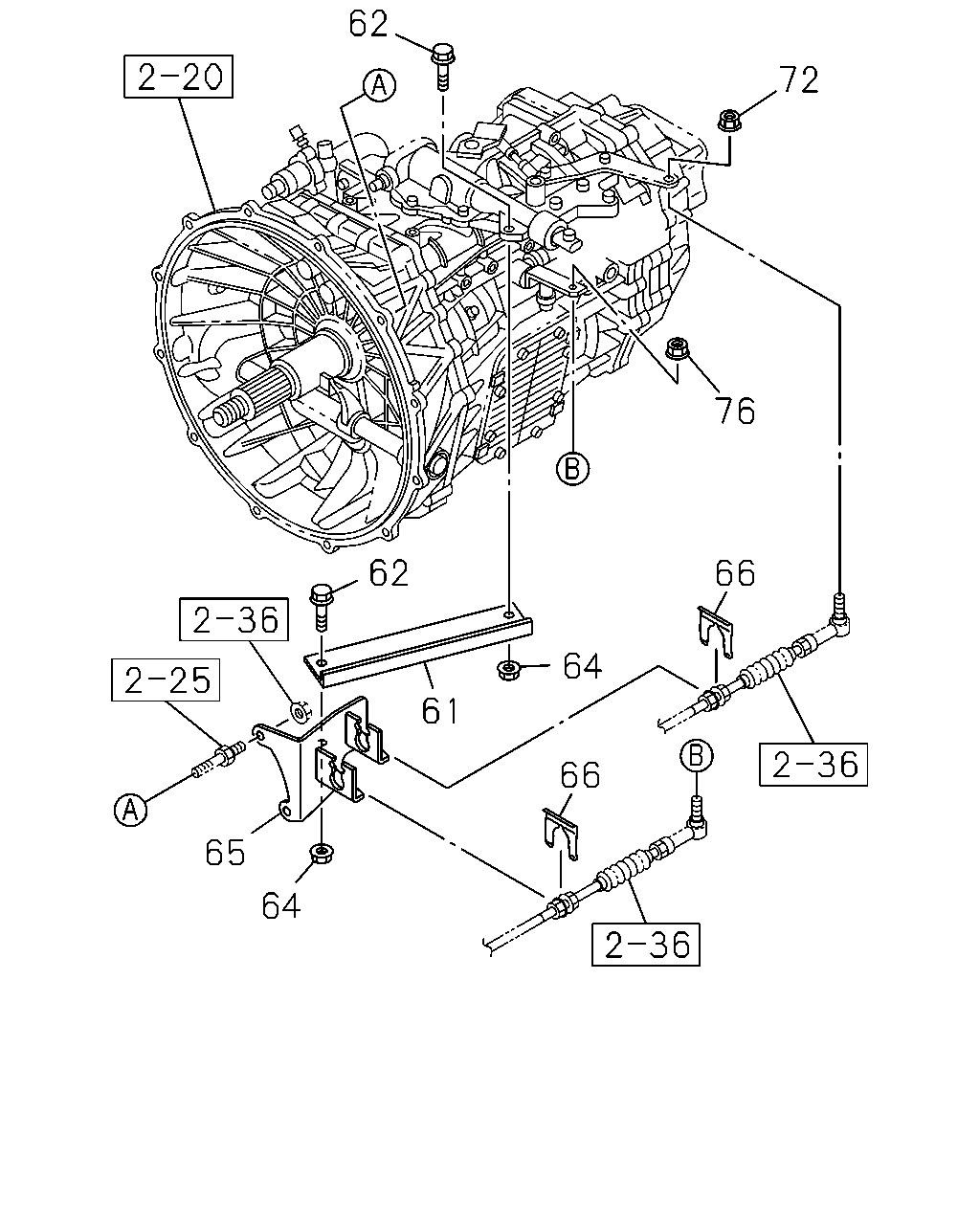

[237A] MZW (9 parça)

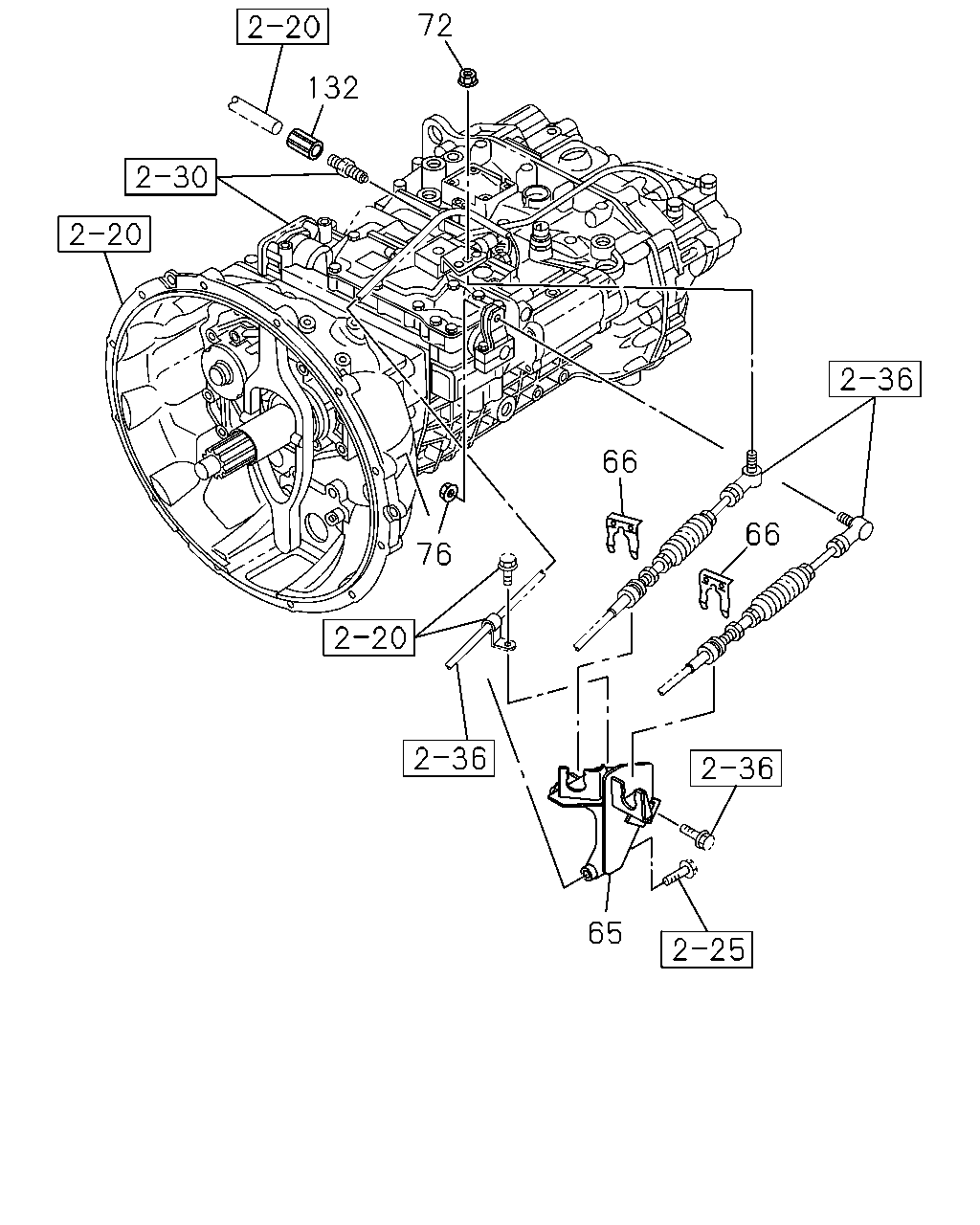

[237A] ZF (7 parça)
▶
62
72
76
62
66
64
61
66
65
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
STAY; BRKT,TRANS CONT
MZW6P M/T(RSZ)
1-33657-267-0
01
1
1106-
62
BOLT; STAY
MZW6P M/T(RSZ) M10X30 FLANGE
0-28651-030-0
02
1
1106-
64
NUT; STAY
MZW6P M/T(RSZ) M10 FLANGE
0-91180-210-0
02
1
1106-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ)
8-98017-428-0
01
1
1106-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E)
8-98060-386-0
01
1
1106-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1106-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1106-
76
NUT; BALL JOINT,SELECT WIRE
MZW6P M/T(RSZ) M8 FLANGE
1-09440-049-0
01
1
1106-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) M10 FLANGE
1-09440-056-0
01
1
1106-
72
132
66
66
76
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ)
8-98017-428-0
01
1
1106-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E)
8-98060-386-0
01
1
1106-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1106-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1106-
76
NUT; BALL JOINT,SELECT WIRE
MZW6P M/T(RSZ) M8 FLANGE
1-09440-049-0
01
1
1106-
76
NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) M10 FLANGE
1-09440-056-0
01
1
1106-
132
CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1106-
