◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#49275) — 184 parça

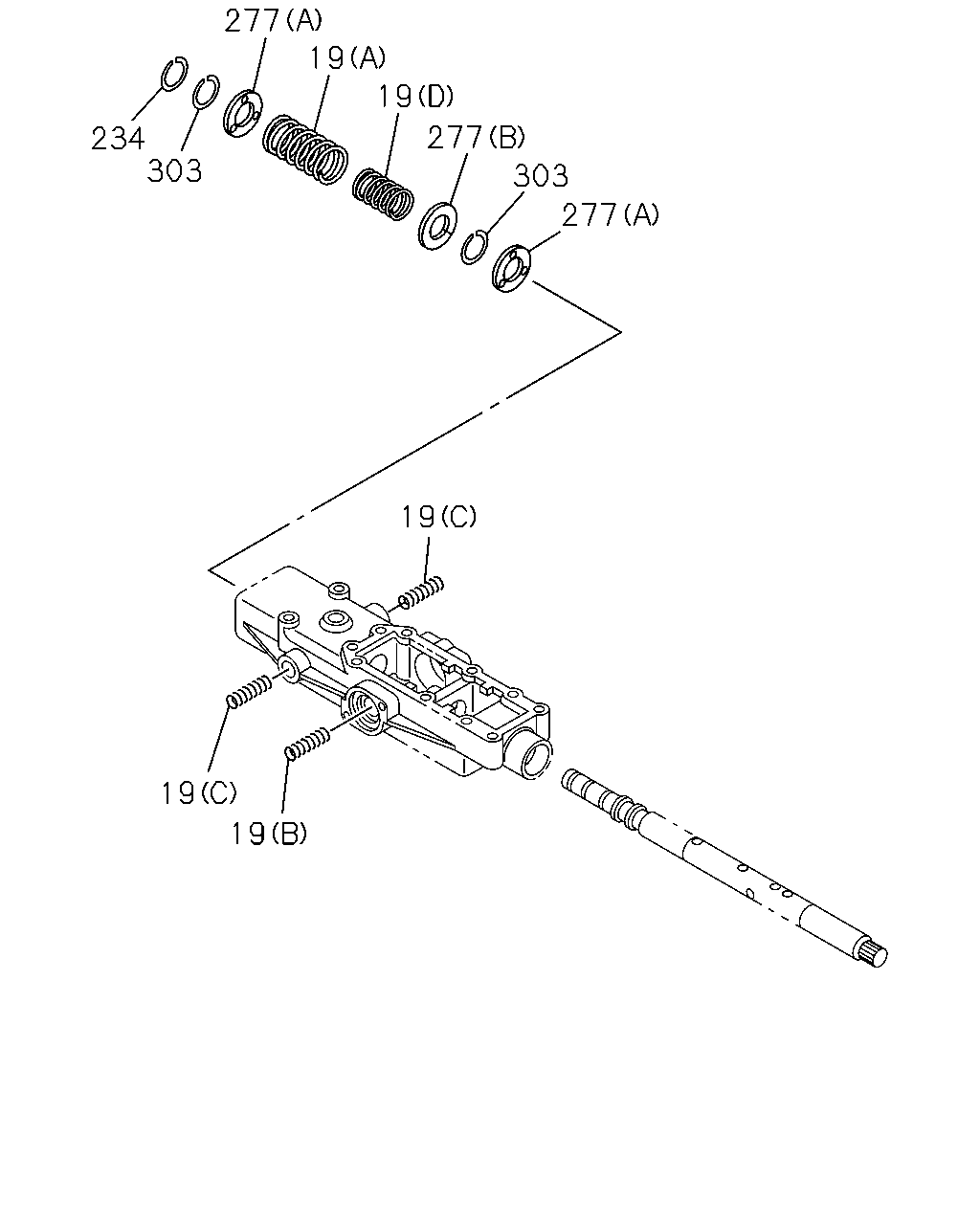

çizim 145201
277 19 19 277 234 303 303 277 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-027-0 01 1 1106-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 02 1 1106-
19 SPRING; COIL COMP
(D) 		1-33539-104-0 01 1 1106-
19 SPRING; COIL COMP
(B) 		1-33549-221-0 01 1 1106-
234 RING; SNAP 1-44519-224-0 01 1 1106-
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 02 1 1106-1305
277 PLATE; SPRING SEAT
(A) 		1-33539-107-0 02 1 1306-
277 PLATE; SPRING SEAT
(B) 		1-33539-042-0 01 1 1106-1305
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1106-

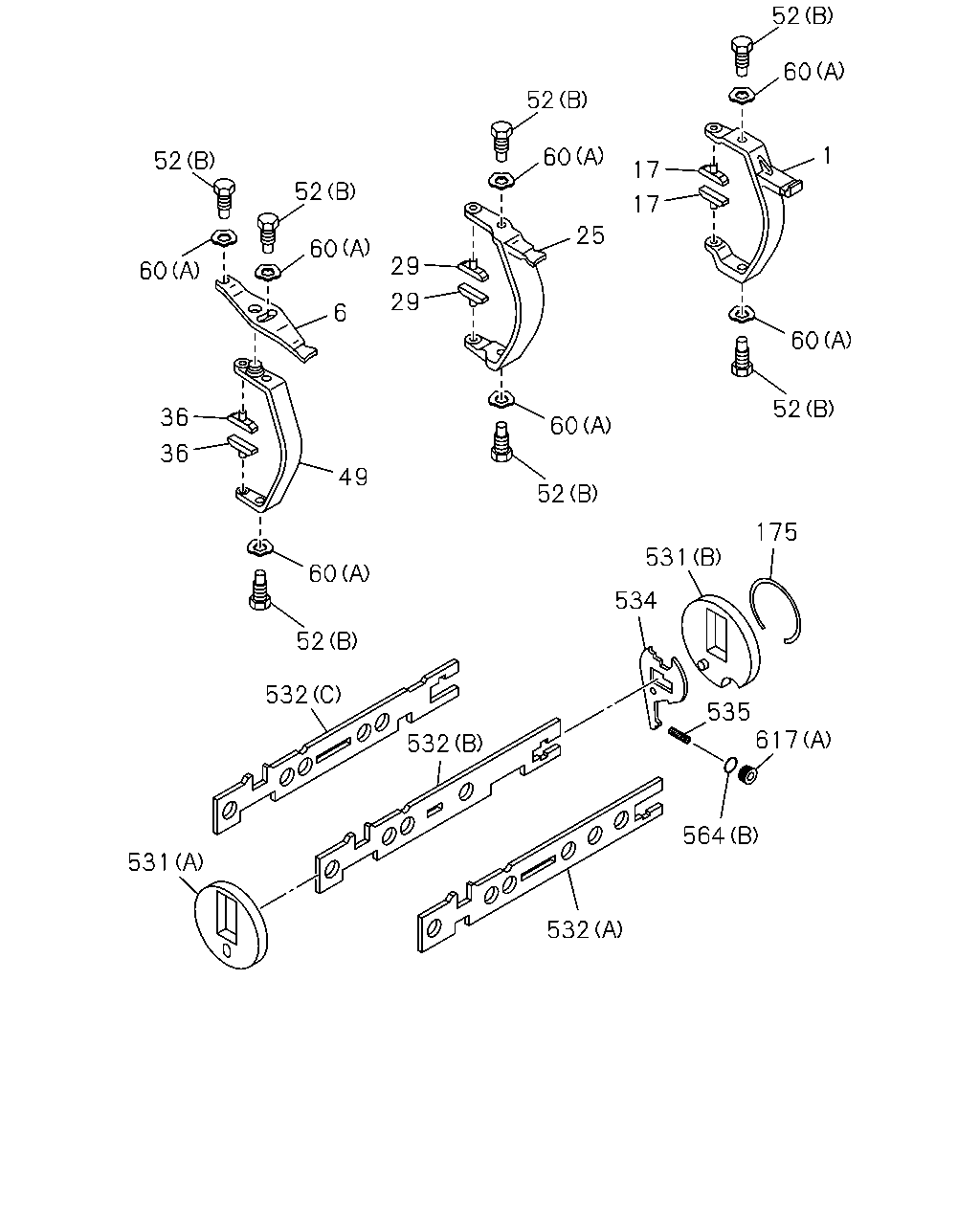

çizim 145204
52 52 1 52 17 52 17 25 29 60 29 6 60 52 36 60 36 49 52 175 531 60 534 52 532 535 617 532 564 531 532 60 60 60
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1106-
6 LEVER; RELAY 1-33511-658-0 01 1 1106-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1106-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1106-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1106-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1106-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1106-
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1106-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1106-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1106-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1106-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1106-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1106-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1106-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1106-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1106-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1106-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1106-
535 SPRING; LEVER 1-33539-049-0 01 1 1106-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1106-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1106-1305
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306-
617 PLUG
(B) 		1-33119-171-0 02 1 1106-1305
617 PLUG
(B) 		1-33119-619-0 02 1 1306-
617 PLUG
(A) 		1-34129-061-0 01 1 1106-1305
617 PLUG
(A) 		1-33539-109-0 01 1 1306-

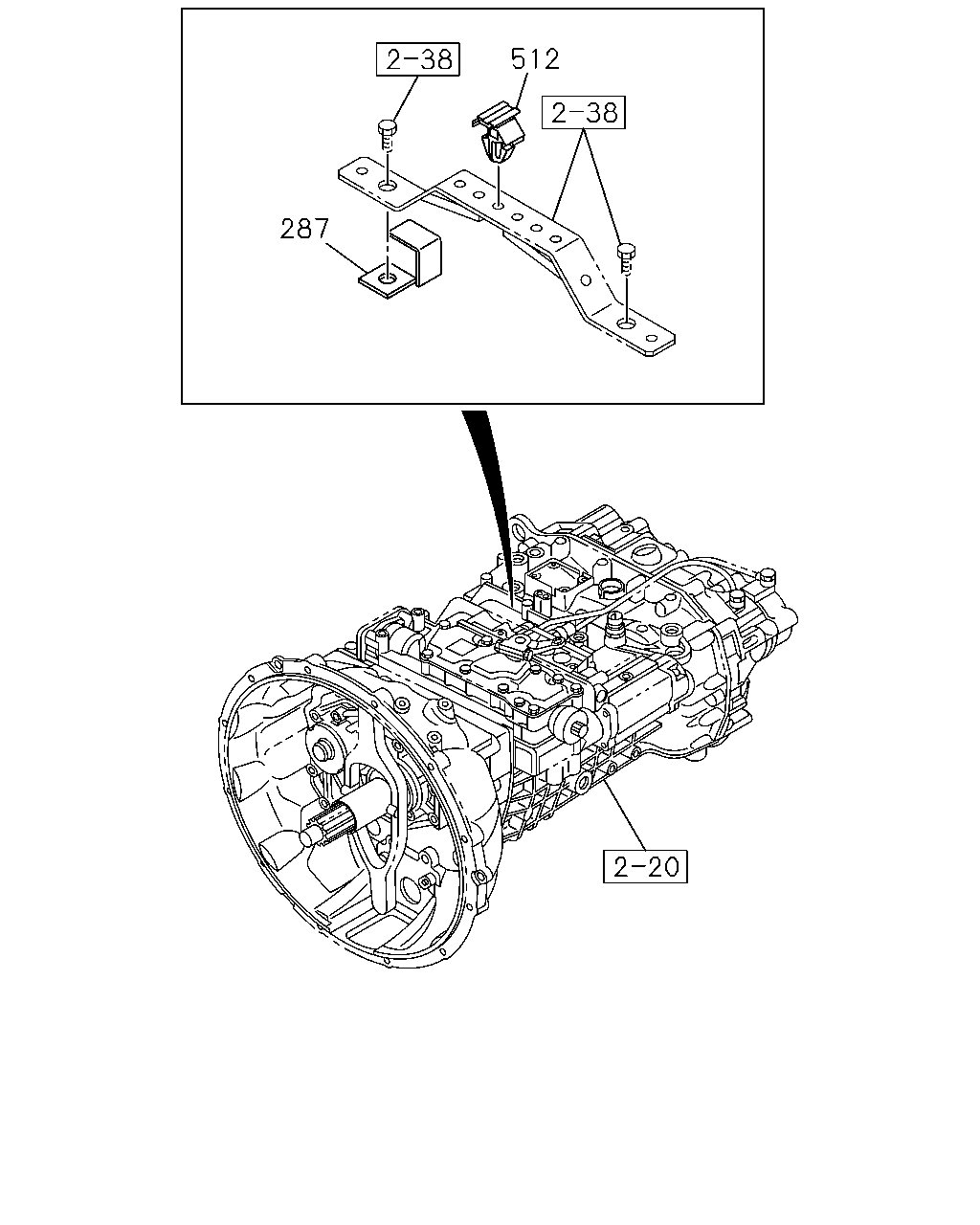

çizim 145219
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1106-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1106-

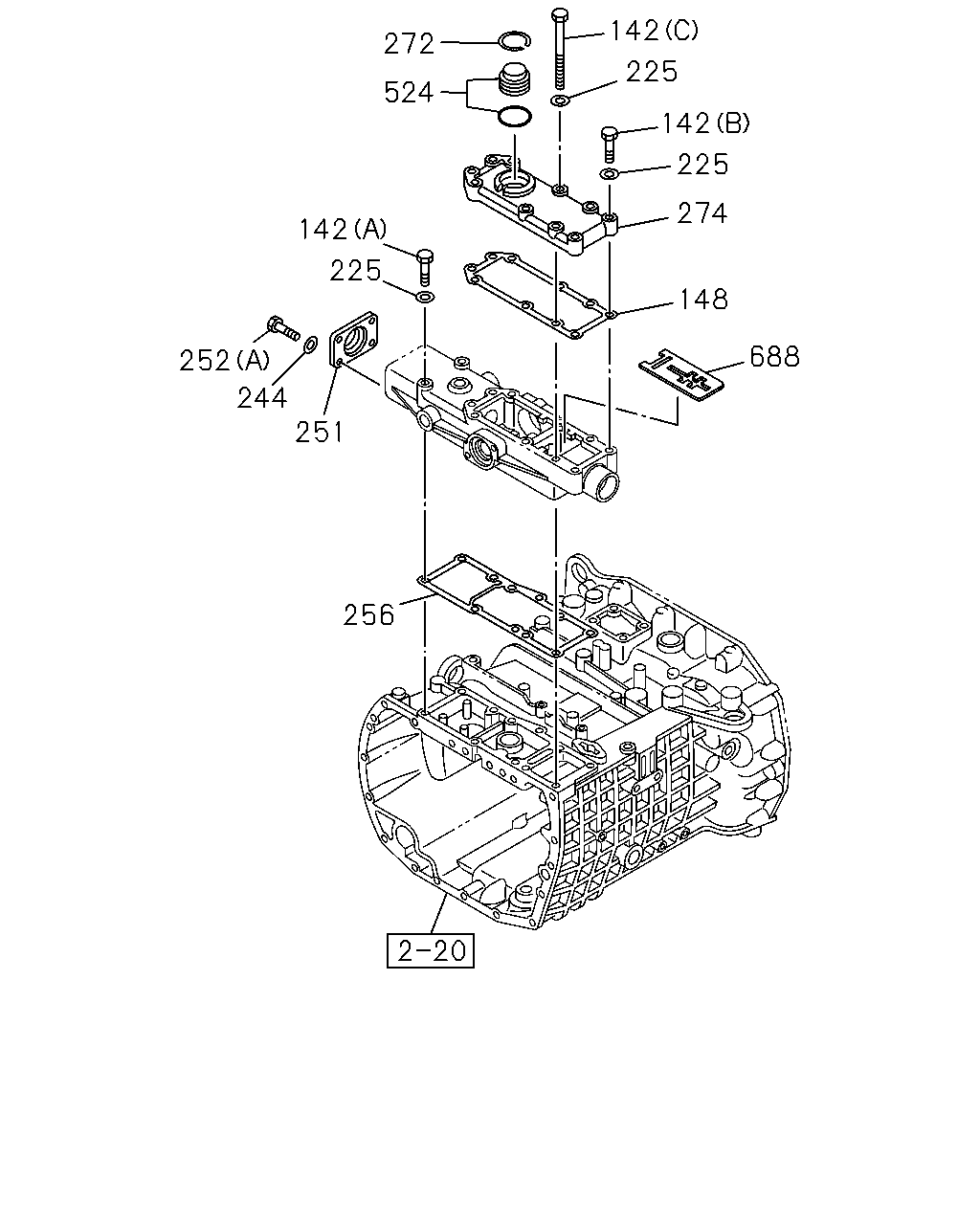

çizim 145221
142 272 225 524 142 225 274 142 225 148 688 252 244 251 256
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(A) M8X75 		1-09089-015-0 02 1 1106-1305
142 BOLT; QUAD BOX
(C) M8X100 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
(C) 		1-33549-486-0 06 1 1106-1305
142 BOLT; QUAD BOX
(A) M8X75 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
(B) 		1-34129-116-0 04 1 1106-1305
142 BOLT; QUAD BOX
(B) M8X40 		1-33549-587-0 04 1 1306-
148 GASKET; QUAD BOX 1-33542-064-0 01 1 1106-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1106-1305
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1306-
244 WASHER; LK,COVER 1-33549-159-0 04 1 1106-1305
244 WASHER; LK,COVER 1-33549-583-0 04 1 1306-
251 COVER; SIDE 1-33549-478-0 01 1 1106-1305
251 COVER; SIDE 1-33549-590-0 01 1 1306-
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1106-1305
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1306-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1106-1305
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-065-0 01 1 1106-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1106-
274 COVER; SHAFT,QUAD BOX 1-33549-571-0 01 1 1106-1305
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1306-
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1106-
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1106-

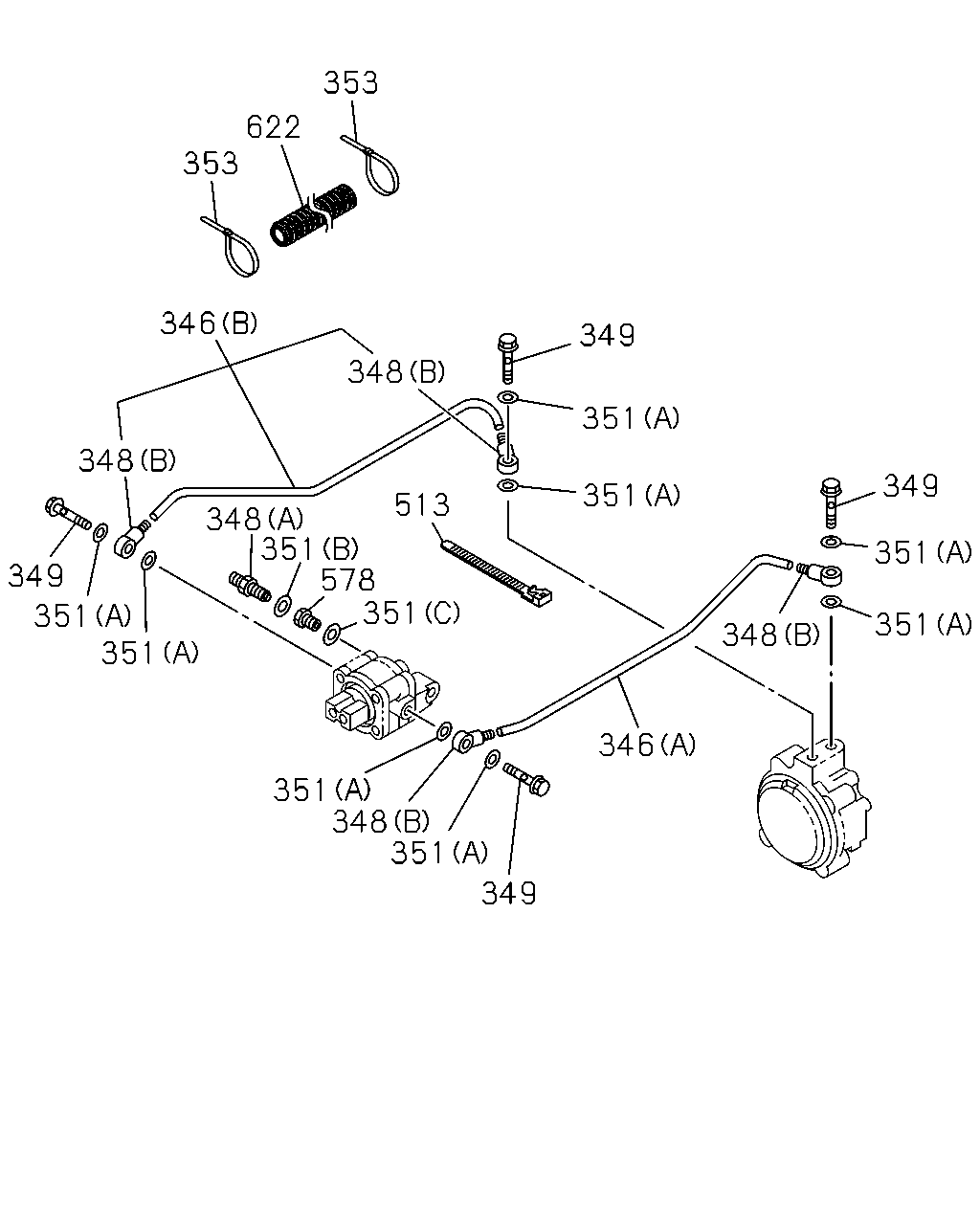

çizim 145224
353 622 353 346 349 348 351 348 349 351 513 348 351 578 351 351 349 351 351 351 348 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-400-0 01 1 1106-1305
346 HOSE; AIR
(A) 		1-33549-618-0 01 1 1306-
346 HOSE; AIR
(B) 		1-33549-443-0 01 1 1106-1305
346 HOSE; AIR
(B) 		1-33549-598-0 01 1 1306-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1106-
348 CONNECTOR; AIR HOSE
PTO ZF TRANS RR(BDM) (B) 		1-33549-139-0 02 1 1106-1305
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1306-
348 CONNECTOR; AIR HOSE
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-139-0 04 1 1106-1305
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1106-1305
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1306-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1106-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 08 1 1106-1305
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 08 1 1306-
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1106-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1106-
513 CLIP; BAND
L=250 		5-09707-030-1 06 1 1106-
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 1106-
578 CONNECTOR 1-33549-553-0 01 1 1106-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1106-

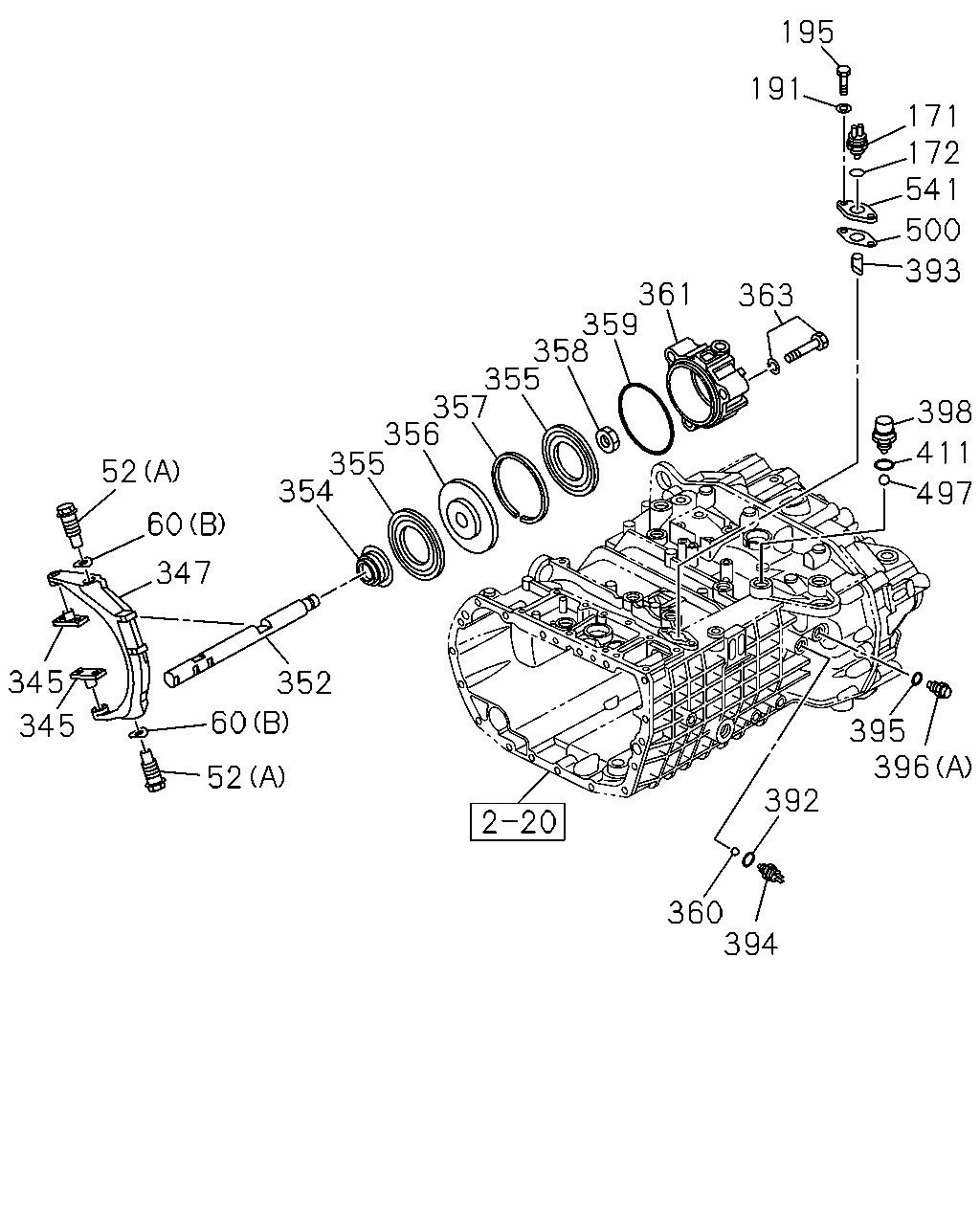

çizim 145227
195 191 171 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1106-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1106-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1106-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1106-1305
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1106-1305
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1306-
172 GASKET; NEUTRAL SW 1-33119-249-0 01 1 1106-
191 WASHER; LK 1-36129-007-0 02 1 1106-1305
191 WASHER; LK 1-33549-583-0 02 1 1306-
195 BOLT 1-33119-301-0 02 1 1106-1305
195 BOLT 1-33119-593-0 02 1 1306-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1106-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1106-
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM) 		1-33531-047-0 01 1 1306-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1106-1305
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR(BDM) 		1-33531-495-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1106-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1106-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1106-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1106-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1106-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1106-
360 BALL; AIR CYL 1-33119-252-0 01 1 1106-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1106-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1106-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1106-
393 PIN; SW 1-33119-298-0 01 1 1106-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1106-1305
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306-
395 GASKET; PLUNGER 1-33519-171-0 01 1 1106-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1106-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1106-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1106-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1106-
497 BALL; SWITCH 1-33119-252-0 01 1 1106-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1106-
541 PLATE; SWITCH 1-33119-300-0 01 1 1106-
çizim 145244
165 289 165 165 271 90 430 298 569 304 90 332 265 264 42 48
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-111-0 01 1 1106-1305
42 CAP; QUAD BOX 1-33549-589-0 01 1 1306-
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1106-
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1106-
165 LEVER; SHIFT
(C) 		1-33549-488-0 01 1 1106-
165 LEVER; SHIFT
(B) 		1-33549-489-0 01 1 1106-
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1106-1305
165 LEVER; SHIFT
(A) 		1-33549-603-0 01 1 1306-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1106-
265 SEAL; OIL,SHIFT 1-33549-118-0 01 1 1106-
271 BUSHING; QUAD BOX 1-33549-124-0 01 1 1106-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33549-491-0 01 1 1106-
298 SHAFT; SHIFT LEVER 1-33522-205-0 01 1 1106-
304 BLOCK; SHIFT SHAFT 1-33549-492-0 01 1 1106-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 1106-
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1106-
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1106-

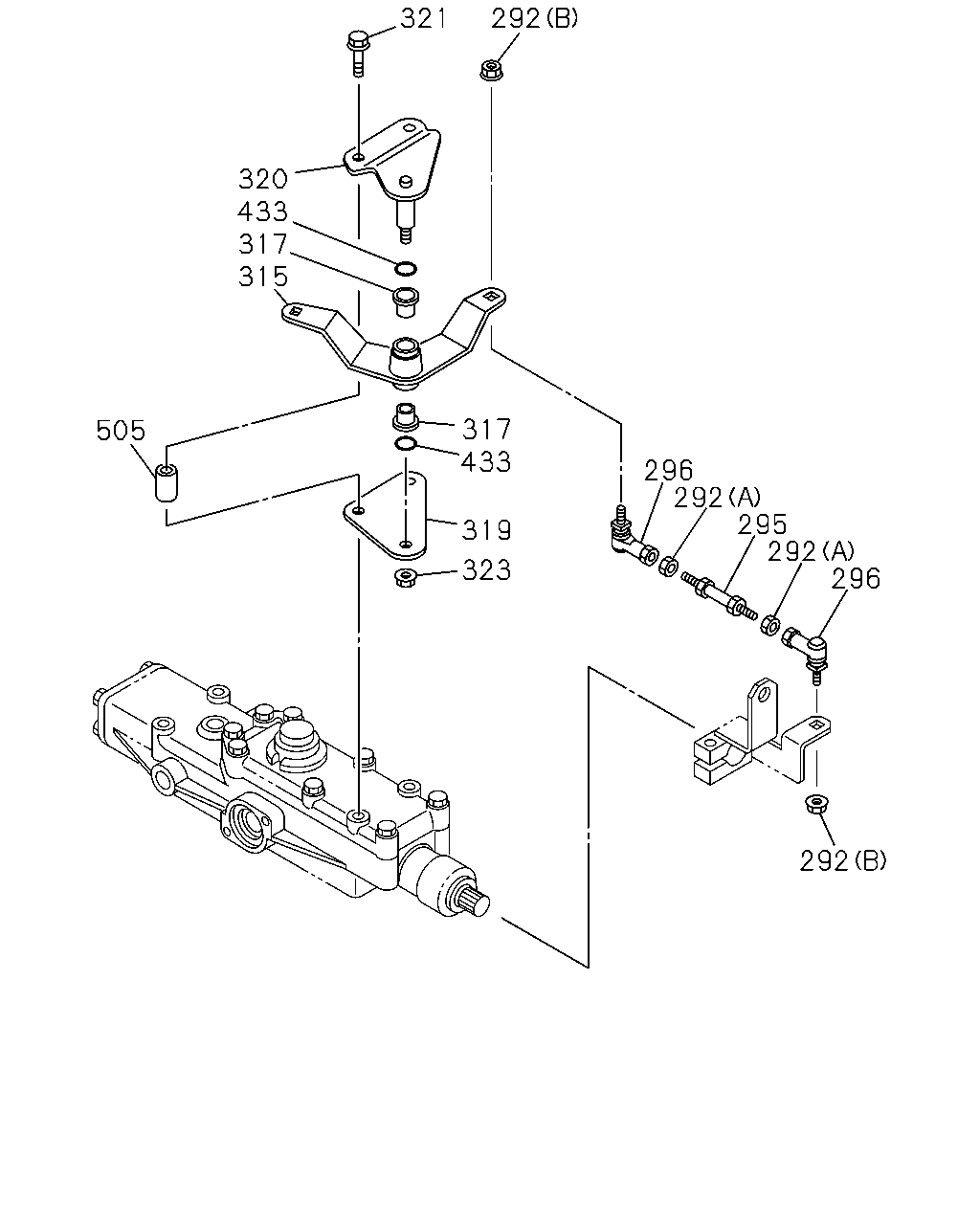

çizim 145251
321 292 320 433 317 315 317 433 505 296 292 295 292 296 319 323 292
BalonParca AdiParca NoAdetTipApplied Date
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1106-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1106-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1106-
296 ROD END 1-09760-108-0 02 1 1106-
315 LEVER; SELECT 8-98085-738-0 01 1 1106-
317 BUSHING; LEVER 1-09330-119-0 02 1 1106-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1106-
320 SHAFT; LEVER 8-98085-739-0 01 1 1106-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1106-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1106-
433 GASKET; BUSHING 1-09623-594-0 02 1 1106-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1106-

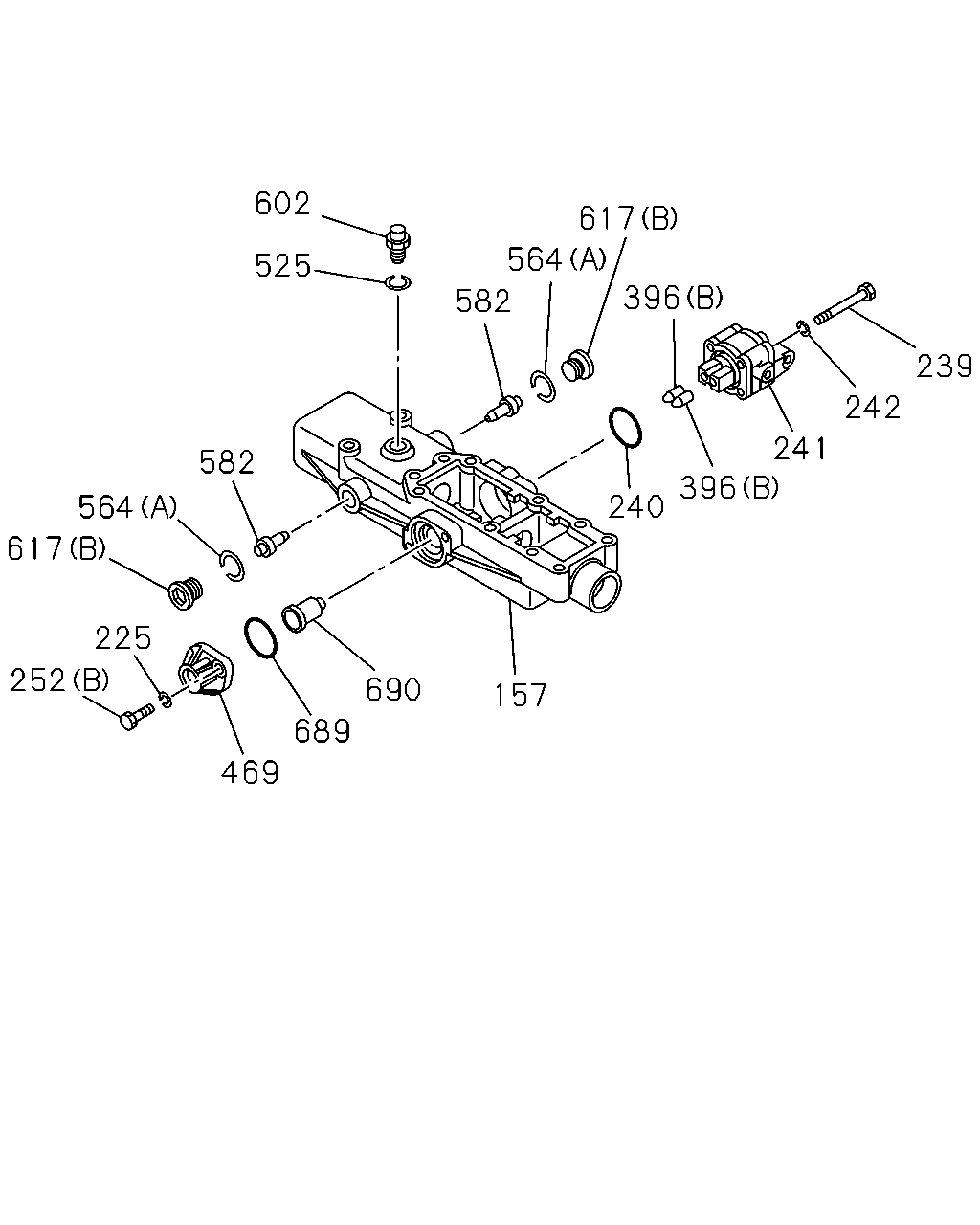

çizim 145257
602 617 564 525 396 582 239 242 241 396 582 240 564 617 225 252 690 157 689 469
BalonParca AdiParca NoAdetTipApplied Date
157 BOX; QUAD,TRANS 1-33549-570-0 01 1 1106-
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1106-1305
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1306-
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 1106-1305
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1306-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1106-
241 VALVE; CUT OFF 1-33549-495-0 01 1 1106-
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 1106-1305
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1306-
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1106-1305
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1306-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1106-1305
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1306-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1106-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1106-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1106-
525 RING; DETENT 1-33119-286-0 01 1 1106-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1106-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1106-1305
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306-
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1106-
602 PLUNGER; DETENT 1-33119-285-0 01 1 1106-1305
602 PLUNGER; DETENT 1-33119-618-0 01 1 1306-
617 PLUG
(B) 		1-33119-171-0 02 1 1106-1305
617 PLUG
(B) 		1-33119-619-0 02 1 1306-
617 PLUG
(A) 		1-34129-061-0 01 1 1106-1305
617 PLUG
(A) 		1-33539-109-0 01 1 1306-
689 GASKET; COVER 1-33542-063-0 01 1 1106-
690 PIN; STOP 1-33549-496-0 01 1 1106-
