◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#4927) — 118 parça

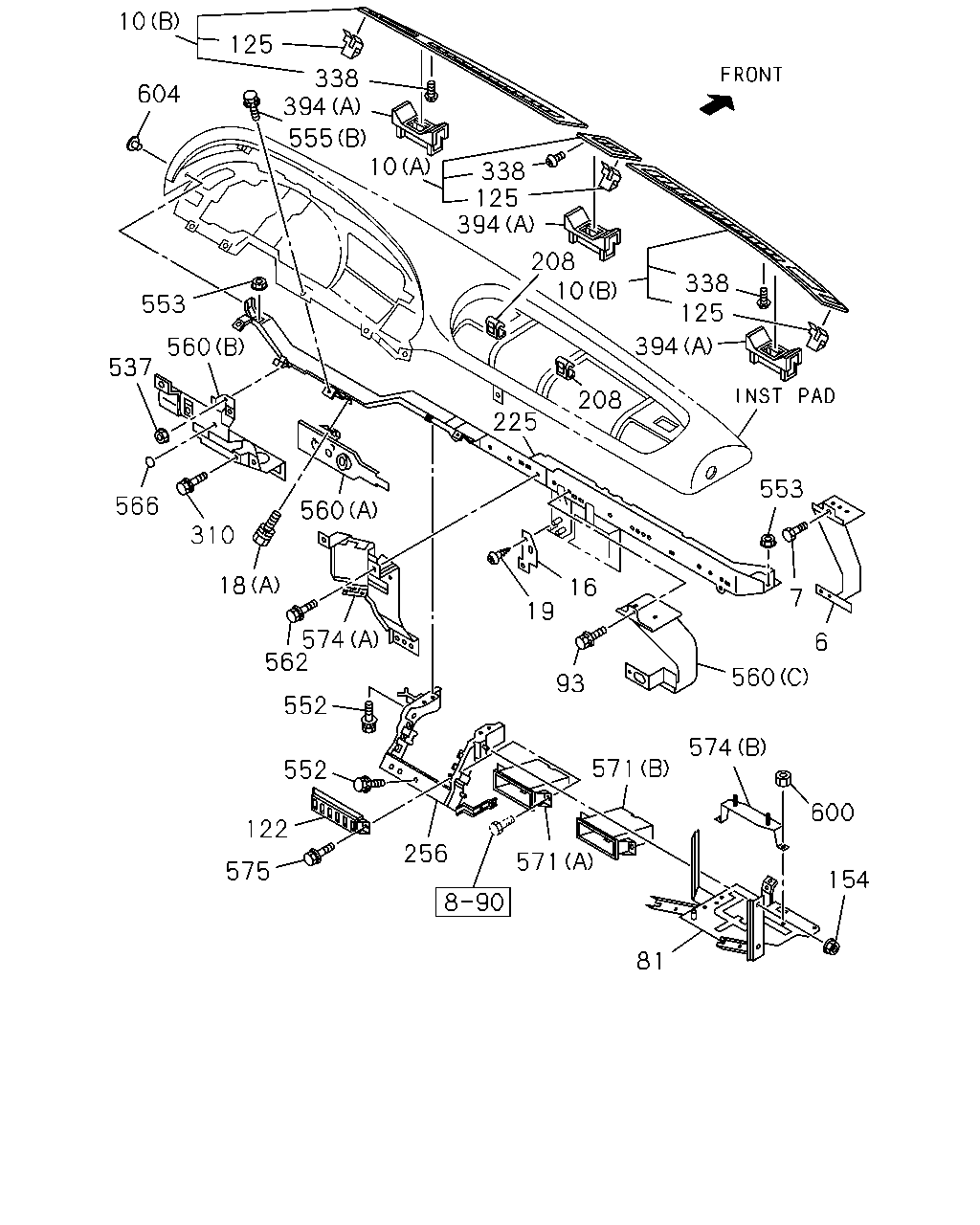

çizim 5359
10 125 338 394 604 555 10 338 125 394 208 10 338 125 553 560 394 537 208 225 553 566 560 310 18 16 7 19 574 562 6 560 93 552 574 571 552 600 122 256 571 575 154 81
BalonParca AdiParca NoAdetTipApplied Date A B C
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 9603- ● ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 9603- ● ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 9603- ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 9603- ● ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 9603- ● ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9603- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9603- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9603- ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-405-1 01 1 9603-9901 ●
81 BRACKET; ELEC CONT UNIT
EXC. POWER BRAKE LOCK SYSTEM(J50),INTAKE HEATER<SL2> 		1-73907-405-1 01 1 9603-9901 ● ●
81 BRACKET; ELEC CONT UNIT
POWER BRAKE LOCK SYSTEM(J50) FULL FLOATING CAB(W16) 		1-73907-405-1 01 1 9603-9901 ●
81 BRACKET; ELEC CONT UNIT
FULL FLOATING CAB(W16) 		1-73907-405-1 01 1 9902-9902 ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-405-7 01 1 9903-9904 ● ●
81 BRACKET; ELEC CONT UNIT
AIR BAG LESS(TGK) EXC. POWER BRAKE LOCK SYSTEM(J50),INTAKE HEATER<SL2> 		1-73907-405-7 01 1 9905- ● ● ●
81 BRACKET; ELEC CONT UNIT
AIR BAG(TFQ) 		1-73907-582-1 01 1 9905-0001 ● ● ●
81 BRACKET; ELEC CONT UNIT
AIR BAG(TFQ) 		1-73907-588-7 01 1 0002- ● ● ●
81 BRACKET; ELEC CONT UNIT
POWER BRAKE LOCK SYSTEM(J50) EXC. FULL FLOATING CAB(W16) 		1-73907-417-1 01 1 9603-9904 ●
81 BRACKET; ELEC CONT UNIT
POWER BRAKE LOCK SYSTEM(J50) AIR BAG LESS(TGK) 		1-73907-417-1 01 1 9905-0001 ●
81 BRACKET; ELEC CONT UNIT
POWER BRAKE LOCK SYSTEM(J50) AIR BAG LESS(TGK) EXC. INTAKE HEATER<SL2> 		1-73907-417-7 01 1 0002- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-416-1 01 1 9603-9904 ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> AIR BAG LESS(TGK) 		1-73907-416-7 01 1 9905- ● ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9603- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9603-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 10 1 9603-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901- ● ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9603- ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9603- ● ● ●
225 FRAME; FACIA 1-65671-727-3 01 1 9603- ● ● ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9603- ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9603- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9603- ● ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9603- ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9603- ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ● ●
560 BRACKET
(A) 		1-65681-043-2 01 1 9603-9901 ●
560 BRACKET
EXC. INTAKE HEATER<SL2> (A) 		1-65681-043-2 01 1 9603-9901 ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-65681-043-2 01 1 9902-9904 ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),INTAKE HEATER<SL2> (A) 		1-65681-043-2 01 1 9905- ● ●
560 BRACKET
(B) 		1-65681-045-6 01 1 9603- ● ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (A) 		1-65681-160-0 01 1 9902-9904 ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (A) 		1-65681-160-0 01 1 9905- ● ● ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 9603- ● ●
560 BRACKET
INTAKE HEATER<SL2> (A) 		1-65671-742-1 01 1 9603- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ● ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 BLACK 		1-76798-018-0 01 1 9705-9806 ● ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807- ● ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9603-9812 ● ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPEPLAYER(UN3) (B) 		1-72438-151-0 01 1 9603-9812 ● ● ●
571 BEZEL; POCKET
EXC. INTAKE HEATER<SL2>,RADIO AM/FM STEREO & TAPEPLAYER(UN3) (B) 		1-72438-151-1 01 1 9901- ● ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901- ● ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 9603- ● ● ●
574 PANEL; RELAY BOX
POWER BRAKE LOCK SYSTEM(J50) FULL FLOATING CAB(W16) (B) 		1-73907-508-0 01 1 9603-9901 ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603- ● ● ●
600 NUT; PANEL
POWER BRAKE LOCK SYSTEM(J50) FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9603-9901 ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9603- ● ● ●

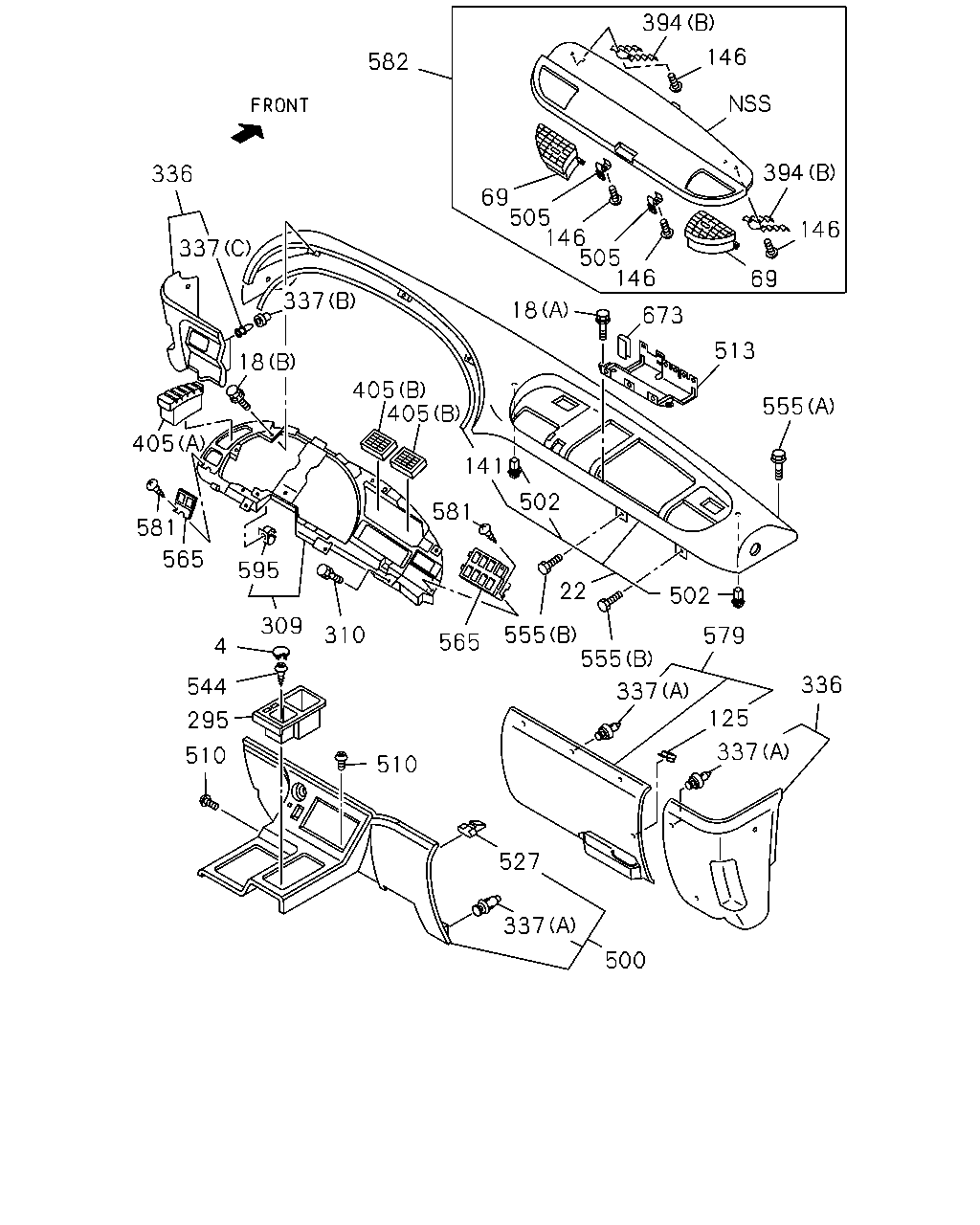

çizim 6058
394 146 582 394 336 69 505 146 146 146 337 69 337 18 673 513 18 405 405 555 405 141 581 502 581 565 595 22 502 309 310 555 555 579 565 4 336 544 337 125 295 337 510 510 527 337 500 505
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; INST PNL 1-72537-106-0 01 1 9603- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ● ●
22 PAD; INST 1-72317-337-2 01 1 9603- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9603- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9603- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9603-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ● ●
125 CLIP; INST PANEL 8-97853-939-4 10 1 9603-9812 ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901- ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9603- ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9603- ● ● ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9603- ● ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9603- ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9603- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9603- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 9603- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9603- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9603- ● ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9603- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9603- ● ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9603- ● ● ●
500 CLUSTER; INST CENTER 1-72437-573-1 01 1 9603- ●
500 CLUSTER; INST CENTER
EXC. INTAKE HEATER<SL2> 		1-72437-573-1 01 1 9603- ● ●
500 CLUSTER; INST CENTER
INTAKE HEATER<SL2> 		1-72437-594-1 01 1 9603- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9603- ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 9603- ● ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9603- ● ● ●
513 BRACKET; RELAY 1-73908-056-3 01 1 9603-9604 ● ● ●
513 BRACKET; RELAY 8-97865-168-2 01 1 9605- ● ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 05 1 9603-9812 ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9901- ● ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9603- ● ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ● ●
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9603- ● ● ●
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9603- ● ● ●
579 COVER; INST PNL 1-72438-128-1 01 1 9603- ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9603- ● ● ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9603- ● ● ●
595 NUT; HOOK 1-72418-013-0 10 1 9603- ● ● ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ● ●
çizim 7372
18 554
BalonParca AdiParca NoAdetTipApplied Date A B C
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ● ●
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9603- ● ● ●
