Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#49263) — 96 parça

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=470	1-09363-716-0	01	1	1106-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1106-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1106-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1106-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1106-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> L=262	8-98108-925-0	01	1	1106-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ> L=244	8-98092-621-0	01	1	1106-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1106-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1106-

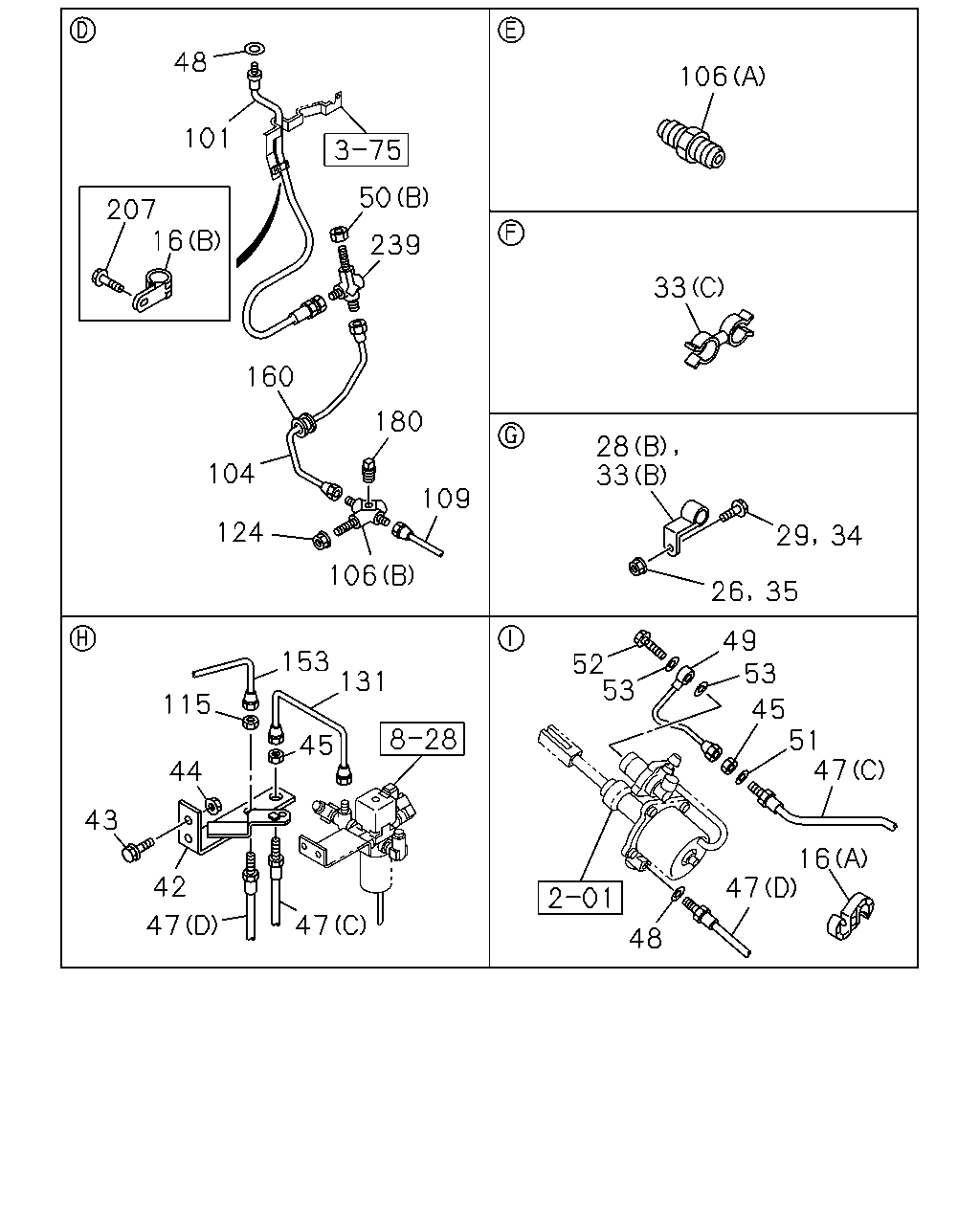

48 101 207 16 160 104 124 106 109 180 239 50 115 44 43 42 47 47 45 131 153 106 33 28 33 29 34 26 35 52 53 48 47 16 47 51 45 53 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1106-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1106-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	1106-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1106-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1106-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1106-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	05	1	1106-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1106-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1106-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1106-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1106-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1106-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1106-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1106-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1106-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1106-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1106-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=470	1-09363-716-0	01	1	1106-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1106-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1106-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1106-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1106-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1106-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1106-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1106-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1106-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1106-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1106-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1106-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1106-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1106-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1106-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1106-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1106-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> L=262	8-98108-925-0	01	1	1106-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ> L=244	8-98092-621-0	01	1	1106-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1106-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1106-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1106-
180	PLUG; PIPE ZF9S1110 M/T(Y5E) PT1/4	9-99204-513-0	01	1	1106-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1106-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1106-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1106-

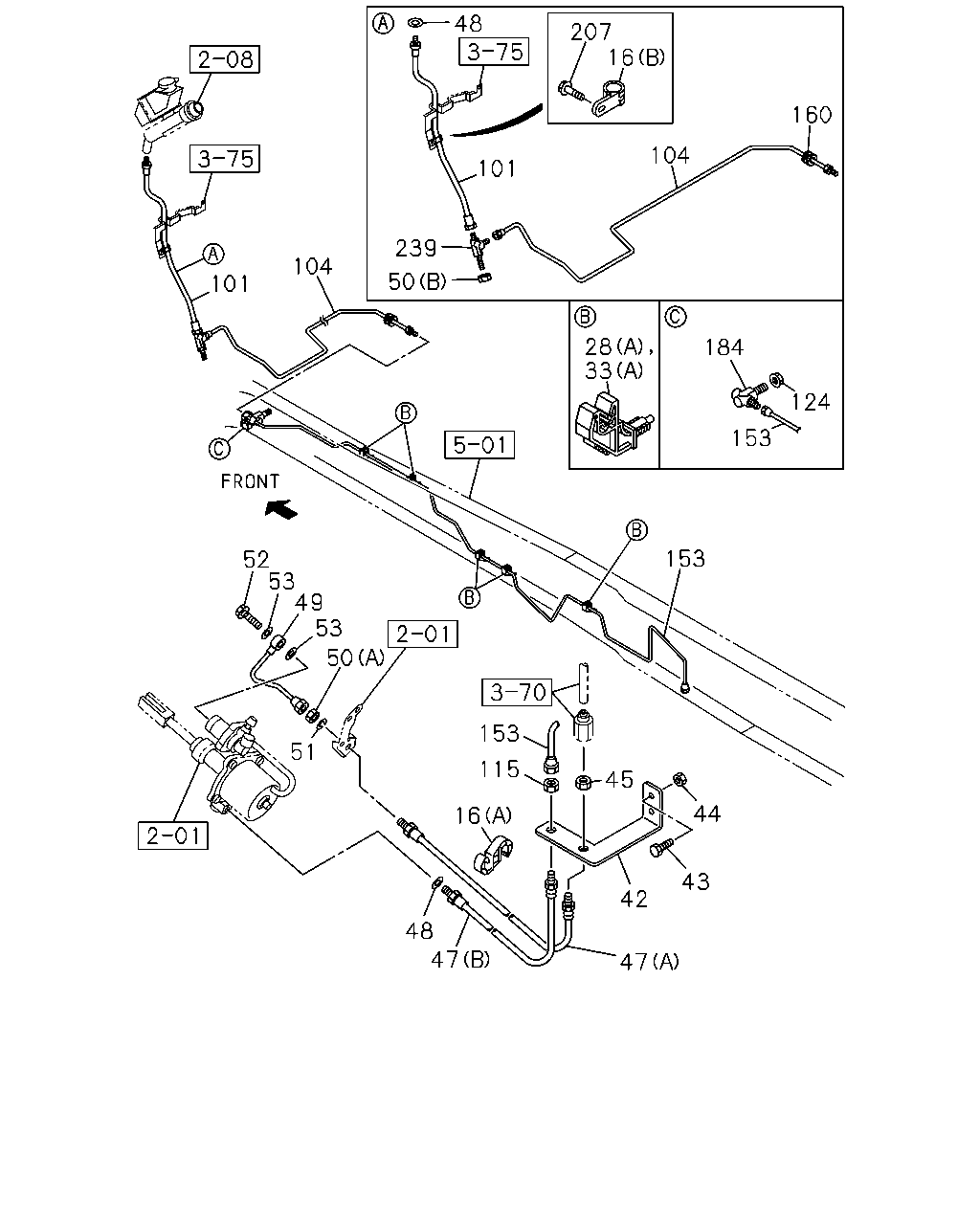

101 104 239 101 104 160 207 48 50 28 184 153 124 33 153 52 16 53 49 53 50 153 115 16 48 47 42 44 45 47 51 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1106-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1106-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	01	1	1106-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1106-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (A) ID=6.35	1-09701-247-1	05	1	1106-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1106-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1106-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1106-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1106-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1106-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1106-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1106-
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1106-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (A) L=470	1-09363-716-0	01	1	1106-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (B) L=375	1-09364-407-0	01	1	1106-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (C) L=500	1-09363-720-0	01	1	1106-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (D) L=500	1-09364-329-0	01	1	1106-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1106-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1106-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1106-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1106-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1106-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1106-1312
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1106-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1106-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1106-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1106-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1106-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1106-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1106-
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1106-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1106-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1106-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1106-
