0-66 — GENERATOR (#49248) — 19 parça

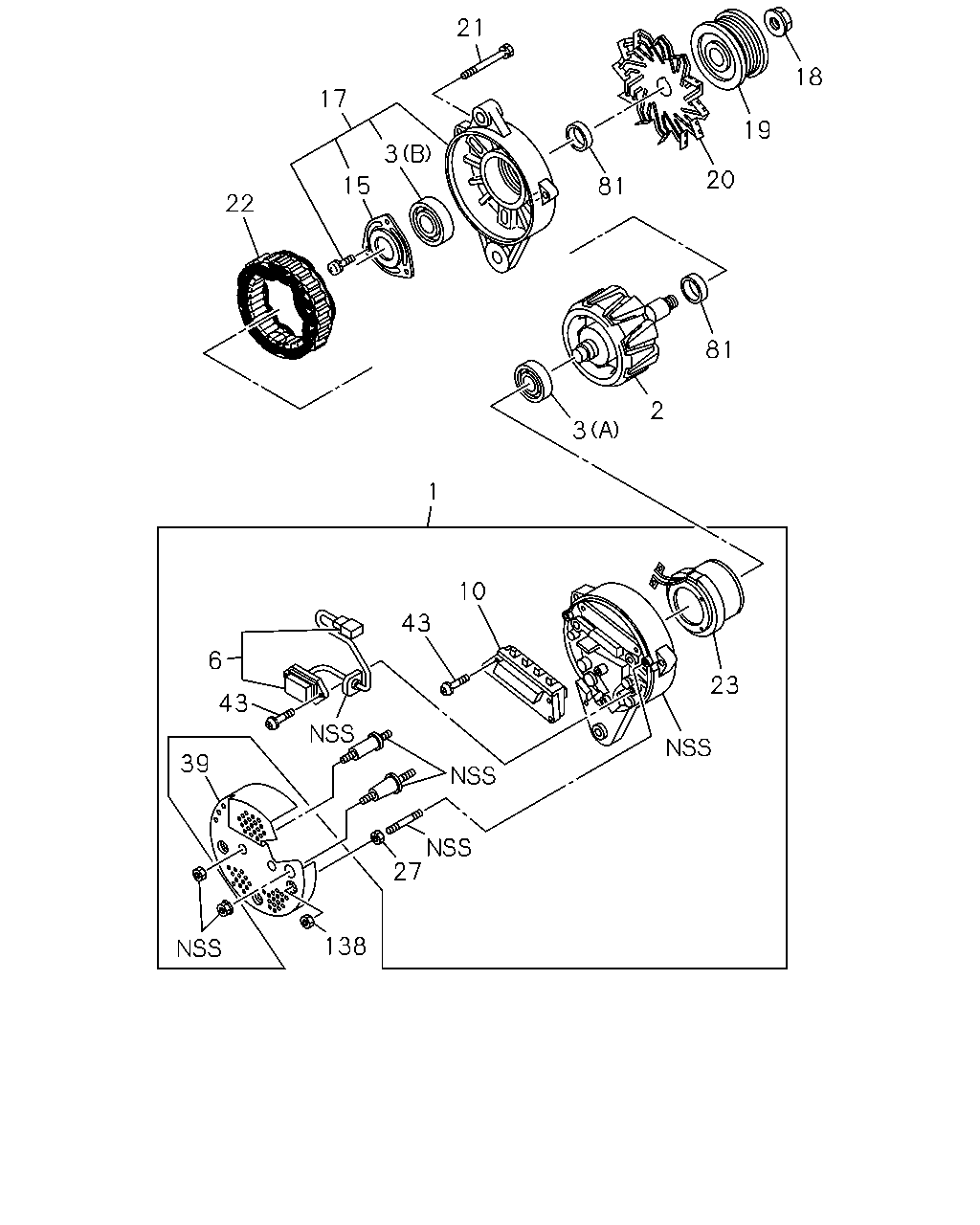

çizim 145331
21 17 22 3 15 81 20 19 18 81 2 3 1 10 43 43 6 39 27 138 23
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98013-462-5 		8-98040-684-1 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98013-462-5 		8-98040-638-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-462-5 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-462-5 		1-81229-758-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-462-5 		8-98040-688-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98013-462-5 		8-98040-686-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: A = 8-98013-462-5 		1-81229-760-1 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98013-462-5 		8-97382-872-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-98013-462-5 		8-98040-643-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98013-462-5 		8-98040-641-0 01 1 -
20 FAN; GEN
ASM PART: A = 8-98013-462-5 		8-97382-874-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 8-98013-462-5 		1-81229-382-0 03 1 -
22 STATOR; GEN
ASM PART: A = 8-98013-462-5 		8-98040-640-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 8-98013-462-5 		8-98040-645-0 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-462-5 		8-98040-687-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 8-98013-462-5 		8-98181-103-0 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 8-98013-462-5 		1-81229-476-0 03 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 8-98013-462-5 		8-97382-870-0 02 1 -
138 NUT; COVER,GENERATOR
ASM PART: A = 8-98013-462-5 		8-98040-690-0 03 1 -
