0-57 — EMISSION PIPING (#49244) — 47 parça

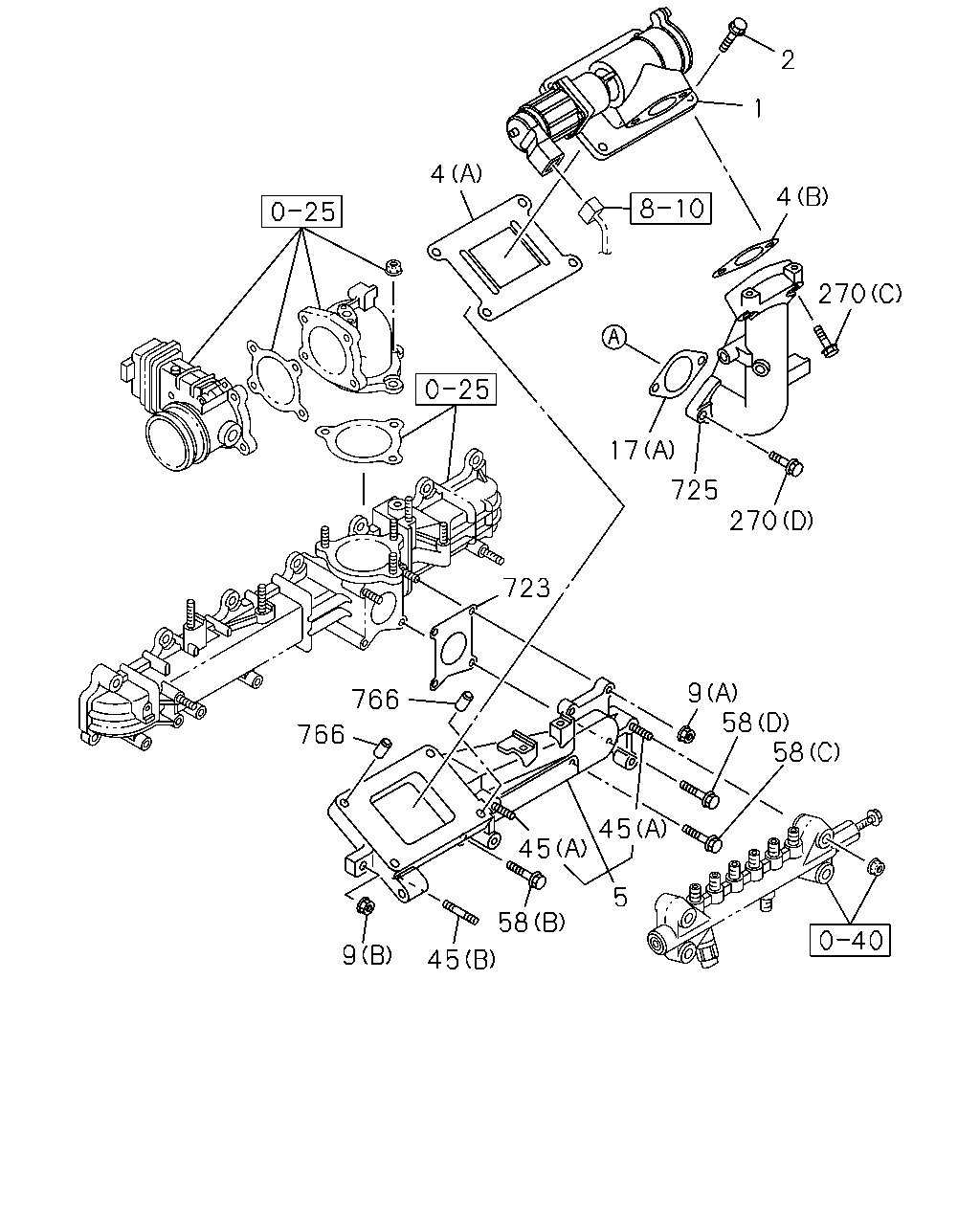

çizim 145142
2 1 4 4 270 17 725 270 723 9 58 58 766 766 45 45 5 58 9 45
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-97383-005-9 01 1 1106- ● ●
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 04 1 1106- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97603-282-0 01 1 1106- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 1106- ● ●
5 ADAPTER ASM 8-97606-201-3 01 1 1106-1305 ● ●
5 ADAPTER ASM 8-98240-157-0 01 1 1306- ● ●
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1106- ● ●
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 1106- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97600-167-0 01 1 1106- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97601-144-0 02 1 1106- ● ●
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 1106- ● ●
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 1106- ● ●
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 05 1 1106- ● ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1106- ● ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1106- ● ●
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 04 1 1106- ● ●
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 1106- ● ●
270 BOLT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1106- ● ●
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 1106- ● ●
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 1106- ● ●
270 BOLT
(A) M8X28 FLANGE 		8-98043-528-0 03 1 1106- ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97605-995-0 01 1 1106- ● ●
725 DUCT; EGR VLV 8-97604-972-2 01 1 1106-1305 ● ●
725 DUCT; EGR VLV 8-98240-120-0 01 1 1306- ● ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 02 1 1106- ● ●

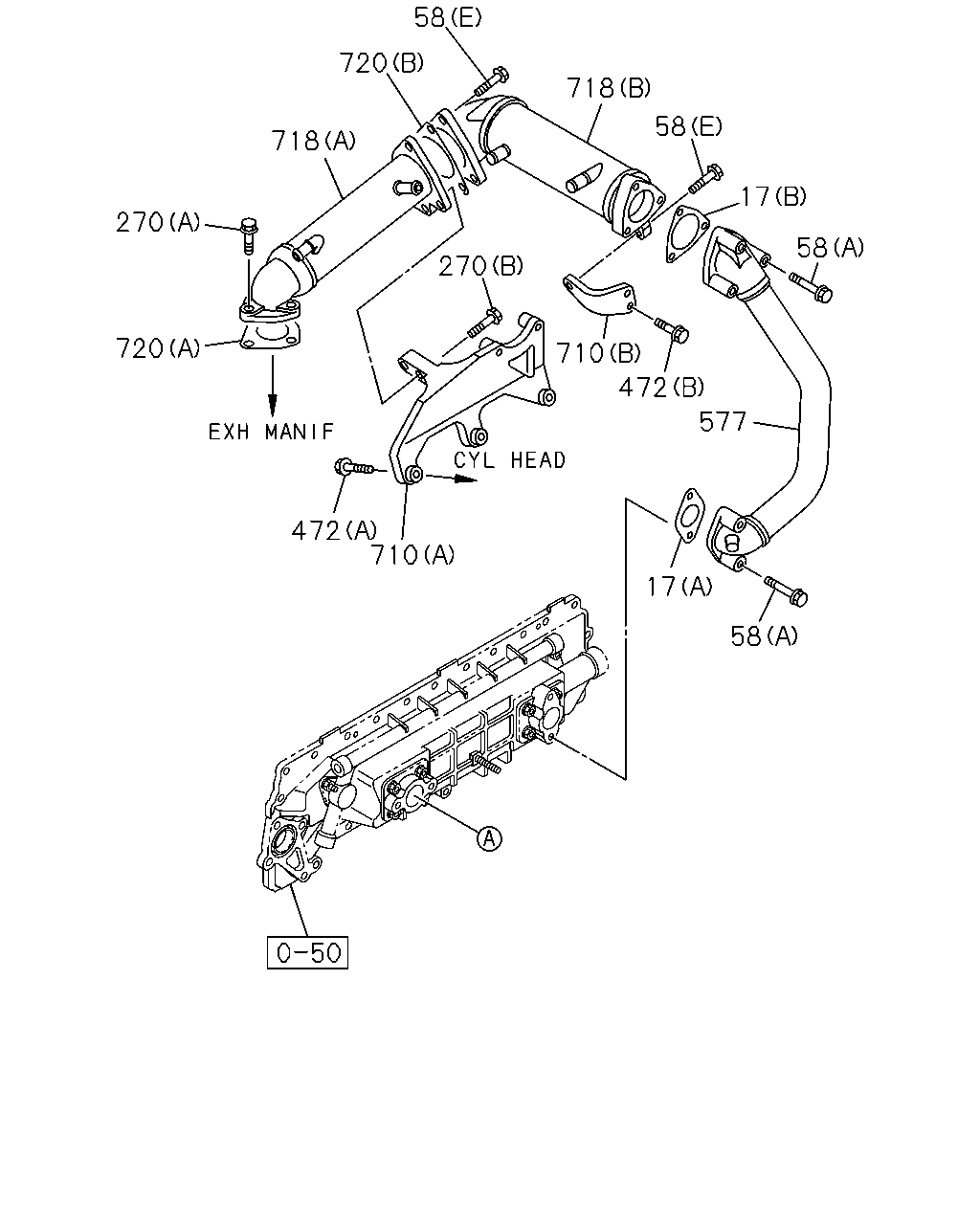

çizim 145152
58 720 718 58 718 17 270 58 270 720 710 472 577 472 710 17 58
BalonParca AdiParca NoAdetTipApplied Date A B
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97600-167-0 01 1 1106- ● ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97601-144-0 02 1 1106- ● ●
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 05 1 1106- ● ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1106- ● ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1106- ● ●
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 04 1 1106- ● ●
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 1106- ● ●
270 BOLT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1106- ● ●
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 1106- ● ●
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 1106- ● ●
270 BOLT
(A) M8X28 FLANGE 		8-98043-528-0 03 1 1106- ● ●
472 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1106- ● ●
472 BOLT; BRKT
(A) M8X35 FLANGE 		0-28060-835-0 03 1 1106- ● ●
577 PIPE; AIR,EGR 8-97604-968-1 01 1 1106- ● ●
710 BRACKET; EGR COOLER
(B) 		8-98030-584-0 01 1 1106- ● ●
710 BRACKET; EGR COOLER
(A) 		8-98125-359-0 01 1 1106-1202 ● ●
710 BRACKET; EGR COOLER
(A) 		8-98186-437-0 01 1 1203- ● ●
718 COOLER; EGR
(A) 		8-98030-582-3 01 1 1106-1401 ● ●
718 COOLER; EGR
(A) 		8-98250-860-0 01 1 1402- ● ●
718 COOLER; EGR
(B) 		8-98030-583-1 01 1 1106- ● ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97603-889-0 01 1 1106- ● ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98046-192-1 01 1 1106- ● ●
