◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#49242) — 17 parça

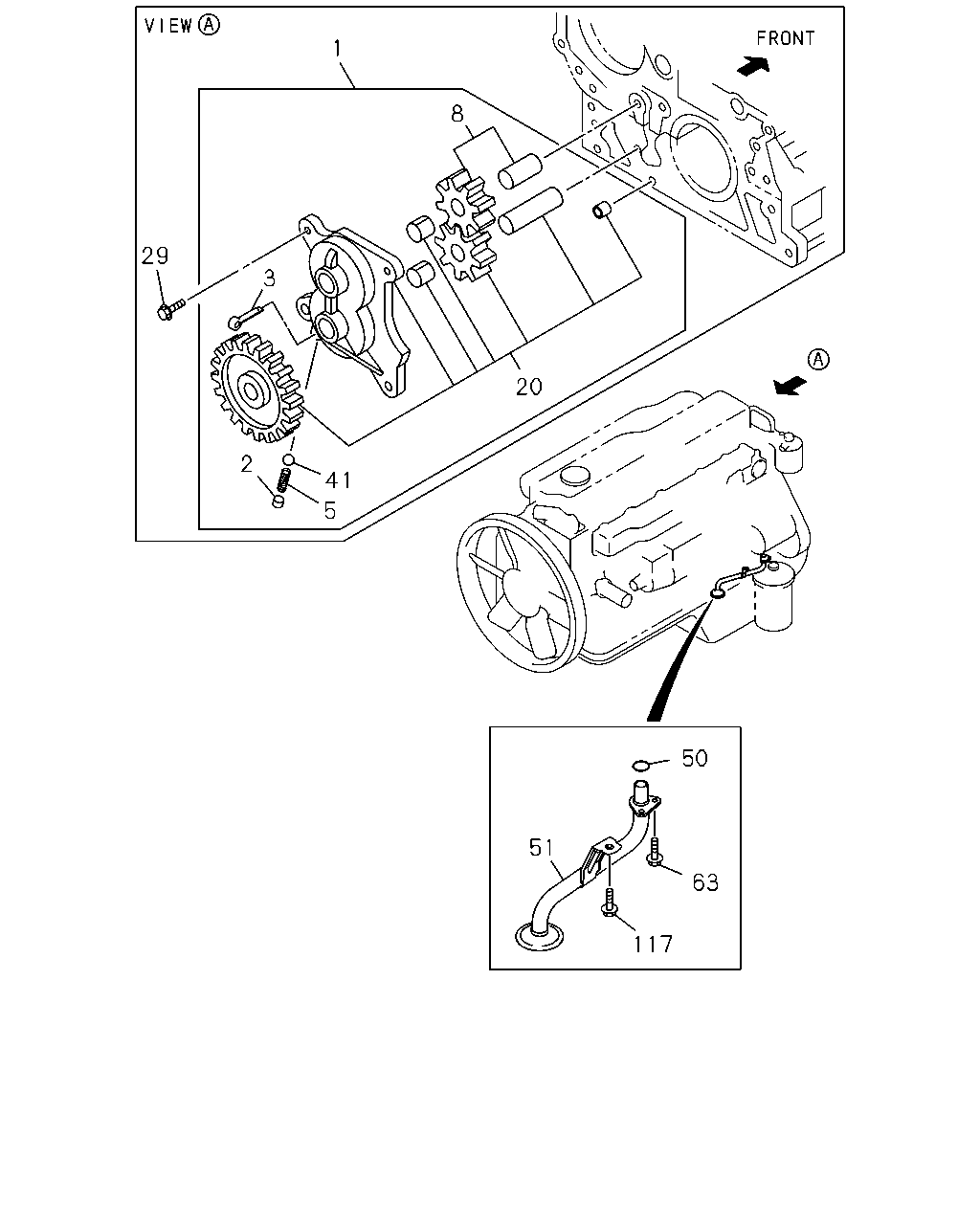

çizim 145136
1 29 3 8 20 2 41 5 51 50 63 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-94390-414-3 01 1 1106-1209 ● ●
1 PUMP ASM; OIL 8-97641-835-0 01 1 1210- ● ●
2 SEAT; SPR 5-13165-004-0 01 1 1106- ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1106- ● ●
5 SPRING; COIL 5-09580-098-0 01 1 1106- ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97602-115-0 01 1 1106-1209 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97641-838-0 01 1 1210- ● ●
20 GEAR; DRIVE,OIL PUMP 8-97602-132-1 01 1 1106-1209 ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1210- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 1106- ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 1106- ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1106- ● ●
51 STRAINER & PIPE ASM; OIL 8-98045-646-3 01 1 1106-1209 ● ●
51 STRAINER & PIPE ASM; OIL 8-98204-158-0 01 1 1210- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 1106-1209 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1210- ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 1106- ● ●
