0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#49237) — 25 parça

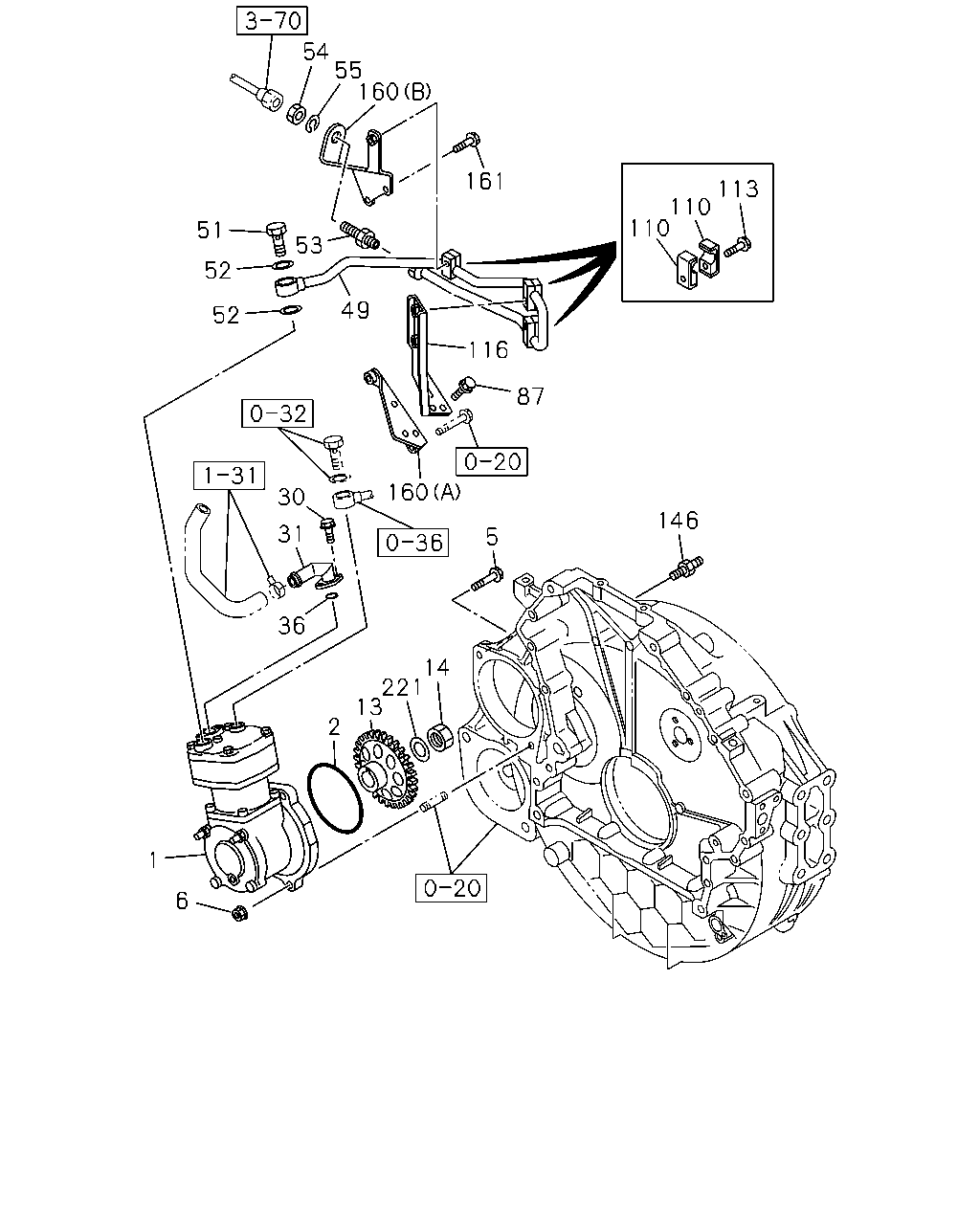

çizim 145173
54 55 160 161 113 110 110 51 53 52 49 52 116 87 160 30 146 31 5 36 14 221 13 2 1 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97613-762-4 01 1 1106-1107 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-98187-304-1 01 1 1108- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162 		1-09623-570-0 01 1 1106- ● ●
5 BOLT; AIR CMPR FIX
M12X70 FLANGE 		0-28151-270-0 02 1 1106- ● ●
6 NUT; AIR CMPR
M12 FLANGE 		0-91180-212-0 01 1 1106- ● ●
13 GEAR; AIR CMPR DRIVE
Z=49 		8-94394-511-4 01 1 1106- ● ●
14 NUT; GEAR
M20 		0-91110-520-0 01 1 1106- ● ●
30 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1106- ● ●
31 PIPE; AIR,AIR CMPR SUCTION 8-97620-948-0 01 1 1106- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1106- ● ●
49 PIPE; AIR,CHARGE 8-98052-612-0 01 1 1106- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1106- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 1106- ● ●
53 UNION; CHARGE PIPE
M16 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 1106- ● ●
54 NUT; PIPE UNION
M22 		0-91111-522-0 01 1 1106- ● ●
55 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-522-0 01 1 1106- ● ●
87 BOLT; BRKT FIX
M8X20 FLANGE 		0-28050-820-0 03 1 1106- ● ●
110 CLIP; AIR PIPE 1-09701-284-0 06 1 1106- ● ●
113 BOLT; CLIP,AIR PIPE
M8X45 FLANGE 		0-28050-845-0 03 1 1106- ● ●
116 BRACKET; AIR PIPE 8-97614-183-1 01 1 1106- ● ●
146 STUD; AIR CMPR
M10X16,M12X70 L=97.7 		1-09049-038-1 01 1 1106- ● ●
160 BRACKET; AIR PIPE
(A) 		8-97614-182-2 01 1 1106- ● ●
160 BRACKET; AIR PIPE
(B) 		8-98042-844-1 01 1 1106- ● ●
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1106- ● ●
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 1106- ● ●
