◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#4923) — 16 parça

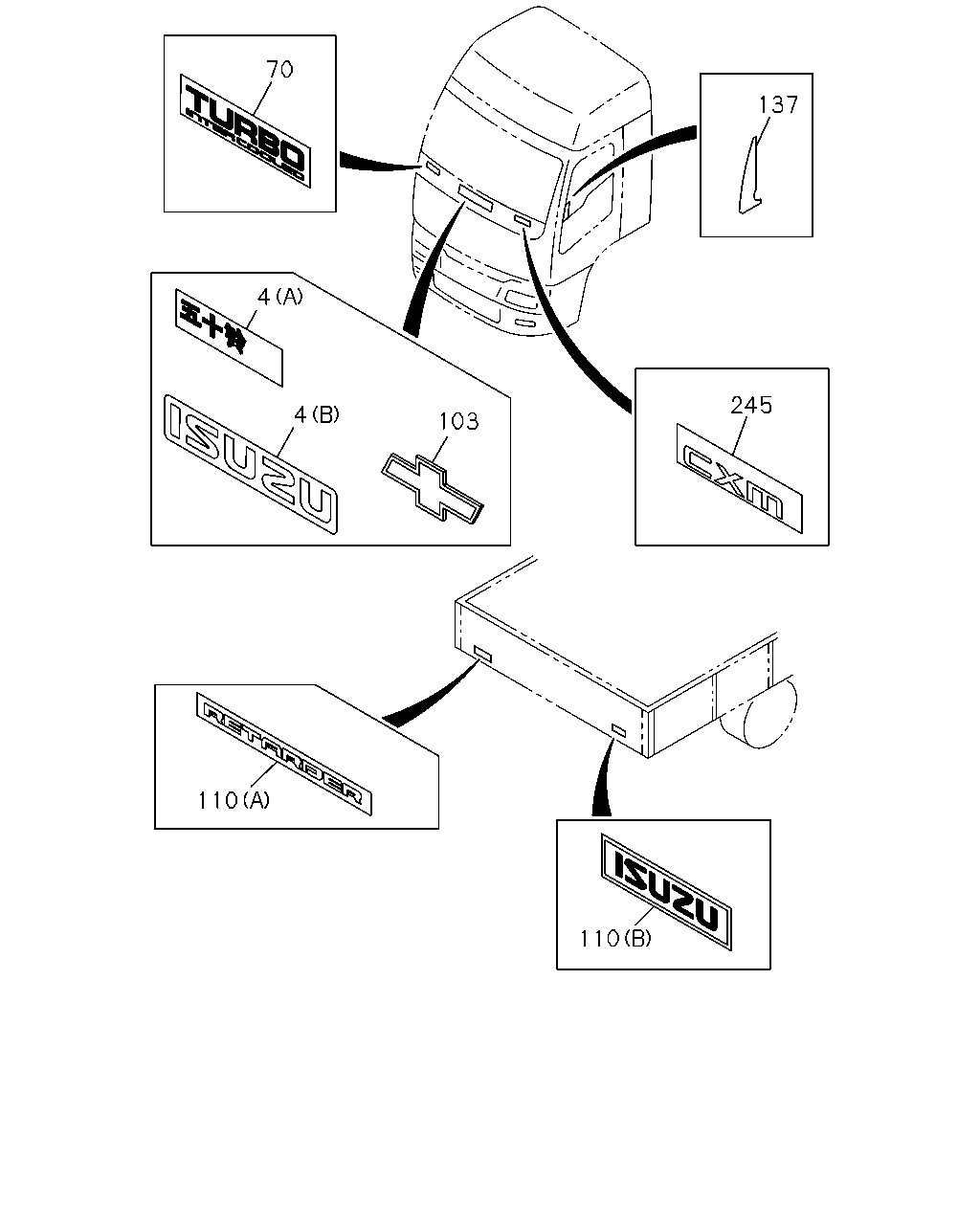

çizim 39402
70 137 4 245 4 103 110 110
BalonParca AdiParca NoAdetTipApplied Date A B C
4 EMBLEM; RAD GRILLE
(B) 		1-76210-634-0 01 1 9603-9705 ● ● ●
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (B) 		1-76210-634-0 01 1 9706-9901 ● ● ●
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (B) 		1-76210-668-2 01 1 9902-0006 ● ● ●
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-668-3 01 1 0007- ● ● ●
4 EMBLEM; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH>,CAB FRT PANELCARGO FACE VAR 2<NBJ> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) (B) 		1-76210-689-1 01 1 0009- ● ●
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) (A) 		1-76217-132-0 01 1 9603- ● ●
70 DECAL; INTERCOOLER
6WA1 TC-S(56L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76218-114-0 01 1 9603-9901 ● ● ●
70 DECAL; INTERCOOLER
L TYPE ENG<90L> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76218-114-0 01 1 9902- ● ● ●
103 EMBLEM; "CHEVROLET"
CHEV BRAND PACKAGE<PS2> 		8-97865-065-0 01 1 9706- ● ●
110 EMBLEM; "ISUZU",RR BODY
(B) 		1-76210-663-0 01 1 9603-9901 ● ● ●
110 EMBLEM; "ISUZU",RR BODY
BRAKE SYSTEM RETARDER<RE2> (A) 		1-76230-242-0 01 1 9603-9904 ● ●
110 EMBLEM; "ISUZU",RR BODY
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-76230-242-0 01 1 9905- ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9603- ● ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9603- ● ● ●
245 DECAL; MODEL 1-76217-134-0 01 1 9603- ●
245 DECAL; MODEL 1-76217-133-0 01 1 9603- ● ●
