◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#49223) — 21 parça
çizim 145139
10 8 49 2 193 192 193 9 9 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 1106- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1106- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 1106- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1106- ● ●
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1106- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1106- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 1106- ● ●
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 1106- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1106- ● ●

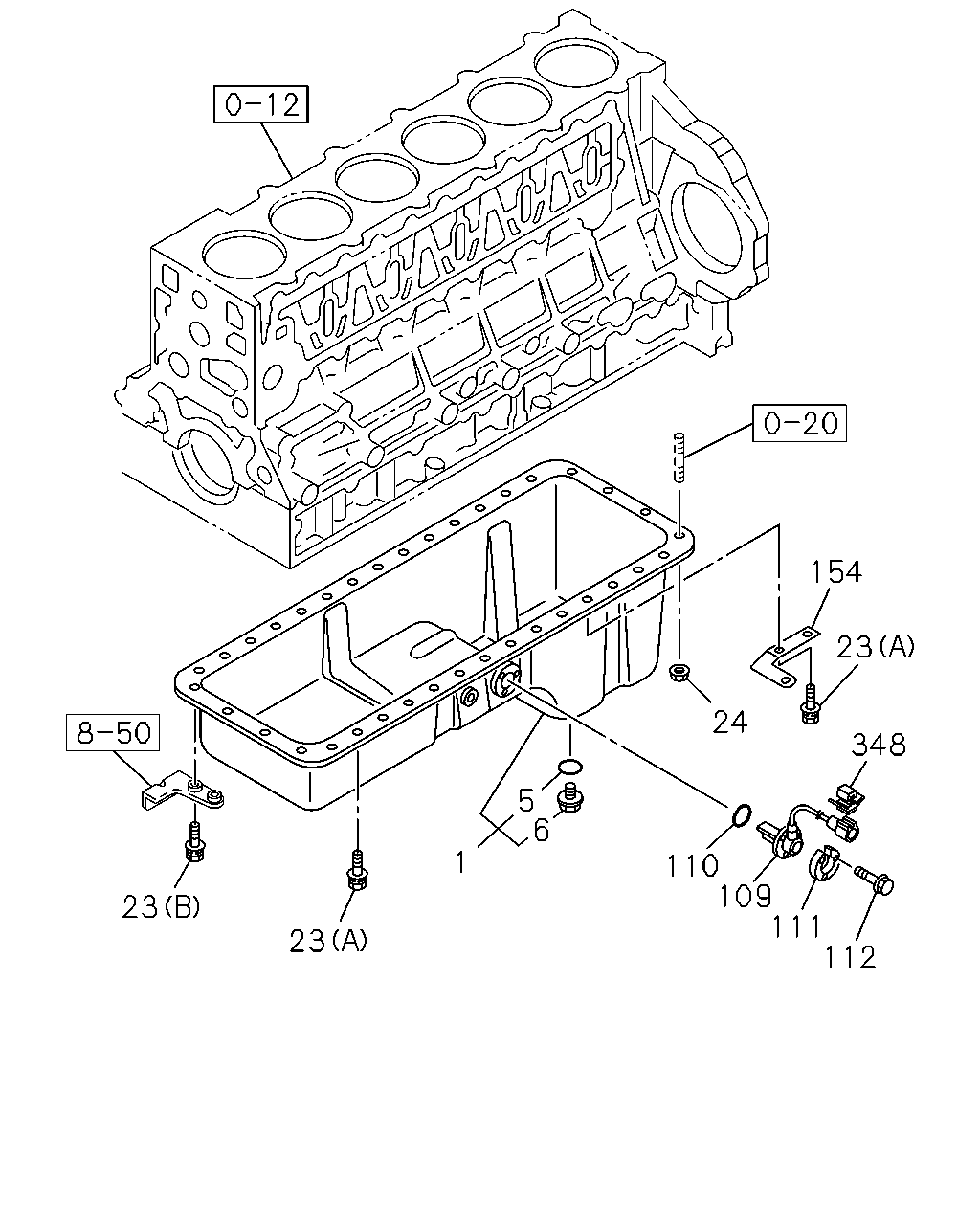

çizim 145157
154 23 24 348 5 6 1 110 109 111 112 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98061-544-0 01 1 1106- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1106- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1106- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 1106- ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 1106- ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 1106- ● ●
109 SWITCH; OIL LEVEL 8-97601-121-0 01 1 1106- ● ●
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 1106- ● ●
111 SPACER; SW,OIL LEVEL 5-11369-072-0 01 1 1106- ● ●
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 1106- ● ●
154 BRACKET; CLIP,ENG HARNESS 8-98064-103-0 01 1 1106- ● ●
348 CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 1106- ● ●
