◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#49219) — 17 parça

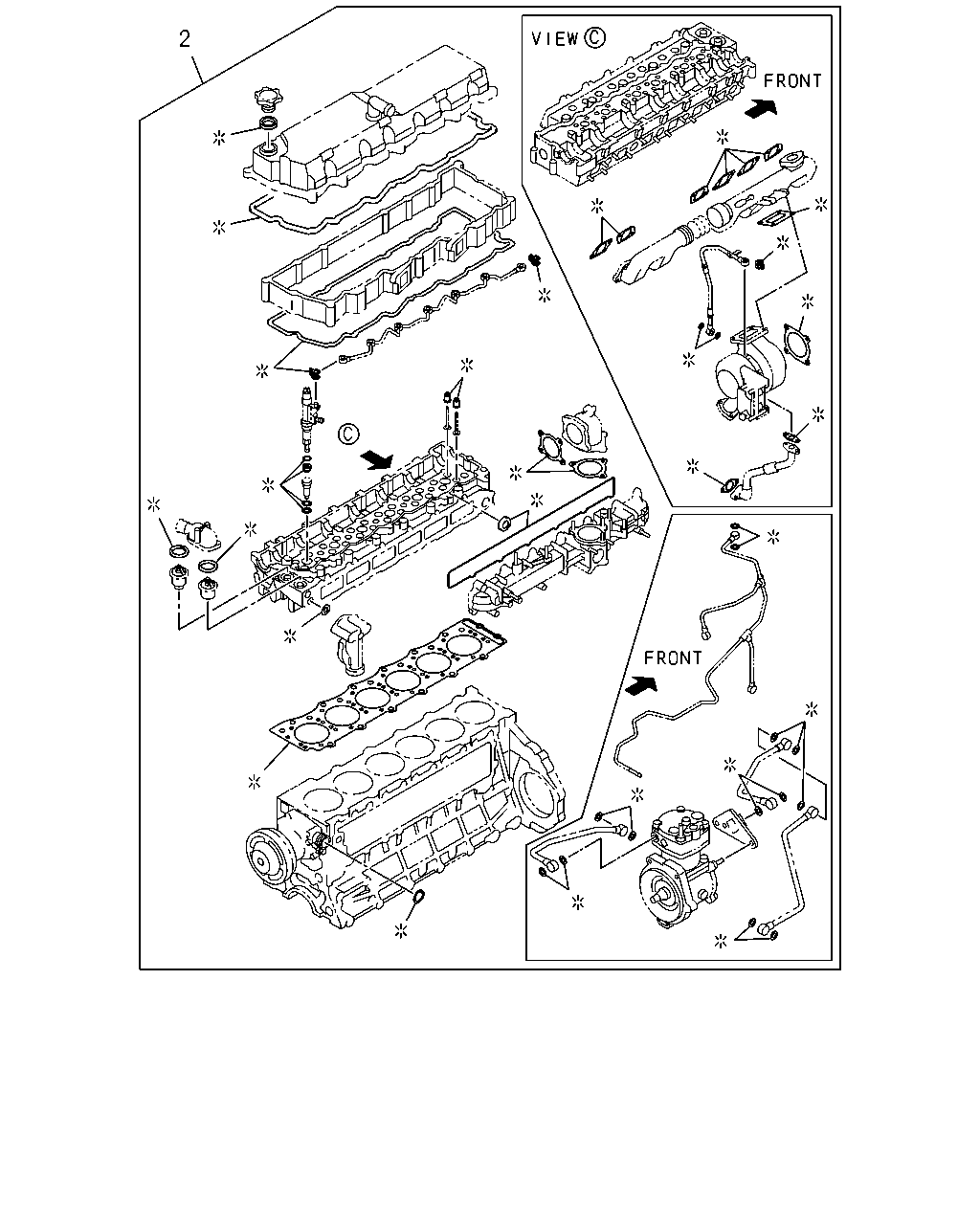

çizim 145137
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-434-4 01 1 1106-1301 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-056-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-274-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-782-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-323-0 01 1 1502- ● ●

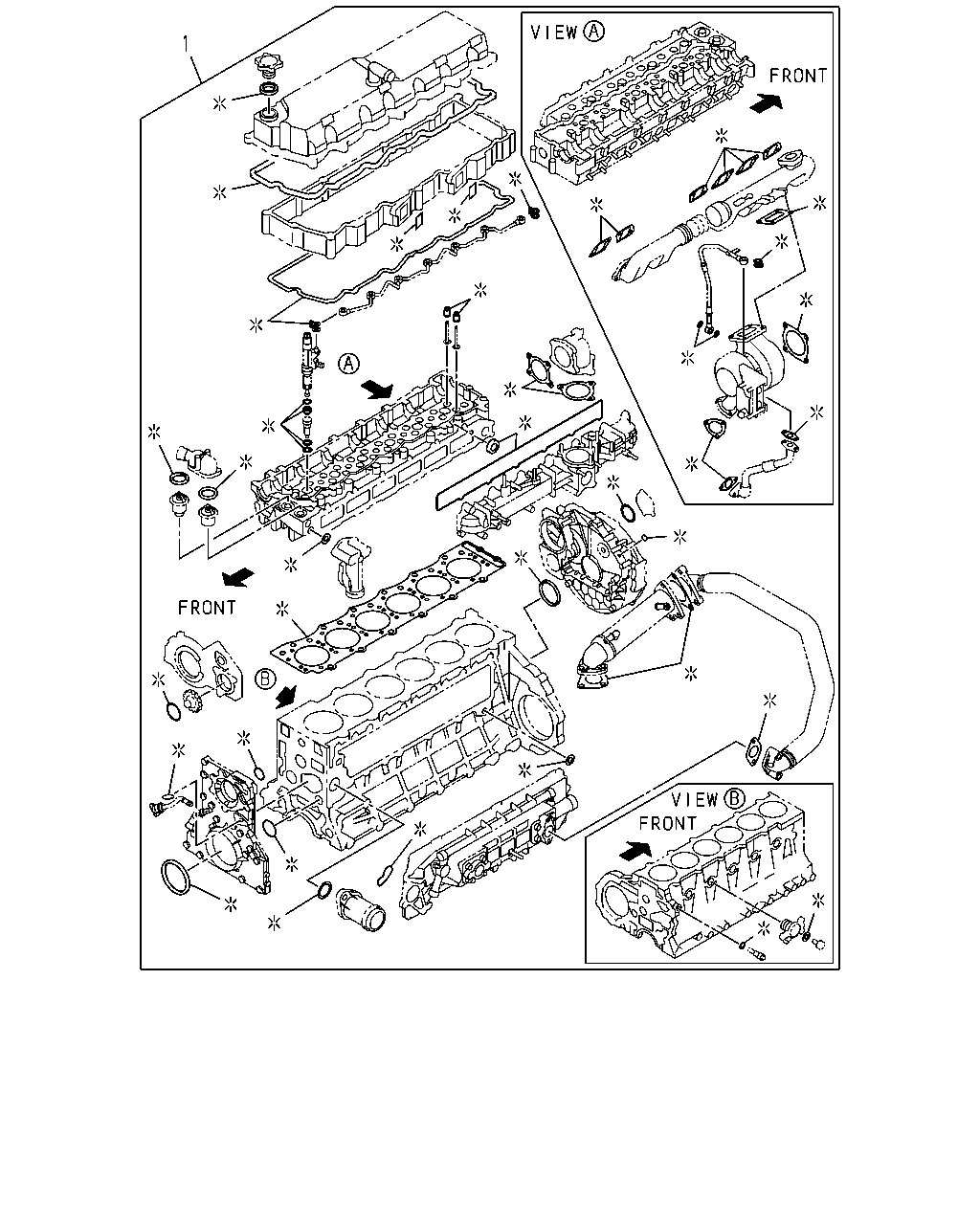

çizim 145188
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-548-3 01 1 1106-1106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-768-0 01 1 1107-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-066-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-272-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-798-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-181-0 01 1 1502- ● ●

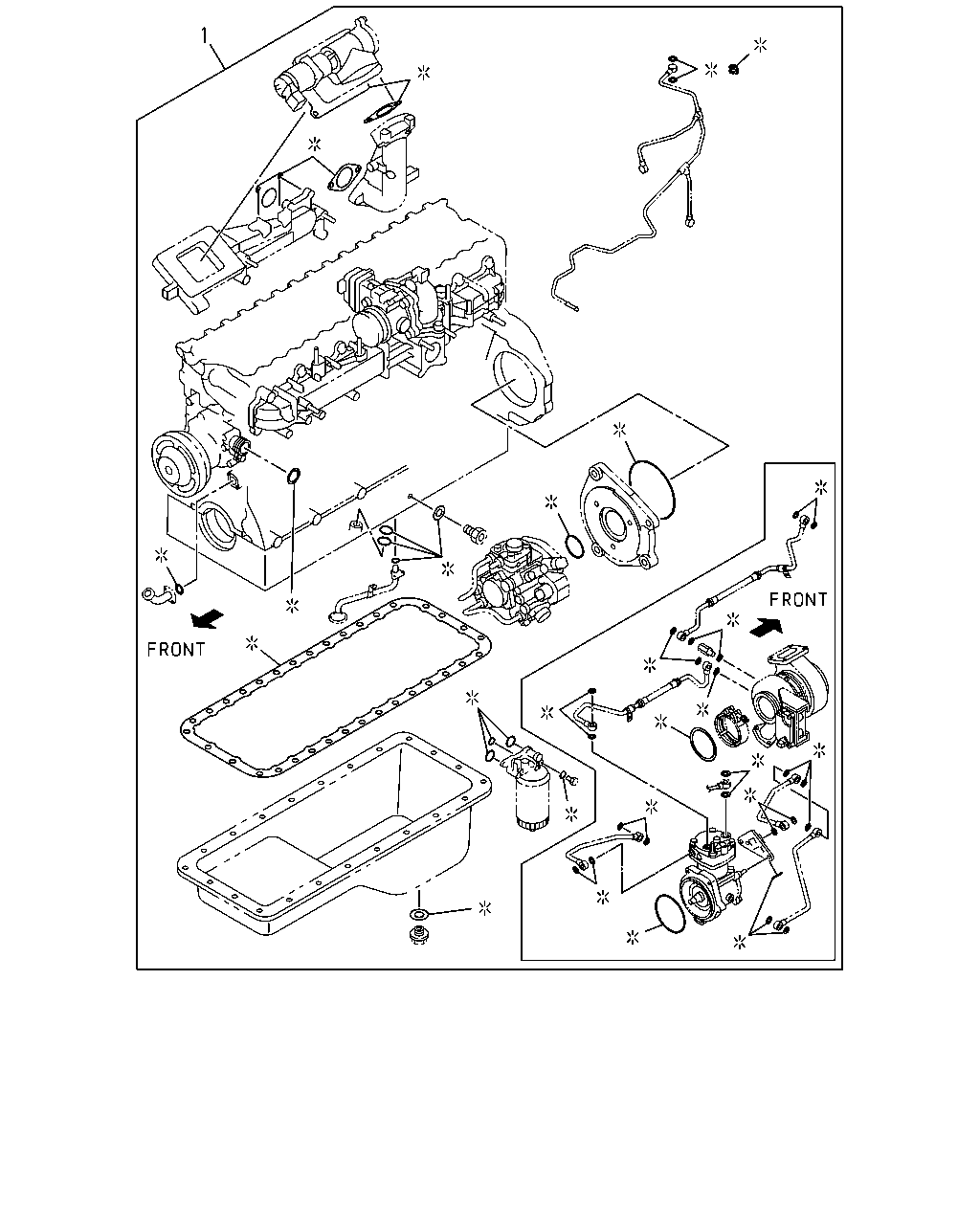

çizim 145191
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-548-3 01 1 1106-1106 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-768-0 01 1 1107-1301 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-066-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-272-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-798-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-181-0 01 1 1502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
