6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#4921) — 43 parça
çizim 5884
8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 GROMMET; BOARD FIX
(A) OD=28 		8-94279-720-0 02 1 9603-9901 ● ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 9902-9904 ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 9905- ● ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44 		8-94279-727-0 01 1 9905- ● ● ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 9902-9904 ● ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 9905- ● ● ●

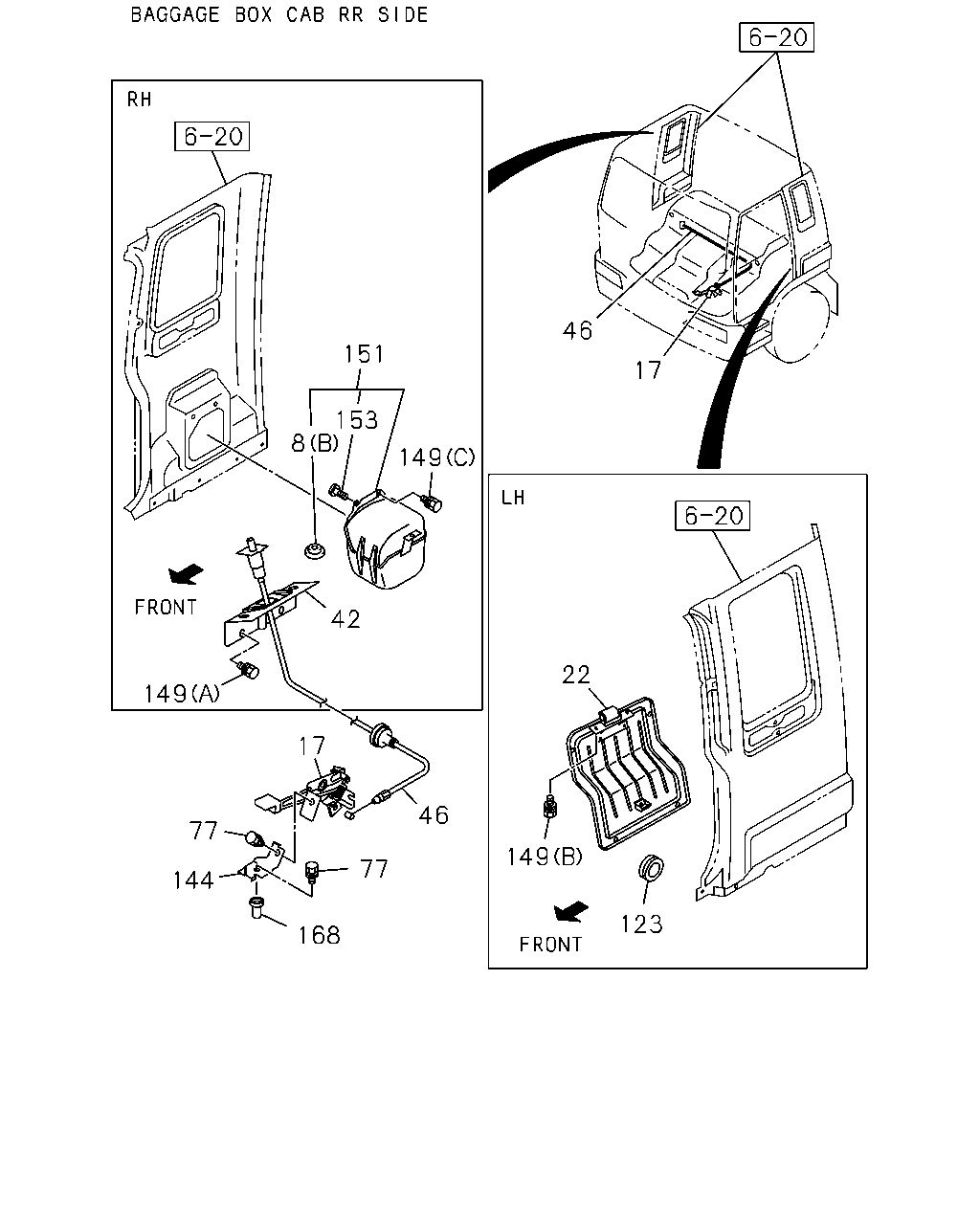

çizim 6060
46 151 17 153 8 149 42 22 149 17 46 77 149 77 144 123 168
BalonParca AdiParca NoAdetTipApplied Date A B C
8 GROMMET; BOARD FIX
(A) OD=28 		8-94279-720-0 02 1 9603-9901 ● ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 9902-9904 ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 9905- ● ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44 		8-94279-727-0 01 1 9905- ● ● ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 9902-9904 ● ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 9905- ● ● ●
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 9902-9904 ● ●
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 9905- ● ● ●
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 9902-9904 ● ●
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 9905- ● ● ●
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 9902-9904 ● ●
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 9905- ● ● ●
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=2850 		1-79517-004-0 01 1 9902-9903 ● ●
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=883.5 		1-79517-003-0 01 1 9904-9904 ● ●
46 LOCK; RR COMPT LID
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> L=883.5 		1-79517-003-0 01 1 9905-9906 ● ● ●
46 LOCK; RR COMPT LID
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> L=886.5 		1-79517-007-0 01 1 9907- ● ● ●
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9902-9904 ● ●
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-9908 ● ● ●
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 9909- ● ● ●
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-0 01 1 9902-9904 ● ●
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-0 01 1 9905- ● ● ●
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-583-3 01 1 9902-9904 ● ●
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-583-3 01 1 9905- ● ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9902-9904 ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905- ● ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9902-9904 ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9902-9904 ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ● ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9902-9904 ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9905- ● ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-951-2 01 1 9902-9904 ● ●
151 BOX ASM
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-951-2 01 1 9905- ● ● ●
151 BOX ASM
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-064-1 01 1 9905- ● ●
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> 		8-94279-056-0 02 1 9905- ● ● ●
168 NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6 L=11.5 POP NUT 		1-09984-156-0 01 1 9902-9904 ● ●
168 NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6 L=11.5 POP NUT 		1-09984-156-0 01 1 9905- ● ● ●
