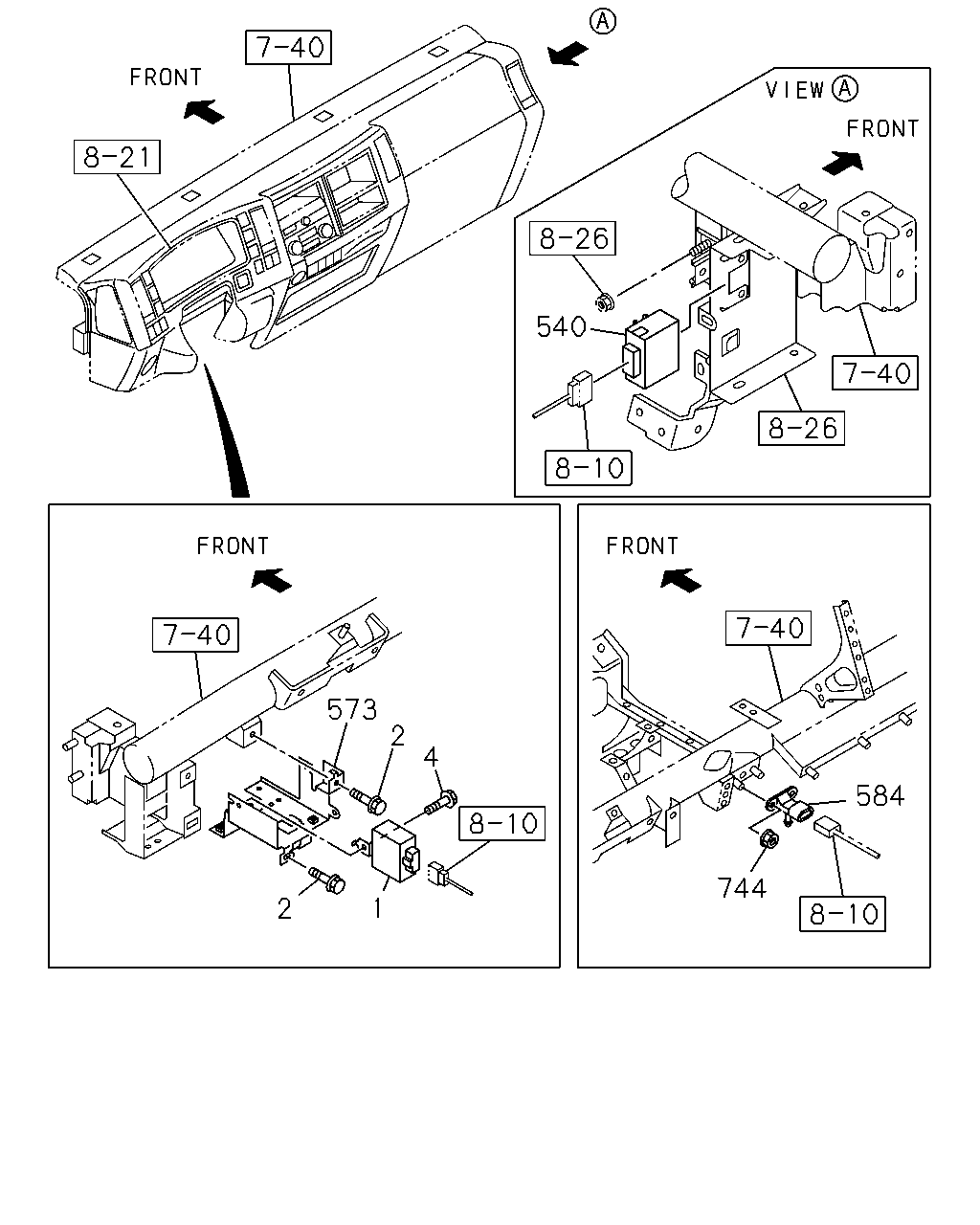

8-28 — CHASSIS ELECTRICAL (#49205) — 35 parça

540 584 744 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1106-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1106-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1106-
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1311-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1106-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1106-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1106-

44 51 51 45 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

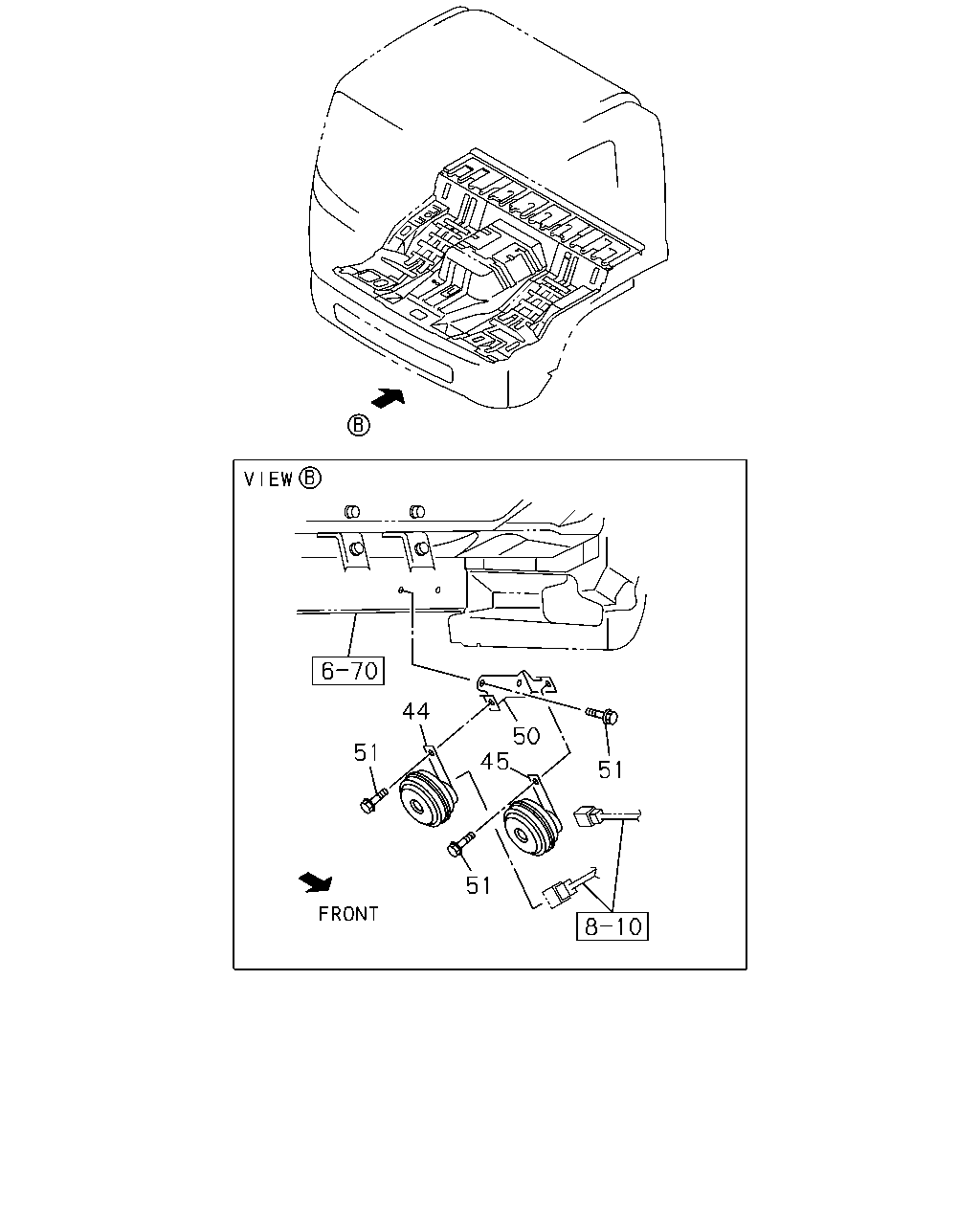

44	HORN; HIGH NOTE	8-98022-022-0	01	1	1106-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1106-
50	BRACKET; HORN	8-97616-529-2	01	1	1106-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1106-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1106-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

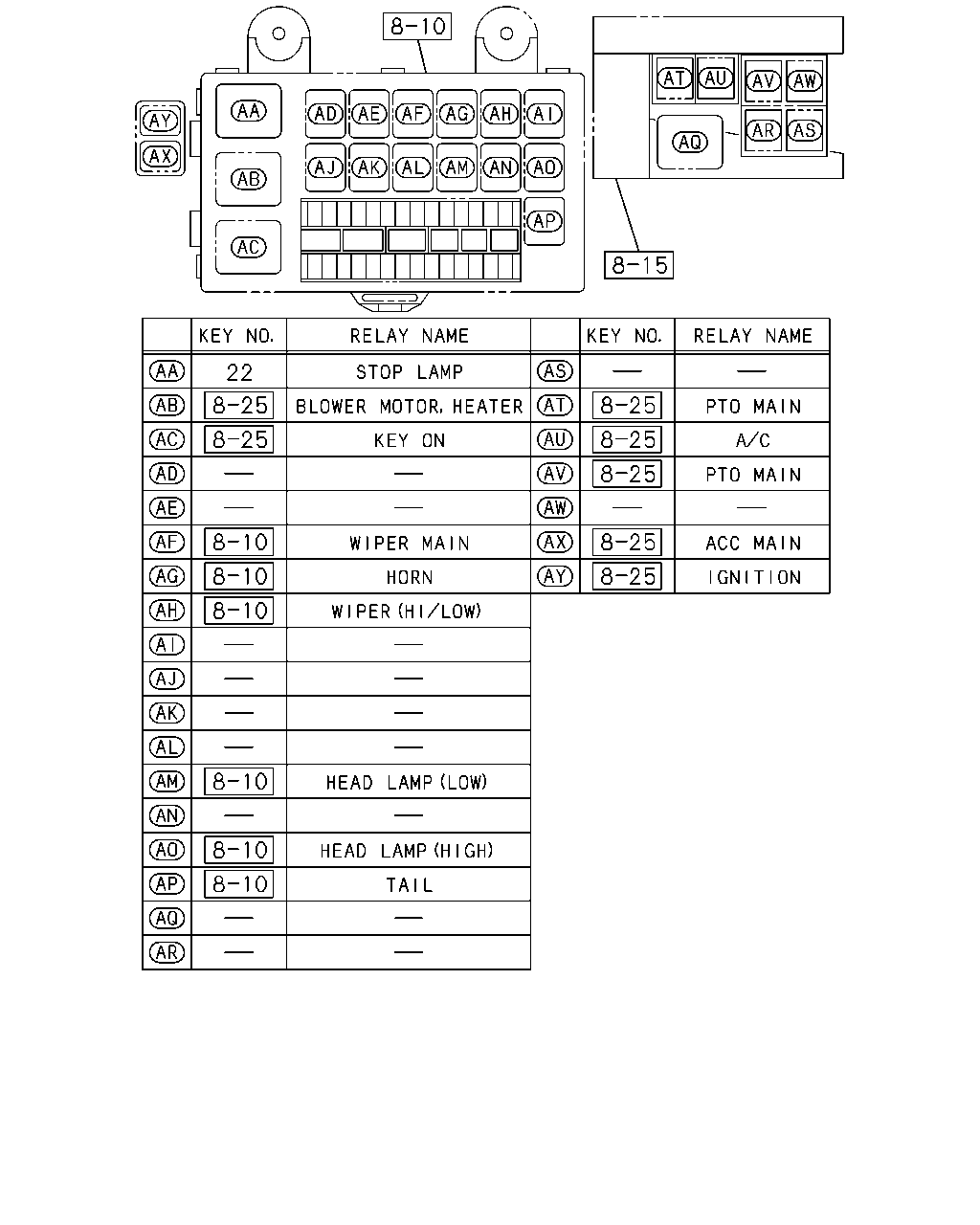

	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1106-

424 36 35 33 34 34 34 34 261 34 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1106-1310
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1311-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1106-1310
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1311-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1106-1111
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1112-1310
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1311-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1106-1111
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1106-1310
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1311-
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1106-1310
35	BRACKET; MAG VLV,PTO CONT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98154-633-0	01	1	1311-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
36	BOLT; MAG VLV,PTO CONT TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	1311-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1106-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1106-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1106-1310
261	PLUG; MAG VLV TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	1311-
424	ADAPTER TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1106-1111

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1106-

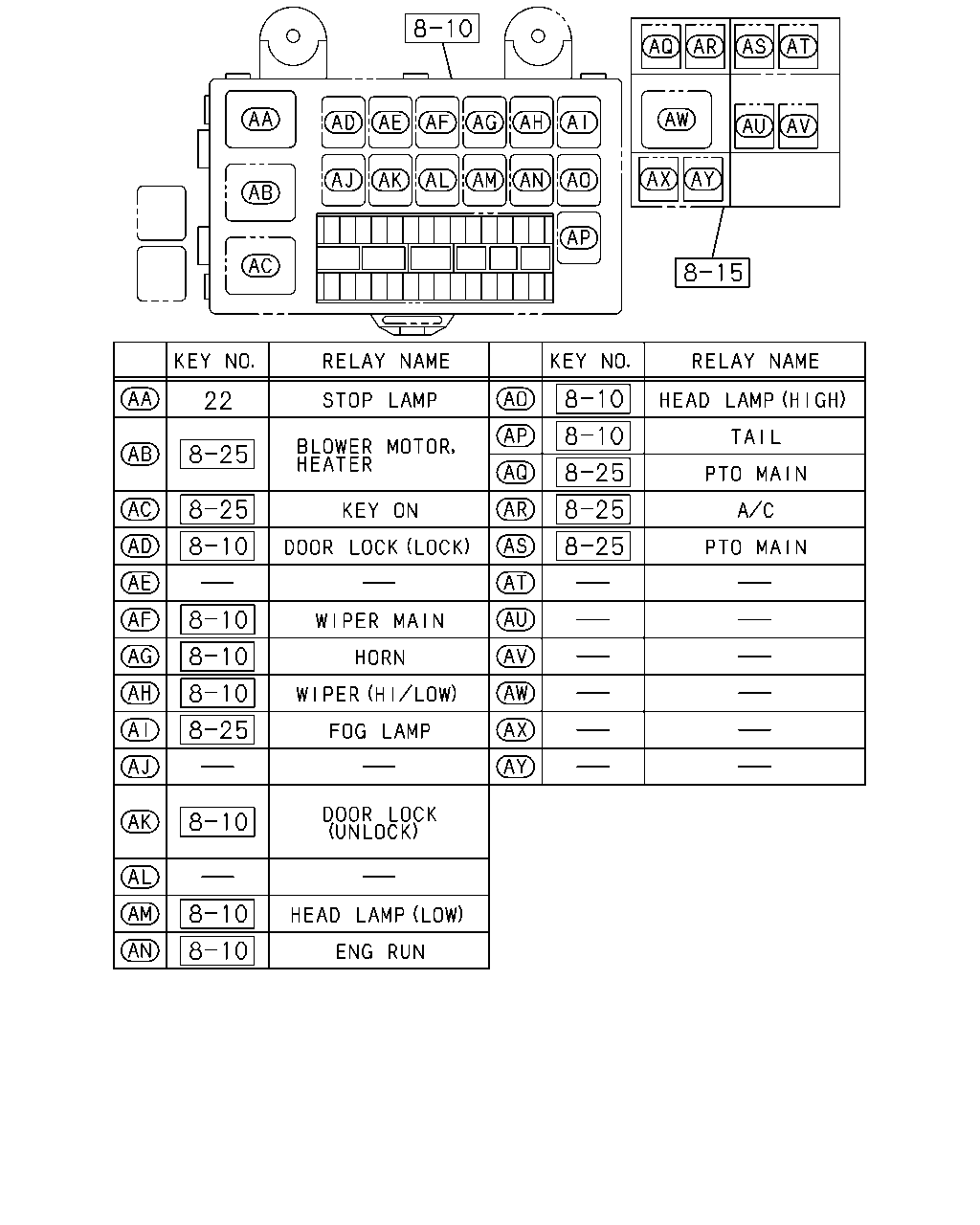

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1106-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
