8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#49204) — 27 parça

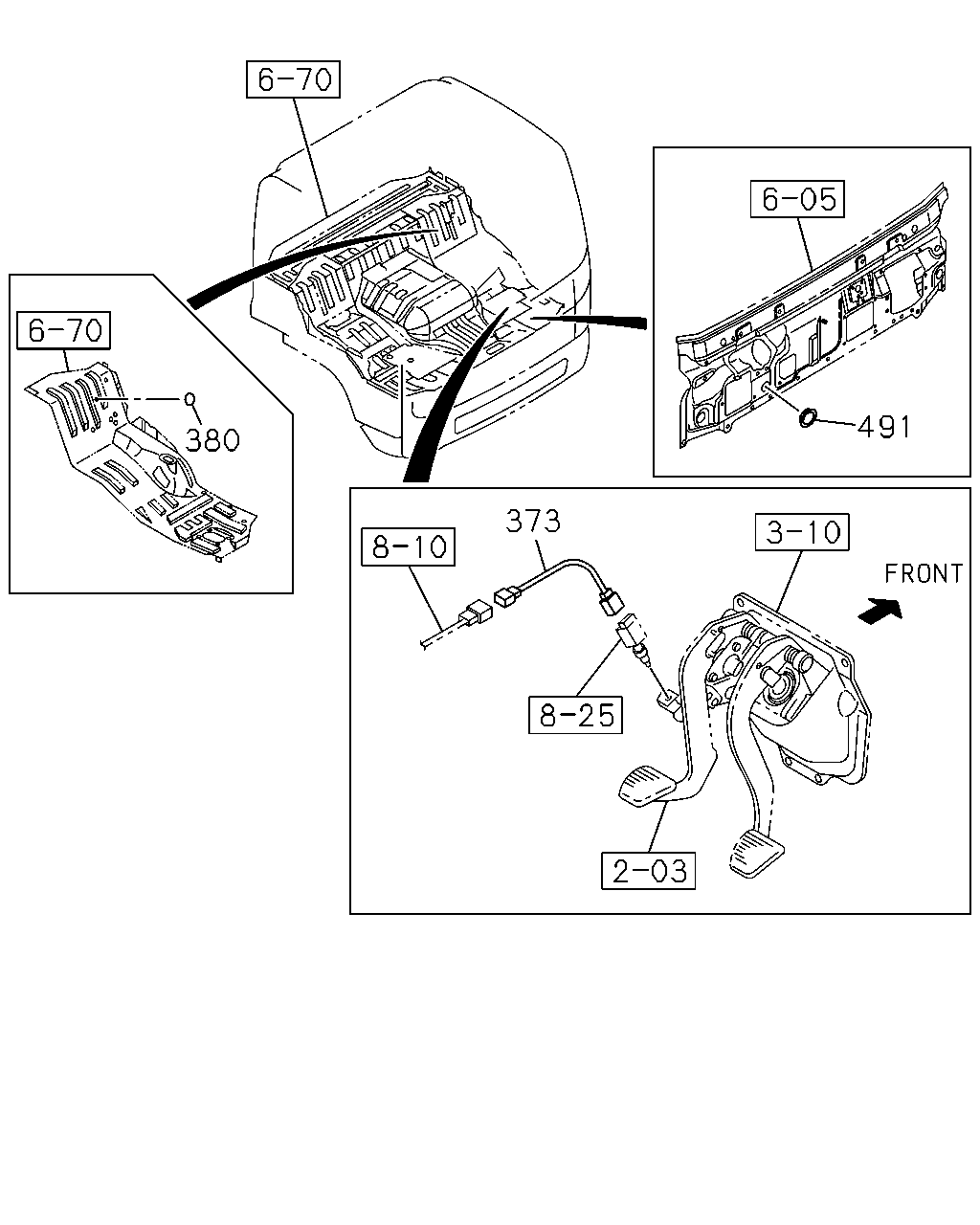

çizim 144854
380 491 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH 8-98110-720-0 01 1 1106-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1106-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1106-

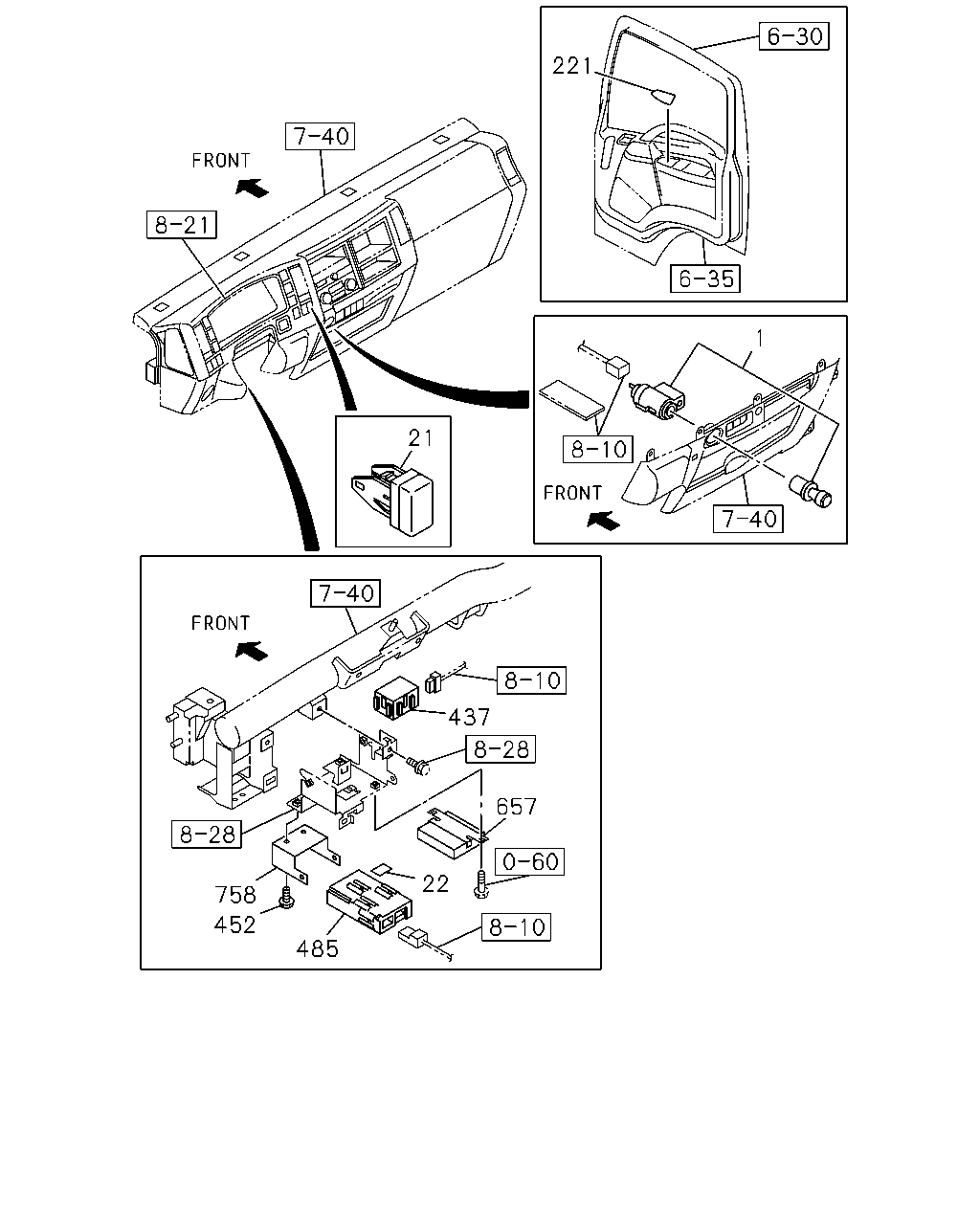

çizim 145021
21 221 1 437 657 22 485 452 758
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1106-1310
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1311-
21 COVER; HOLE 8-98025-954-1 01 1 1106-
22 SEAL; TAPE
SPEED LIMITER 90KM(NMJ) 		8-98166-639-0 02 1 1507-1507
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1106-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1106-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1106-
452 BOLT; BRKT
SPEED LIMITER 90KM(NMJ) M6X16 FLANGE 		0-28650-616-0 02 1 1507-1507
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 90KM(NMJ) 		1-80190-059-1 01 1 1507-1507
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1106-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 90KM(NMJ) 		8-98048-743-1 01 1 1507-1507

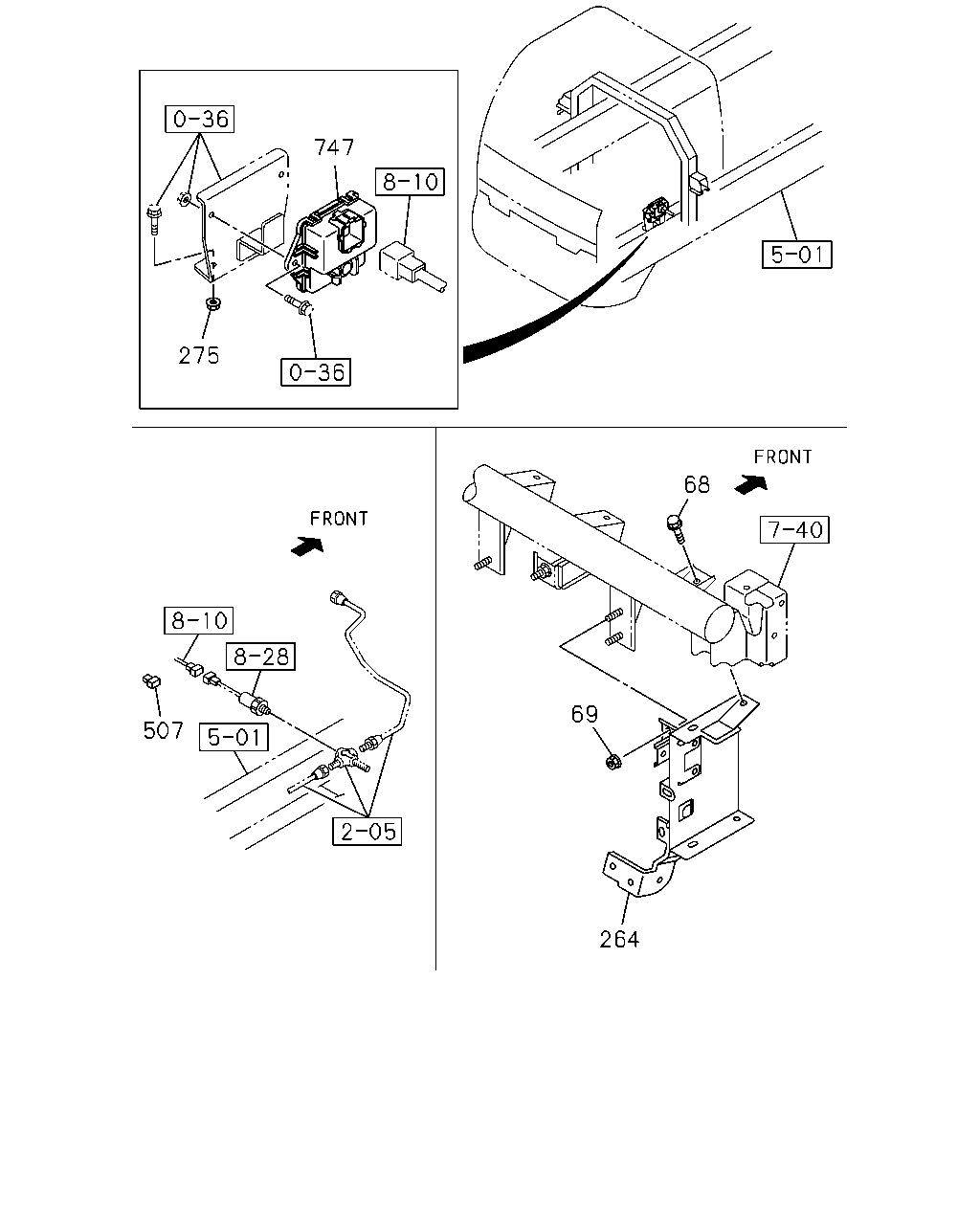

çizim 145025
747 275 507 69 68 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1106-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1106-
264 BRACKET; CONT UNIT 8-97616-354-5 01 1 1106-
275 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1311-
507 CONNECTOR 1-82690-666-0 01 1 1106-1310
507 CONNECTOR
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-82690-666-0 01 1 1311-
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1311-

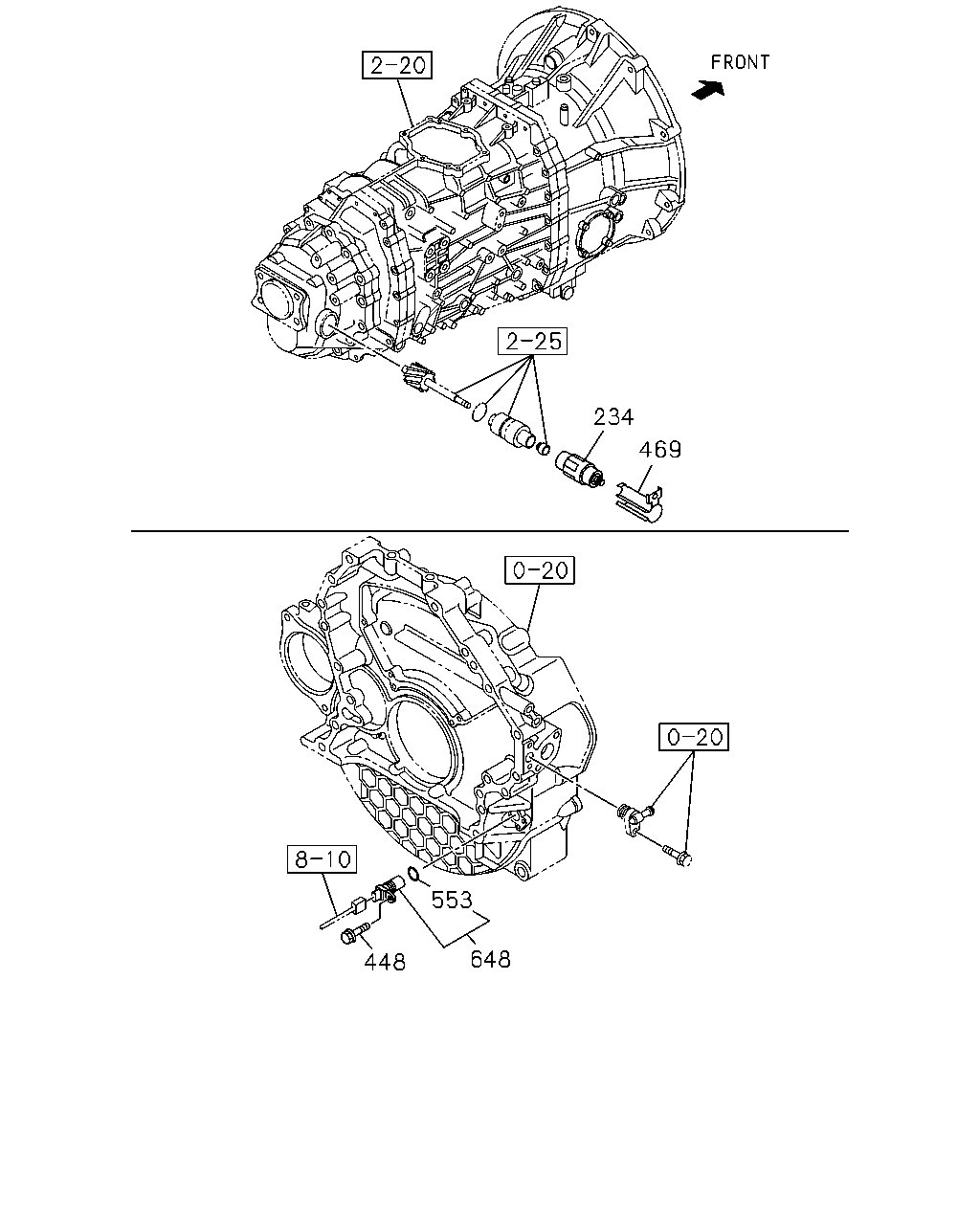

çizim 145026
234 553 648 448 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1106-
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) M6X16 FLANGE 		0-28050-616-0 01 1 1311-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1106-
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1311-
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1311-
