Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11412 - FORWARD 1100/1200
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#49203) — 101 parça
◀
[825A] SWITCH NO.1 (8 parça)

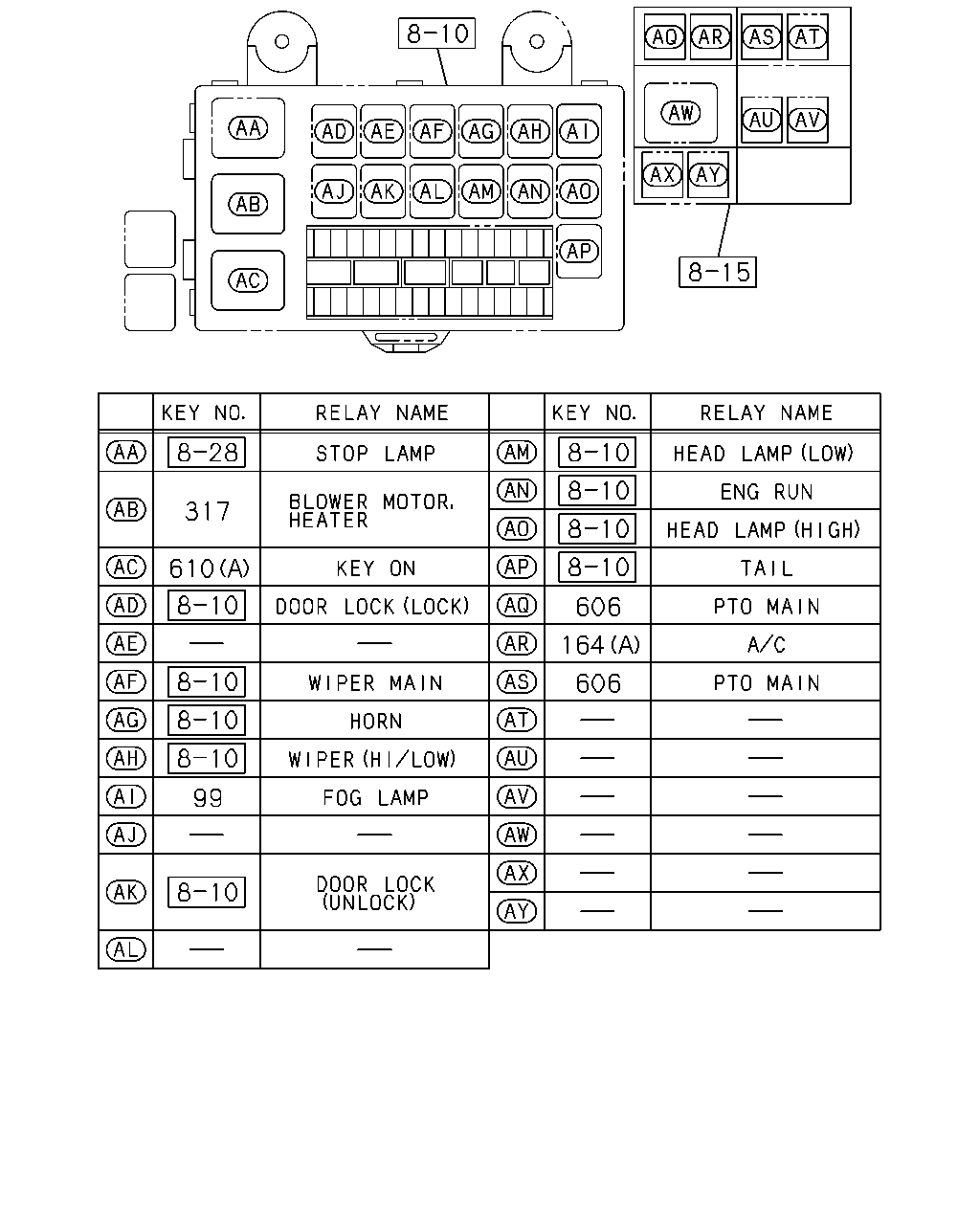

[825A] '13/11- RELAY;CAB HARNESS (10 parça)
[825A] -'13/10 RELAY;CAB HARNESS (10 parça)
[825A] SWITCH NO.3 (31 parça)
[825A] SWITCH NO.2 (40 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
▶
1
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1

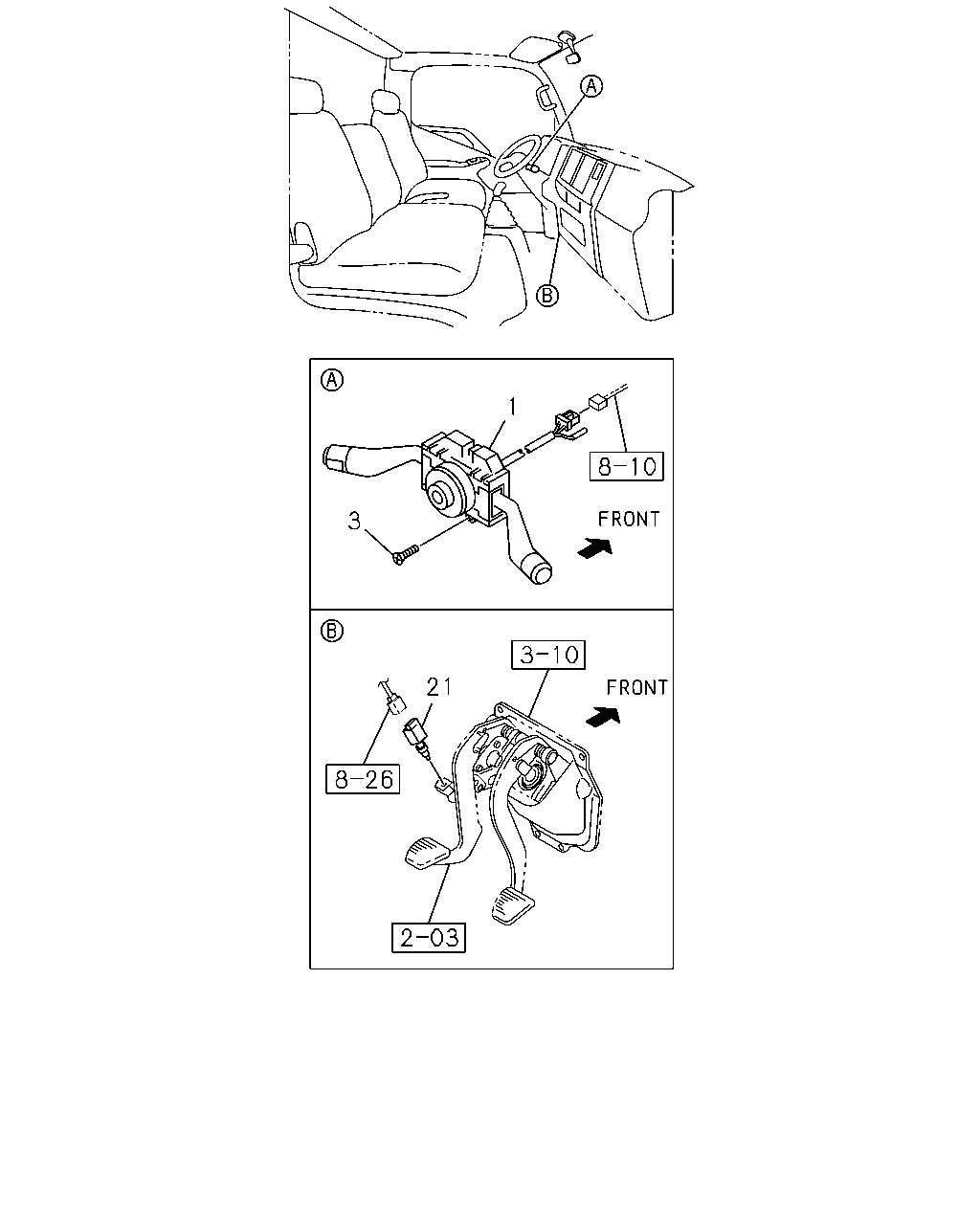

SWITCH; COMB
8-98064-898-2
01
1
1106-1310
1
SWITCH; COMB
8-98250-290-0
01
1
1311-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1106-1310
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1311-
21
SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94337-761-0
01
1
1106-1310
21
SWITCH; CLU
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94337-761-0
01
1
1311-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
1106-1310
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
1311-
317
610
606
164
606
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164

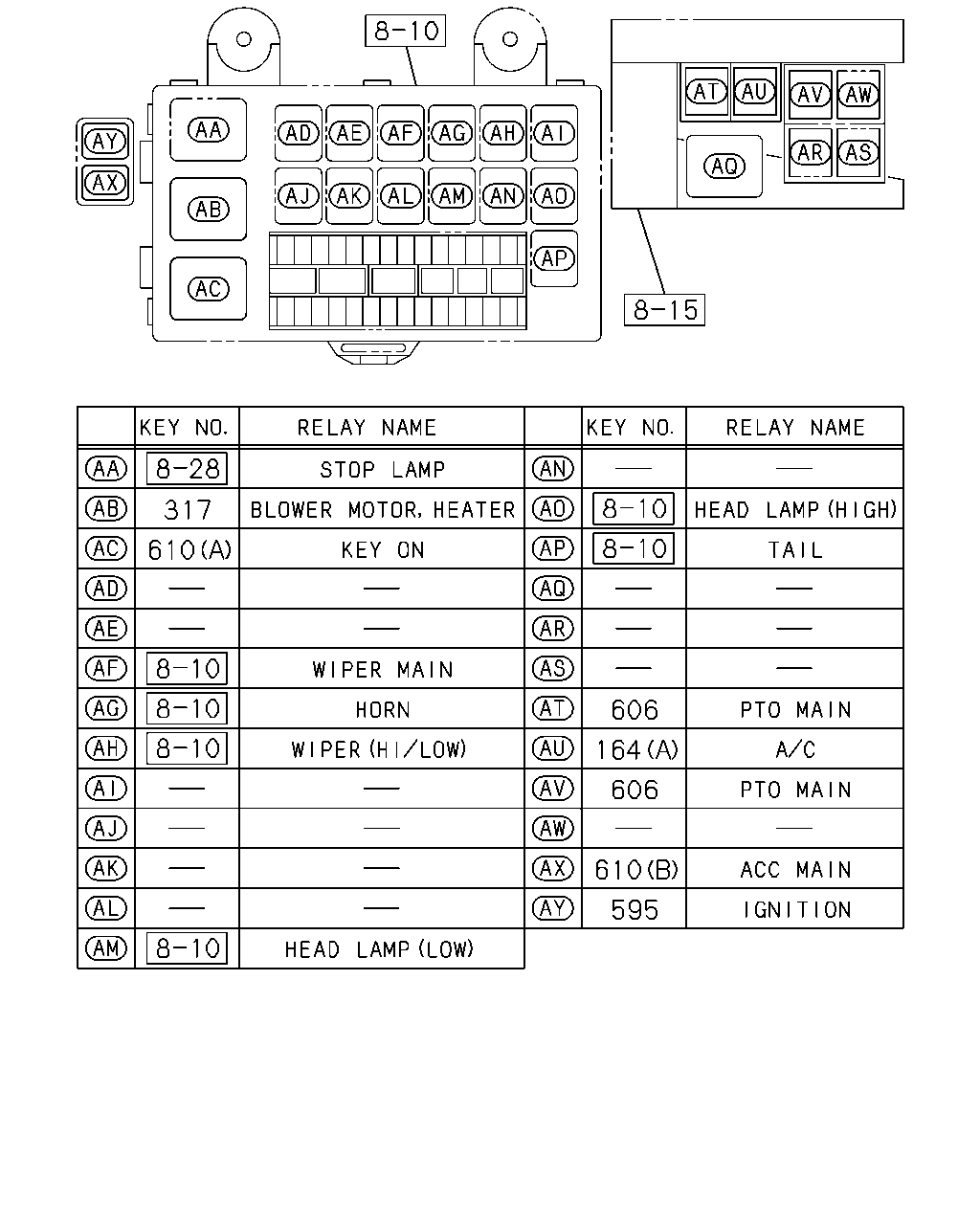

RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1106-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1311-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1106-1310
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC
8-97173-035-1
01
1
1106-1310
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1311-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1311-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1311-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
317
610
99
606
164
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1106-1310
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1106-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1106-1310
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC
8-97173-035-1
01
1
1106-1310
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1311-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1311-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1311-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
237
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29

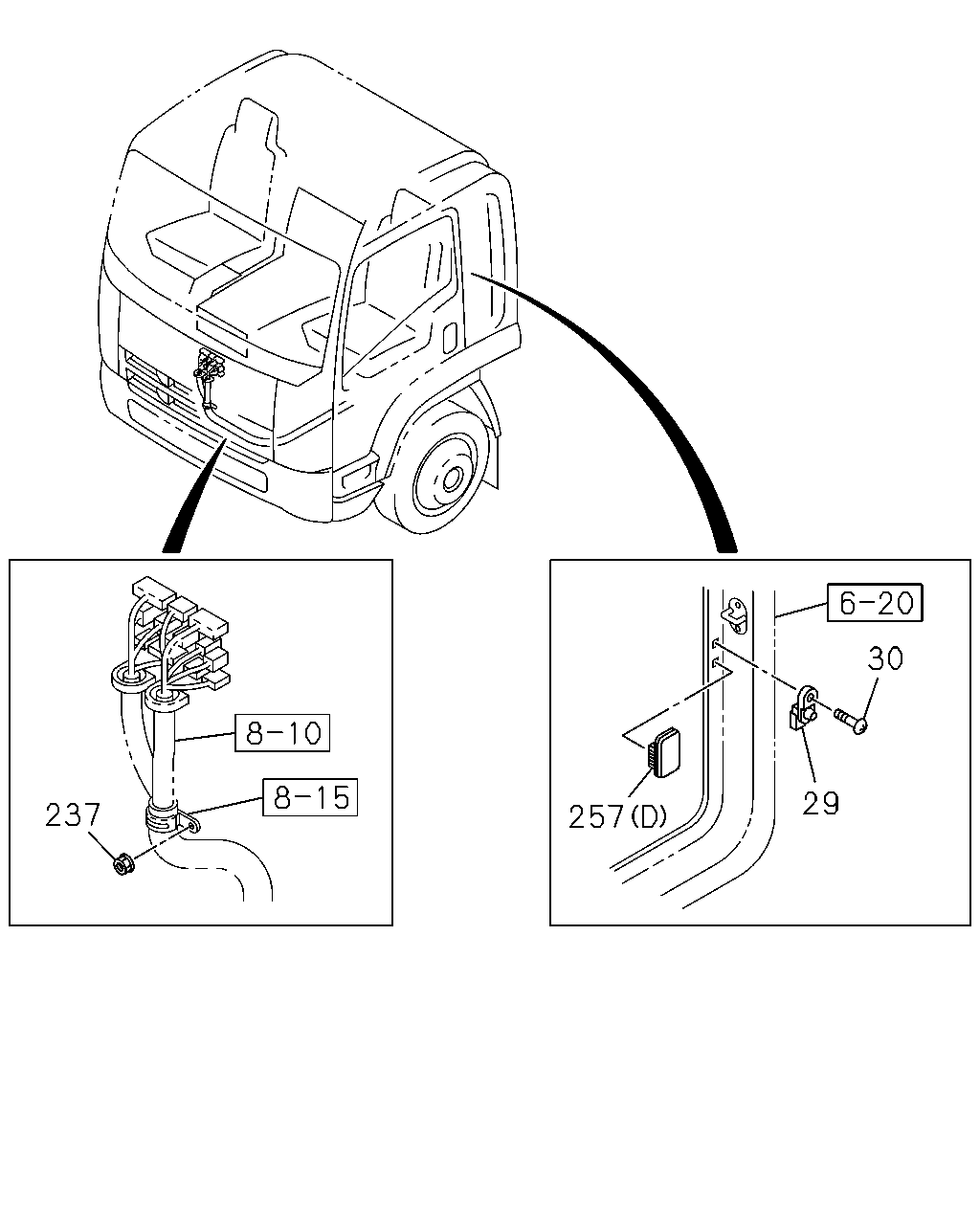

SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1106-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1106-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1106-
257
COVER; HOLE,SW
(C)
8-98025-954-1
03
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1106-
257
COVER; HOLE,SW
(D)
8-98029-917-0
01
1
1106-
257
COVER; HOLE,SW
(A)
8-98070-401-2
01
1
1106-
436
253
104
257
69
257
77
257
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69

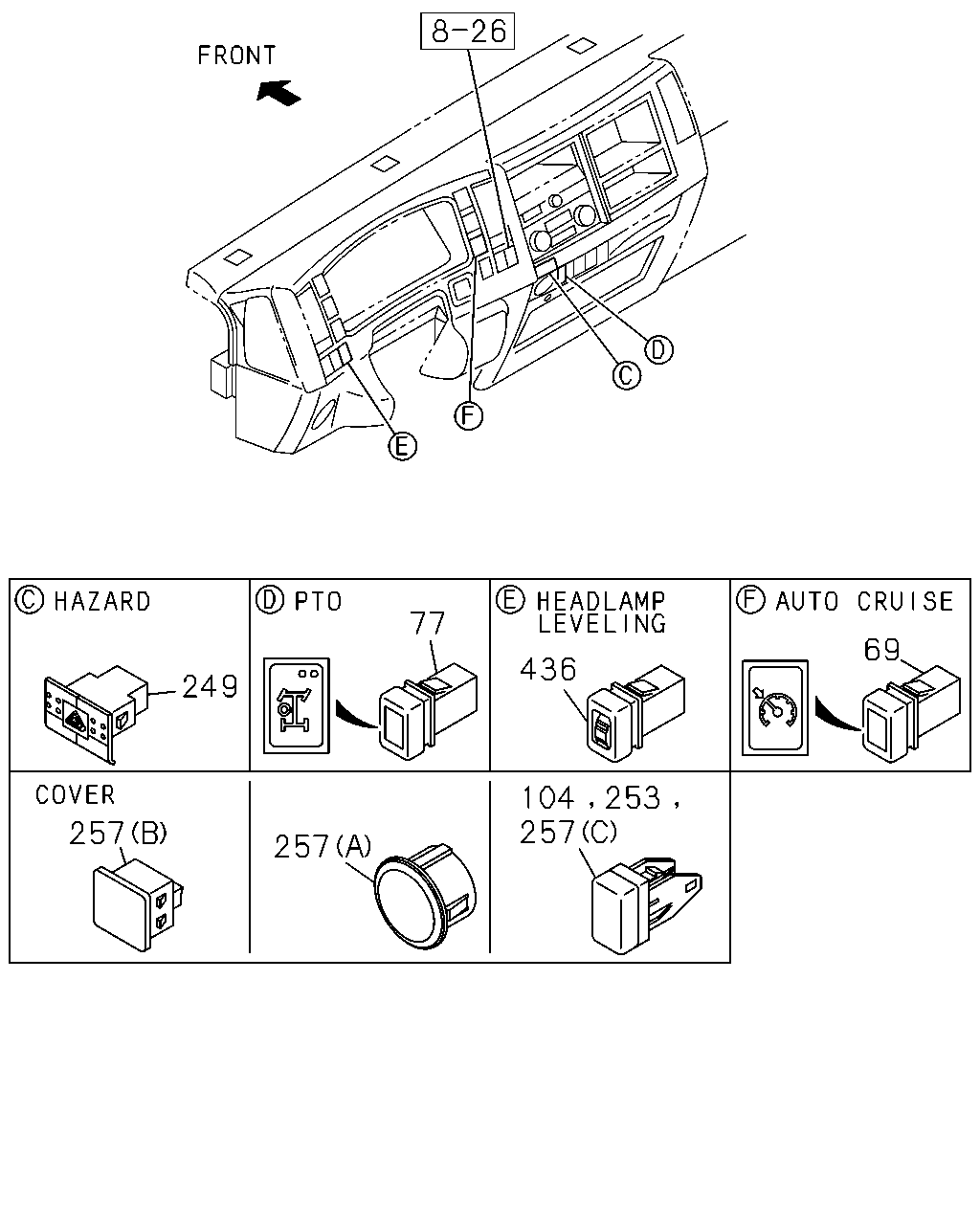

SWITCH; AUTO CRUISE
8-98011-344-1
01
1
1311-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-1
01
1
1106-1310
77
SWITCH; PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
1311-
104
COVER; SW HOLE,FOG LAMP
8-98025-954-1
01
1
1106-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1106-
253
COVER; SW HOLE
8-98025-954-1
02
1
1311-
253
COVER; SW HOLE
8-98025-954-1
01
1
1106-1310
253
COVER; SW HOLE
8-98025-954-1
01
1
1106-1310
253
COVER; SW HOLE
8-98025-954-1
01
1
1106-1310
253
COVER; SW HOLE
8-98025-954-1
01
1
1106-1310
253
COVER; SW HOLE
8-98025-954-1
01
1
1311-
257
COVER; HOLE,SW
(C)
8-98025-954-1
03
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1106-1310
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1311-1511
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1106-
257
COVER; HOLE,SW
(D)
8-98029-917-0
01
1
1106-
257
COVER; HOLE,SW
(A)
8-98070-401-2
01
1
1106-
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
1106-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1106-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
