◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#49202) — 13 parça

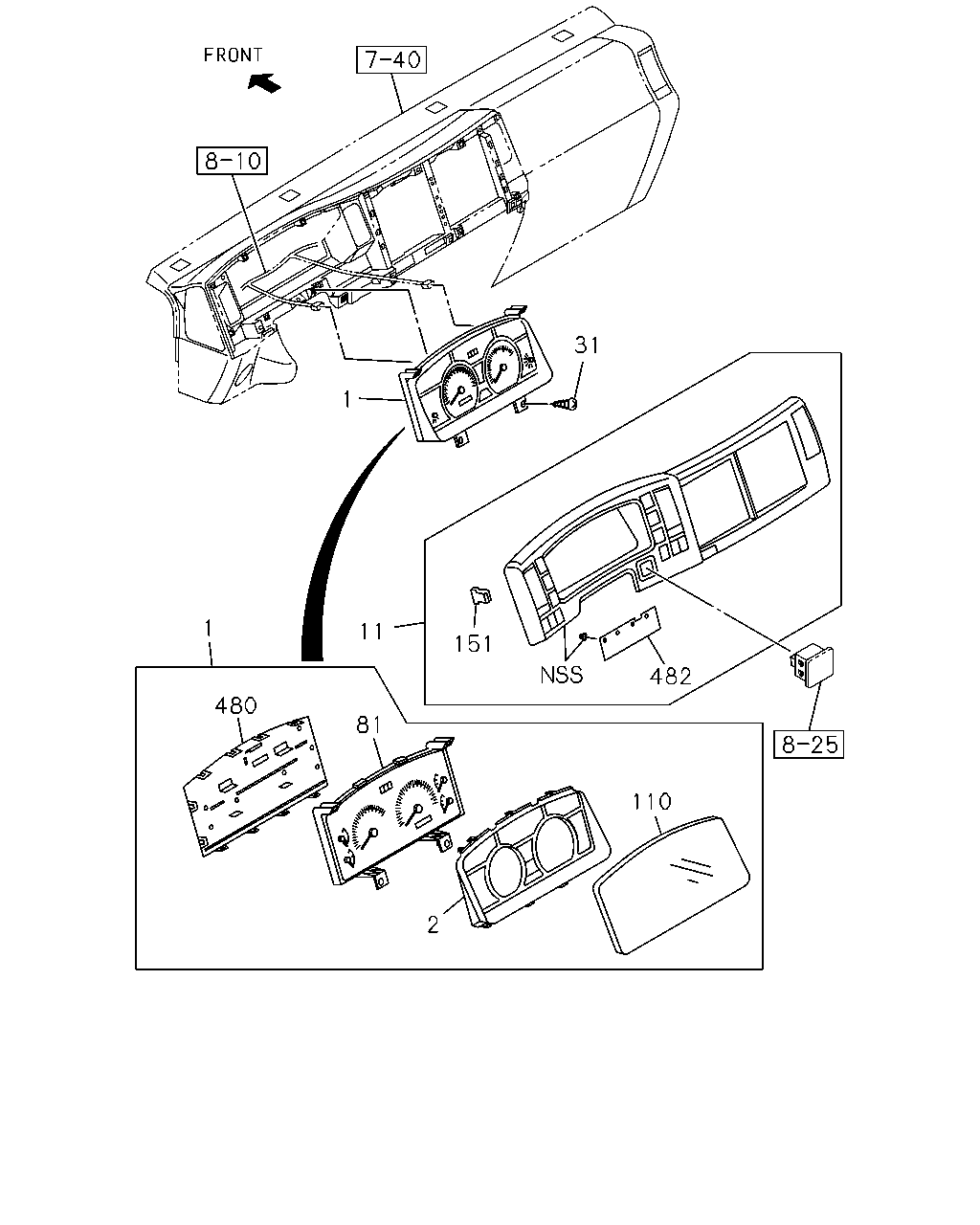

çizim 145003
31 1 151 11 1 480 81 110 482 2
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-256-0 01 1 1311-
1 METER COMPL; CLUSTER 8-98095-682-3 01 1 1106-1310
1 METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-255-0 01 1 1311-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1106-
11 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1106-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1106-
81 METER SUB ASM
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98251-112-0 01 1 1311-
81 METER SUB ASM 8-98149-098-0 01 1 1106-1310
81 METER SUB ASM
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98251-111-0 01 1 1311-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1106-
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 1106-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1106-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
