Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#49201) — 421 parça

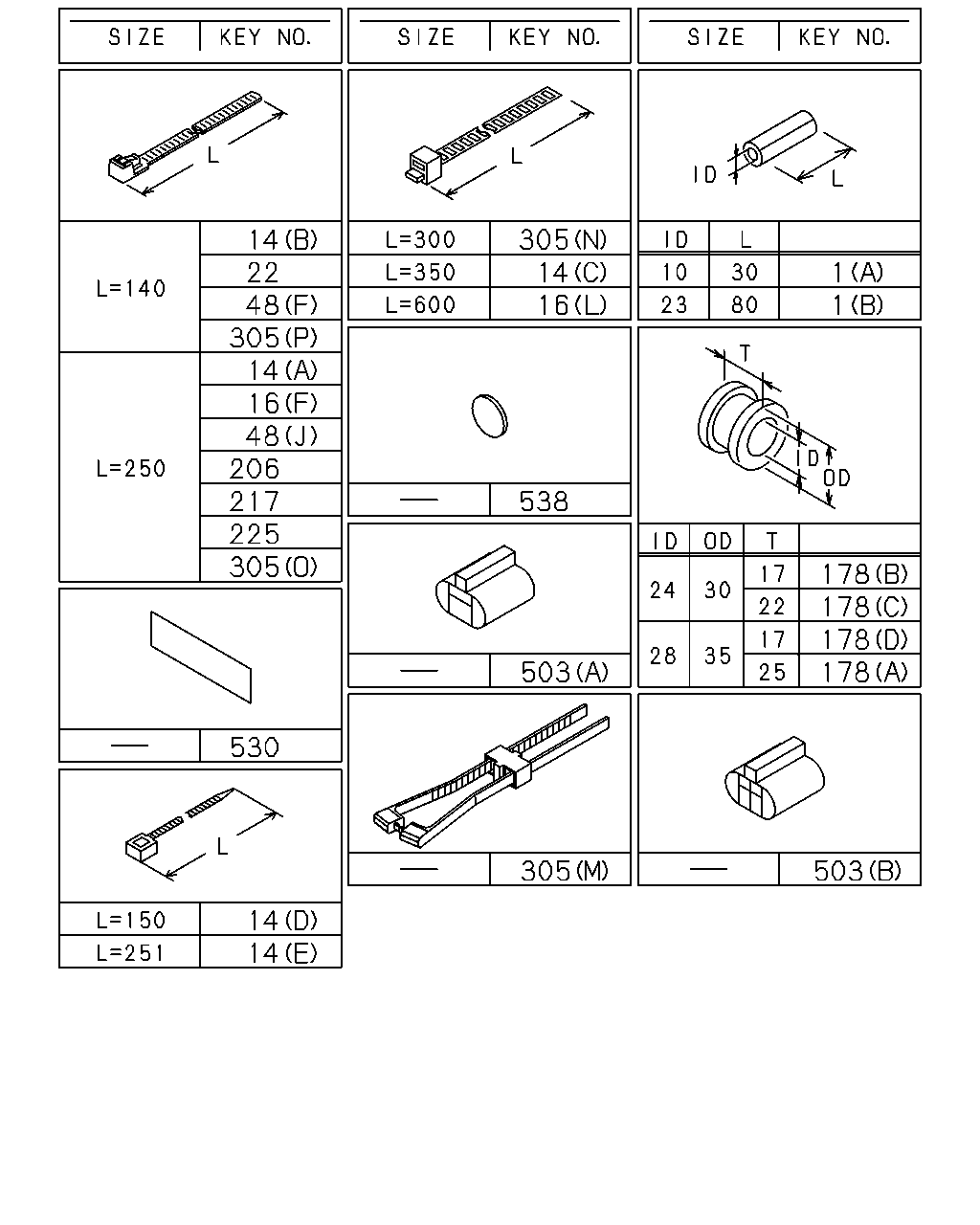

14 22 48 305 14 16 48 206 217 225 305 530 14 14 305 14 16 538 503 305 1 1 178 178 178 178 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1106-1310
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1311-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1106-1310
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1311-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	01	1	1311-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	02	1	1311-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=150	8-97355-273-0	03	1	1311-1407
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=150	8-97355-273-0	02	1	1408-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=251	8-97619-917-0	01	1	1311-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1106-1310
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=350	1-09707-183-0	01	1	1311-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	13	1	1106-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-1310
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (A) L=250	8-98216-430-0	14	1	1311-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1106-1109
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=32 L=35	1-09701-244-0	01	1	1311-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=17 L=21	8-98082-035-0	01	1	1311-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1311-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1311-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1106-1310
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (L) L=600	1-09707-107-1	01	1	1311-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1106-1310
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1311-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1106-1310
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1311-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1106-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1106-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1106-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1106-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1106-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1311-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	01	1	1306-1310
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	06	1	1209-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1106-1310
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1311-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1106-1310
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1311-
48	CLIP; FRAME HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1106-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (H) ID=15 L=65	1-09700-466-0	01	1	1311-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) ID=15 L=65	1-09700-466-0	01	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=20 L=70	1-09700-485-0	01	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	03	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1311-
48	CLIP; FRAME HARNESS (A) ID=28 L=78	1-09700-858-0	02	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1311-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1106-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	03	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (E) ID=33 L=83	1-09701-291-0	01	1	1311-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1106-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (J) L=250	5-09707-030-1	02	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	02	1	1106-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1311-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (H) ID=15 L=65	1-09700-466-0	06	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=15 L=65	1-09700-466-0	08	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=20 L=70	1-09700-485-0	10	1	1106-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1311-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) WHEEL BASE 5500MM(55W) (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	1311-
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W) (D) ID=28 OD=35 T=17	9-09956-256-2	02	1	1311-
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W) (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	1311-
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	1311-
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W) (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	1311-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	1106-1310
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (A) ID=28 OD=35 T=25	1-09332-011-1	03	1	1311-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1106-1310
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1106-1310
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1311-
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1311-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1106-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1106-
225	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1311-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	08	1	1106-1310
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	02	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=121.2 & 121.2	1-09707-188-0	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=250	5-09707-030-1	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=140	5-09707-031-1	02	1	1311-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1311-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=40	0-95235-576-0	01	1	1311-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1311-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1311-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1311-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1311-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1311-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=11 L=45	8-94296-897-1	01	1	1311-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) L=140	8-97122-360-0	01	1	1311-
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-97367-985-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=18 L=44	8-97367-985-1	01	1	1311-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1311-
503	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	1311-
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	1106-1310
503	CONNECTOR 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82690-668-0	01	1	1311-
503	CONNECTOR 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (A)	1-82690-668-0	01	1	1311-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1106-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1106-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-1310
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1311-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1106-

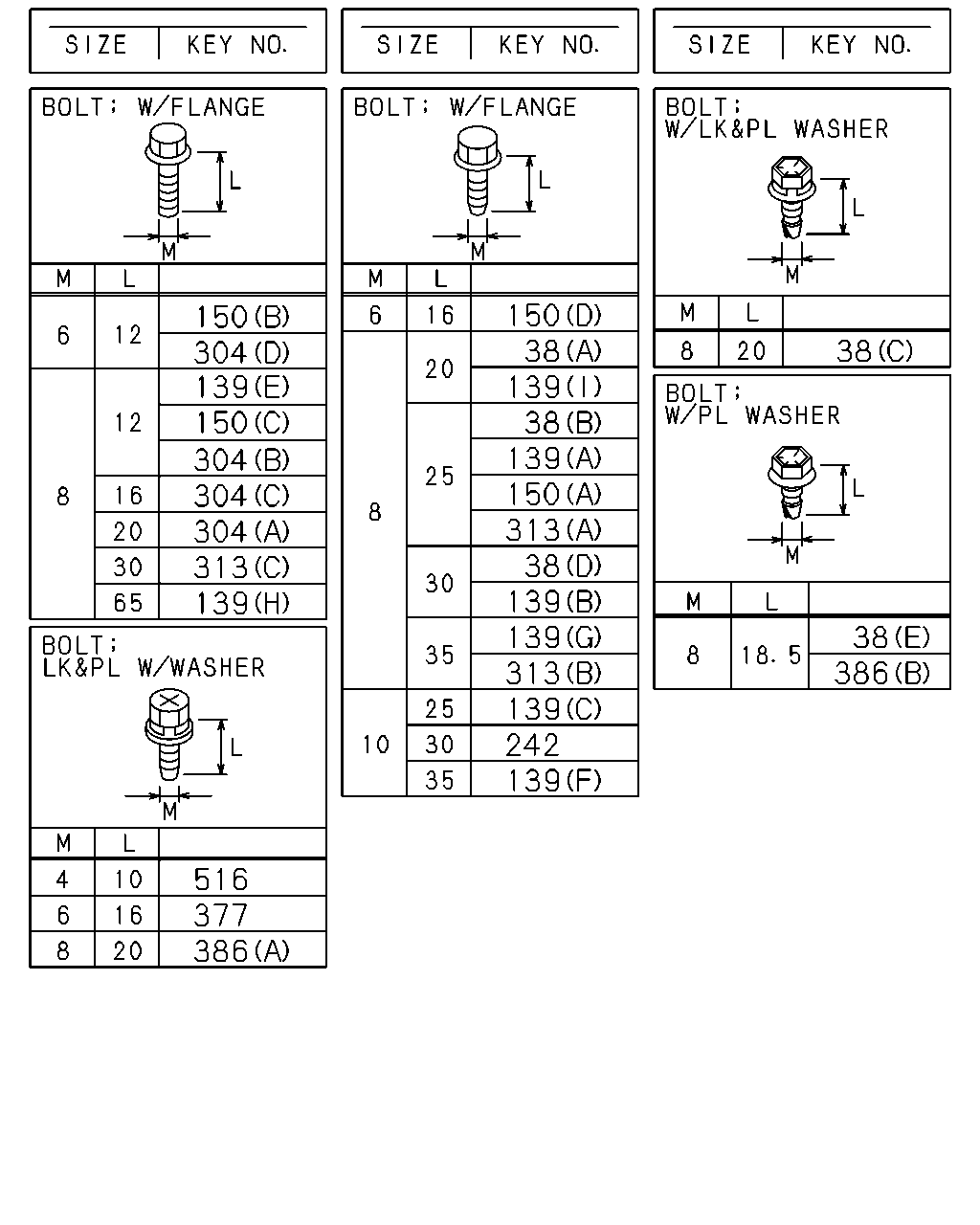

139 127 524 219 294 525 524 294 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1106-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1311-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1106-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1311-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1311-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1311-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1106-1310
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (I) M8X20 FLANGE	0-28650-820-0	01	1	1311-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1106-1310
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1311-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1106-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1106-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1106-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1106-1310
219	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1311-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1106-1310
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1311-
294	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1311-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1311-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1106-1310
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1311-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1311-
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1311-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1106-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1311-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1106-
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1311-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1106-1310
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1311-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1106-1310
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.5 M8 FLANGE	5-09440-010-0	01	1	1311-

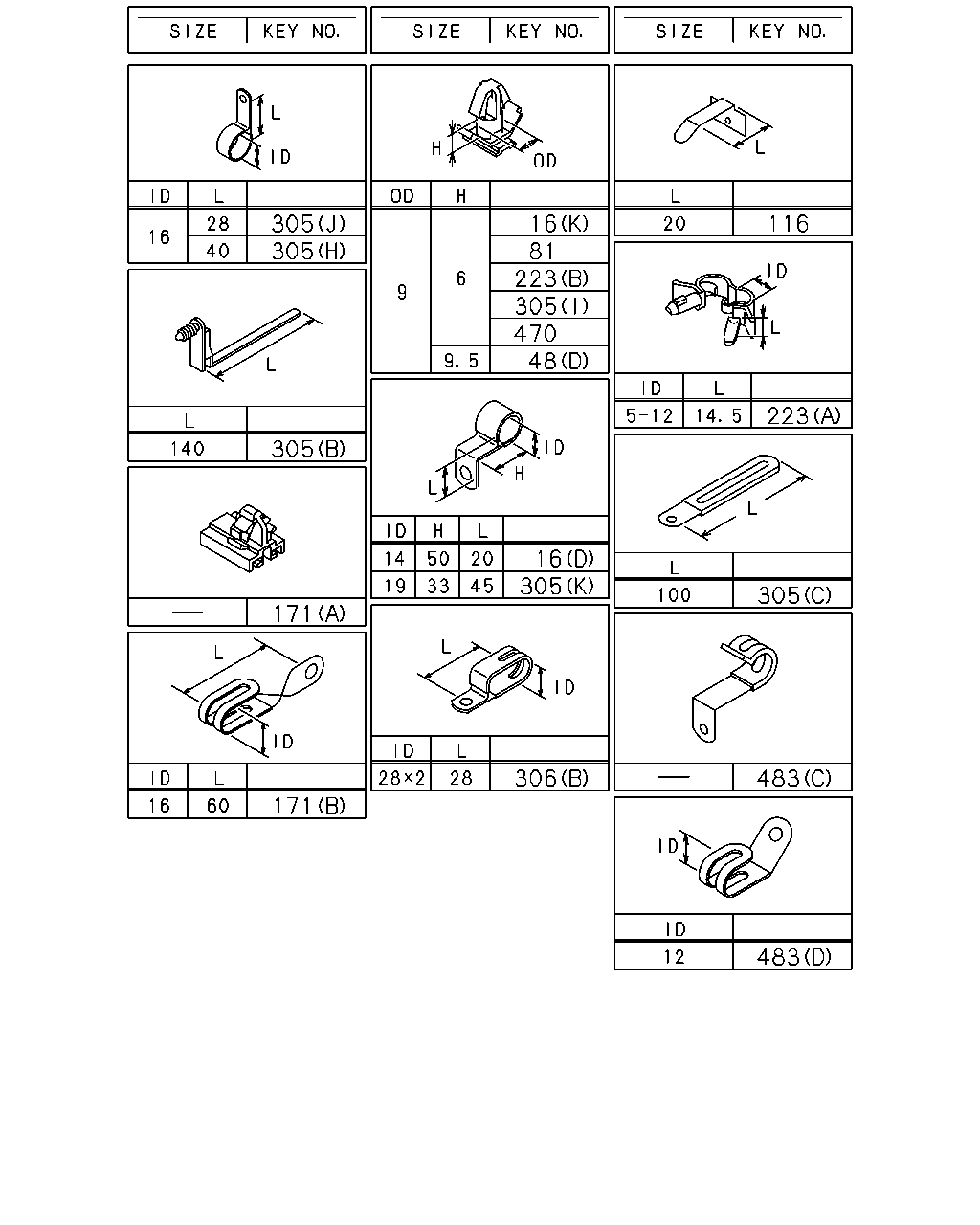

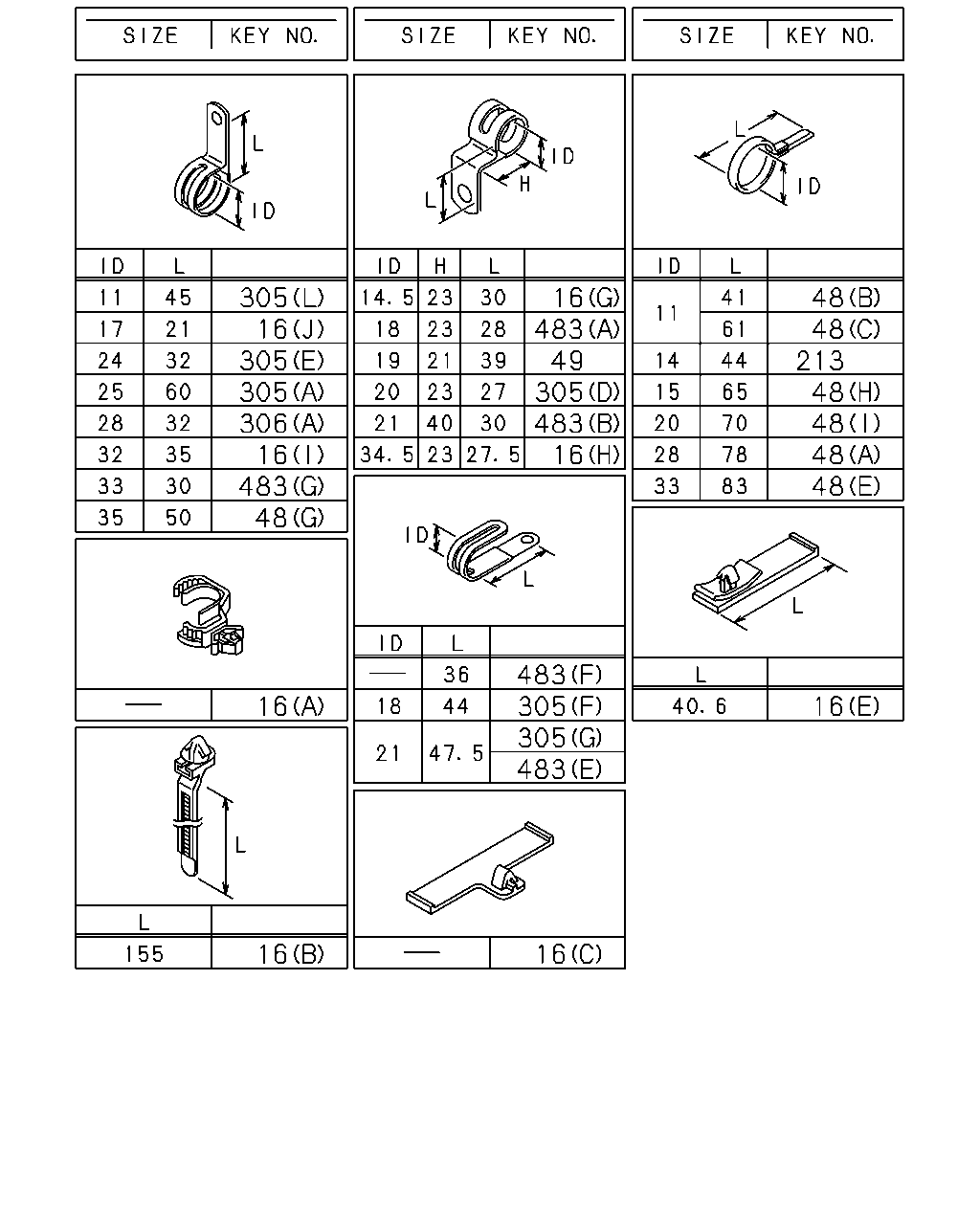

305 305 305 171 171 306 483 483 305 223 116 16 81 223 305 470 48 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=32 L=35	1-09701-244-0	01	1	1311-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=17 L=21	8-98082-035-0	01	1	1311-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1311-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1311-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1106-1310
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (L) L=600	1-09707-107-1	01	1	1311-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1106-1310
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1311-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1106-1310
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1311-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1106-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1106-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1106-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1106-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1106-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	01	1	1306-1310
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	06	1	1209-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1106-1310
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1311-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1106-1310
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1311-
48	CLIP; FRAME HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1106-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (H) ID=15 L=65	1-09700-466-0	01	1	1311-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) ID=15 L=65	1-09700-466-0	01	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=20 L=70	1-09700-485-0	01	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	03	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1311-
48	CLIP; FRAME HARNESS (A) ID=28 L=78	1-09700-858-0	02	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1311-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1106-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	03	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (E) ID=33 L=83	1-09701-291-0	01	1	1311-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1106-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (J) L=250	5-09707-030-1	02	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	02	1	1106-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1311-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (H) ID=15 L=65	1-09700-466-0	06	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=15 L=65	1-09700-466-0	08	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=20 L=70	1-09700-485-0	10	1	1106-
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1106-1310
81	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=9 H=6	1-09709-178-0	01	1	1311-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1106-1201
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1202-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (A) OD=8 H=3.8	1-09709-309-0	01	1	1311-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (B)	8-97101-436-0	01	1	1311-
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1311-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1106-1310
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1311-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1311-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1310
223	CLIP; AIR TANK HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=121.2 & 121.2	1-09707-188-0	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=250	5-09707-030-1	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=140	5-09707-031-1	02	1	1311-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1311-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=40	0-95235-576-0	01	1	1311-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1311-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1311-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1311-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1311-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1311-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=11 L=45	8-94296-897-1	01	1	1311-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) L=140	8-97122-360-0	01	1	1311-
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-97367-985-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=18 L=44	8-97367-985-1	01	1	1311-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1106-1310
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1311-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1106-1310
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1311-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1106-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C)	1-09987-281-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=21 L=47.5	8-94178-108-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=33 L=30	8-97619-250-0	01	1	1311-

305 16 305 305 306 16 483 48 16 16 16 483 49 305 483 16 483 305 305 483 16 48 48 213 48 48 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=32 L=35	1-09701-244-0	01	1	1311-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (J) ID=17 L=21	8-98082-035-0	01	1	1311-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1311-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (K) OD=9 H=6	1-09709-178-0	01	1	1311-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1106-1310
16	CLIP; HARNESS FUEL TANK 200L FRAME SIDE<N20> (L) L=600	1-09707-107-1	01	1	1311-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1106-1310
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1311-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1106-1310
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1311-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1106-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1106-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1106-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1106-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1106-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	01	1	1306-1310
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	06	1	1209-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1106-1310
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	1311-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1106-1310
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1311-
48	CLIP; FRAME HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1106-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (H) ID=15 L=65	1-09700-466-0	01	1	1311-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) ID=15 L=65	1-09700-466-0	01	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I) ID=20 L=70	1-09700-485-0	01	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	03	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	1311-
48	CLIP; FRAME HARNESS (A) ID=28 L=78	1-09700-858-0	02	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (F) L=140	5-09707-031-1	02	1	1311-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1106-
48	CLIP; FRAME HARNESS (E) ID=33 L=83	1-09701-291-0	03	1	1106-1310
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (E) ID=33 L=83	1-09701-291-0	01	1	1311-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1106-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (J) L=250	5-09707-030-1	02	1	1311-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	02	1	1106-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-1310
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=11 L=41	1-09700-403-0	06	1	1311-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (H) ID=15 L=65	1-09700-466-0	06	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=15 L=65	1-09700-466-0	08	1	1106-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (I) ID=20 L=70	1-09700-485-0	10	1	1106-
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1311-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1106-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=300	1-09707-001-1	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=121.2 & 121.2	1-09707-188-0	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (O) L=250	5-09707-030-1	01	1	1311-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=140	5-09707-031-1	02	1	1311-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (P) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1311-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=40	0-95235-576-0	01	1	1311-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) ID=24 L=32	1-09700-766-1	01	1	1311-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1311-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1311-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1311-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) OD=9 H=6	1-09709-178-0	01	1	1311-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=11 L=45	8-94296-897-1	01	1	1311-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) L=140	8-97122-360-0	01	1	1311-
305	CLIP; ENG HARNESS (F) ID=18 L=44	8-97367-985-1	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=18 L=44	8-97367-985-1	01	1	1311-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1310
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1106-1310
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=28 L=32	1-09701-107-1	01	1	1311-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1106-1310
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C)	1-09987-281-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=21 L=47.5	8-94178-108-0	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) L=36	8-94224-891-1	01	1	1311-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=33 L=30	8-97619-250-0	01	1	1311-

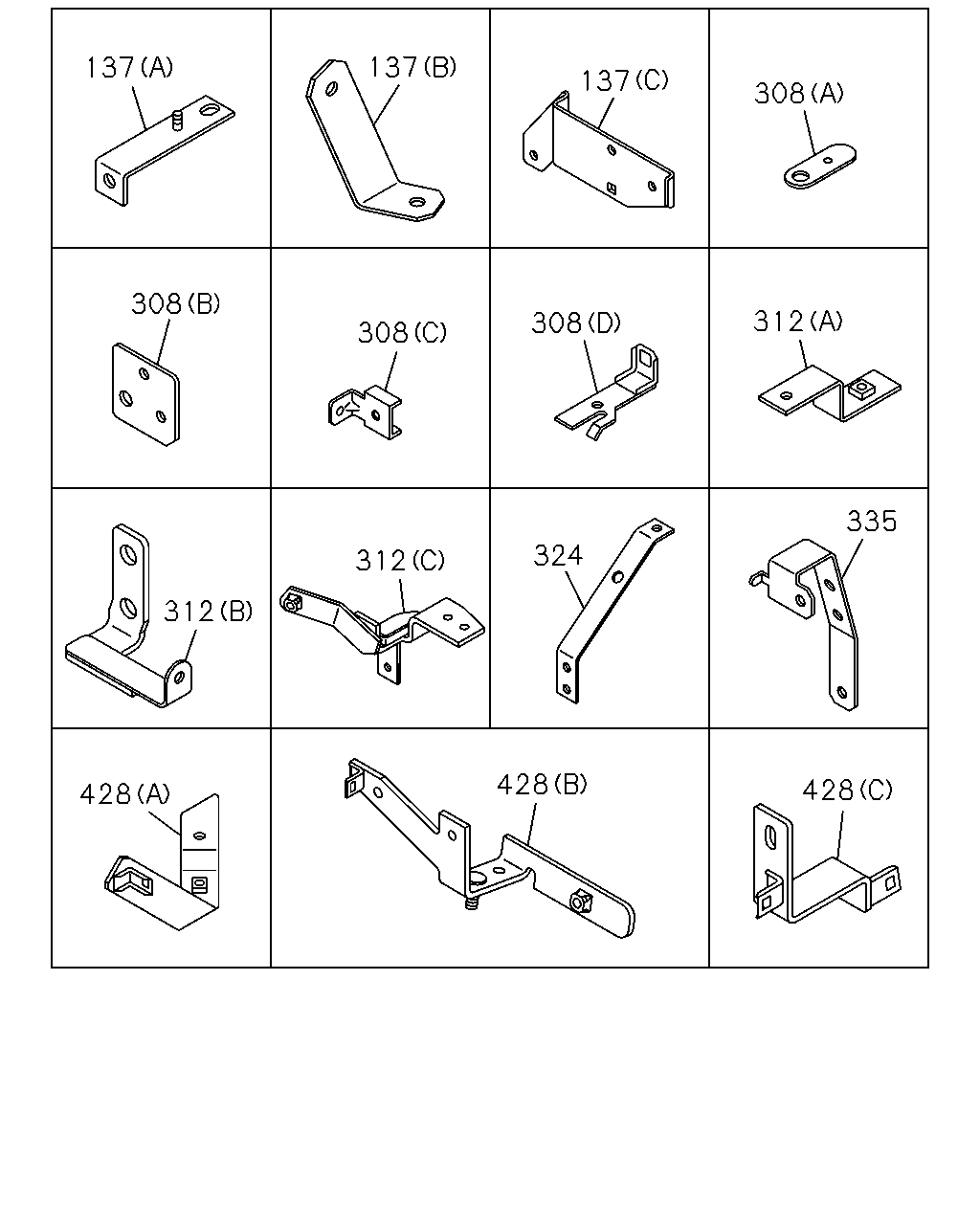

137 137 137 308 308 308 308 312 312 312 324 335 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97614-728-1	01	1	1311-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1106-1310
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (C)	8-98193-417-0	01	1	1311-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1106-1310
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-97624-013-0	01	1	1311-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1106-1310
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1311-
308	BRACKET; CLIP,ENG HARNESS (C)	8-97614-078-0	01	1	1106-1310
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-97614-078-0	01	1	1311-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-291-2	01	1	1106-1310
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-291-2	01	1	1311-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	1106-1310
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98021-692-1	01	1	1311-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (B)	8-98094-804-0	01	1	1311-
312	BRACKET; CLIP HARNESS 6HK1-TCN ENG(82L) (C)	8-98230-458-1	01	1	1311-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1106-1310
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS) (A)	8-97609-110-1	01	1	1311-
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-1212
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1106-
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98212-082-1	01	1	1311-
428	BRACKET (A)	8-97620-514-0	01	1	1106-1310
428	BRACKET 4HK1-TCS ENG(RJS) (C)	8-98203-354-2	01	1	1311-

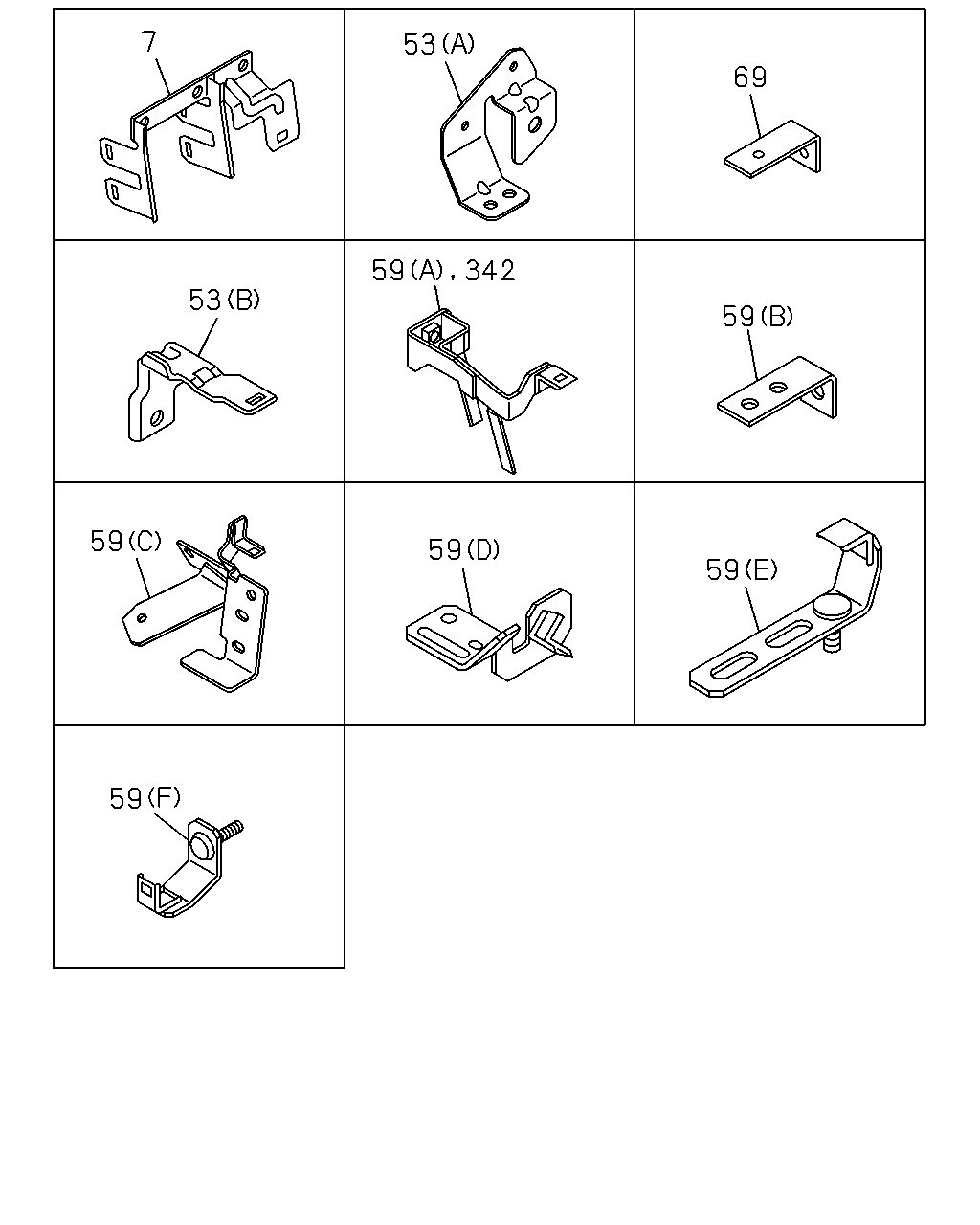

7 53 69 53 59 342 59 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1106-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1106-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1106-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (A)	8-98099-963-0	01	1	1311-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (E)	8-98047-730-0	02	1	1311-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-98107-611-0	01	1	1311-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1106-1310
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	1311-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1106-1310
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A)	8-97609-264-2	01	1	1311-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1106-1502
59	BRACKET; FRAME HARNESS (D)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1106-1310
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (F)	8-97612-957-1	02	1	1311-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1106-1310
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (D)	8-98211-162-0	01	1	1311-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1106-1310
69	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=55	1-47475-304-0	01	1	1311-
342	BRACKET; HARNESS CAB MTG 4HK1-TCS ENG(RJS)	8-98099-963-0	01	1	1311-

150 139 304 304 139 313 304 150 516 386 377 139 139 150 139 139 313 38 139 313 242 150 38 38 38 38 386 304 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1311-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1106-1310
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1106-1310
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (D) M8X30 FLANGE	0-28650-830-0	01	1	1311-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1106-1201
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1311-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1106-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1311-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1311-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1311-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1106-1310
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (I) M8X20 FLANGE	0-28650-820-0	01	1	1311-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1106-1310
139	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1311-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1106-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1106-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (D) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M6X12 FLANGE	0-28050-612-0	02	1	1311-
150	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X12 FLANGE	0-28050-812-0	01	1	1311-
242	BOLT; BRKT,HARNESS 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1311-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1106-1310
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (D) M6X12 FLANGE	0-28050-612-0	01	1	1311-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1106-1310
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	02	1	1311-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1106-1310
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	03	1	1311-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1106-1310
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X35 FLANGE	0-28650-835-0	02	1	1311-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28050-830-0	01	1	1106-1310
313	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1311-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1311-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1106-1310
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M8X35 FLANGE	0-28650-835-0	01	1	1311-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1106-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1106-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1106-1310
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
