◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#49200) — 200 parça

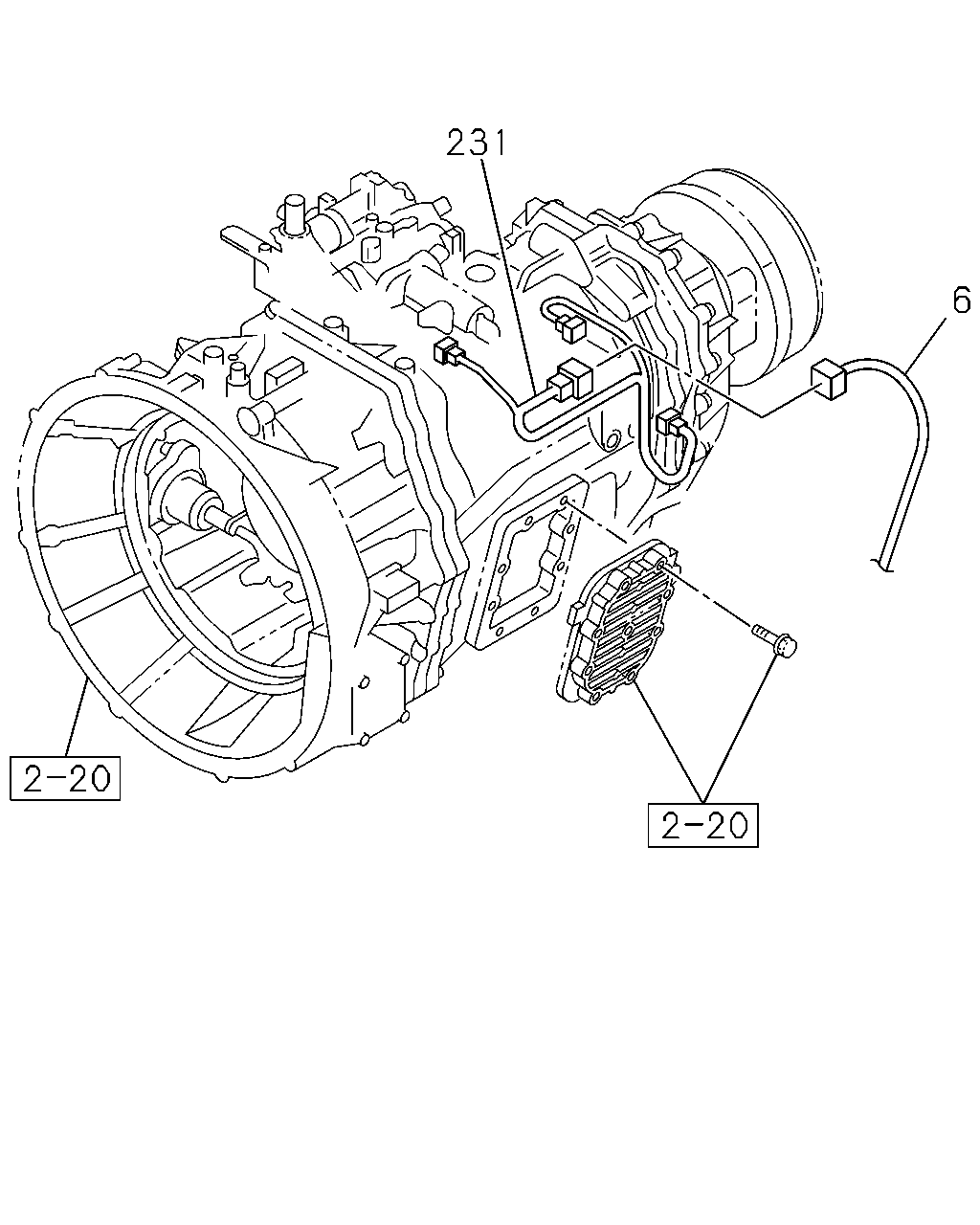

çizim 144992
6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
231 HARNESS; TRANS
6HK1-TCN ENG(82L) 		8-97618-932-2 01 1 1311-
231 HARNESS; TRANS 8-97618-932-2 01 1 1106-1310
231 HARNESS; TRANS
4HK1-TCS ENG(RJS) 		8-97618-933-2 01 1 1311-

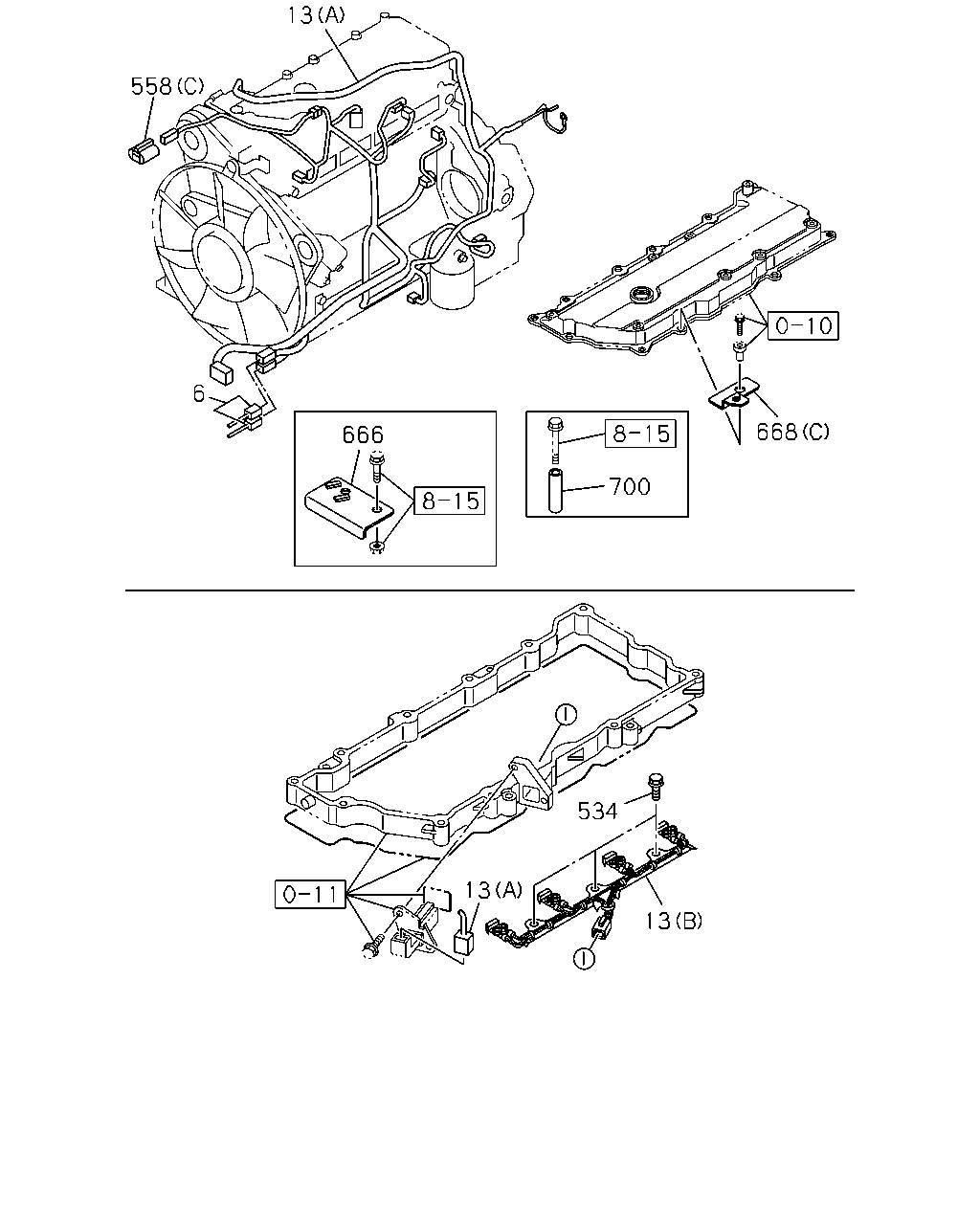

çizim 144994
13 534 13 700 668 666 6 13 558
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1311-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98251-351-0 01 1 1311-1407
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (A) 		8-98274-071-0 01 1 1408-
13 HARNESS; ENG
(A) 		8-98177-209-1 01 1 1106-1310
13 HARNESS; ENG
6HK1-TCN ENG(82L) (A) 		8-98177-209-1 01 1 1311-
534 BOLT
4HK1-TCS ENG(RJS) M10X55 FLANGE 		8-97365-449-0 03 1 1311-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1311-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1106-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1106-
666 BRACKET; CLIP
4HK1-TCS ENG(RJS) 		8-98234-808-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98009-245-0 01 1 1311-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-98011-484-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98061-780-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (G) 		8-98097-674-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-98205-089-0 01 1 1311-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1106-
700 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1311-

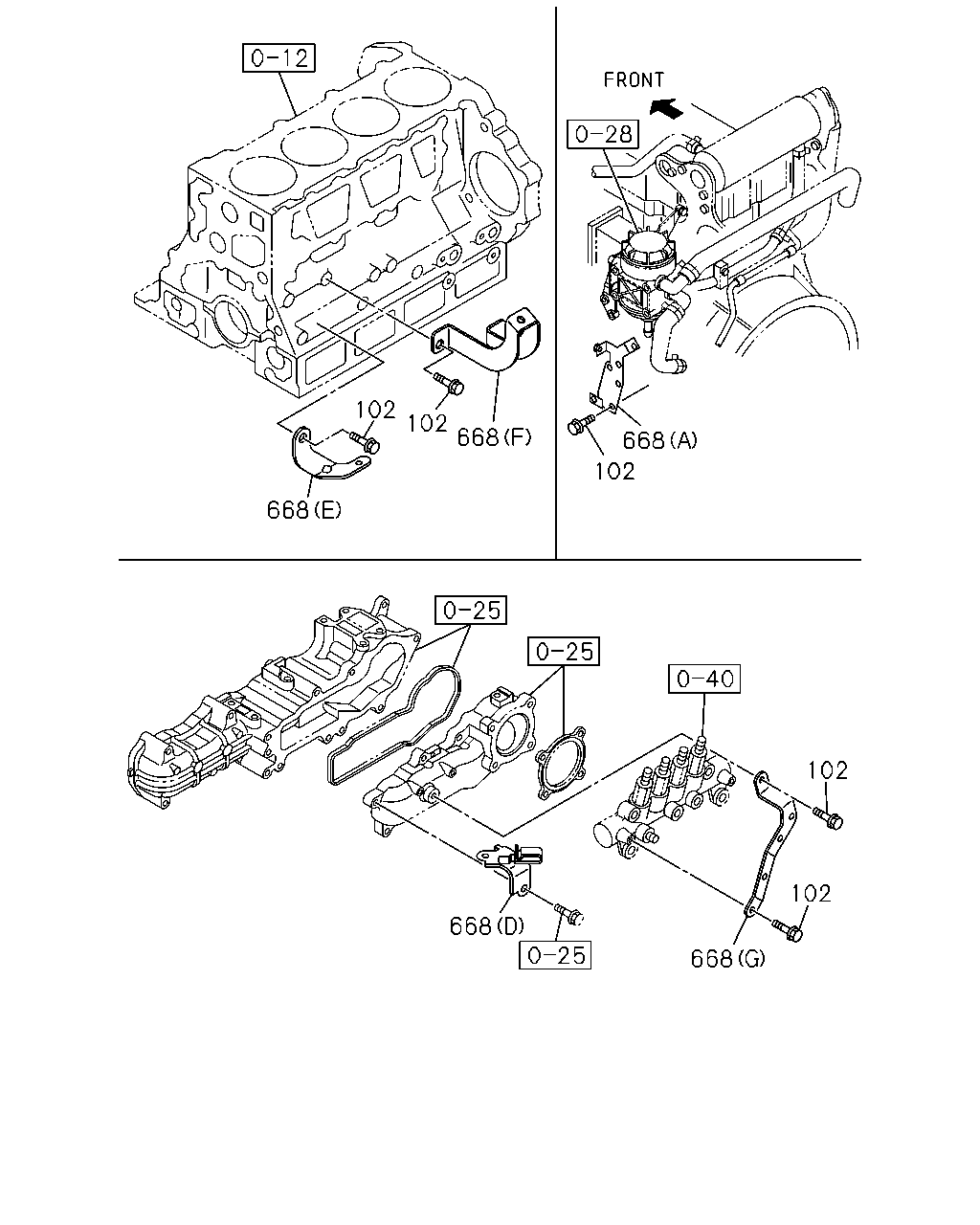

çizim 144995
668 102 668 102 668 102 668 668 102 102
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M6X12 FLANGE 		0-28050-612-0 01 1 1311-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28050-816-0 04 1 1311-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M10X16 FLANGE 		0-28151-016-0 03 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98009-245-0 01 1 1311-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-98011-484-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98061-780-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (G) 		8-98097-674-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-98205-089-0 01 1 1311-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1106-

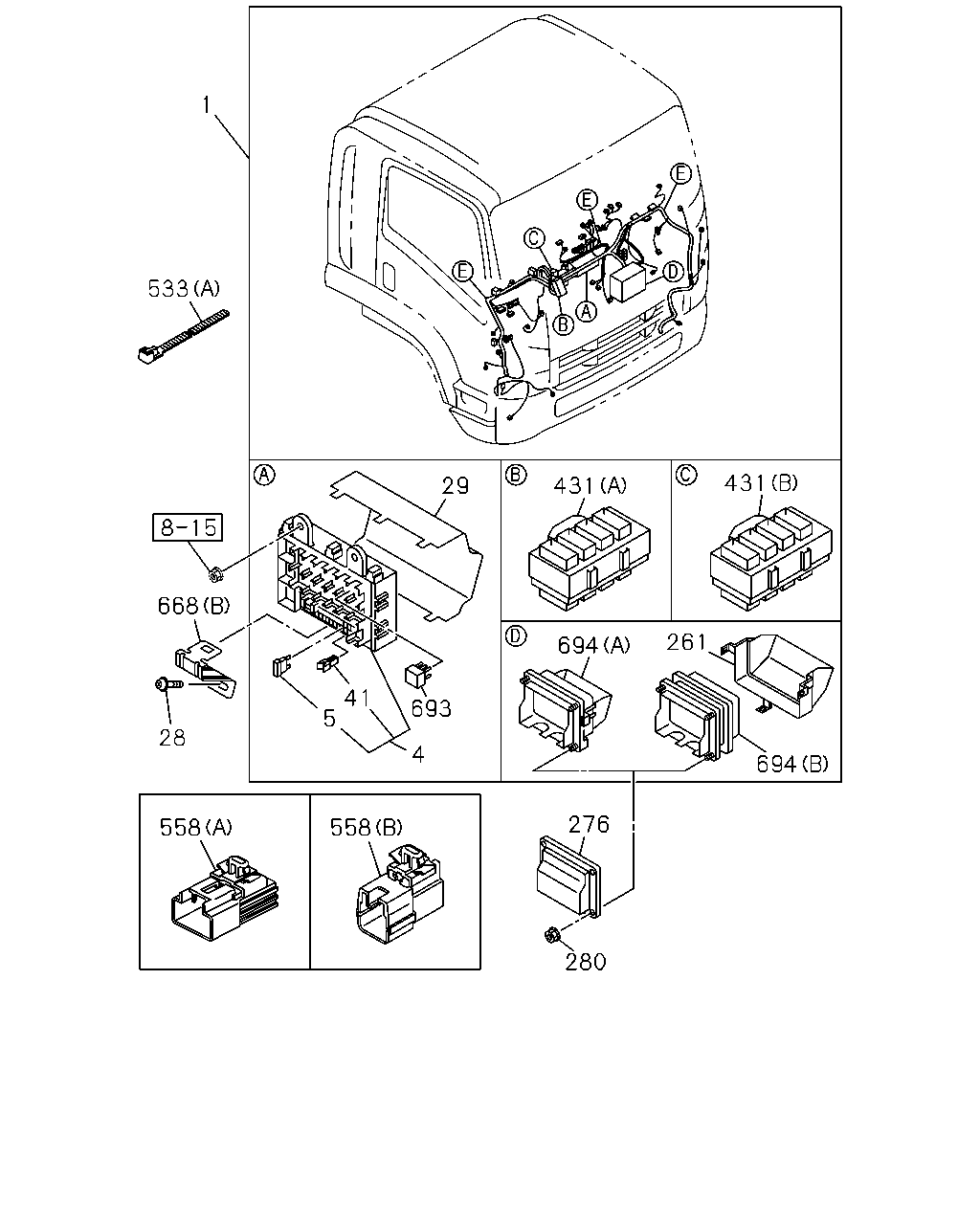

çizim 145055
1 533 29 431 431 261 694 694 276 558 558 668 28 693 41 5 4 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98188-111-0 01 1 1110-1203
1 HARNESS; CAB 8-98188-111-0 01 1 1204-1310
1 HARNESS; CAB 8-98250-453-1 01 1 1311-
1 HARNESS; CAB 8-98169-145-0 01 1 1106-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1106-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1106-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1106-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1106-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1106-1310
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1311-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1106-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1106-
41 PULLER; FUSE 8-98054-260-0 01 1 1106-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1311-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1106-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1106-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1106-1310
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1106-1310
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1106-1310
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1106-1310
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1106-1310
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1106-1310
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1106-1310
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1106-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1106-
533 CLIP
(B) L=180 		1-09707-162-1 01 1 1106-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1207-1310
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1311-
533 CLIP
(A) L=100 		5-09707-036-1 01 1 1106-1310
533 CLIP
4HK1-TCS ENG(RJS) (C) ID=11 L=16 		0-95235-025-0 03 1 1311-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1311-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1106-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1106-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98009-245-0 01 1 1311-1408
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-98011-484-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98024-765-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98061-780-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (G) 		8-98097-674-0 01 1 1311-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (C) 		8-98205-089-0 01 1 1311-
668 BRACKET; HARNESS
(B) 		8-98095-653-2 01 1 1106-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1106-
694 BOX ASM; CONNECTOR
(A) 		8-98063-269-1 01 1 1106-1310
694 BOX ASM; CONNECTOR
(B) 		8-98057-771-0 01 1 1311-

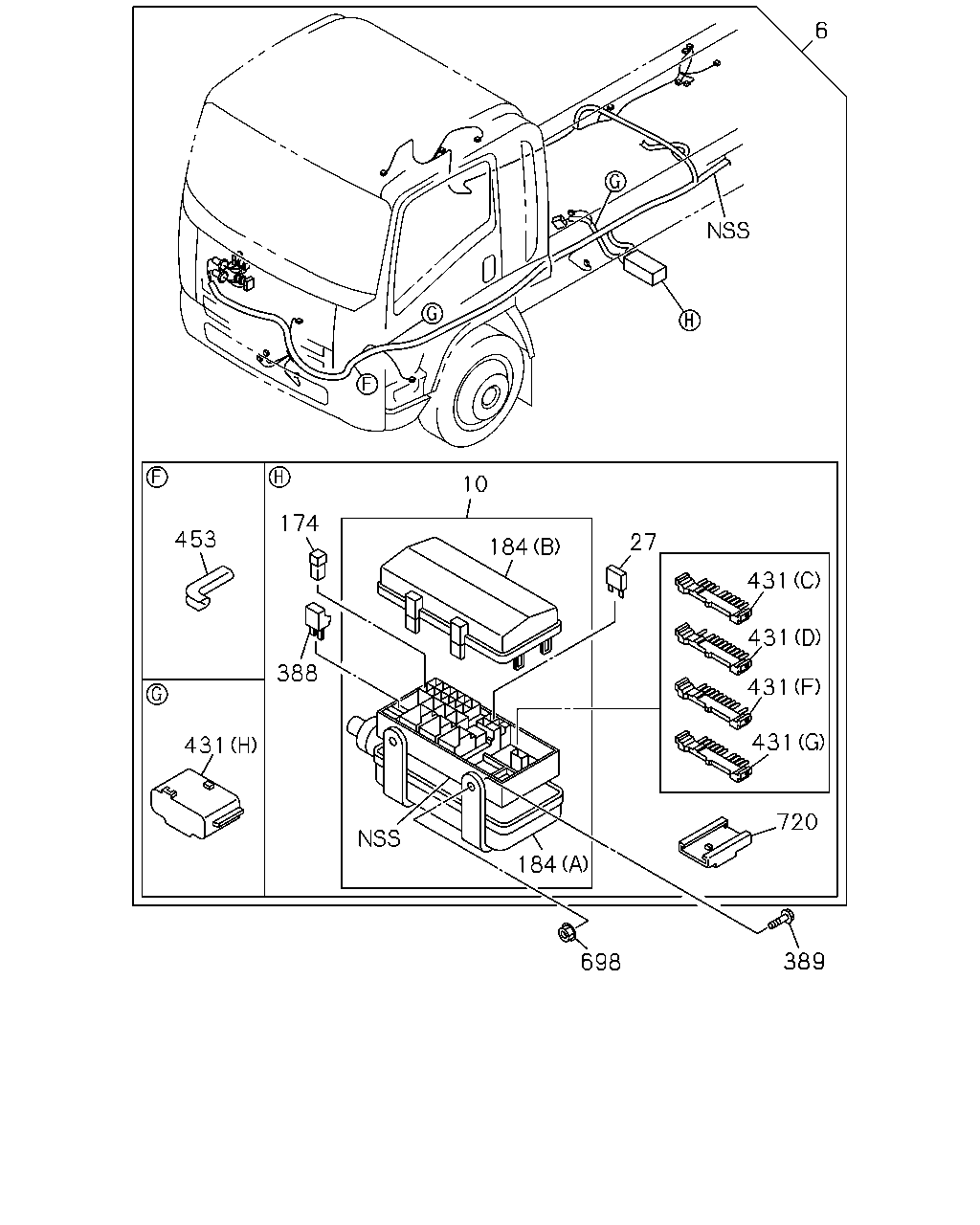

çizim 145057
6 10 174 453 389 720 431 431 431 431 184 27 184 388 431 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1106-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1106-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1106-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1106-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1106-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1106-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1106-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1106-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1106-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1106-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1106-1310
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1311-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1106-1310
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1106-1310
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1106-1310
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1106-1310
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1106-1310
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1106-1310
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1106-1310
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1106-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1106-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1106-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1106-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1106-

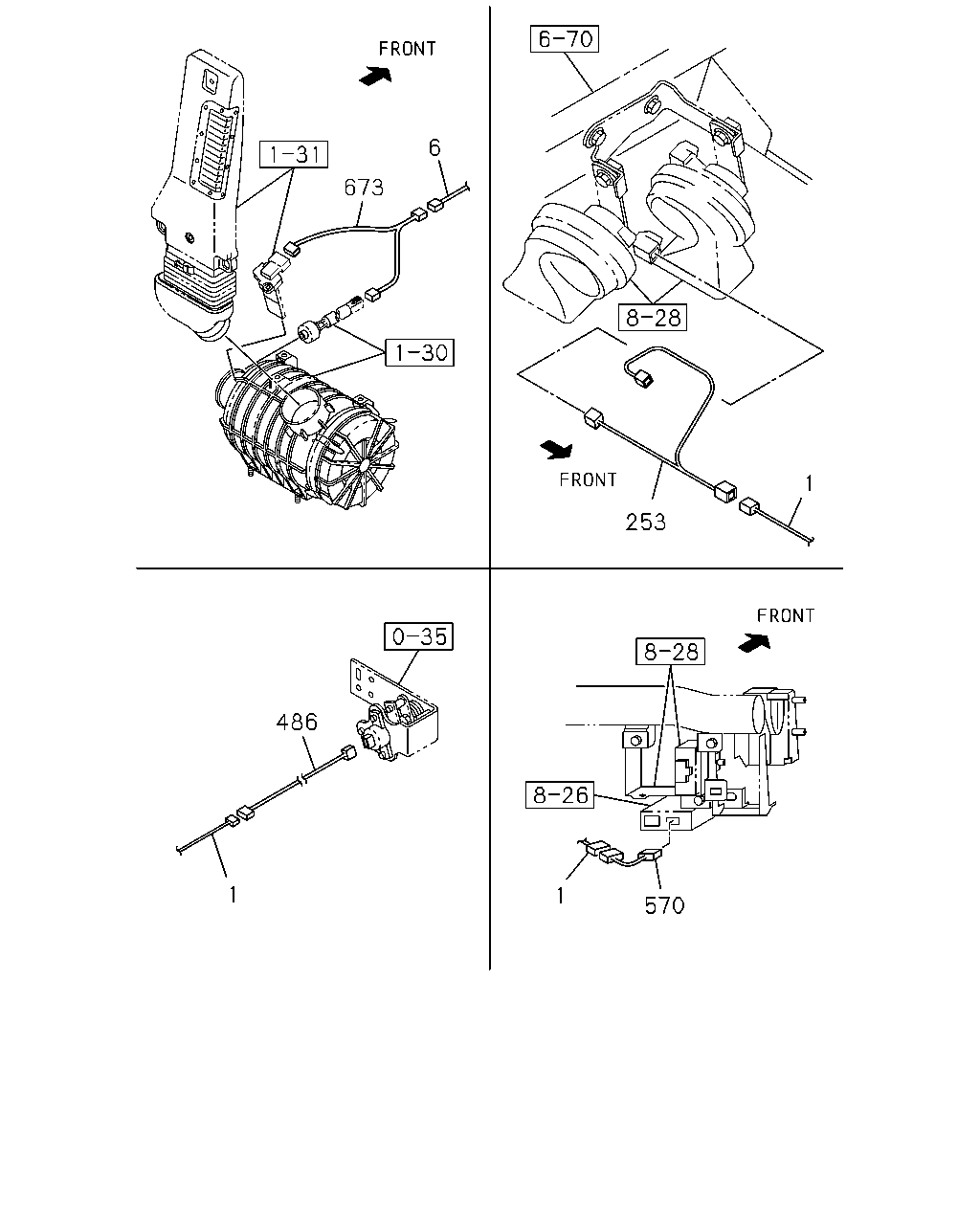

çizim 145058
6 673 253 486 1 1 570 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98188-111-0 01 1 1110-1203
1 HARNESS; CAB 8-98188-111-0 01 1 1204-1310
1 HARNESS; CAB 8-98250-453-1 01 1 1311-
1 HARNESS; CAB 8-98169-145-0 01 1 1106-1203
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1106-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1106-1310
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO GEAR=36/16(C5L),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1311-
570 HARNESS; SPEED SENSOR
SPEED LIMITER 90KM(NMJ) 		8-98058-327-1 01 1 1507-1507
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 1106-

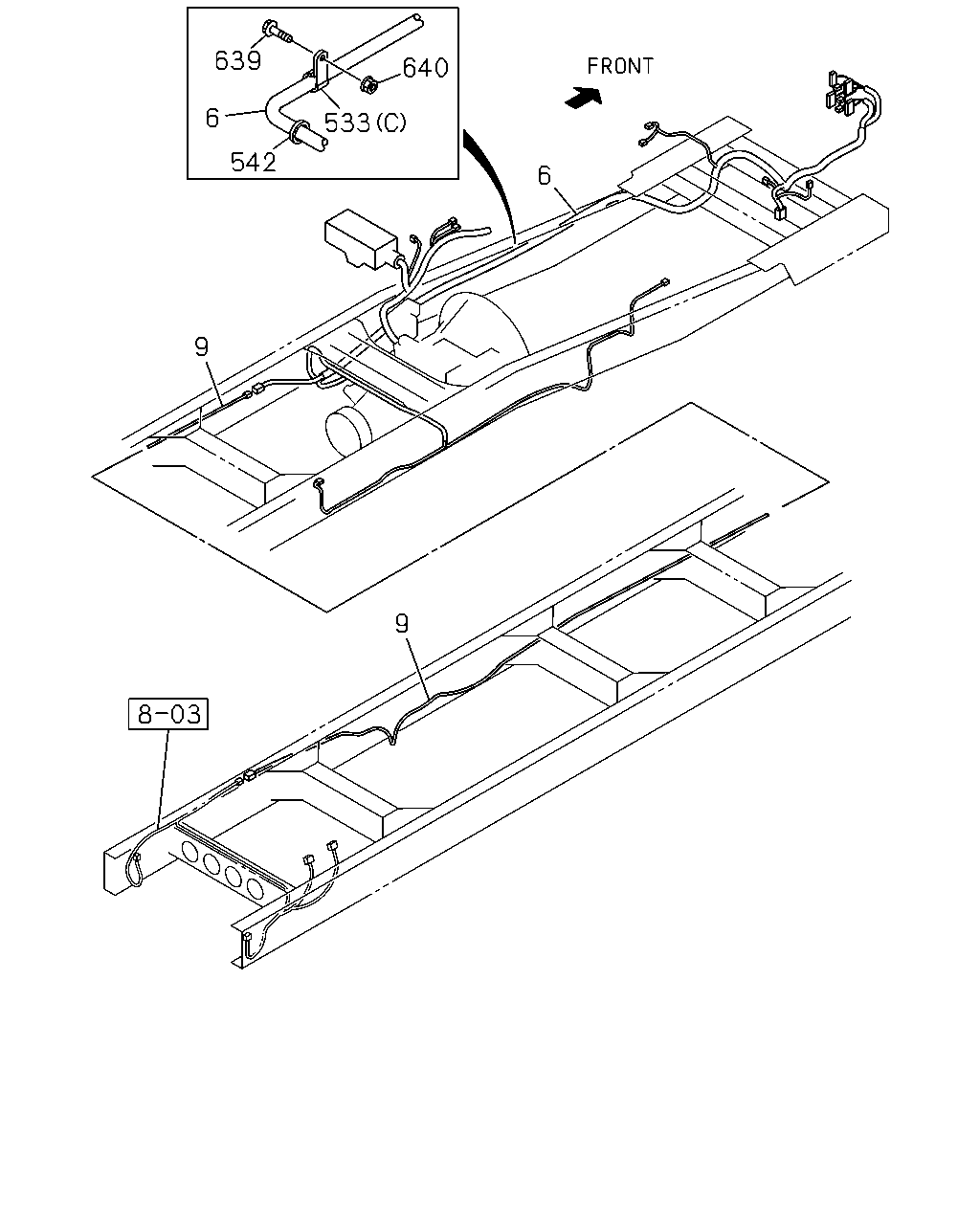

çizim 145059
6 9 9 640 639 542 6 533
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-630-0 01 1 1311-
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-289-0 01 1 1311-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98186-381-0 01 1 1106-1310
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98186-381-0 01 1 1311-
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98186-382-0 01 1 1106-1310
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98186-382-0 01 1 1311-
533 CLIP
(B) L=180 		1-09707-162-1 01 1 1106-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1207-1310
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1311-
533 CLIP
(A) L=100 		5-09707-036-1 01 1 1106-1310
533 CLIP
4HK1-TCS ENG(RJS) (C) ID=11 L=16 		0-95235-025-0 03 1 1311-
542 GROMMET; HARNESS
4HK1-TCS ENG(RJS) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1311-
639 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X30 FLANGE 		0-28650-830-0 03 1 1311-
640 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 03 1 1311-

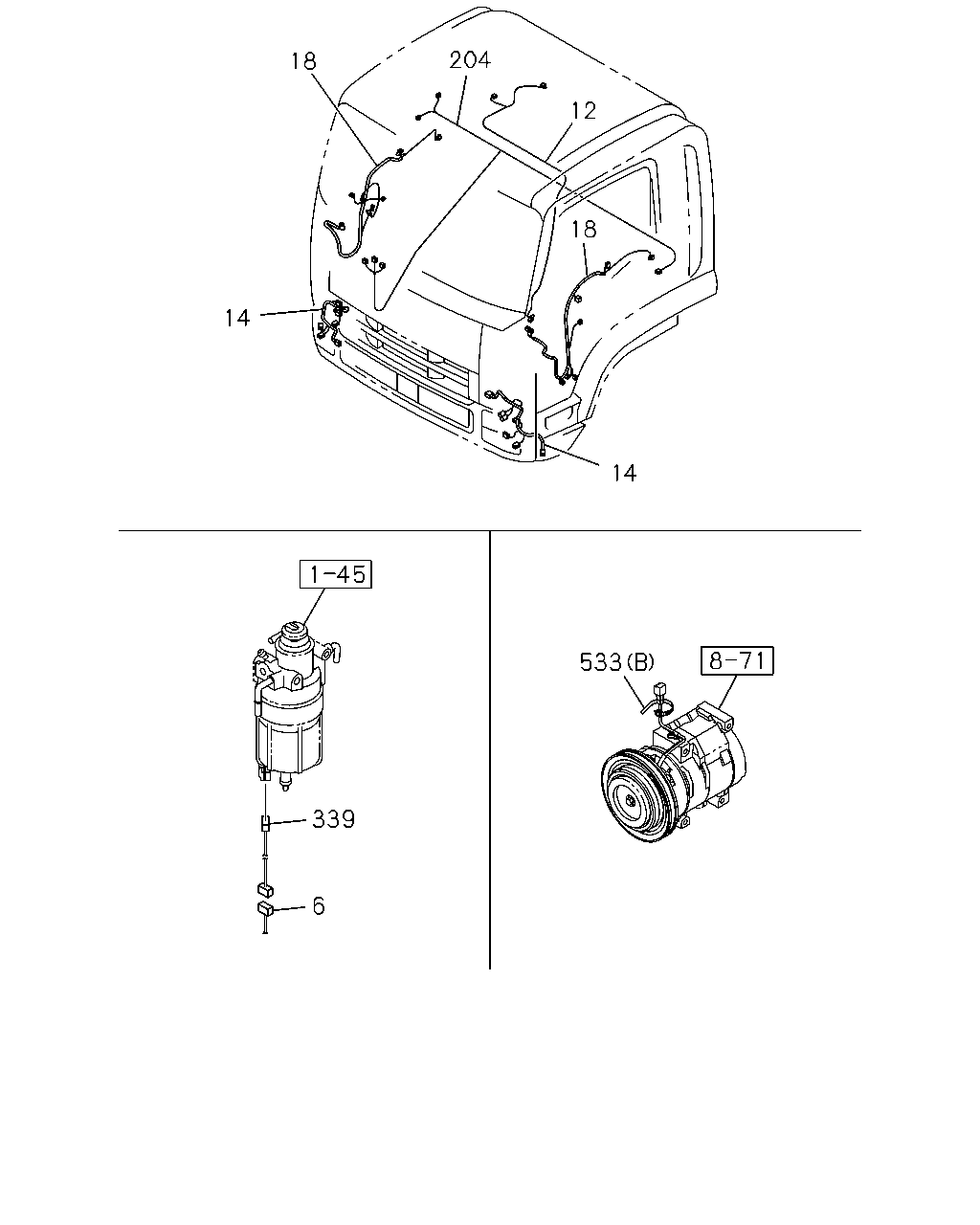

çizim 145060
6 339 533 14 14 18 204 12 18
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
12 HARNESS; ROOF 8-98121-766-0 01 1 1106-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1307-1310
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1106-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1307-1310
18 HARNESS; DOOR 8-98084-285-2 01 1 1106-1202
18 HARNESS; DOOR 8-98178-801-0 01 1 1203-
18 HARNESS; DOOR 8-98084-290-2 01 1 1106-1202
18 HARNESS; DOOR 8-98178-802-0 01 1 1203-
204 HARNESS; CABLE,FLOOR 8-98085-307-1 01 1 1106-
339 HARNESS; EXT,FUEL 8-98177-842-0 01 1 1106-1310
339 HARNESS; EXT,FUEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98227-392-1 01 1 1311-
533 CLIP
(B) L=180 		1-09707-162-1 01 1 1106-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1207-1310
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1311-
533 CLIP
(A) L=100 		5-09707-036-1 01 1 1106-1310
533 CLIP
4HK1-TCS ENG(RJS) (C) ID=11 L=16 		0-95235-025-0 03 1 1311-

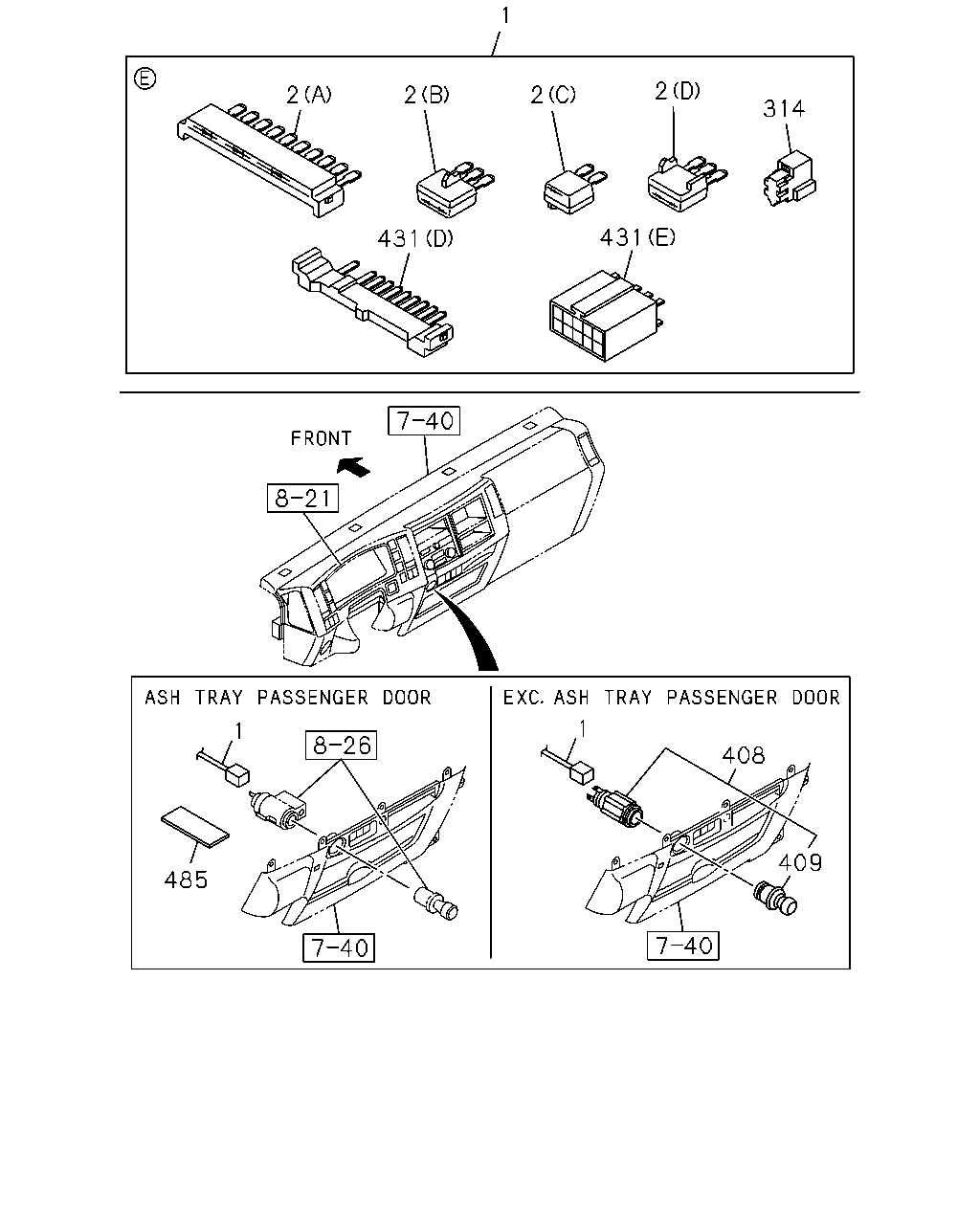

çizim 145061
1 2 2 2 2 314 431 431 485 1 1 408 409
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98188-111-0 01 1 1110-1203
1 HARNESS; CAB 8-98188-111-0 01 1 1204-1310
1 HARNESS; CAB 8-98250-453-1 01 1 1311-
1 HARNESS; CAB 8-98169-145-0 01 1 1106-1203
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1311-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1311-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1106-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1106-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1106-1310
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1311-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1311-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1106-1310
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1106-1310
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1106-1310
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1106-1310
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1106-1310
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1106-1310
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1106-1310
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1106-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1106-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1106-1310

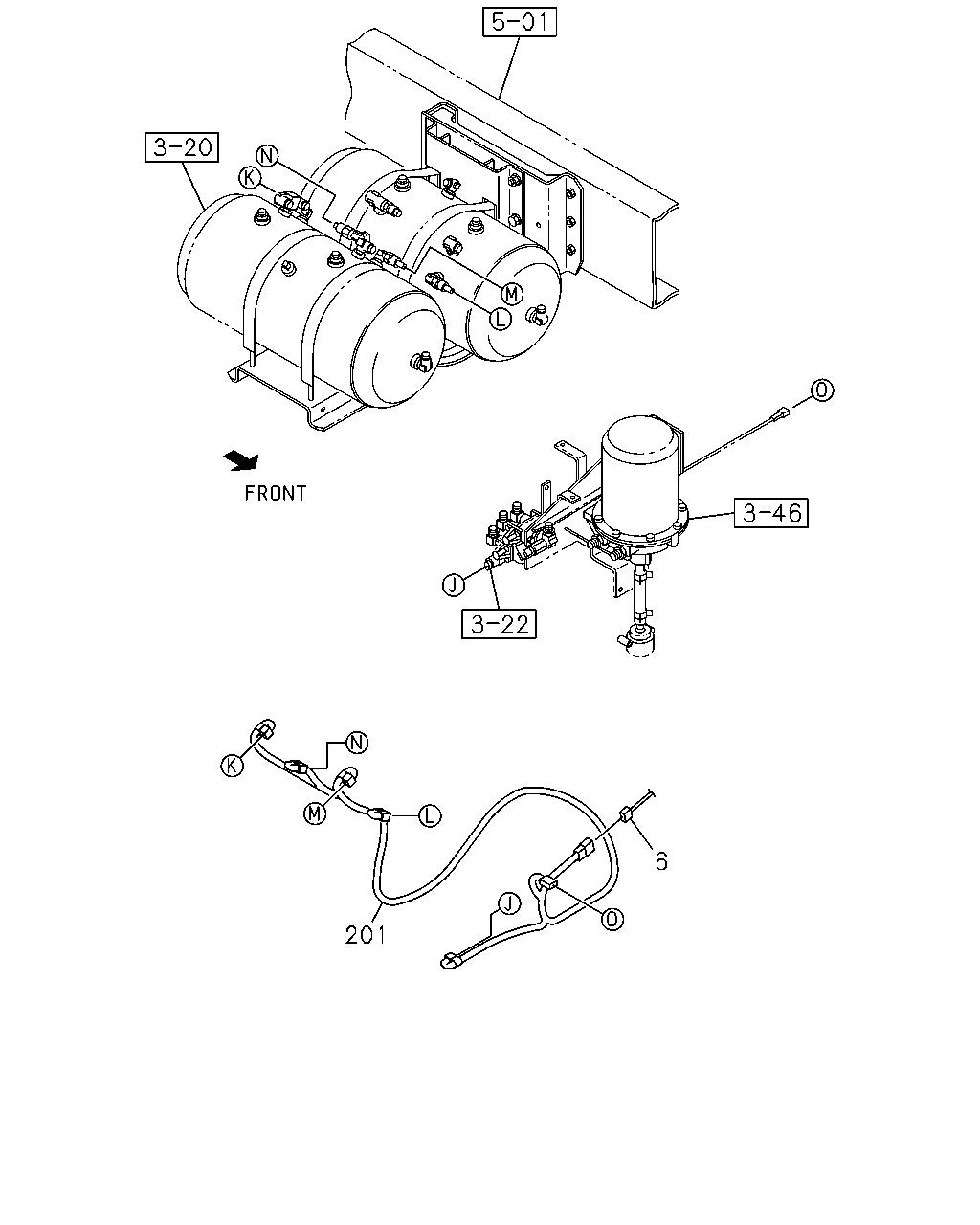

çizim 386277
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98212-581-1 01 1 1311-
6 HARNESS; FRAME
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98250-510-0 01 1 1311-
6 HARNESS; FRAME 8-98177-564-0 01 1 1106-1310
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98250-509-1 01 1 1311-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98178-658-2 01 1 1311-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1106-1310
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1311-1511
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1512-
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-703-0 01 1 1512-

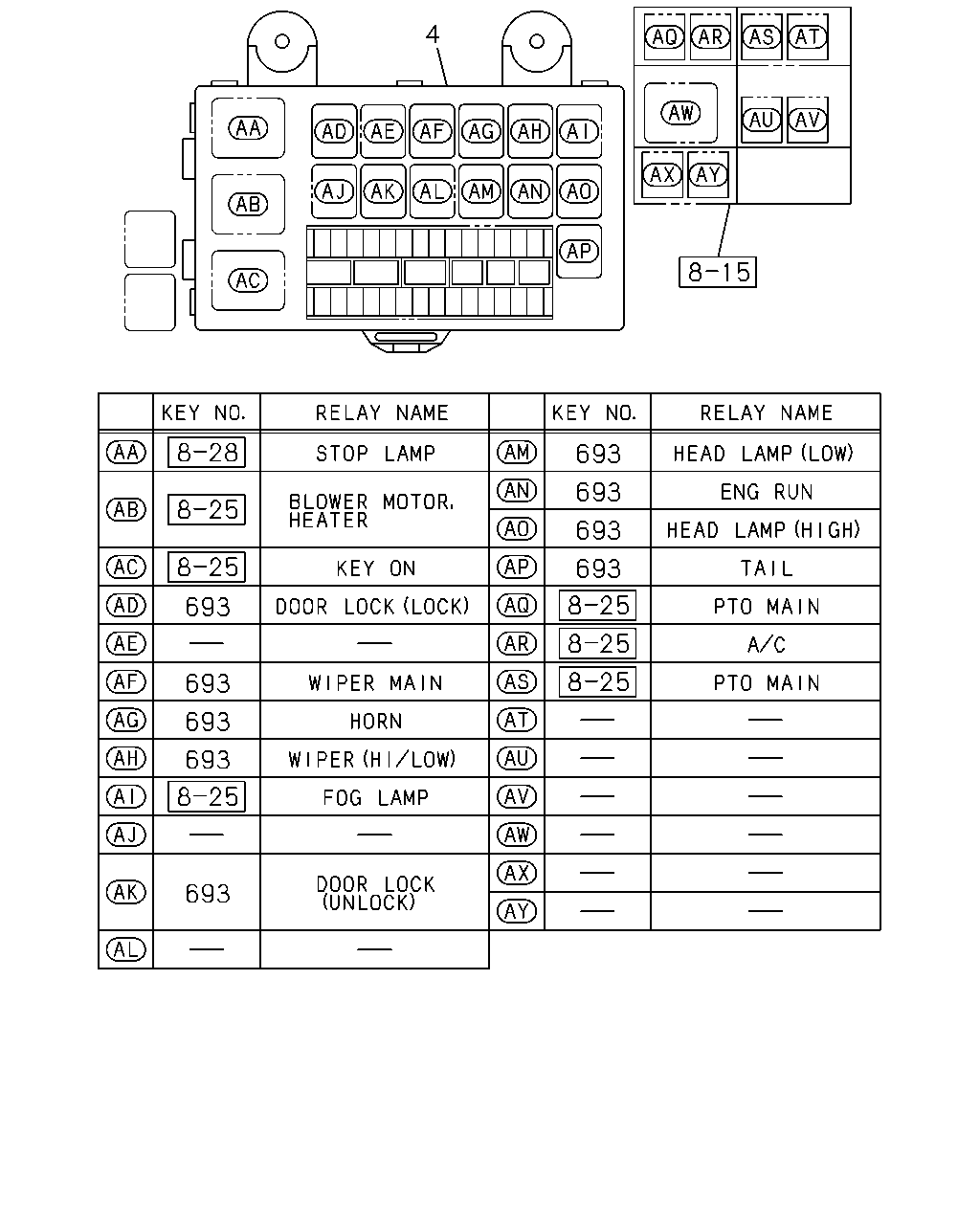

çizim 386876
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1106-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1106-

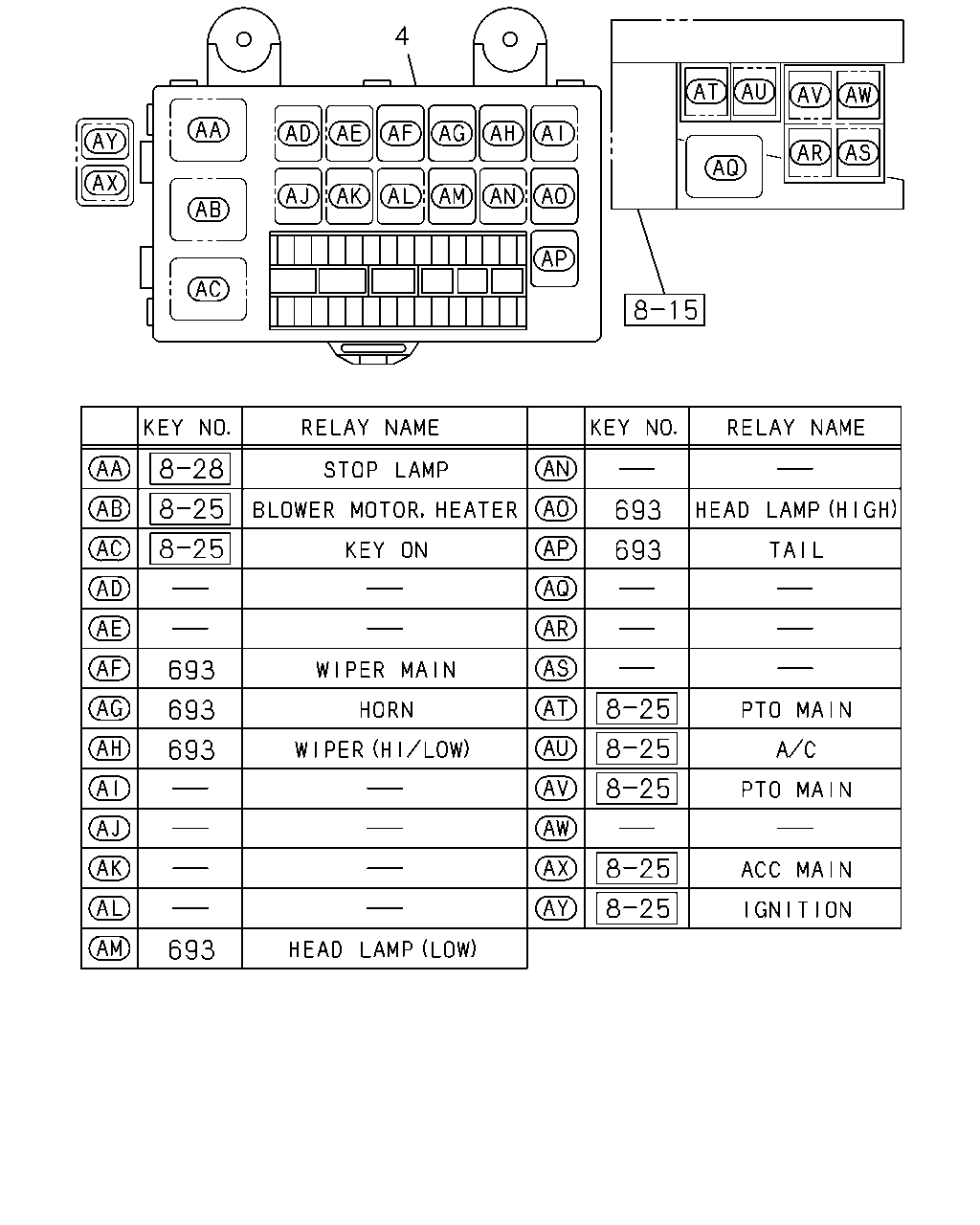

çizim 386916
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1106-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
