◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#4920) — 36 parça

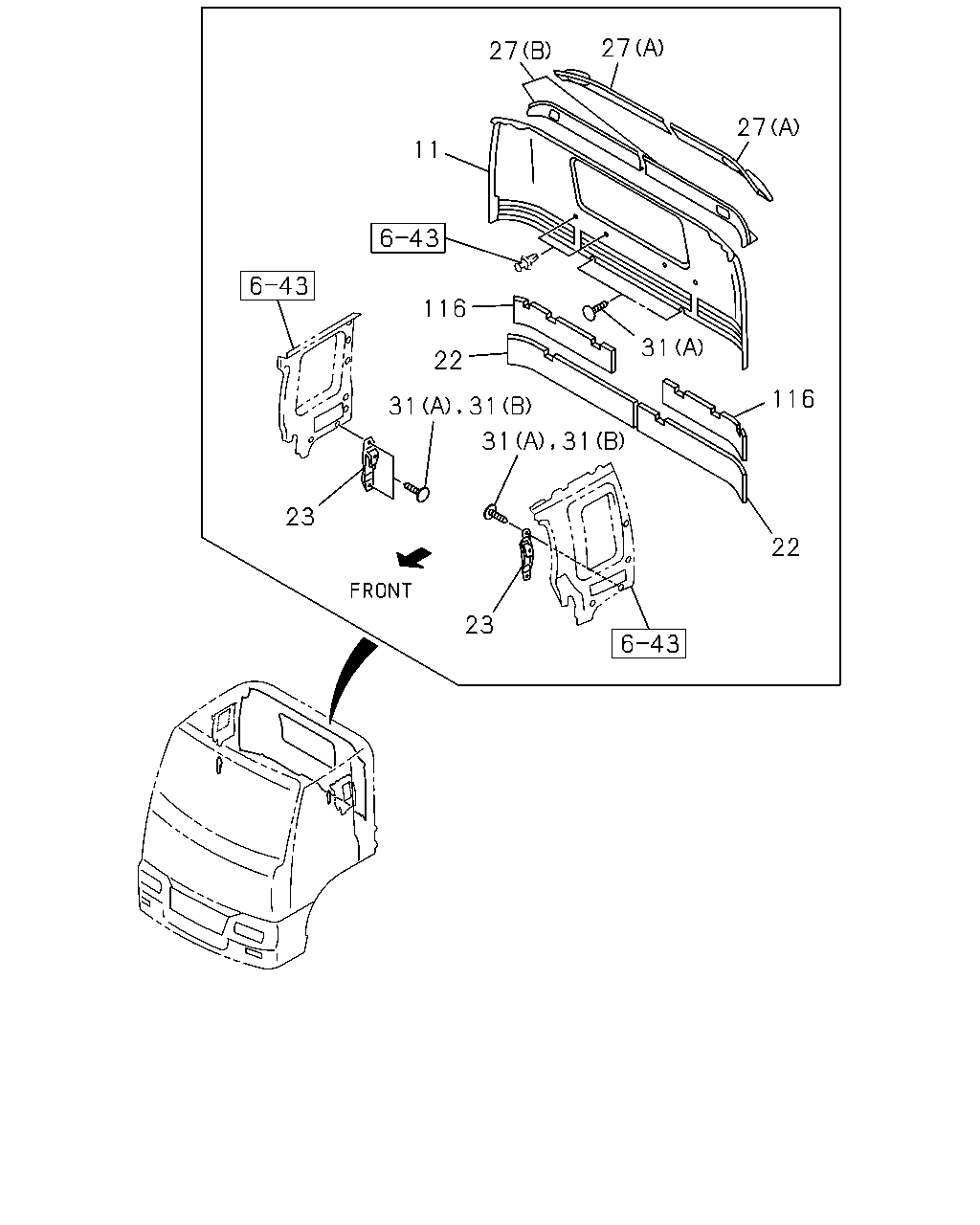

çizim 39173
27 27 27 11 116 31 22 116 31 31 31 31 23 22 23
BalonParca AdiParca NoAdetTipApplied Date A B C
11 TRIM; ROOM,BACK INNER 1-73347-796-3 01 1 9603-9901 ● ● ●
11 TRIM; ROOM,BACK INNER 1-73347-796-3 01 1 9902-9904 ● ●
11 TRIM; ROOM,BACK INNER 1-73347-796-3 01 1 9905- ● ● ●
22 SHEET; SILENCER,CAB FLOOR 1-73367-015-0 02 1 9603-9803 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9603-9901 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9902-9904 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9905- ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9603-9901 ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9902-9904 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
(A) 		1-73347-767-5 01 1 9603-9901 ● ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) 		1-73347-767-5 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (A) 		1-73347-767-5 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) 		1-73347-767-5 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (A) 		1-73347-767-5 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
(A) 		1-73347-766-5 01 1 9603-9901 ● ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) 		1-73347-766-5 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (A) 		1-73347-766-5 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) 		1-73347-766-5 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (A) 		1-73347-766-5 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-73347-806-2 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-73347-806-2 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) 		1-73347-746-3 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) 		1-73347-746-3 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (A) 		1-73347-769-3 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (A) 		1-73347-769-3 01 1 9905- ● ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (A) 		1-73347-768-3 01 1 9902-9904 ● ●
27 COVER; TRIM,BACK
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (A) 		1-73347-768-3 01 1 9905- ● ● ●
31 CLIP; TRIM PAD
(B) D6X23 BEIGE 		1-09987-225-0 04 1 9603-9605 ● ● ●
31 CLIP; TRIM PAD
(A) GRAY D=6X23 		1-09987-238-0 20 1 9603-9605 ● ● ●
31 CLIP; TRIM PAD
(A) GRAY D=6X23 		1-09987-238-0 24 1 9606-9901 ● ● ●
31 CLIP; TRIM PAD
(A) GRAY D=6X23 		1-09987-238-0 24 1 9902-9904 ● ●
31 CLIP; TRIM PAD
(A) GRAY D=6X23 		1-09987-238-0 24 1 9905- ● ● ●
116 INSULATOR; BACK PANEL 1-73367-019-0 02 1 9804-9901 ● ● ●
116 INSULATOR; BACK PANEL 1-73367-019-0 02 1 9902-9904 ● ●
116 INSULATOR; BACK PANEL 1-73367-019-0 02 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
