◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#49197) — 195 parça

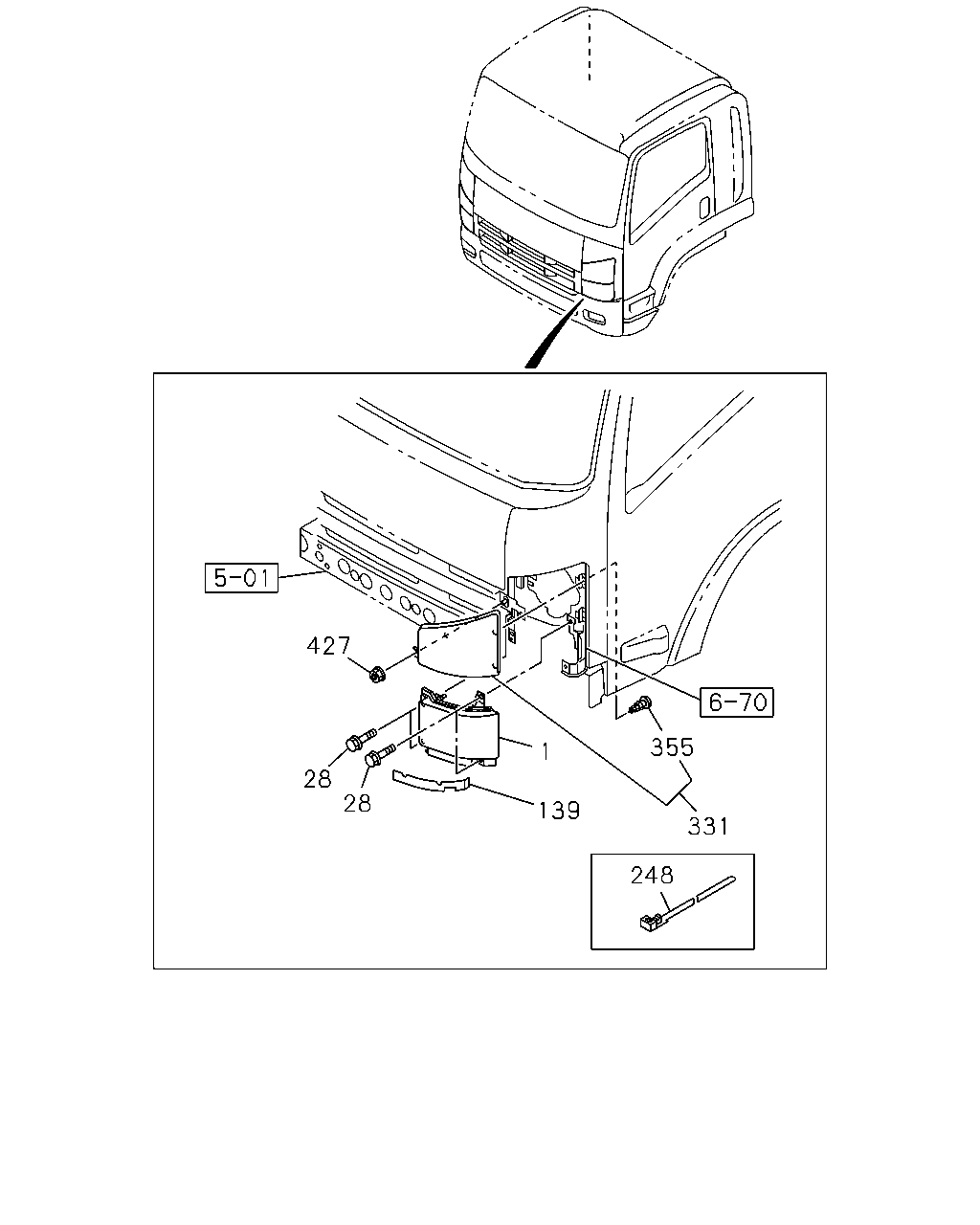

çizim 144980
427 28 28 1 139 248 331 355
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-324-0 01 1 1311-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-323-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1311-
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1106-1310
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1311-
139 COVER; HEADLAMP 8-98054-342-0 02 1 1311-
248 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1311-
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1311-
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1311-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1311-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1106-1310
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1311-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1311-

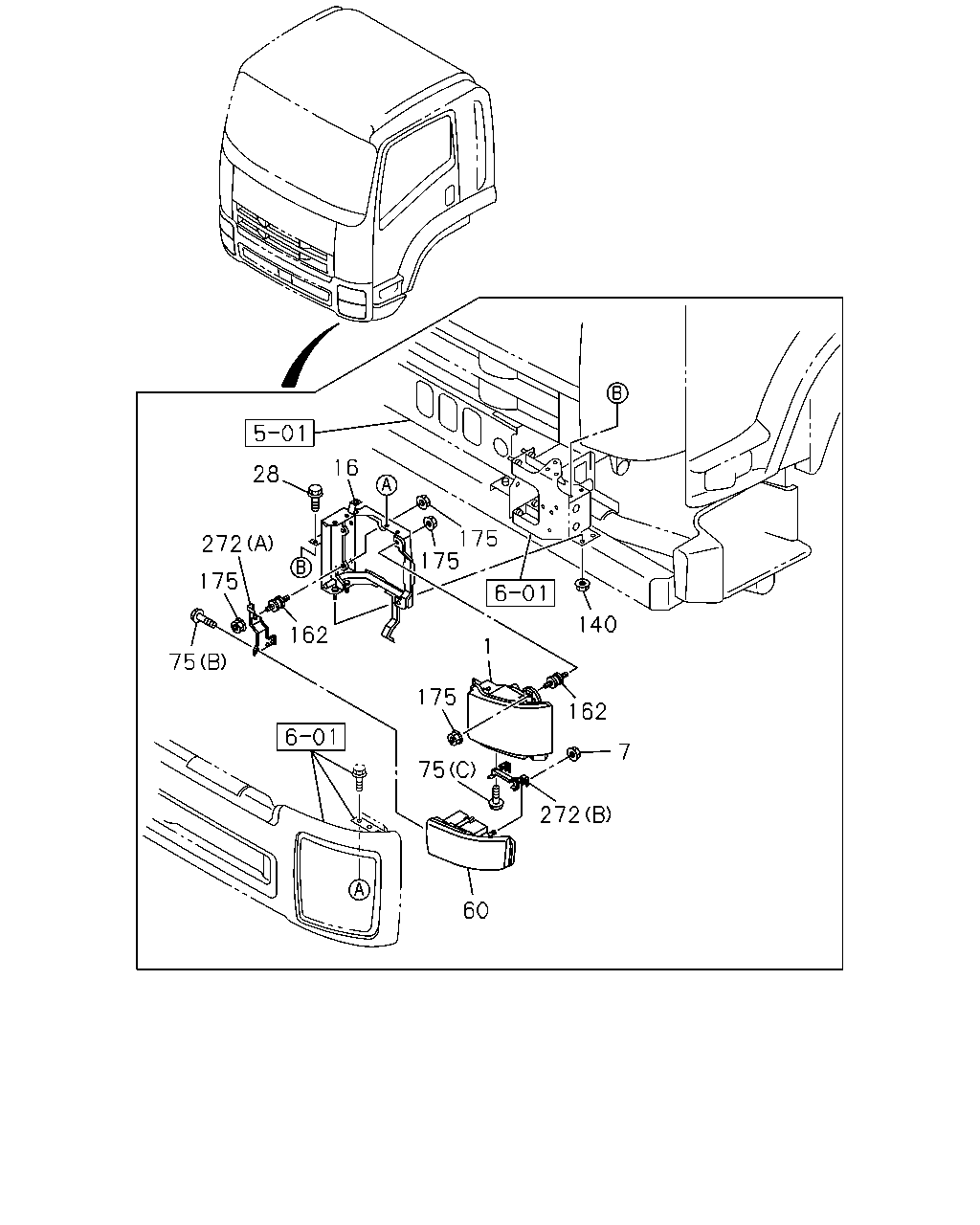

çizim 144982
28 272 175 75 162 16 175 175 175 75 60 272 7 162 140 1
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-324-0 01 1 1311-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-323-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1311-
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1106-1310
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 1106-1310
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 1106-1310
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 1106-1310
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1311-
60 LAMP ASM; FRT COMB 8-98047-053-2 01 1 1106-1302
60 LAMP ASM; FRT COMB 8-98238-631-0 01 1 1303-1310
60 LAMP ASM; FRT COMB 8-98047-052-2 01 1 1106-1302
60 LAMP ASM; FRT COMB 8-98238-630-0 01 1 1303-1310
75 SCREW; FRT COMB LAMP
(B) BOLT M6X16 FLANGE 		0-28650-616-0 04 1 1106-1310
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1106-1310
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1106-1310
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 1106-1310
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1106-1310
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1106-1310
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1106-1310
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1106-1310
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1106-1310
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1106-1310

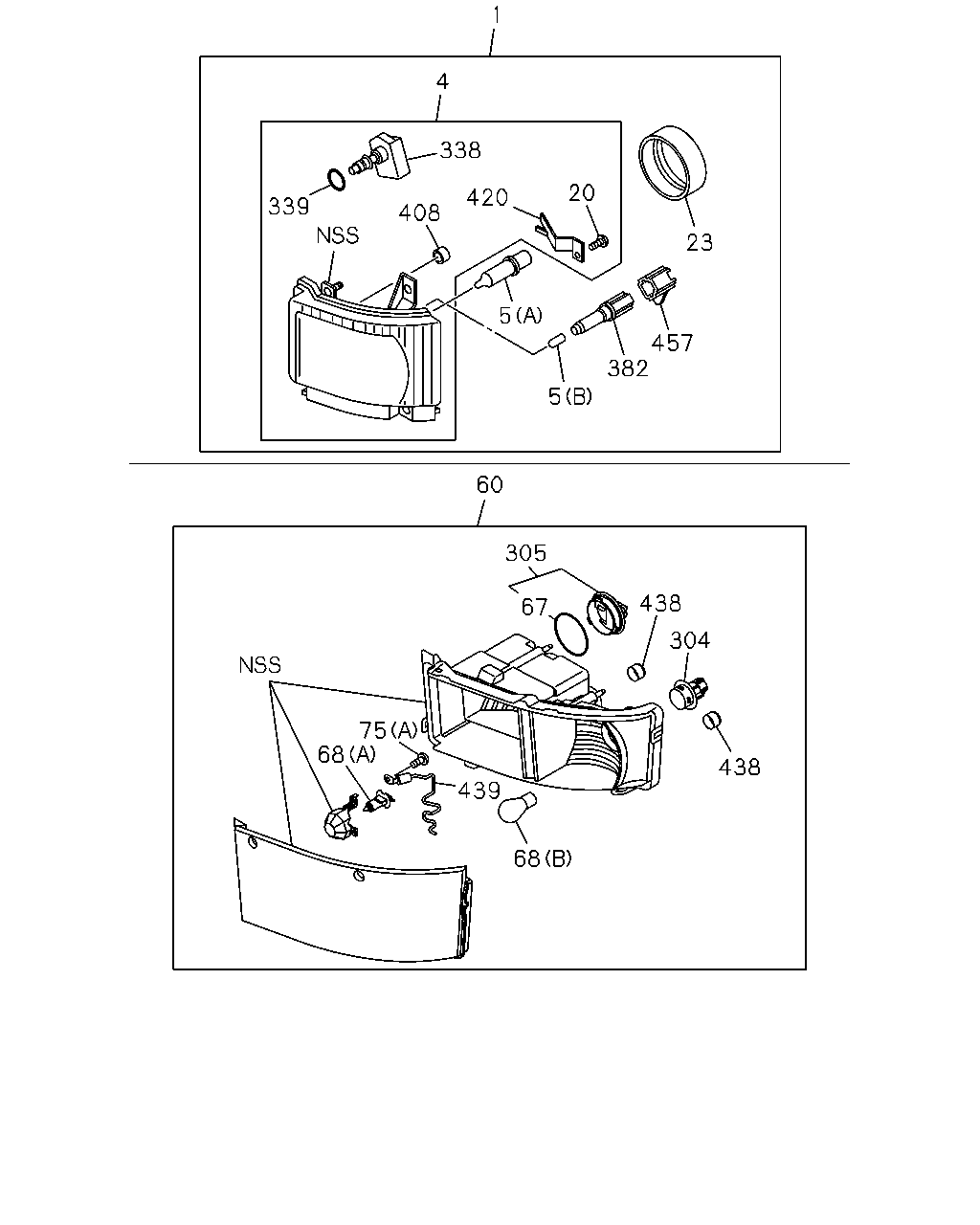

çizim 145020
1 4 338 20 23 457 382 5 5 420 408 339 60 305 438 304 438 67 75 68 439 68
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-324-0 01 1 1311-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-323-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1311-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-405-0 01 1 1106-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-569-0 01 1 1109-1310
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-185-0 01 1 1311-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-404-0 01 1 1106-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-568-0 01 1 1109-1310
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-184-0 01 1 1311-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-407-0 01 1 1106-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-571-0 01 1 1109-1310
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-189-0 01 1 1311-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-406-0 01 1 1106-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-570-0 01 1 1109-1310
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-188-0 01 1 1311-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1106-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1106-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1106-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1106-
60 LAMP ASM; FRT COMB 8-98047-053-2 01 1 1106-1302
60 LAMP ASM; FRT COMB 8-98238-631-0 01 1 1303-1310
60 LAMP ASM; FRT COMB 8-98047-052-2 01 1 1106-1302
60 LAMP ASM; FRT COMB 8-98238-630-0 01 1 1303-1310
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303-1310
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1106-1310
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1106-1310
75 SCREW; FRT COMB LAMP
(B) BOLT M6X16 FLANGE 		0-28650-616-0 04 1 1106-1310
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1106-1310
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1106-1310
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1106-1310
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 1106-1302
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1303-1310
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1109-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1109-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1106-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1106-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1106-1208
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1209-
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 1106-1302
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303-1310
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1106-1310
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-
çizim 386638
432 399 431 357 339 338 4 1 420 408 20 23 457 382 5 5 331 355
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-324-0 01 1 1311-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 1106-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-1310
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-323-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1311-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 1106-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-1310
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1311-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-405-0 01 1 1106-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-569-0 01 1 1109-1310
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-185-0 01 1 1311-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-404-0 01 1 1106-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-568-0 01 1 1109-1310
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-184-0 01 1 1311-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-407-0 01 1 1106-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-571-0 01 1 1109-1310
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-189-0 01 1 1311-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-406-0 01 1 1106-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-570-0 01 1 1109-1310
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-188-0 01 1 1311-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1106-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1106-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1106-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1106-
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1311-
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1311-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1109-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1109-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1311-
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1311-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 1106-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1311-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1106-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 1106-1208
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1209-
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1311-
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1311-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

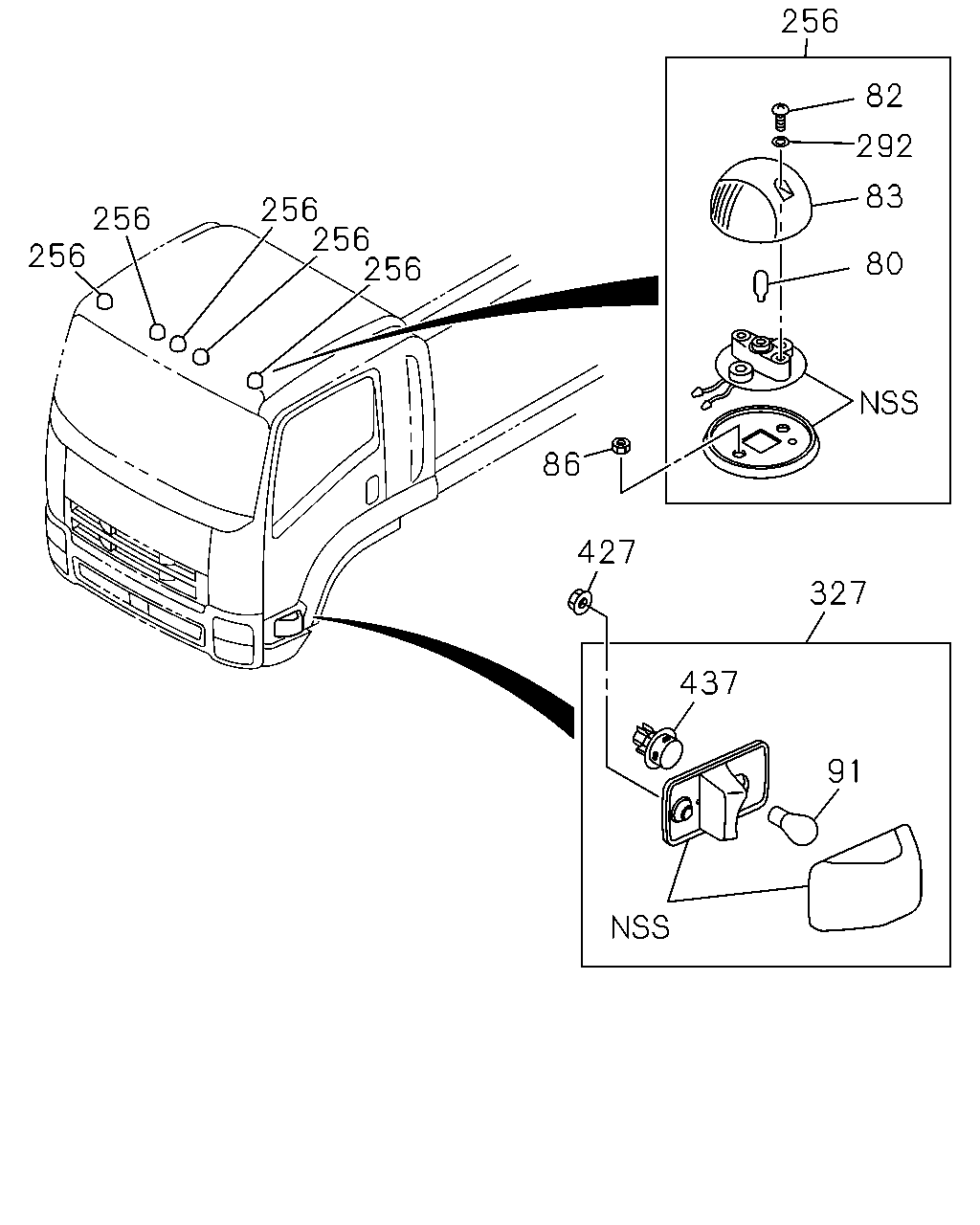

çizim 386686
256 256 256 256 256 256 82 292 83 80 86 427 327 437 91
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 05 1 1106-
82 SCREW; MARKER LAMP 1-82219-011-0 10 1 1106-
83 LENS; MARKER LAMP
ORANGE 		1-82215-042-0 05 1 1106-
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 10 1 1106-
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1106-
256 LAMP; MARKER
CENTER 		8-98152-639-3 03 1 1106-
256 LAMP; MARKER 8-98152-641-2 01 1 1106-
256 LAMP; MARKER 8-98152-640-2 01 1 1106-
292 WASHER; MARKER LAMP 1-82219-012-0 10 1 1106-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1106-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1106-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1106-1310
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1311-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1311-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
