Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#49193) — 211 parça

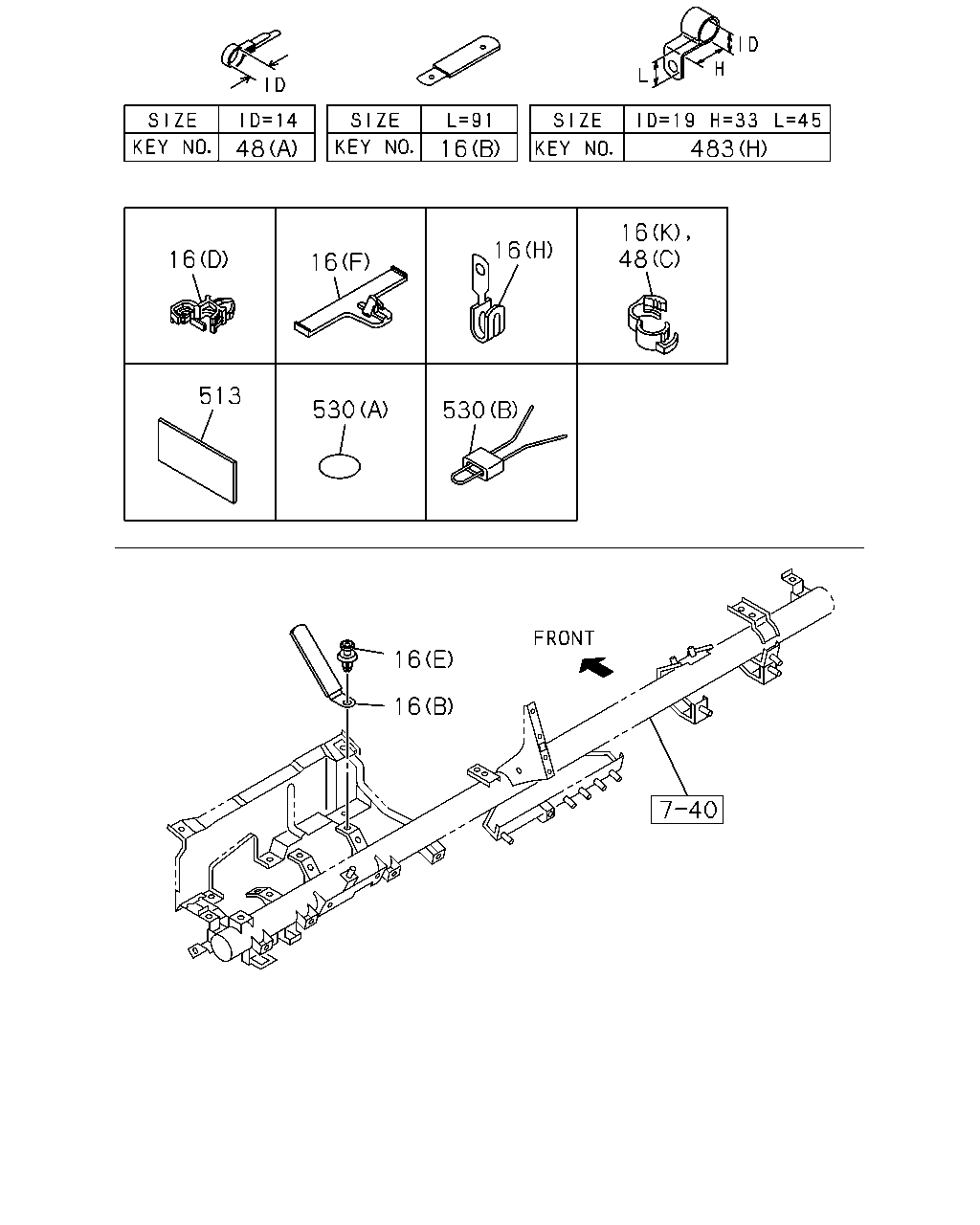

16 48 16 16 16 513 530 530 16 16 483 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=20	8-94241-972-0	01	1	1406-
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (J) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (H)	8-97101-436-0	01	1	1012-
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	01	1	1012-1106
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) L=135	1-09987-143-1	01	1	1107-
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1012-
16	02.559 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	1012-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012
16	02.559 CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1212
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1212
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1301-1405
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1406-
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1406-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1406-
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (D) L=450	1-09707-142-1	01	1	1012-1208
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (D) L=450	1-09707-142-1	01	1	1209-1308
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (D) L=450	1-09707-142-1	01	1	1309-
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1012-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (E) T=4.5 & 9	8-97371-947-0	01	1	1012-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1012-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1012-1405
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1406-
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1012-
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=20	8-94241-972-0	01	1	1012-1412
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.785 (G) ID=14.5 L=40	1-09701-014-0	01	1	1211-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (H) ID=19 H=33 L=45	1-09701-045-0	01	1	1211-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.152 (C) L=36	8-94224-891-1	01	1	1211-
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (E) ID=19 L=60	0-95235-896-0	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.785 (A) ID=12 L=70	1-09700-097-1	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) ID=24 L=24	1-09701-001-1	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.152 (C) L=36	8-94224-891-1	04	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1012-
530	02.559 SEAL; HARNESS SPEED LIMITER 90KM(NMJ) EXC. COUNTRY ALGERIA<D2G> 03.483 (B)	8-97382-876-0	02	1	1512-
530	02.559 SEAL; HARNESS 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	1012-

516 150 38 313 139 38 139 139 480 150 529 304 480 377 377 386 86 24 294 515 577 294 515 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (B) M6X12 FLANGE	0-28250-612-0	02	1	1012-
38	02.559 BOLT; CLIP,HARNESS PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1012-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1012-
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	04	1	1012-
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-
294	02.559 NUT 4HG1 ENG(RJH) 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	1012-
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1211-
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-

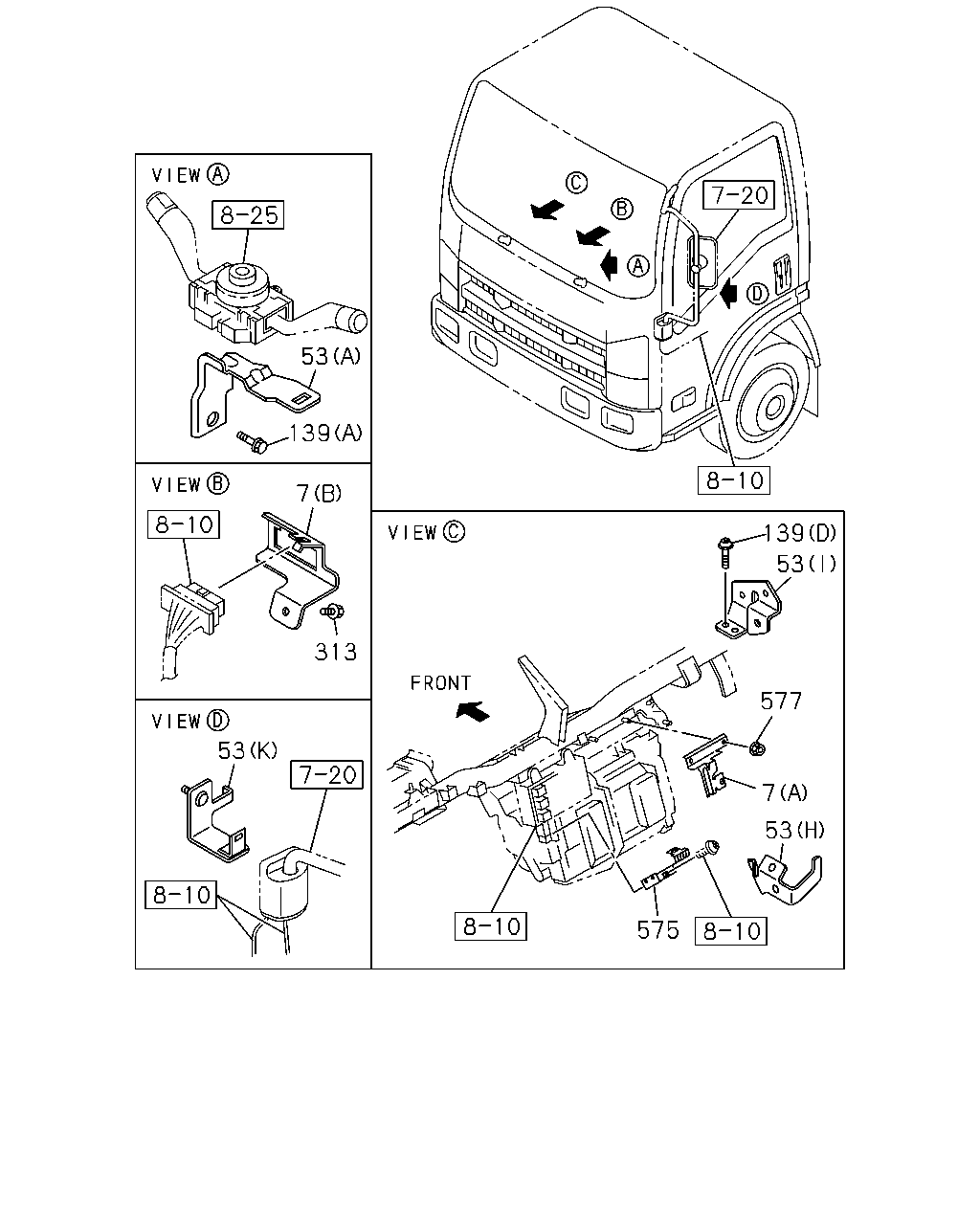

53 139 7 139 53 313 577 53 7 53 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98043-070-1	01	1	1012-
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98056-073-3	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (O)	8-98055-636-0	01	1	1211-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-98074-502-0	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98094-629-0	01	1	1012-1303
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98077-504-0	01	1	1012-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	1012-
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1012-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1012-
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1012-
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-

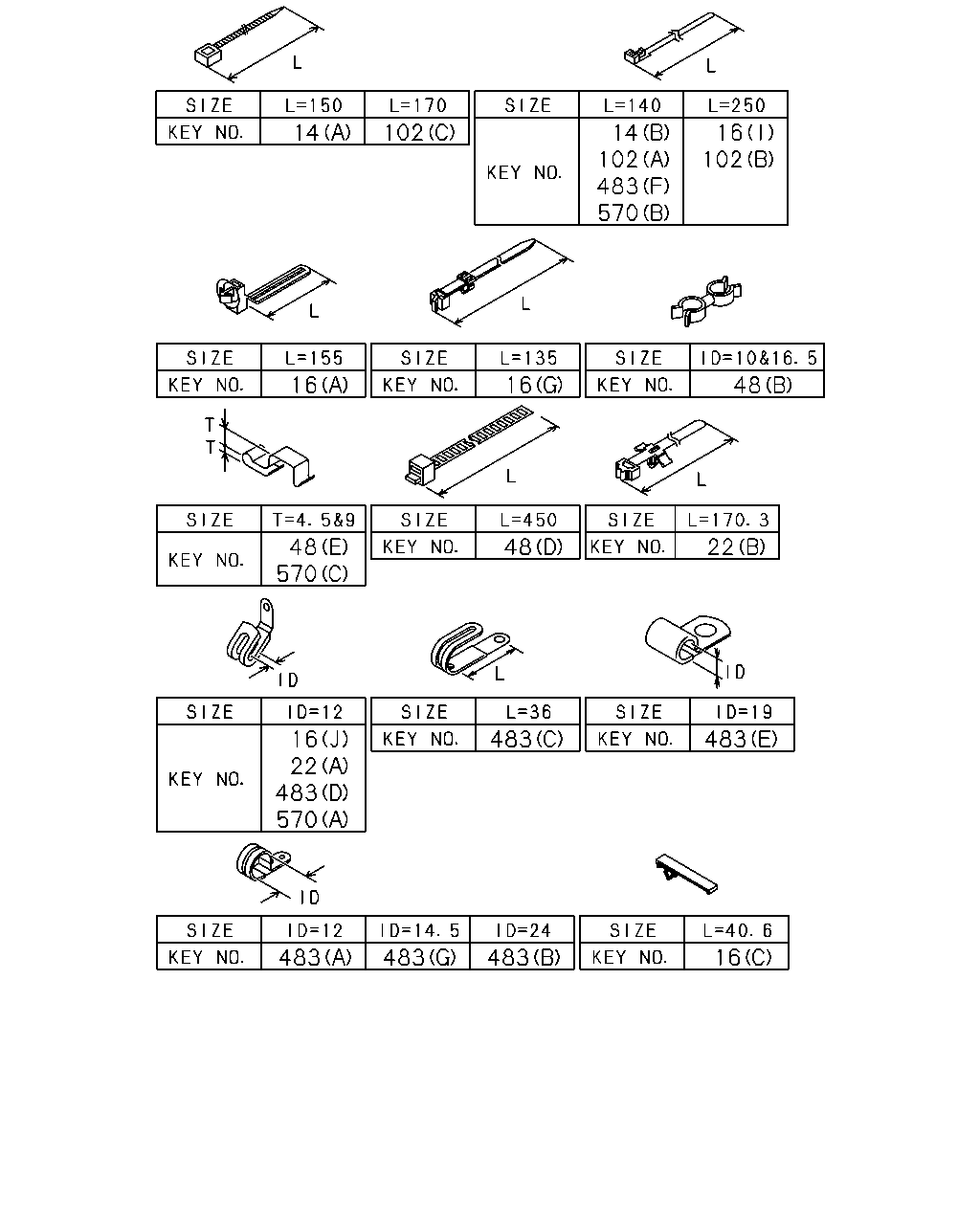

14 102 14 102 570 483 16 102 48 16 16 48 570 48 22 483 483 16 22 483 570 483 483 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (B) L=140	5-09707-031-1	01	1	1502-
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1012-
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=20	8-94241-972-0	01	1	1406-
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (J) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (H)	8-97101-436-0	01	1	1012-
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	01	1	1012-1106
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) L=135	1-09987-143-1	01	1	1107-
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1012-
16	02.559 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	1012-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012
16	02.559 CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1212
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1212
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1301-1405
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1406-
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1406-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (B) L=170.3	1-09987-182-0	01	1	1012-
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1406-
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (D) L=450	1-09707-142-1	01	1	1012-1208
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (D) L=450	1-09707-142-1	01	1	1209-1308
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (D) L=450	1-09707-142-1	01	1	1309-
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	1012-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (E) T=4.5 & 9	8-97371-947-0	01	1	1012-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	1012-
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	1012-1405
48	02.559 CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	04	1	1406-
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	1012-
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=20	8-94241-972-0	01	1	1012-1412
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (A) L=140	5-09707-031-1	03	1	1211-
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (C) L=170	5-09707-054-0	01	1	1211-
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) L=250	5-09707-030-1	01	1	1012-
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	04	1	1012-1202
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	1203-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.785 (G) ID=14.5 L=40	1-09701-014-0	01	1	1211-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (H) ID=19 H=33 L=45	1-09701-045-0	01	1	1211-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.152 (C) L=36	8-94224-891-1	01	1	1211-
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (E) ID=19 L=60	0-95235-896-0	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.785 (A) ID=12 L=70	1-09700-097-1	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) ID=24 L=24	1-09701-001-1	01	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.152 (C) L=36	8-94224-891-1	04	1	1012-
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) L=140	5-09707-031-1	02	1	1012-1301
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) L=140	5-09707-031-1	02	1	1302-1504
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) L=140	5-09707-031-1	02	1	1505-
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1012-1301
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1302-1504
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1505-

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (O)	8-98055-636-0	01	1	1211-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-98074-502-0	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98094-629-0	01	1	1012-1303
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98077-504-0	01	1	1012-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	1012-
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-

459 459 459 552

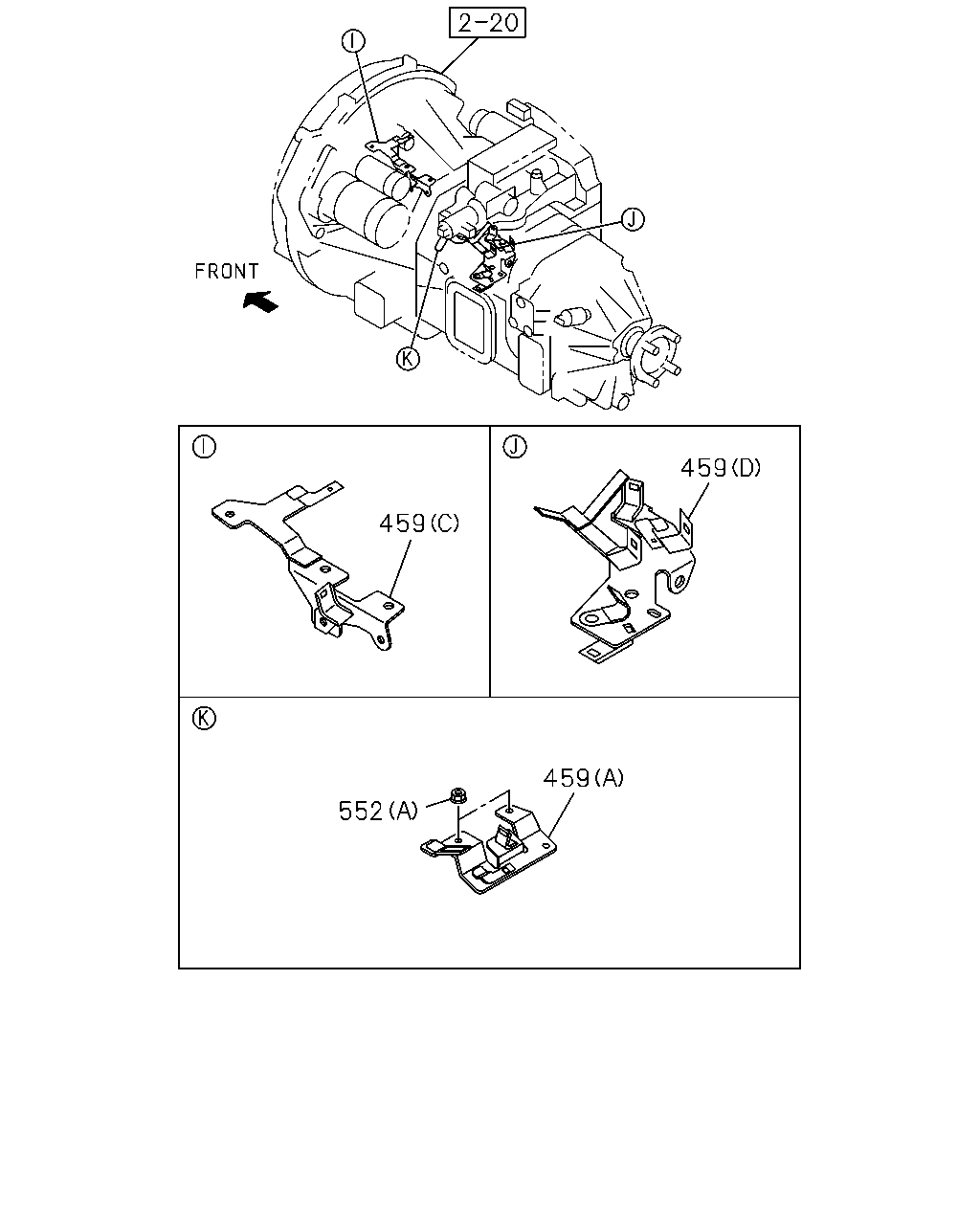

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) 02.559 (B)	8-97379-633-0	01	1	1012-
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (A)	8-98020-227-3	01	1	1012-
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (C)	8-98123-282-0	01	1	1012-
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (D)	8-98123-286-1	01	1	1012-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-

53 515 139 53 139 53 53 53 53 53 515 459 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (O)	8-98055-636-0	01	1	1211-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-98074-502-0	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98094-629-0	01	1	1012-1303
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98077-504-0	01	1	1012-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	1012-
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1012-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) 02.559 (B)	8-97379-633-0	01	1	1012-
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (A)	8-98020-227-3	01	1	1012-
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (C)	8-98123-282-0	01	1	1012-
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (D)	8-98123-286-1	01	1	1012-
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
