Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#49192) — 220 parça

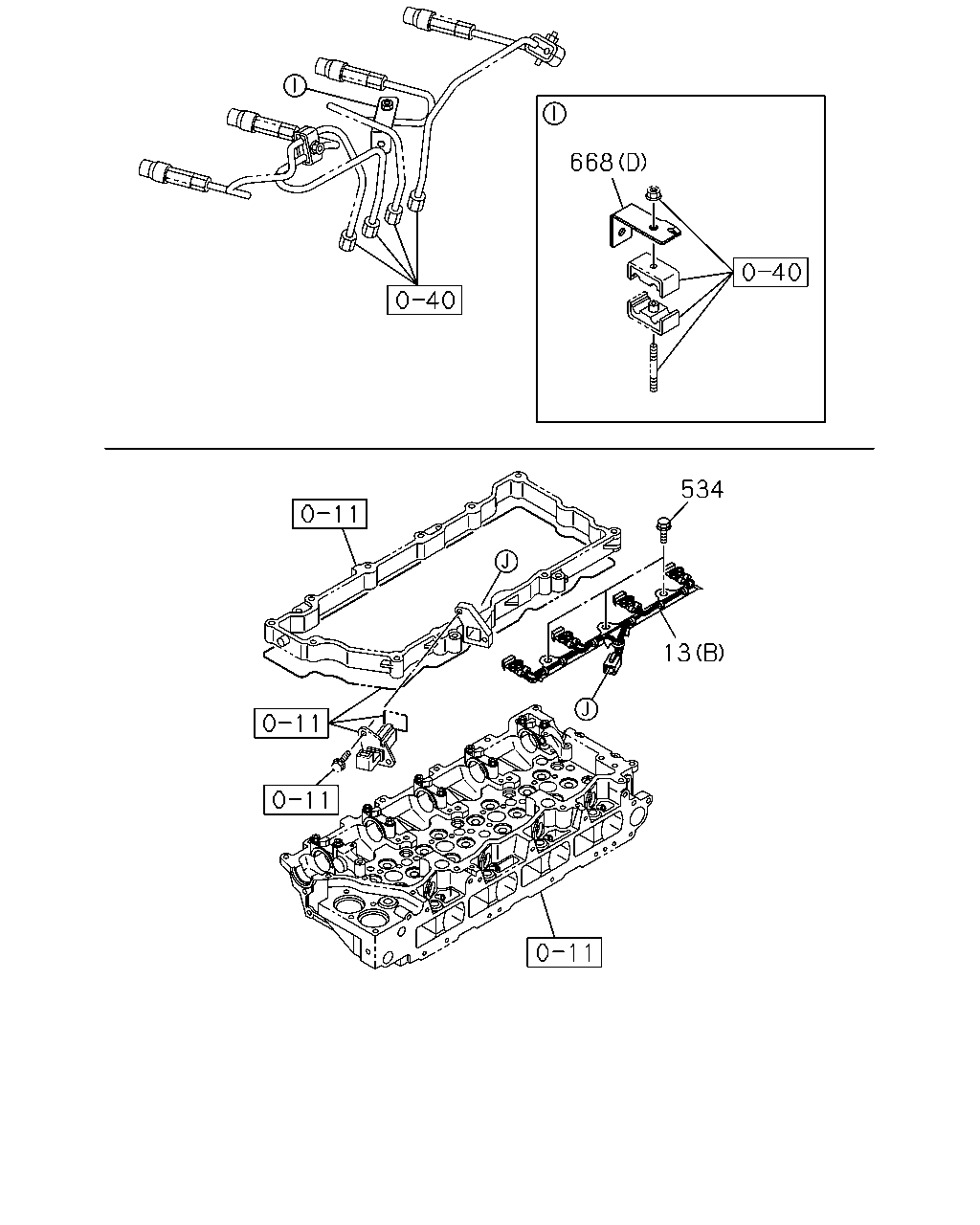

668 534 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98136-479-0	01	1	1211-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98136-480-0	01	1	1211-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97356-988-1	01	1	1012-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	1012-1202
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98209-817-0	01	1	1203-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1012-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	1012-1202
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98209-818-0	01	1	1203-
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1012-
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D)	8-98001-095-0	01	1	1211-
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A)	8-98011-484-0	01	1	1012-
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98061-805-2	01	1	1012-1202
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98205-089-0	01	1	1203-

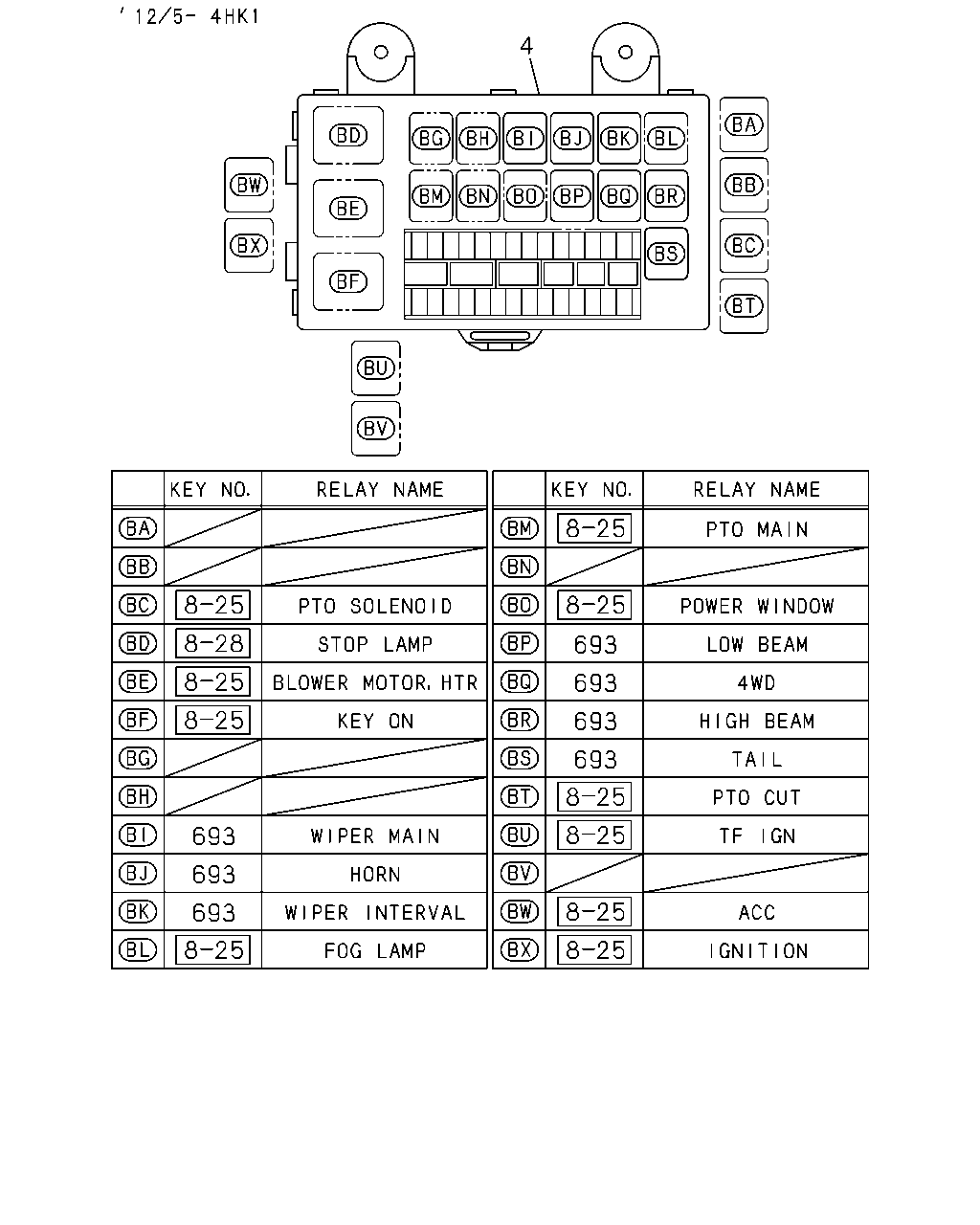

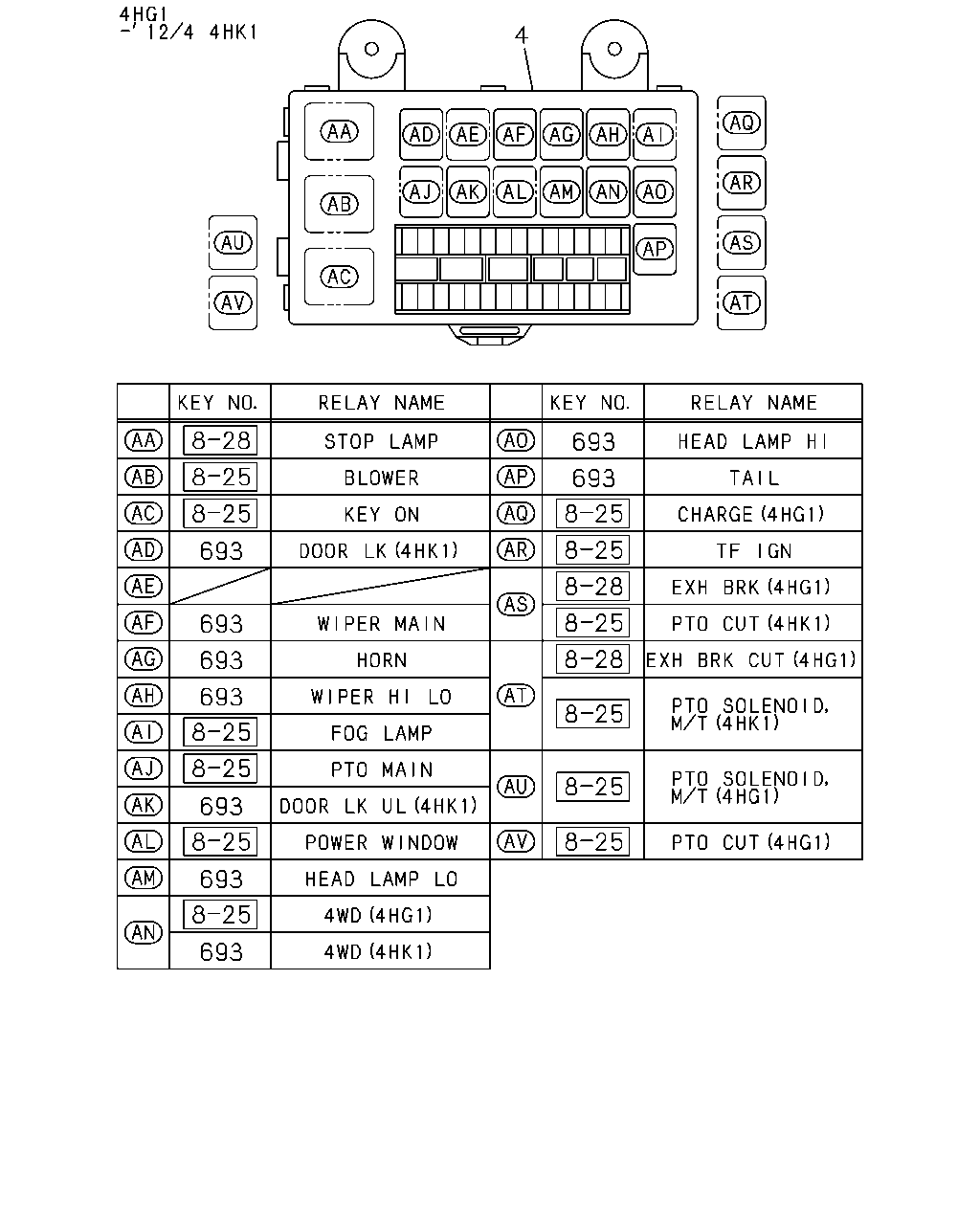

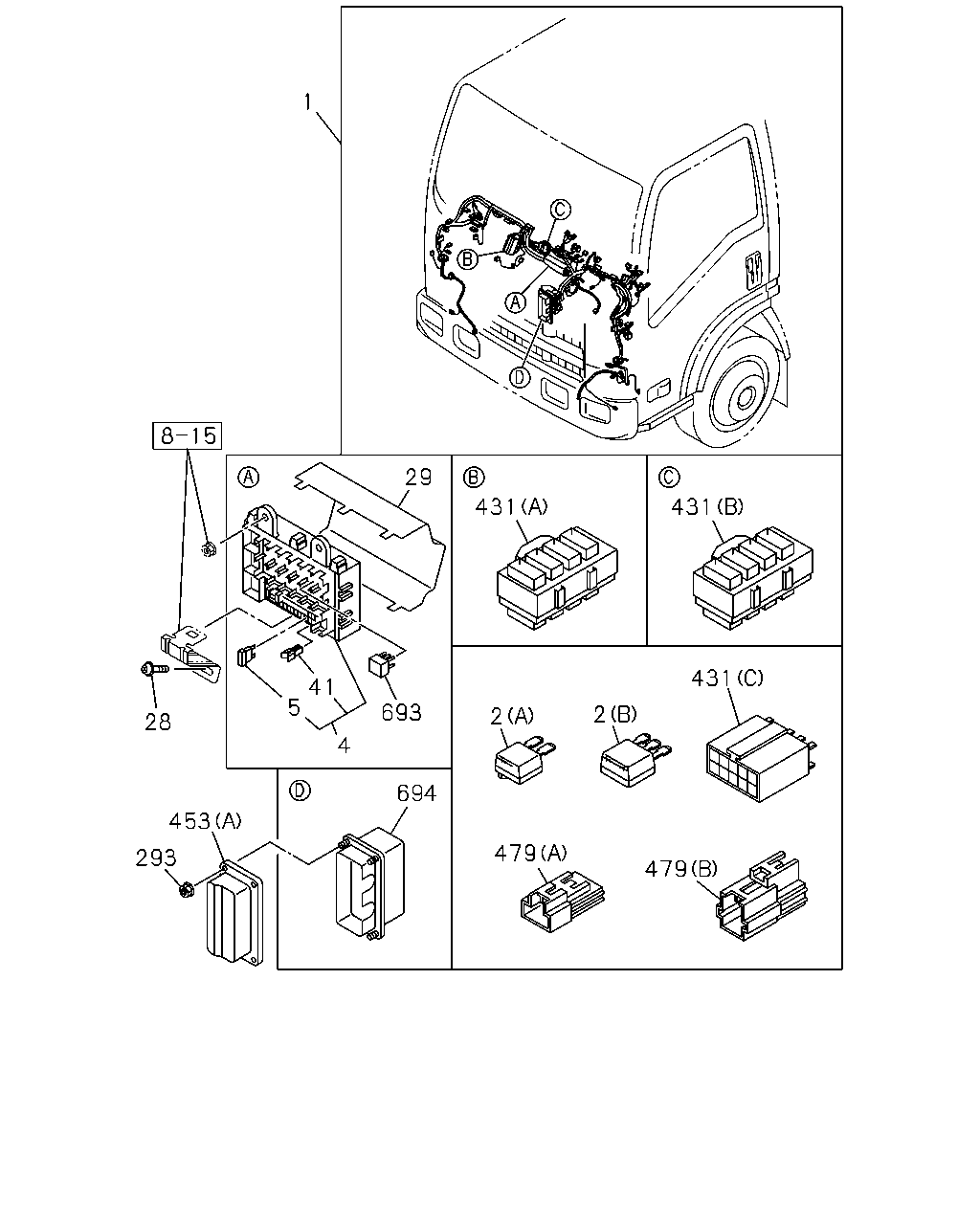

1 29 431 431 431 41 5 693 2 2 28 4 694 453 479 293 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6>,HYDRO BRAKE BOOSTER(7QQ)	8-98291-058-0	01	1	1504-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>,HYDRO BRAKE BOOSTER(7QQ)	8-98298-777-0	01	1	1504-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98285-261-0	01	1	1407-1407
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TACHOGRAPH 140KM/H<SM8>	8-98285-261-0	01	1	1407-1407
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) TACHOGRAPH 140KM/H<SM8> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98285-261-0	01	1	1408-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98285-261-0	01	1	1408-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98089-714-7	01	1	1012-1204
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98200-877-0	01	1	1205-1212
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98200-877-0	01	1	1301-1405
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98200-877-0	01	1	1406-1406
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH 140KM/H<SM8>,HYDRO BRAKE BOOSTER(7QQ)	8-98200-877-0	01	1	1407-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-98106-626-6	01	1	1012-1405
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98106-626-6	01	1	1406-1503
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98106-626-6	01	1	1504-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1012-
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1012-
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1012-
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1012-
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1012-
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1012-
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98046-205-0	01	1	1012-1212
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1301-1405
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98046-205-0	01	1	1406-1406
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98046-205-0	01	1	1407-1407
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98046-205-0	01	1	1407-1407
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TACHOGRAPH 140KM/H<SM8> (A)	8-98046-205-0	01	1	1407-1407
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH 140KM/H<SM8>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98046-205-0	01	1	1407-1407
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A)	8-98046-205-0	01	1	1408-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98046-205-0	01	1	1408-
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	1012-1204
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1205-1405
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 10P	8-97077-943-0	02	1	1406-
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1012-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	03	1	1102-1208
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	03	1	1209-1405
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	03	1	1406-
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1012-1101
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1102-1208
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1209-1405
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1406-1406
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1406-1509
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1406-1509
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1510-1511
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1510-1511
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1512-
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1012-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1012-
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1012-
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98190-772-0	01	1	1101-1212
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98190-772-0	01	1	1301-1405
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98190-772-0	01	1	1406-1406
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98190-772-0	01	1	1407-1407
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98190-772-0	01	1	1407-1407
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TACHOGRAPH 140KM/H<SM8>	8-98190-772-0	01	1	1407-1407
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TACHOGRAPH 140KM/H<SM8>,HYDRO BRAKE BOOSTER(7QQ)	8-98190-772-0	01	1	1407-1407
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98190-772-0	01	1	1408-
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98190-772-0	01	1	1408-
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	1012-1012
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98057-640-0	01	1	1101-1405
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98057-640-0	01	1	1406-

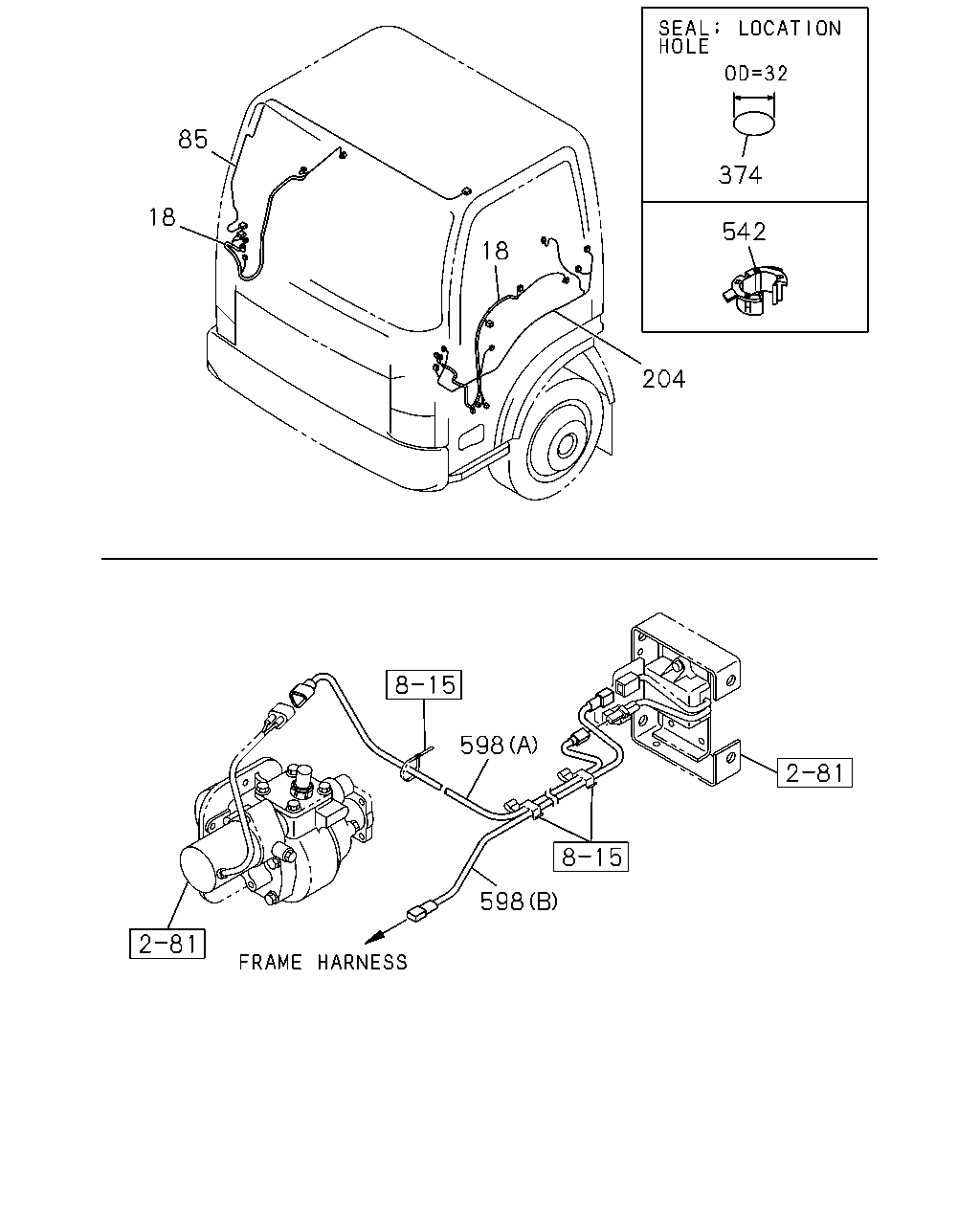

85 374 18 542 18 204 598 598

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-080-3	01	1	1012-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-088-3	01	1	1012-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-079-2	01	1	1012-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-087-2	01	1	1012-
85	06.495 HARNESS; ROOM LAMP	8-98050-518-3	01	1	1012-
204	02.559 HARNESS; CABLE,FLOOR	8-98070-799-5	01	1	1012-
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=32 BLACK	8-98031-126-0	01	1	1012-
542	02.483 GROMMET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1012-
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98046-643-2	01	1	1012-
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98123-454-1	01	1	1012-1301
598	02.480 HARNESS; EXT,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98123-454-1	01	1	1302-1504
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98123-454-1	01	1	1505-

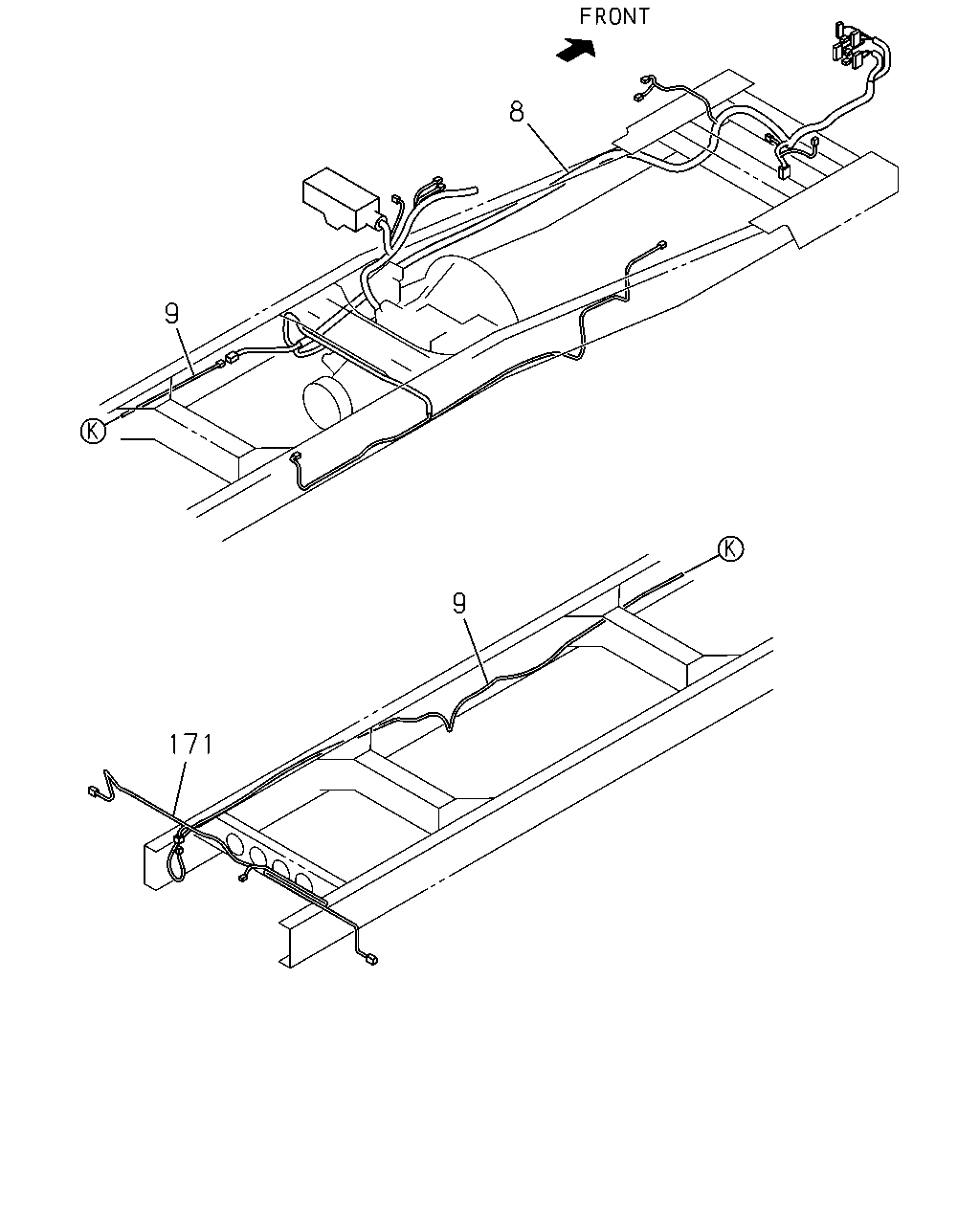

9 171 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

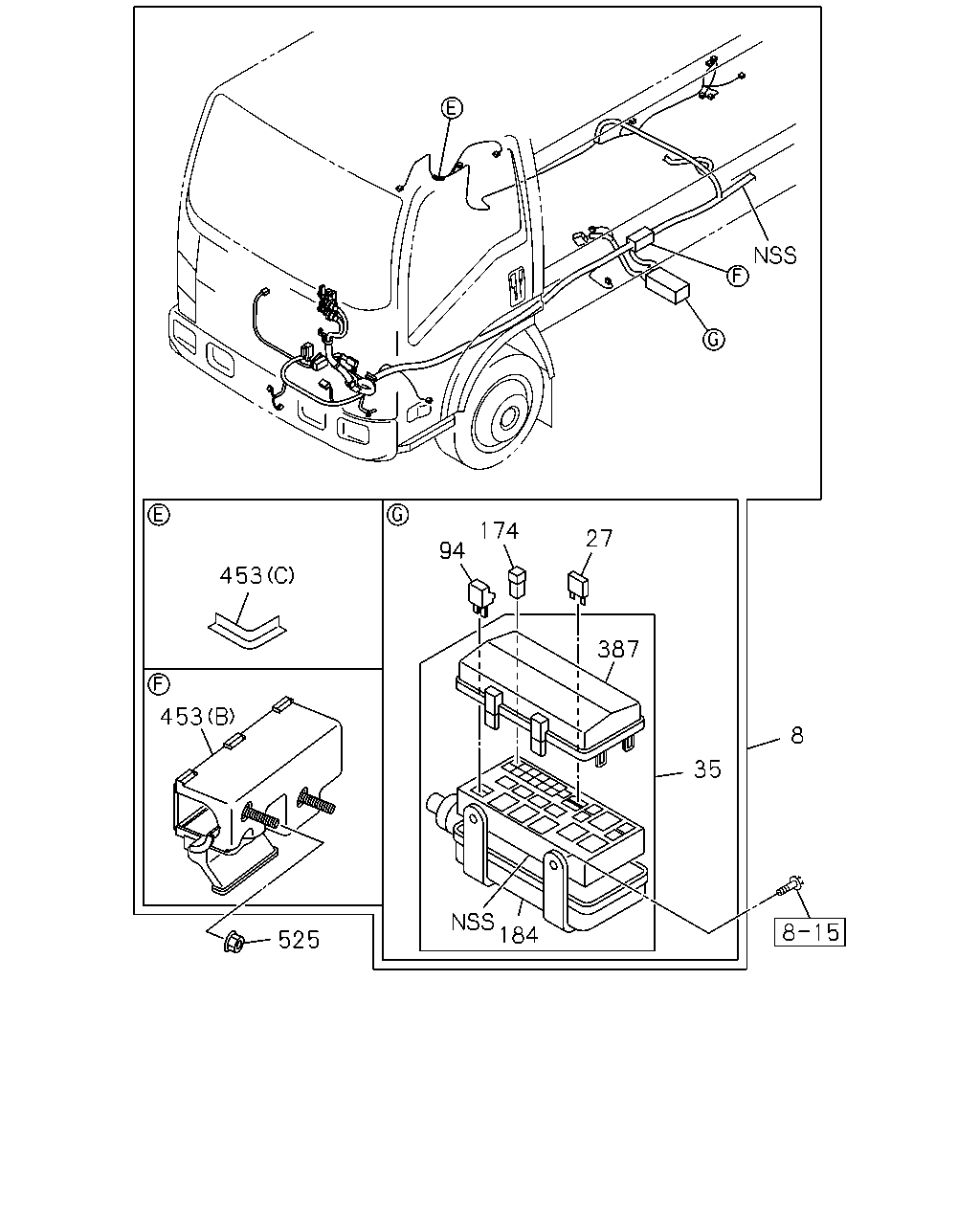

8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G> 4 WHEEL ANTI LOCK BRAKE<JE5> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98333-119-0	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G> 4 WHEEL ANTI LOCK BRAKE<JE5> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98333-120-0	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98285-274-0	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-446-1	01	1	1410-1509
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-446-1	01	1	1510-1511
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. COUNTRY ALGERIA<D2G>,AUTO CRUISE CONT<K30>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-446-1	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98285-275-0	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-447-1	01	1	1410-1509
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-447-1	01	1	1510-1511
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. COUNTRY ALGERIA<D2G>,AUTO CRUISE CONT<K30>,FUEL SEDIMENTER WITH HEATER<6HU>,POW ER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-447-1	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-302-9	01	1	1012-1208
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-302-9	01	1	1209-1405
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-302-9	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-251-0	01	1	1410-1509
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-251-0	01	1	1510-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98126-193-5	01	1	1012-1101
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98180-748-1	01	1	1102-1208
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ>	8-98180-748-1	01	1	1209-1405
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98180-748-1	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98294-405-0	01	1	1410-
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-002-1	01	1	1406-
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98117-253-0	01	1	1406-1406
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98284-455-2	01	1	1406-
9	02.480 HARNESS; FRAME,RR 4HG1 ENG(RJH)	8-98117-248-0	01	1	1012-1405
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98117-248-0	01	1	1012-1405
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	1406-
9	02.480 HARNESS; FRAME,RR 4HG1 ENG(RJH)	8-98117-248-0	01	1	1406-
9	02.480 HARNESS; FRAME,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-001-2	01	1	1012-1405
9	02.480 HARNESS; FRAME,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98047-001-2	01	1	1406-
171	02.596 HARNESS; CABLE,TAIL LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> BACK BUZZER<YM9>	8-98222-483-0	01	1	1411-
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1012-1410
171	02.596 HARNESS; CABLE,TAIL LAMP 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BACK BUZZER<YM9>	8-98156-028-0	01	1	1411-
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98156-028-0	01	1	1411-

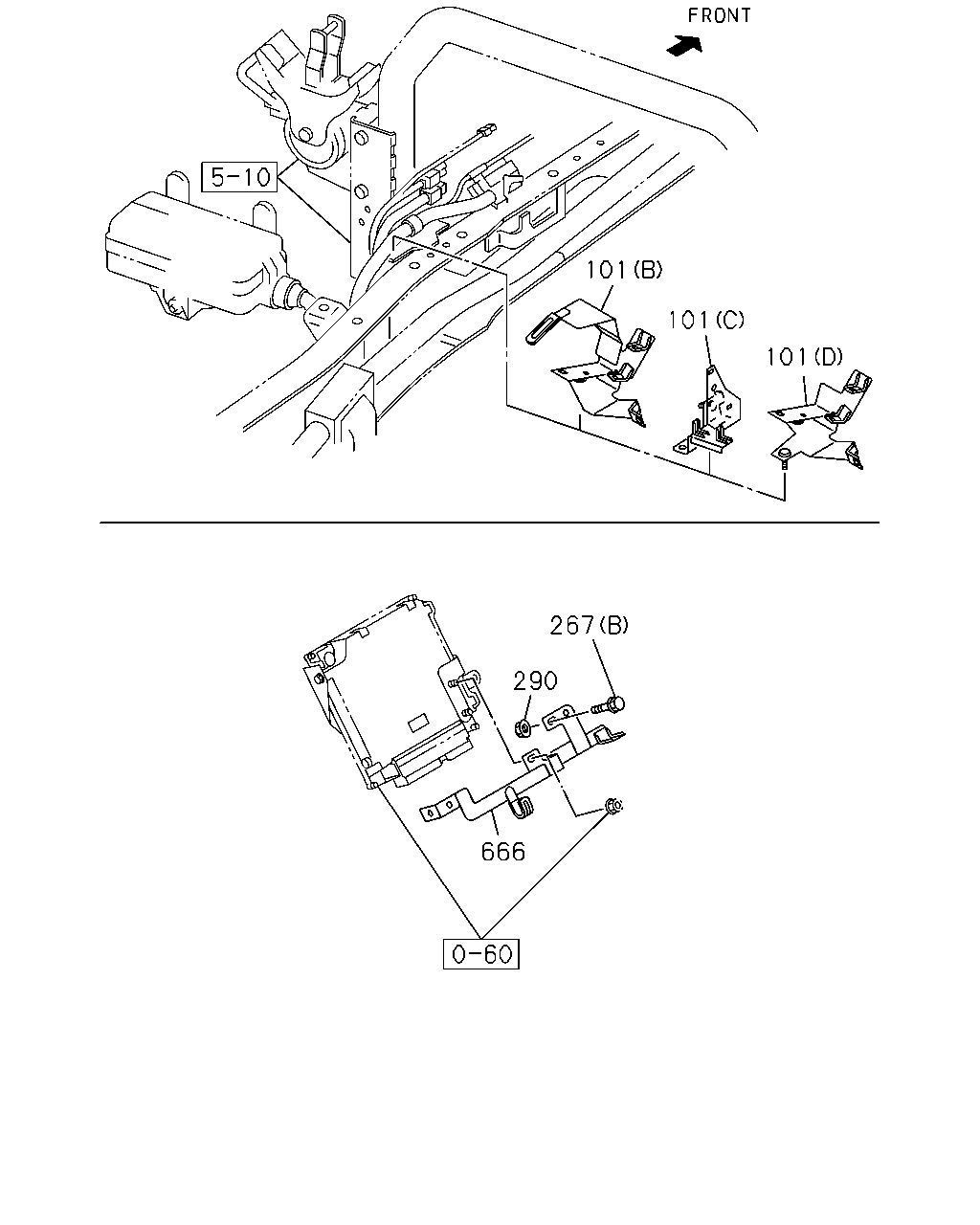

666 290 267 101 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D)	8-98079-137-2	01	1	1209-
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1012-
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98094-483-1	01	1	1012-1208
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1209-
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98032-447-1	01	1	1012-
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1012-
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1012-
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-1111
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1112-
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1112-
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	1012-

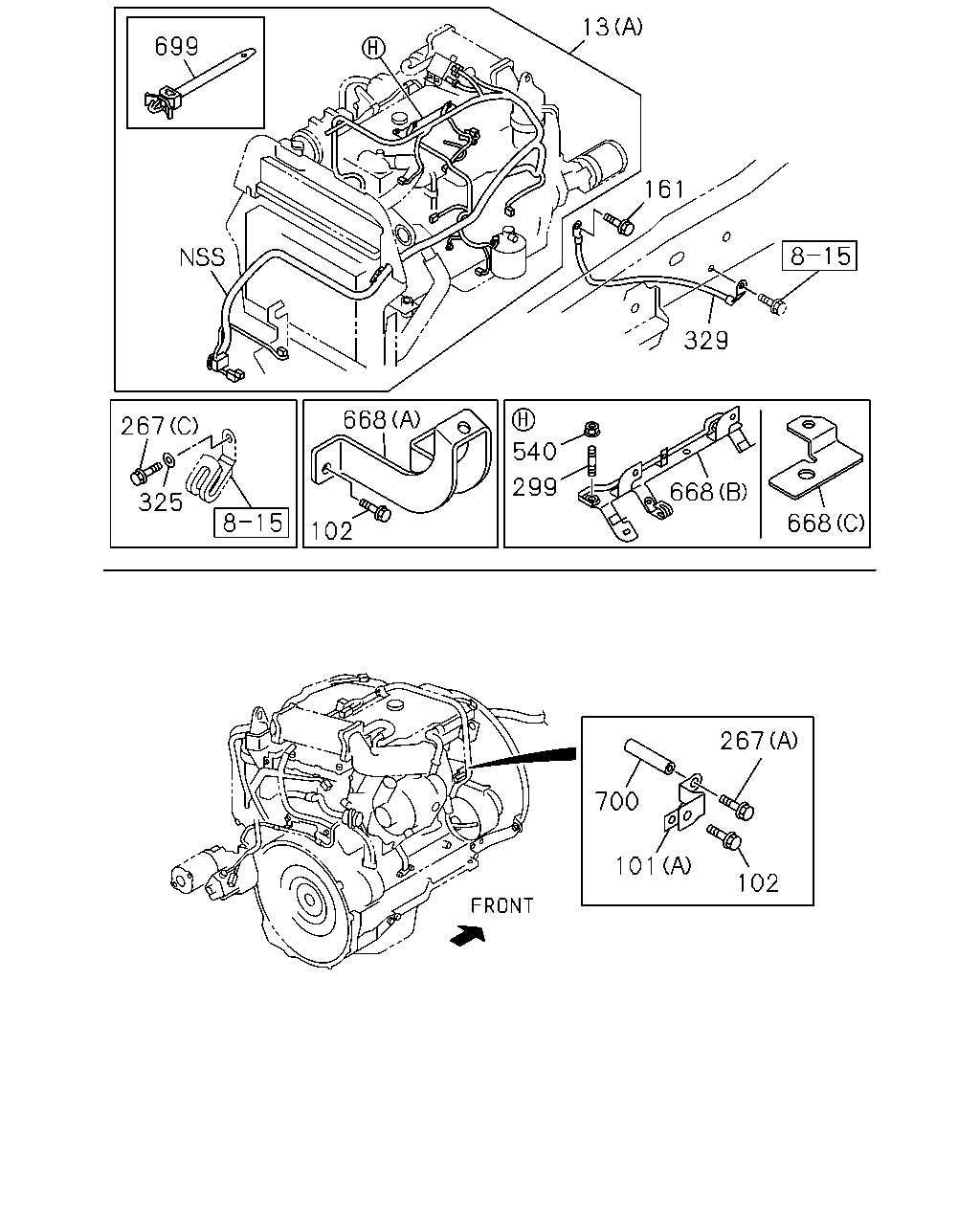

102 267 101 700 668 668 299 540 668 102 325 267 329 161 13 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98136-479-0	01	1	1211-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98136-480-0	01	1	1211-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97356-988-1	01	1	1012-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	1012-1202
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98209-817-0	01	1	1203-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1012-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	1012-1202
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98209-818-0	01	1	1203-
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D)	8-98079-137-2	01	1	1209-
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1012-
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98094-483-1	01	1	1012-1208
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1209-
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98032-447-1	01	1	1012-
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	1012-
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1012-
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1012-
299	02.559 STUD; BRKT 4HK1-TCN ENG(RDQ) 01.062 M6X18 L=27	0-41010-618-0	02	1	1012-1202
325	02.483 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	1012-
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1012-
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH)	8-98123-064-0	01	1	1012-
540	02.483 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1202
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D)	8-98001-095-0	01	1	1211-
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A)	8-98011-484-0	01	1	1012-
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98061-805-2	01	1	1012-1202
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98205-089-0	01	1	1203-
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.128 L=213.5	8-98000-506-1	02	1	1211-
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.128 L=213.5	8-98000-506-1	01	1	1012-1405
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.128 L=213.5	8-98000-506-1	01	1	1406-
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) L=146.2	8-98052-677-0	01	1	1012-1405
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) L=146.2	8-98052-677-0	01	1	1406-
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1012-

174 27 94 453 387 453 8 35 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G> 4 WHEEL ANTI LOCK BRAKE<JE5> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98333-119-0	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G> 4 WHEEL ANTI LOCK BRAKE<JE5> AUTO CRUISE CONT<K30> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98333-120-0	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98285-274-0	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-446-1	01	1	1410-1509
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-446-1	01	1	1510-1511
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. COUNTRY ALGERIA<D2G>,AUTO CRUISE CONT<K30>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-446-1	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98285-275-0	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-447-1	01	1	1410-1509
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-447-1	01	1	1510-1511
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. COUNTRY ALGERIA<D2G>,AUTO CRUISE CONT<K30>,FUEL SEDIMENTER WITH HEATER<6HU>,POW ER TAKE OFF CONTROL ELECTRIC(7GR)	8-98294-447-1	01	1	1512-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-302-9	01	1	1012-1208
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-302-9	01	1	1209-1405
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-302-9	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-251-0	01	1	1410-1509
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-251-0	01	1	1510-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98126-193-5	01	1	1012-1101
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98180-748-1	01	1	1102-1208
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ>	8-98180-748-1	01	1	1209-1405
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98180-748-1	01	1	1406-1409
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98294-405-0	01	1	1410-
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1012-
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1012-
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1012-
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1012-
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1012-
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1012-
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1012-
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1012-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	03	1	1102-1208
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C)	8-94417-716-0	03	1	1209-1405
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-94417-716-0	03	1	1406-
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1012-1101
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1102-1208
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1209-1405
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1406-1406
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1406-1509
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1406-1509
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1510-1511
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94417-716-0	02	1	1510-1511
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	1512-
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1012-
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-

4 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
