7-50 — FRONT SEAT (#49187) — 86 parça

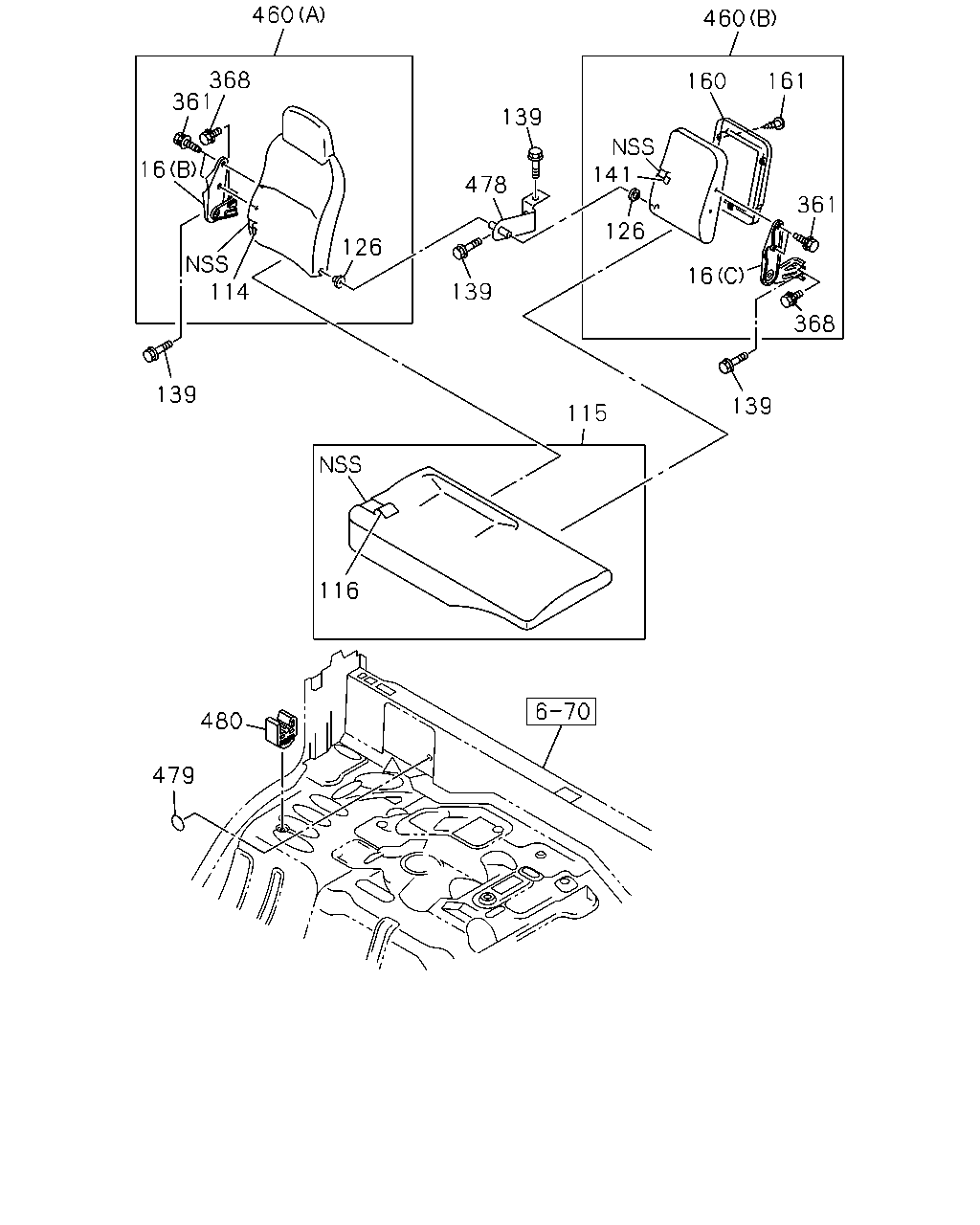

460 368 361 16 114 126 139 139 478 139 141 126 139 368 16 361 161 160 460 115 116 480 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB	8-97859-273-3	01	1	1012-1511
16	16.682 ADJUSTER ASM; RECLINING EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB	8-97859-273-3	01	1	1512-
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB	8-97859-274-3	01	1	1012-
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	1012-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97466-987-0	01	1	1512-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK HEAD RESTRAINT - CENTER SEAT<AW8> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97466-988-0	01	1	1512-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-724-0	01	1	1012-1511
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-724-0	01	1	1512-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1012-1511
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1512-
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-709-2	01	1	1012-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-326-3	01	1	1012-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-738-1	01	1	1012-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-346-2	01	1	1012-
126	16.686 BUSHING; HINGE,RECLINING EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA>	8-98069-558-0	02	1	1512-
126	16.686 BUSHING; HINGE,RECLINING EXC. INSPECTION ENGINE COVER<8GA>	8-98069-558-0	02	1	1012-1511
126	16.686 BUSHING; HINGE,RECLINING HEAD RESTRAINT - CENTER SEAT<AW8> EXC. INSPECTION ENGINE COVER<8GA>	8-98069-558-0	01	1	1512-
139	16.679 BOLT; PASSENGER SEAT EXC. HEAD RESTRAINT - CENTER SEAT<AW8> M8X20 W/PL WASHER	8-98031-841-0	04	1	1512-
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1012-1511
139	16.679 BOLT; PASSENGER SEAT HEAD RESTRAINT - CENTER SEAT<AW8> M8X20 W/PL WASHER	8-98031-841-0	03	1	1512-
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1012-1511
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1512-
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-728-0	01	1	1012-1511
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-728-0	01	1	1512-
160	16.650 CONSOLE; UPR,BACK CENTER EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97405-361-1	01	1	1012-1511
160	16.650 CONSOLE; UPR,BACK CENTER EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> GRAY	8-97405-361-1	01	1	1512-
161	16.650 SCREW; CONSOLE EXC. INSPECTION ENGINE COVER<8GA> M4X12	8-94279-351-0	04	1	1012-1511
161	16.650 SCREW; CONSOLE EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> M4X12	8-94279-351-0	04	1	1512-
361	16.682 BOLT; ADJ,RECLINING EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	04	1	1512-
361	16.682 BOLT; ADJ,RECLINING EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	04	1	1012-1511
361	16.682 BOLT; ADJ,RECLINING HEAD RESTRAINT - CENTER SEAT<AW8> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	02	1	1512-
368	16.682 BOLT; SEAT EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1512-
368	16.682 BOLT; SEAT EXC. INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1012-1511
368	16.682 BOLT; SEAT HEAD RESTRAINT - CENTER SEAT<AW8> EXC. INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1512-
460	16.670 BACK ASM; PASSENGER SEAT HEAD RESTRAINT - CENTER SEAT<AW8> VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-983-0	01	1	1512-
460	16.670 BACK ASM; PASSENGER SEAT HEAD RESTRAINT - CENTER SEAT<AW8> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97466-984-0	01	1	1512-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-695-0	01	1	1012-1511
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-695-0	01	1	1512-
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY	8-97418-699-2	01	1	1012-1511
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> 16.770 (B) DARK GRAY	8-97418-699-2	01	1	1512-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1012-1511
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1512-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-302-1	01	1	1012-1511
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-302-1	01	1	1512-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA HEAD RESTRAINT - CENTER SEAT<AW8>	8-97868-187-0	01	1	1512-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1012-1511
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA EXC. HEAD RESTRAINT - CENTER SEAT<AW8>	8-98002-092-0	01	1	1512-
479	16.716 PLUG; HINGE HEAD RESTRAINT - CENTER SEAT<AW8> 16.165 OD=25 BLACK	1-76798-019-0	02	1	1512-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1012-

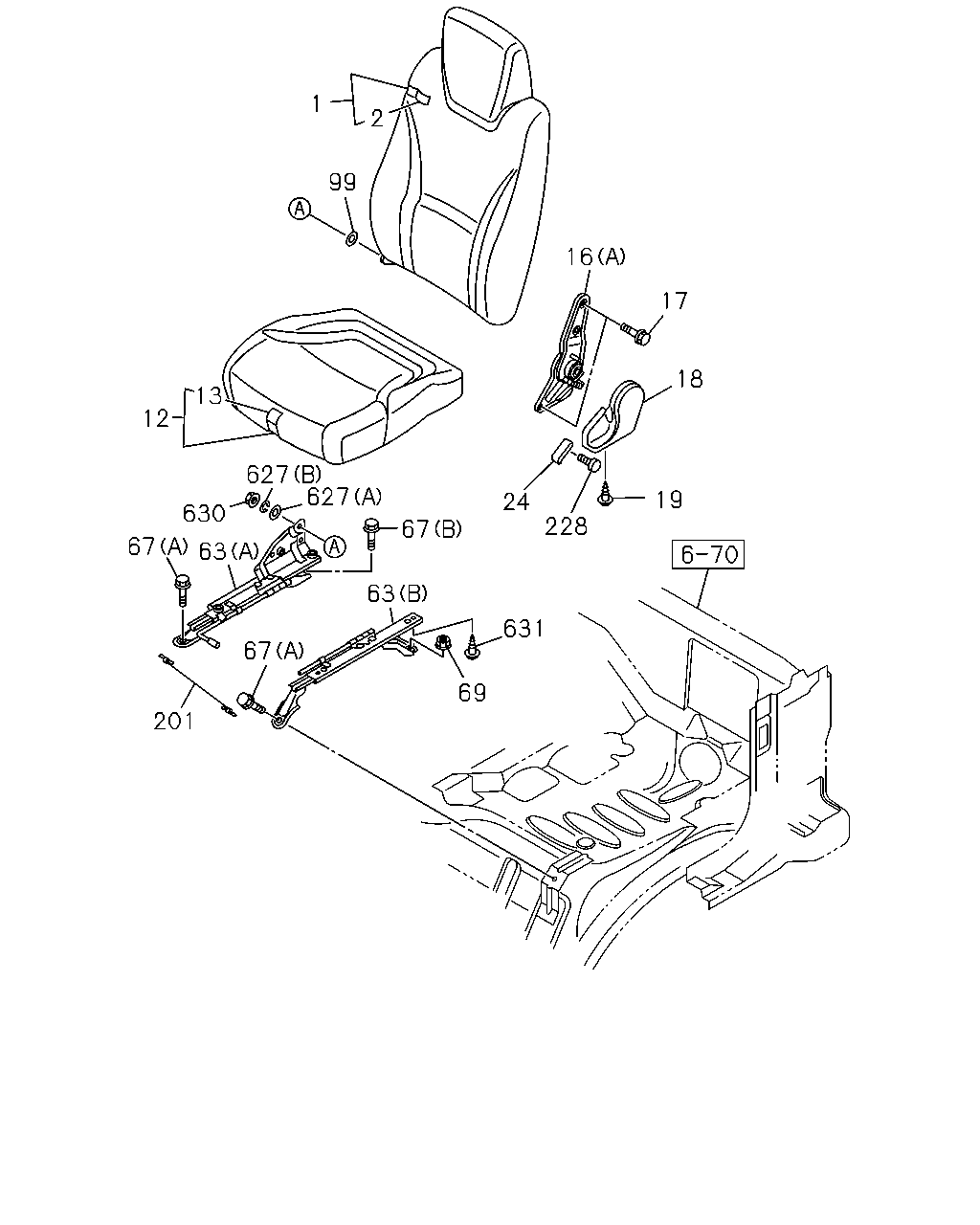

1 2 99 16 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-160-7	01	1	1012-
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-155-5	01	1	1012-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-237-1	01	1	1012-
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-236-1	01	1	1012-
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-038-2	01	1	1012-
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-152-2	01	1	1012-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-256-0	01	1	1012-
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-255-0	01	1	1012-
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-163-3	01	1	1012-
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-153-3	01	1	1012-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-2	01	1	1012-
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-242-2	01	1	1012-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-2	01	1	1012-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-2	01	1	1012-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-2	01	1	1012-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-261-2	01	1	1012-
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB	8-97859-273-3	01	1	1012-1511
16	16.682 ADJUSTER ASM; RECLINING EXC. HEAD RESTRAINT - CENTER SEAT<AW8>, INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB	8-97859-273-3	01	1	1512-
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB	8-97859-274-3	01	1	1012-
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	1012-
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1012-
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	1012-
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1012-
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	1012-
63	16.682 ADJUSTER; SEAT SLIDE EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98002-907-2	01	1	1012-
63	16.682 ADJUSTER; SEAT SLIDE EXC. INSPECTION ENGINE COVER<8GA> (B) OUTER	8-98002-908-1	01	1	1012-
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1012-
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1012-
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1012-
99	16.716 BUSHING; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1012-
201	16.682 CABLE; ADJ EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1012-
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1012-
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1012-
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1012-
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1012-
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	1012-
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	1012-
