◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#49180) — 19 parça

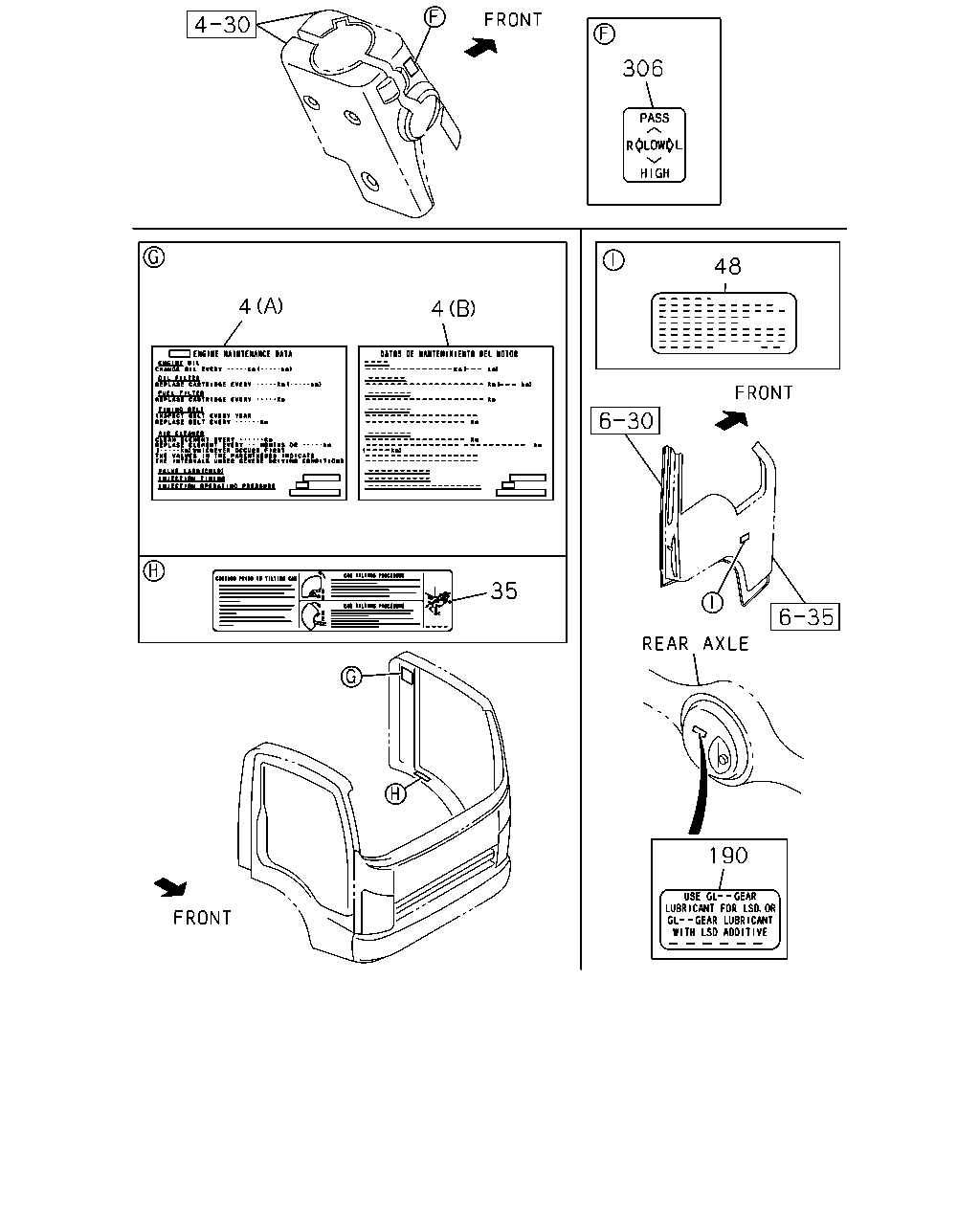

çizim 176417
306 48 4 4 35 190
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 1012-
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 1012-
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1012-
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1012-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1012-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1012-
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98017-873-0 01 1 1012-
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CAUTION SPANISH<YN1> 		8-98017-874-0 01 1 1012-
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 1012-
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1012-

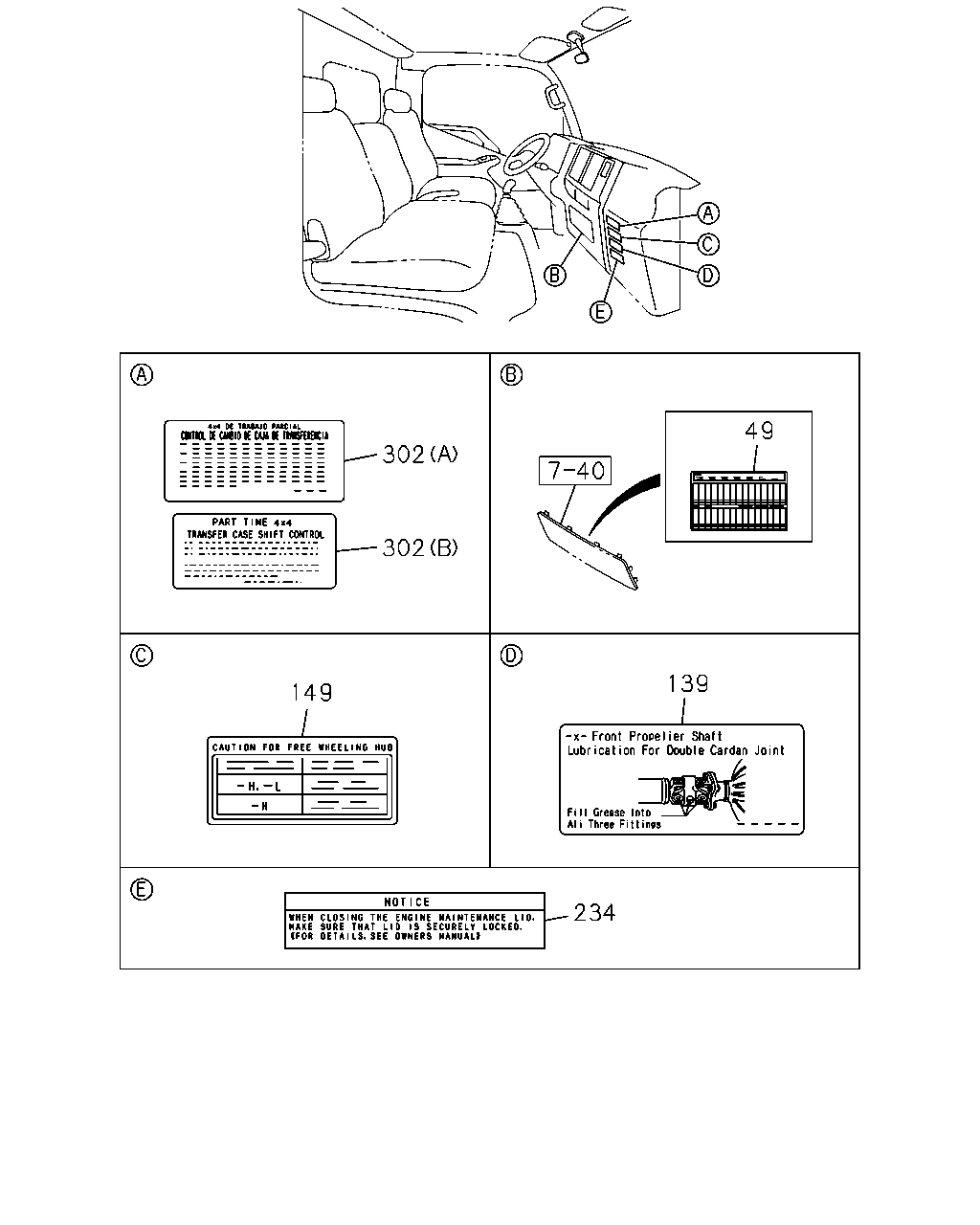

çizim 176426
49 302 302 139 149 234
BalonParca AdiParca NoAdetTipApplied Date
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1012-
139 08.808 PLATE; CAUTION,PROP SHAFT
CAUTION SPANISH<YN1> 		8-98009-407-0 01 1 1012-
139 08.808 PLATE; CAUTION,PROP SHAFT
EXC. CAUTION SPANISH<YN1> 		8-97118-440-0 01 1 1012-
149 08.808 PLATE; CAUTION,LOCKING HUB
CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 1012-
149 08.808 PLATE; CAUTION,LOCKING HUB
EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 1012-
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1012-
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1012-
302 08.808 PLATE; CAUTION,TRANSFER
CAUTION SPANISH<YN1> 04.017 (A) 		8-97108-716-1 01 1 1012-
302 08.808 PLATE; CAUTION,TRANSFER
EXC. CAUTION SPANISH<YN1> 04.017 (B) 		8-97108-715-0 01 1 1012-
