6-80 — BACK PANEL (#4918) — 17 parça

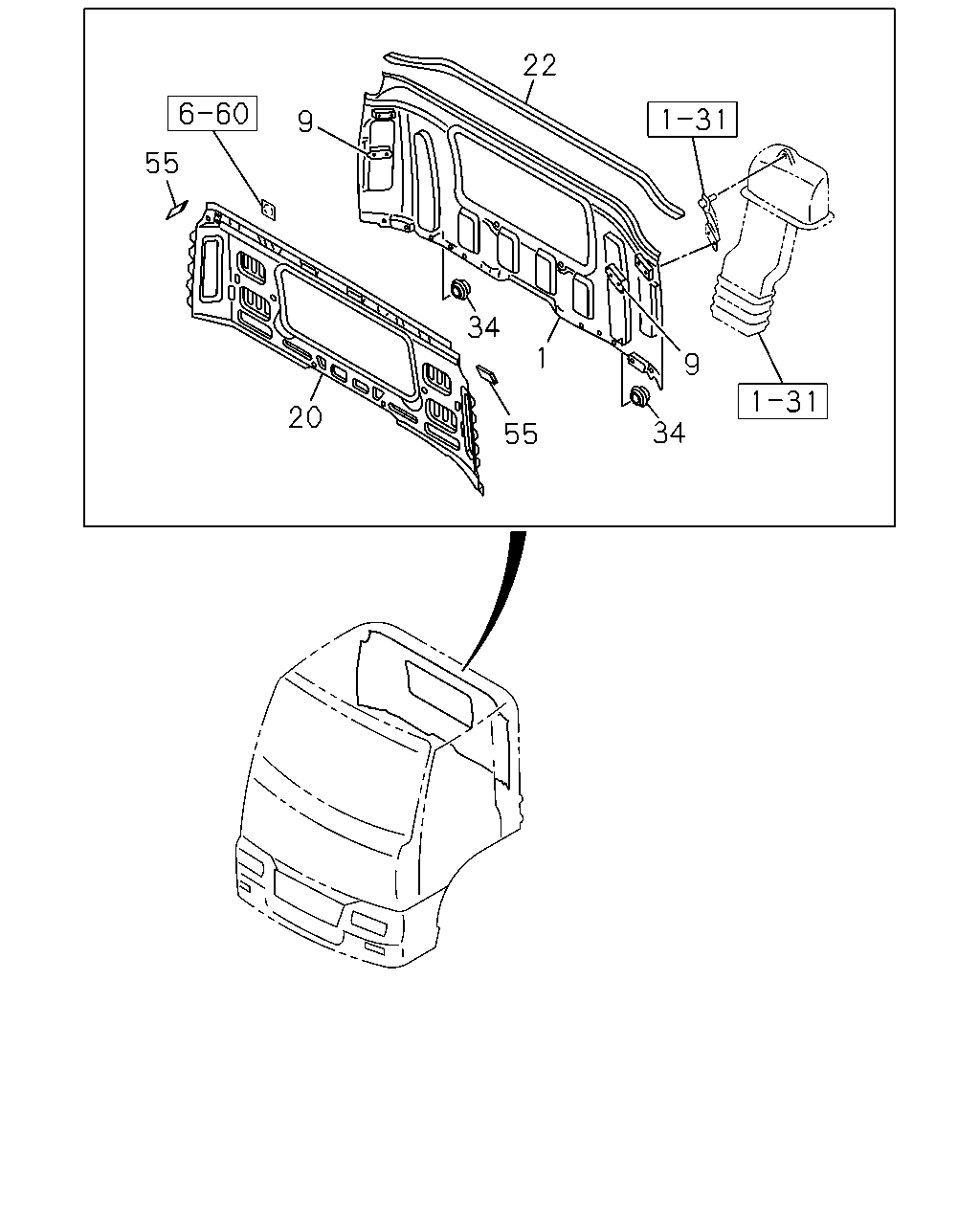

çizim 42045
22 9 55 34 1 9 20 34 55
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; BACK OUTER 1-61572-062-5 01 1 9603-9901 ● ● ●
1 PANEL; BACK OUTER 1-61572-062-5 01 1 9902-9904 ● ●
1 PANEL; BACK OUTER 1-61572-062-5 01 1 9905- ● ● ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 9603-9901 ● ● ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 9902-9904 ● ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 9905- ● ● ●
20 PANEL; BACK INNER,CENTER 1-61572-064-5 01 1 9603-9901 ● ● ●
20 PANEL; BACK INNER,CENTER 1-61572-064-5 01 1 9902-9904 ● ●
20 PANEL; BACK INNER,CENTER 1-61572-064-5 01 1 9905- ● ● ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 9603-9901 ● ● ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 9902-9904 ● ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 9905- ● ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9603-9901 ● ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9902-9904 ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9905- ● ● ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 9902-9904 ● ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 9905- ● ● ●
