Sayfa 6-75 - Isuzu EPC

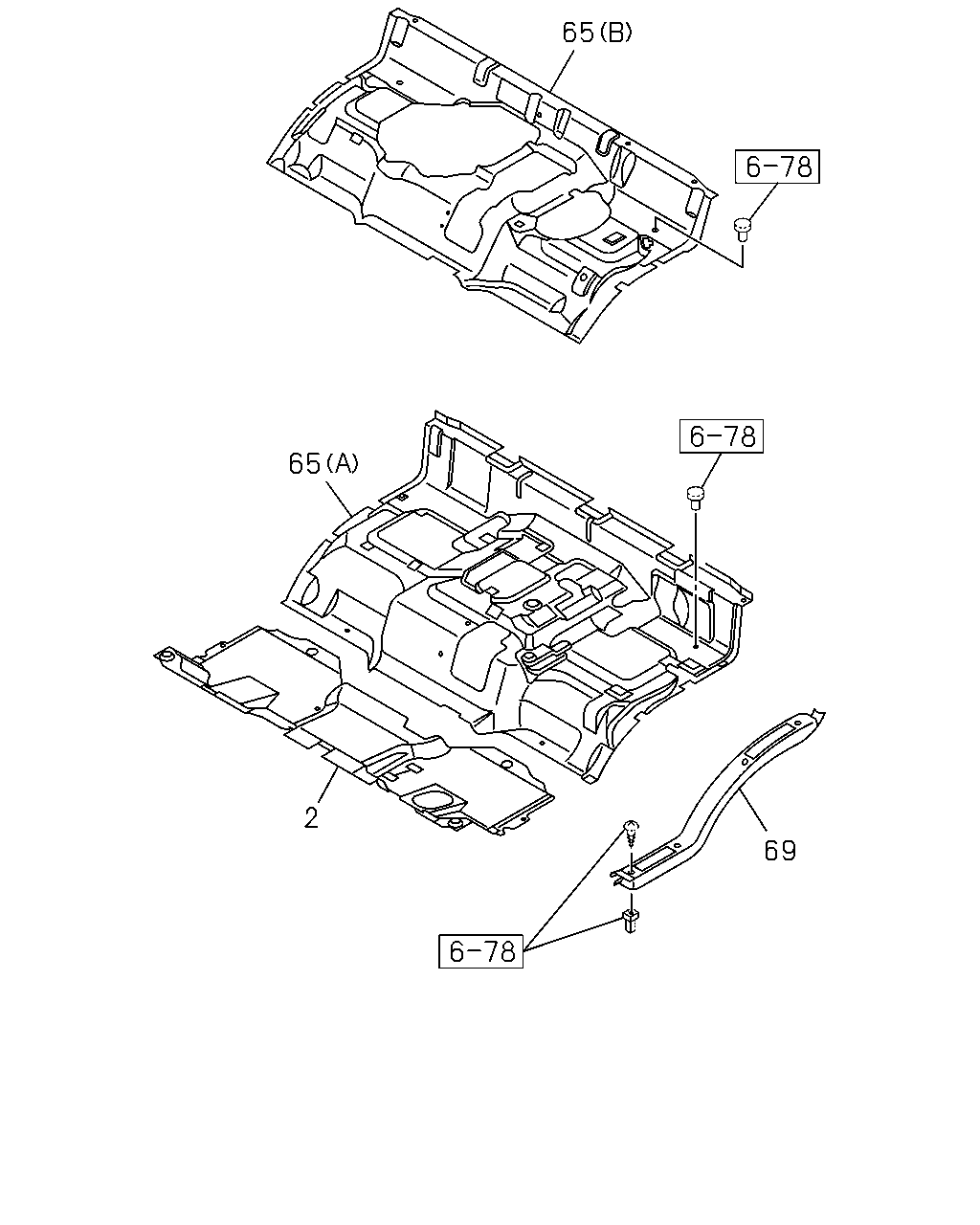

6-75 — MAT AND CARPET (#49172) — 7 parça

65 65 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	16.800 MAT; FLOOR GRAY	8-97422-059-0	01	1	1012-
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	1012-1303
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-115-0	01	1	1304-
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	1012-1303
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1012-
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
