6-78 — FLOOR HOLE PLUG (#4917) — 58 parça

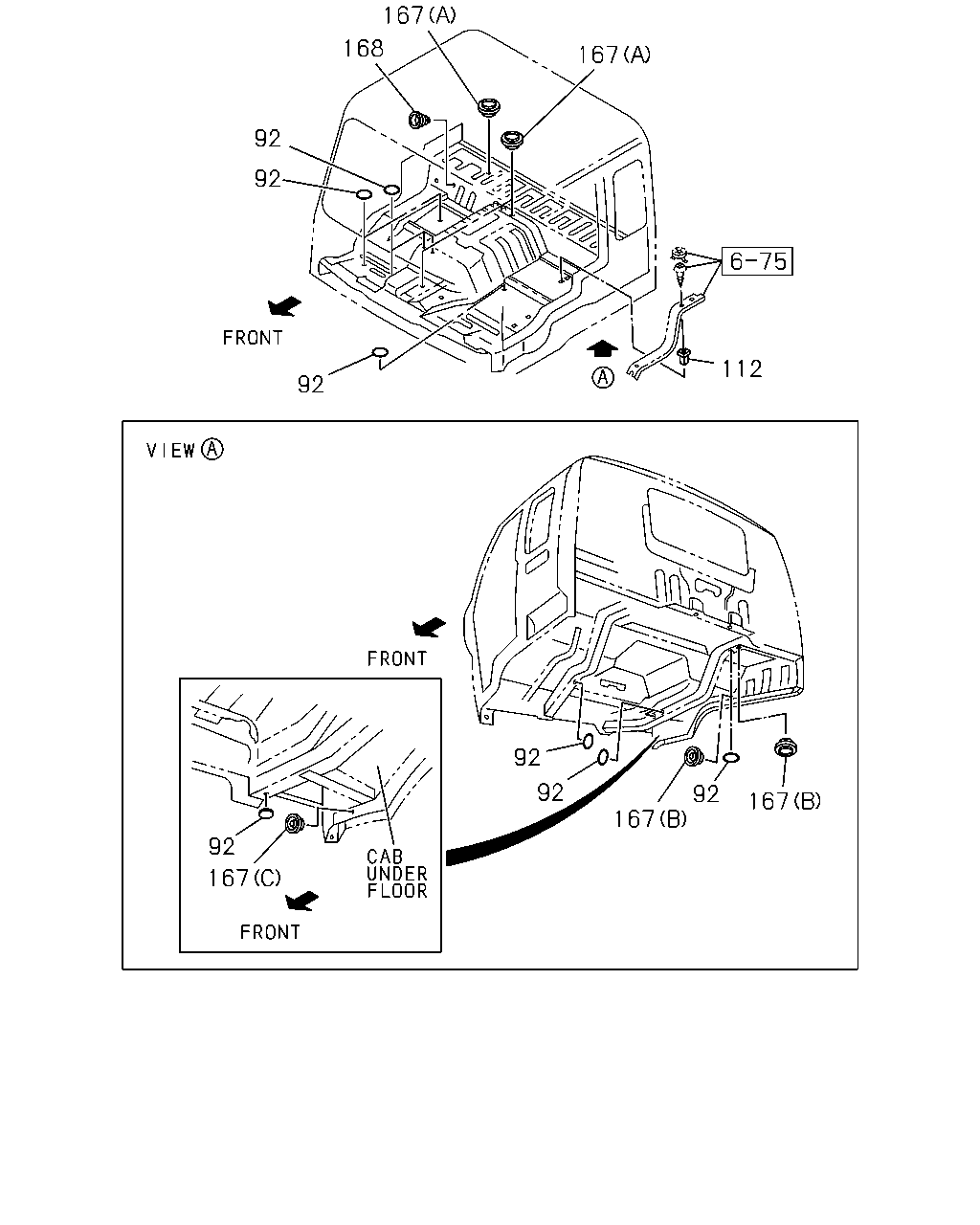

çizim 39625
167 168 167 92 92 112 92 92 92 92 167 167 92 167
BalonParca AdiParca NoAdetTipApplied Date A B C
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 10 1 9603-9612 ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9701-9712 ● ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9701-9712 ● ●
92 SEAL; LOCATION HOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 05 1 9801-9901 ● ● ●
92 SEAL; LOCATION HOLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L TYPE ENG<90L> OD=25 BLACK 		1-76798-019-0 05 1 9801-9901 ● ●
92 SEAL; LOCATION HOLE
BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 04 1 9902-9904 ● ●
92 SEAL; LOCATION HOLE
BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 04 1 9905- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9603-9612 ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 05 1 9701-9712 ● ● ●
92 SEAL; LOCATION HOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 05 1 9701-9712 ● ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 05 1 9701-9712 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9801-9901 ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9801-9901 ● ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9801-9901 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9902-9904 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9902-9904 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9902-9904 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9905-9910 ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9905-9910 ● ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9905-9910 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9911- ● ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9911- ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9911- ● ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9801-9901 ● ● ●
92 SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 05 1 9902-9904 ● ●
92 SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 05 1 9905- ● ● ●
92 SEAL; LOCATION HOLE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 09 1 9603-9612 ● ● ●
92 SEAL; LOCATION HOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 07 1 9701-9901 ● ● ●
92 SEAL; LOCATION HOLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) V TYPE ENG<91L> OD=25 BLACK 		1-76798-019-0 07 1 9701-9901 ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9902-9904 ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9905-9910 ● ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9911- ● ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 03 1 9911- ● ●
92 SEAL; LOCATION HOLE
SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 08 1 9603-9612 ● ●
92 SEAL; LOCATION HOLE
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 01 1 9701-9901 ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9603-9901 ● ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9902-9904 ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9905- ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 04 1 9603-9709 ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 03 1 9603-9612 ● ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 04 1 9603-9707 ● ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 9708-9901 ● ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 9902-9904 ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 9905- ● ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 04 1 9603-9707 ● ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 9708-9901 ● ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 9902-9904 ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 9905- ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 01 1 9701-9709 ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9710-9901 ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9902-9904 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9905- ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 01 1 9710-9901 ● ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 01 1 9902-9904 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 01 1 9905- ● ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9603-9901 ● ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9902-9904 ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9905- ● ● ●
