◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#49160) — 80 parça

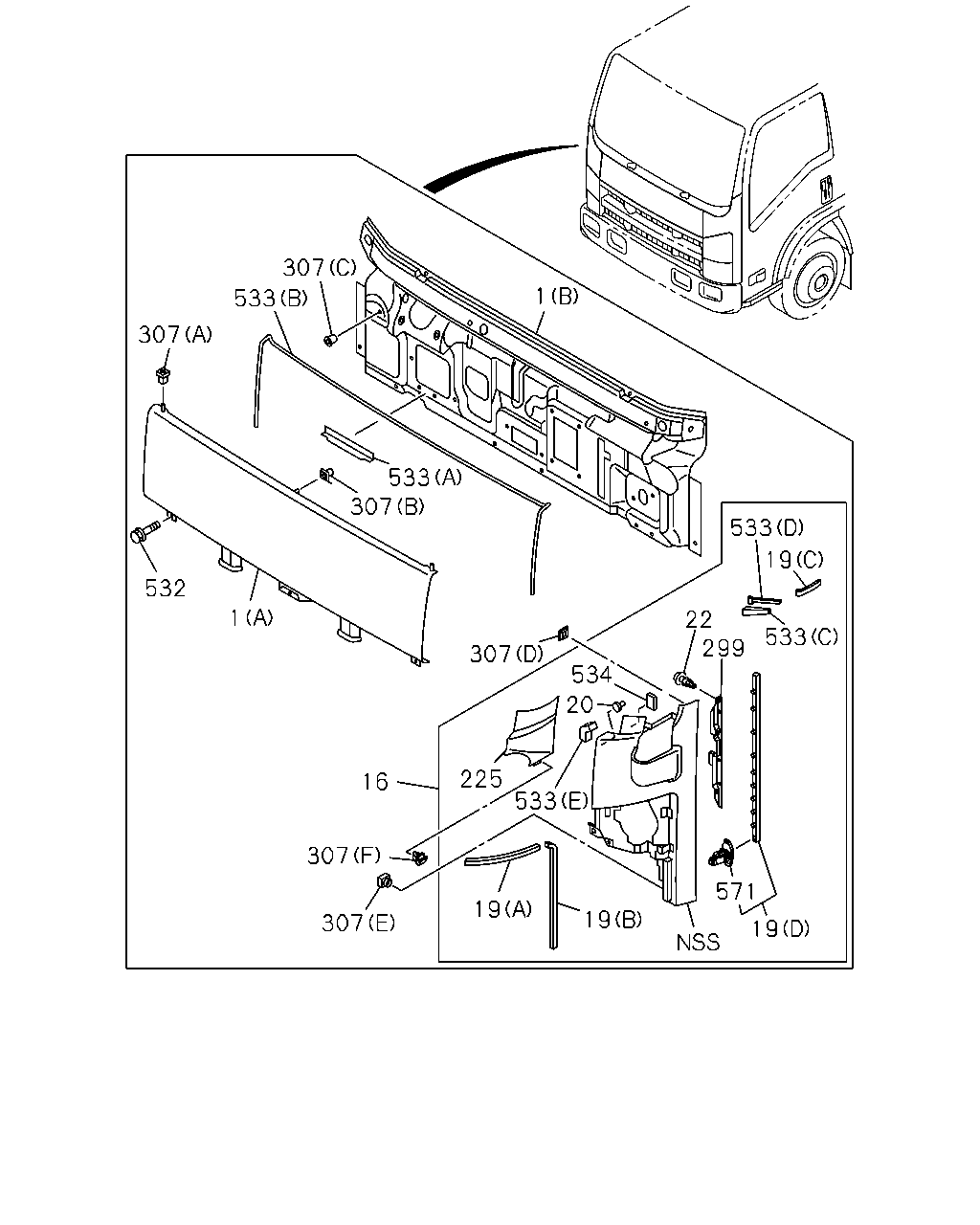

çizim 176430
307 1 533 307 533 307 533 19 532 1 22 299 533 307 534 20 225 16 533 307 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
4HK1-TCN ENG(RDQ) (B) 		8-97585-955-2 01 1 1012-1012
1 16.550 PANEL ASM; FRT
4HK1-TCN ENG(RDQ) (B) 		8-98182-391-0 01 1 1101-
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) (B) 		8-98106-780-1 01 1 1012-1012
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) (B) 		8-98182-394-0 01 1 1101-
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97425-526-8 01 1 1311-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97428-955-8 01 1 1311-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1012-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1012-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1012-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1012-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1012-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1012-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1012-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1012-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1012-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1012-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1012-
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1012-
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1012-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1012-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1012-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1012-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1012-
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1012-
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1012-
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1012-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1012-
533 08.143 SEAL; FRT PANEL
(A) 		8-98049-007-0 01 1 1012-
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1012-1506
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1012-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1012-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1012-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1012-
534 16.550 FASTENER
20X30 		8-98059-208-1 02 1 1012-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1012-

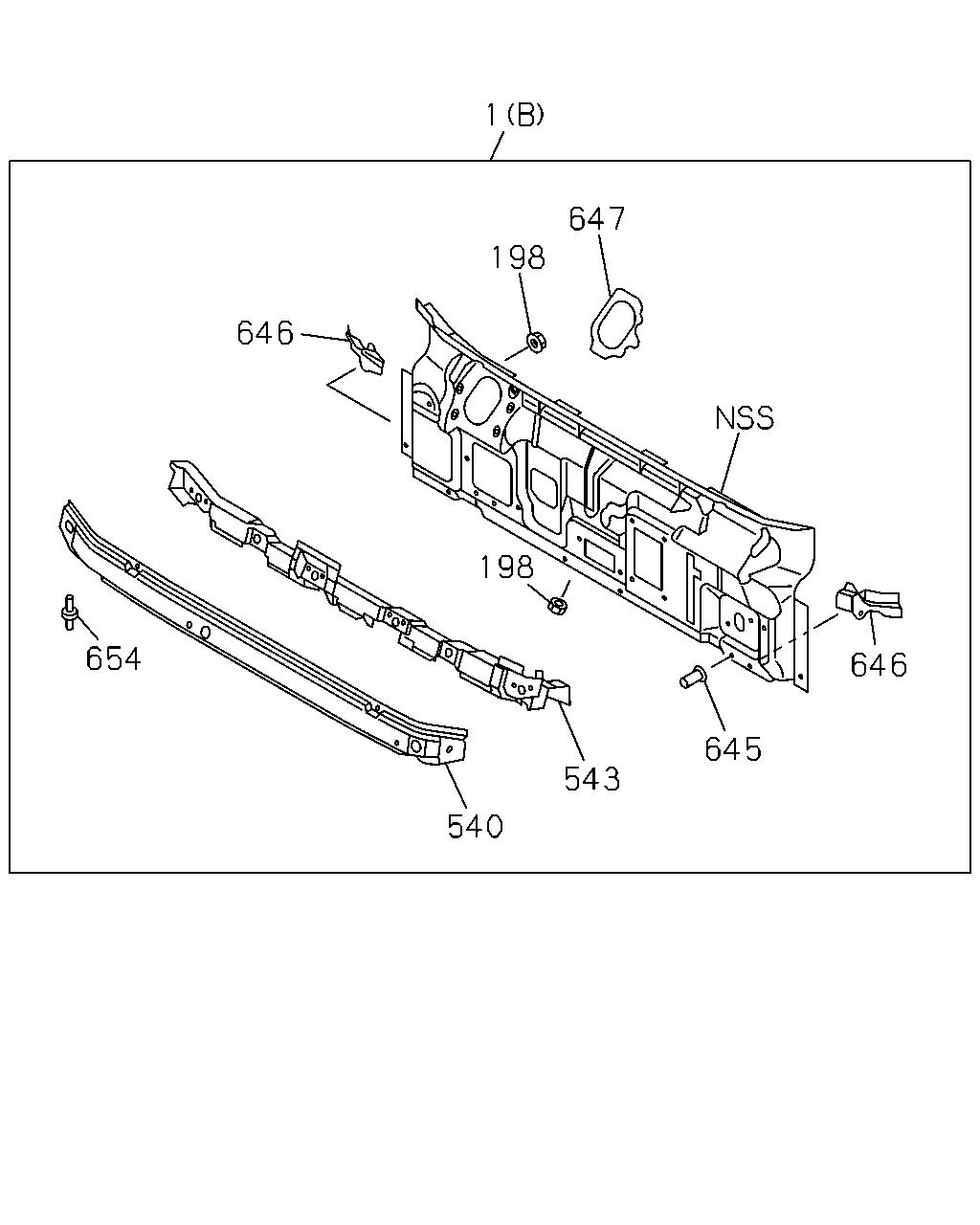

çizim 176710
1 647 198 646 198 654 646 645 543 540
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
4HK1-TCN ENG(RDQ) (B) 		8-97585-955-2 01 1 1012-1012
1 16.550 PANEL ASM; FRT
4HK1-TCN ENG(RDQ) (B) 		8-98182-391-0 01 1 1101-
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) (B) 		8-98106-780-1 01 1 1012-1012
1 16.550 PANEL ASM; FRT
4HG1 ENG(RJH) (B) 		8-98182-394-0 01 1 1101-
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1012-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1012-
540 16.588 PANEL; FRONT,OUTER 8-97585-964-0 01 1 1012-
543 16.570 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 1012-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1012-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1012-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1012-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1012-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
