6-76 — FLOOR EQUIPMENT AND SEALING (#4916) — 136 parça

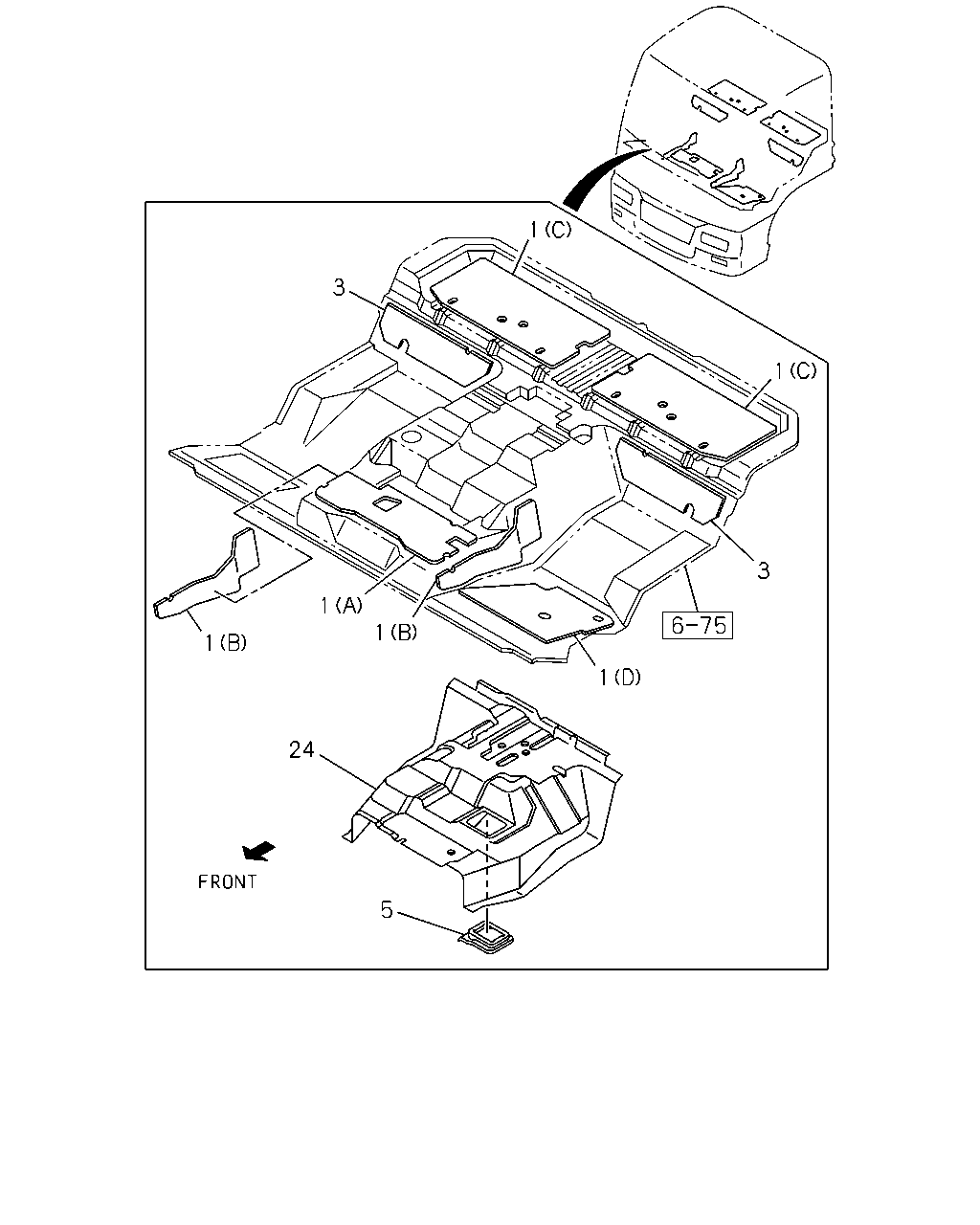

çizim 39363
1 3 1 3 1 1 1 1 24 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHEET; MELTING,FLOOR
(C) BED PAN CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 02 1 9603-9711 ● ● ●
1 SHEET; MELTING,FLOOR
(A) CENTER CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9603-9711 ● ● ●
1 SHEET; MELTING,FLOOR
(A) CENTER CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9712-9901 ● ● ●
1 SHEET; MELTING,FLOOR
(A) CENTER CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9902-9903 ● ●
1 SHEET; MELTING,FLOOR
(A) CENTER CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9904-9904 ● ●
1 SHEET; MELTING,FLOOR
(A) CENTER CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9905- ● ● ●
1 SHEET; MELTING,FLOOR
(D) FRONT CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9603-9702 ● ● ●
1 SHEET; MELTING,FLOOR
(D) FRONT CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9703-9901 ● ● ●
1 SHEET; MELTING,FLOOR
(D) FRONT CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9902-9904 ● ●
1 SHEET; MELTING,FLOOR
(D) FRONT CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9905- ● ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9603-9711 ● ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9712-9901 ● ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9902-9904 ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9905- ● ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9603-9711 ● ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9712-9901 ● ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9902-9904 ● ●
1 SHEET; MELTING,FLOOR
(B) CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9905- ● ● ●
1 SHEET; MELTING,FLOOR
(C) BED PAN CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 02 1 9712-9901 ● ● ●
1 SHEET; MELTING,FLOOR
(C) BED PAN CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 02 1 9902-9904 ● ●
1 SHEET; MELTING,FLOOR
(C) BED PAN CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 02 1 9905- ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9603-9711 ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9712-9901 ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9902-9904 ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9905- ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9603-9711 ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9712-9901 ● ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9902-9904 ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 01 1 9905- ● ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9603-9901 ● ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9902-9904 ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9905- ● ● ●
24 INSULATOR; HEAT,FRT
PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-71907-375-2 01 1 9603-9901 ● ● ●
24 INSULATOR; HEAT,FRT
PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-71907-375-5 01 1 9905- ● ● ●
24 INSULATOR; HEAT,FRT
SPRING BRAKE(SU9) 		1-71907-373-2 01 1 9603-9901 ● ●
24 INSULATOR; HEAT,FRT 1-71907-373-5 01 1 9902-9904 ● ●
24 INSULATOR; HEAT,FRT
SPRING BRAKE(SU9) 		1-71907-373-5 01 1 9905- ● ●

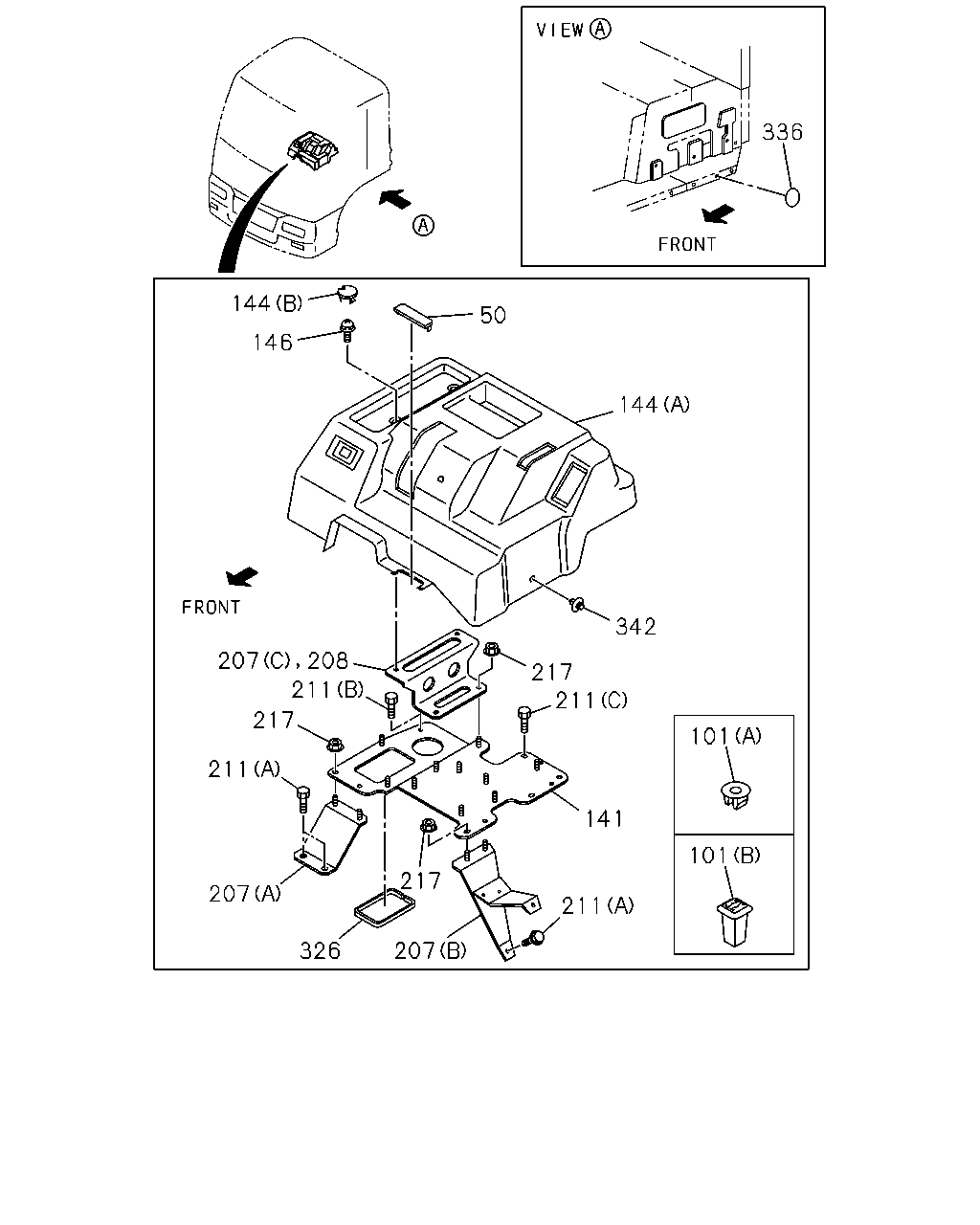

çizim 39668
336 144 50 146 144 342 217 211 211 217 101 211 141 101 217 207 211 326 207 207 208
BalonParca AdiParca NoAdetTipApplied Date A B C
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9603-9901 ● ● ●
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9902-9904 ● ●
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9905-9910 ● ● ●
50 COVER ASM; SUPPORT,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-72537-124-0 01 1 9911-9912 ● ●
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 0001- ● ●
101 GROMMET; SCREW,FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) D=7X7 L=7.5 		5-09983-007-0 02 1 9603-9901 ● ●
101 GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5 		5-09983-007-0 02 1 9902-9904 ● ●
101 GROMMET; SCREW,FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) D=7X7 L=7.5 		5-09983-007-0 02 1 9905- ● ●
101 GROMMET; SCREW,FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 9603-9901 ● ●
101 GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 9902-9904 ● ●
101 GROMMET; SCREW,FLOOR BOARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 9905- ● ●
141 HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79996-111-1 01 1 9603-9901 ● ●
141 HOLDER 1-79996-438-0 01 1 9902-9904 ● ●
141 HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79996-438-0 01 1 9905- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-316-1 01 1 9706-9901 ●
144 COVER; HAND BRK VLV
(A) 		1-72417-316-2 01 1 9902-9904 ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-316-2 01 1 9905- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (A) 		1-72417-318-1 01 1 9603-9901 ● ●
144 COVER; HAND BRK VLV
(A) 		1-72417-318-1 01 1 9902-9904 ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (A) 		1-72417-318-1 01 1 9905-0010 ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-318-2 01 1 0011- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (B) 		1-72537-106-0 02 1 9603-9705 ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (B) 		1-72537-106-0 02 1 9706-9812 ● ●
144 COVER; HAND BRK VLV
BRAKE REGULATION ECE<TDV> (B) 		1-72537-106-0 02 1 9706-9812 ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (B) 		1-72538-166-0 02 1 9901-9901 ● ●
144 COVER; HAND BRK VLV
BRAKE REGULATION ECE<TDV> (B) 		1-72538-166-0 02 1 9901-9901 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 02 1 9902-9904 ● ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 02 1 9902-9904 ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (B) 		1-72538-166-0 02 1 9905- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-72538-166-0 02 1 9905- ● ●
146 BOLT; COVER BRKT
SPRING BRAKE(SU9) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9603-9603 ● ●
146 BOLT; COVER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) '960325- M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9603-9901 ● ●
146 BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9902-9904 ● ●
146 BOLT; COVER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9905- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (A) FRONT 		1-79996-129-0 01 1 9603-9705 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (A) FRONT 		1-79996-129-0 01 1 9706-9901 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
BRAKE REGULATION ECE<TDV> (A) FRONT 		1-79996-129-0 01 1 9706-9901 ●
207 BRACKET ASM; HAND BRAKE VALVE
(A) FRONT 		1-79996-129-0 01 1 9902-9904 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
(A) FRONT 		1-79996-129-0 01 1 9902-9904 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (A) FRONT 		1-79996-129-0 01 1 9905- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) FRONT 		1-79996-129-0 01 1 9905- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (B) SIDE 		1-79996-130-0 01 1 9603-9705 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (B) SIDE 		1-79996-130-0 01 1 9706-9901 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
BRAKE REGULATION ECE<TDV> (B) SIDE 		1-79996-130-0 01 1 9706-9901 ●
207 BRACKET ASM; HAND BRAKE VALVE
(B) SIDE 		1-79996-130-0 01 1 9902-9904 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
(B) SIDE 		1-79996-130-0 01 1 9902-9904 ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (B) SIDE 		1-79996-130-0 01 1 9905- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) SIDE 		1-79996-130-0 01 1 9905- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
SPRING BRAKE(SU9) (C) 		1-79996-139-1 01 1 9603-9603 ● ●
208 BRACKET ASM; COVER & BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR '960325- 		1-79996-347-0 01 1 9603-9901 ● ●
208 BRACKET ASM; COVER & BRK VLV
REAR 		1-79996-347-0 01 1 9902-9904 ● ●
208 BRACKET ASM; COVER & BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR 		1-79996-347-0 01 1 9905- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9705 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9706-9901 ● ●
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9706-9901 ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9902-9904 ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9902-9904 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-9705 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9706-9901 ● ●
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9706-9901 ●
211 BOLT; COVER
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9902-9904 ● ●
211 BOLT; COVER
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9902-9904 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9603-9705 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9901 ● ●
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9901 ●
211 BOLT; COVER
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9902-9904 ● ●
211 BOLT; COVER
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9902-9904 ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905- ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905- ● ●
217 NUT
SPRING BRAKE(SU9) M8 FLANGE 		0-91150-108-0 06 1 9603-9705 ● ●
217 NUT
SPRING BRAKE(SU9) M8 FLANGE 		0-91150-108-0 06 1 9706-9901 ● ●
217 NUT
BRAKE REGULATION ECE<TDV> M8 FLANGE 		0-91150-108-0 06 1 9706-9901 ●
217 NUT
M8 FLANGE 		0-91150-108-0 06 1 9902-9904 ● ●
217 NUT
M8 FLANGE 		0-91150-108-0 06 1 9902-9904 ● ●
217 NUT
SPRING BRAKE(SU9) M8 FLANGE 		0-91150-108-0 06 1 9905- ● ●
217 NUT
PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE 		0-91150-108-0 06 1 9905- ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) L=375 		1-79996-132-0 01 1 9603-9705 ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) L=375 		1-79996-132-0 01 1 9706-9901 ● ●
326 SEAL; COVER
BRAKE REGULATION ECE<TDV> L=375 		1-79996-132-0 01 1 9706-9901 ●
326 SEAL; COVER
L=375 		1-79996-132-0 01 1 9902-9904 ● ●
326 SEAL; COVER
L=375 		1-79996-132-0 01 1 9902-9904 ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) L=375 		1-79996-132-0 01 1 9905- ● ●
326 SEAL; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> L=375 		1-79996-132-0 01 1 9905- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9603-9901 ● ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9902-9904 ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9905- ● ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 9603-9901 ● ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ● ●
342 FASTENER
SPRING BRAKE(SU9) D8X13.5 		1-09987-248-1 01 1 9603-9705 ● ●
342 FASTENER
SPRING BRAKE(SU9) D8X13.5 		1-09987-248-1 01 1 9706-9901 ● ●
342 FASTENER
BRAKE REGULATION ECE<TDV> D8X13.5 		1-09987-248-1 01 1 9706-9901 ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9902-9904 ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9902-9904 ● ●
342 FASTENER
SPRING BRAKE(SU9) D8X13.5 		1-09987-248-1 01 1 9905- ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-248-1 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
