Isuzu WW
▶
TRUCKS
▶
NPS
▶
51302 - NPS(LHD)
▶
5 - Frame, Cab Mounting
▶

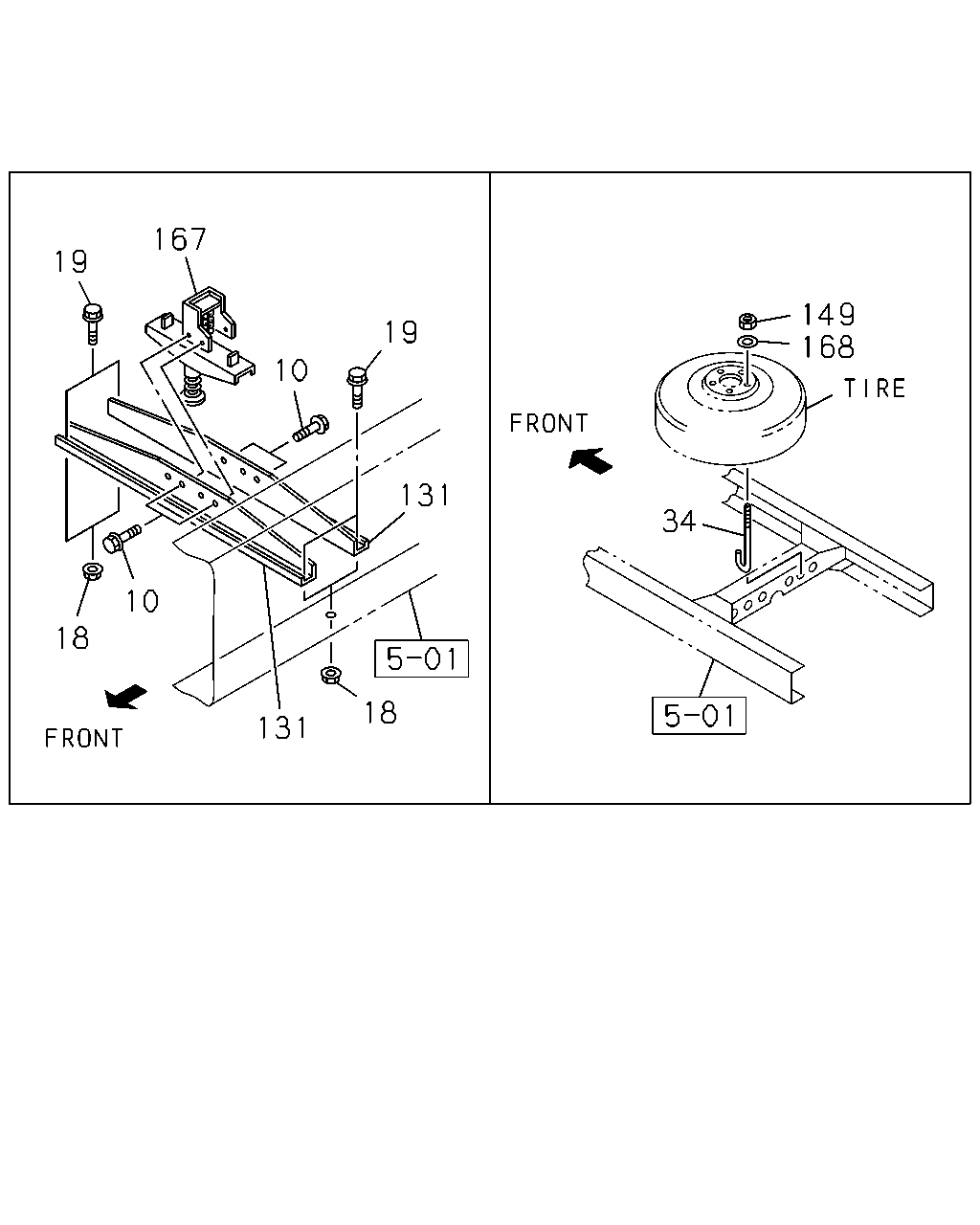

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#49156) — 19 parça
167
19
149
168
19
10
131
34
10
18
18
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1012-
18
07.633 NUT; MEMBER
03.162 M10 FLANGE
0-91180-110-0
04
1
1012-
19
07.632 BOLT; C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
04
1
1012-
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305
8-94441-189-0
02
1
1012-1209
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330
8-98226-501-0
02
1
1210-1407
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M12X330
8-98226-501-0
02
1
1408-1504
34
07.629 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> M12X330
8-98226-501-0
02
1
1408-1504
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330
8-98226-501-0
02
1
1505-
131
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
8-98035-827-1
02
1
1012-
131
07.629 CROSSMEMBER; SPARE TIRE
EXC. FRAME STRAIGHT TYPE<7KJ>
8-98024-842-2
02
1
1012-
149
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
1012-1407
149
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 M12
0-91110-512-0
02
1
1408-1504
149
07.629 NUT; CARRIER
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
1408-1504
149
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
1505-
167
07.629 HANGER; TIRE
FRAME STRAIGHT TYPE<7KJ>
8-98049-238-0
01
1
1012-
168
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1012-1407
168
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1408-1504
168
07.633 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1408-1504
168
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1505-
