◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#49150) — 27 parça

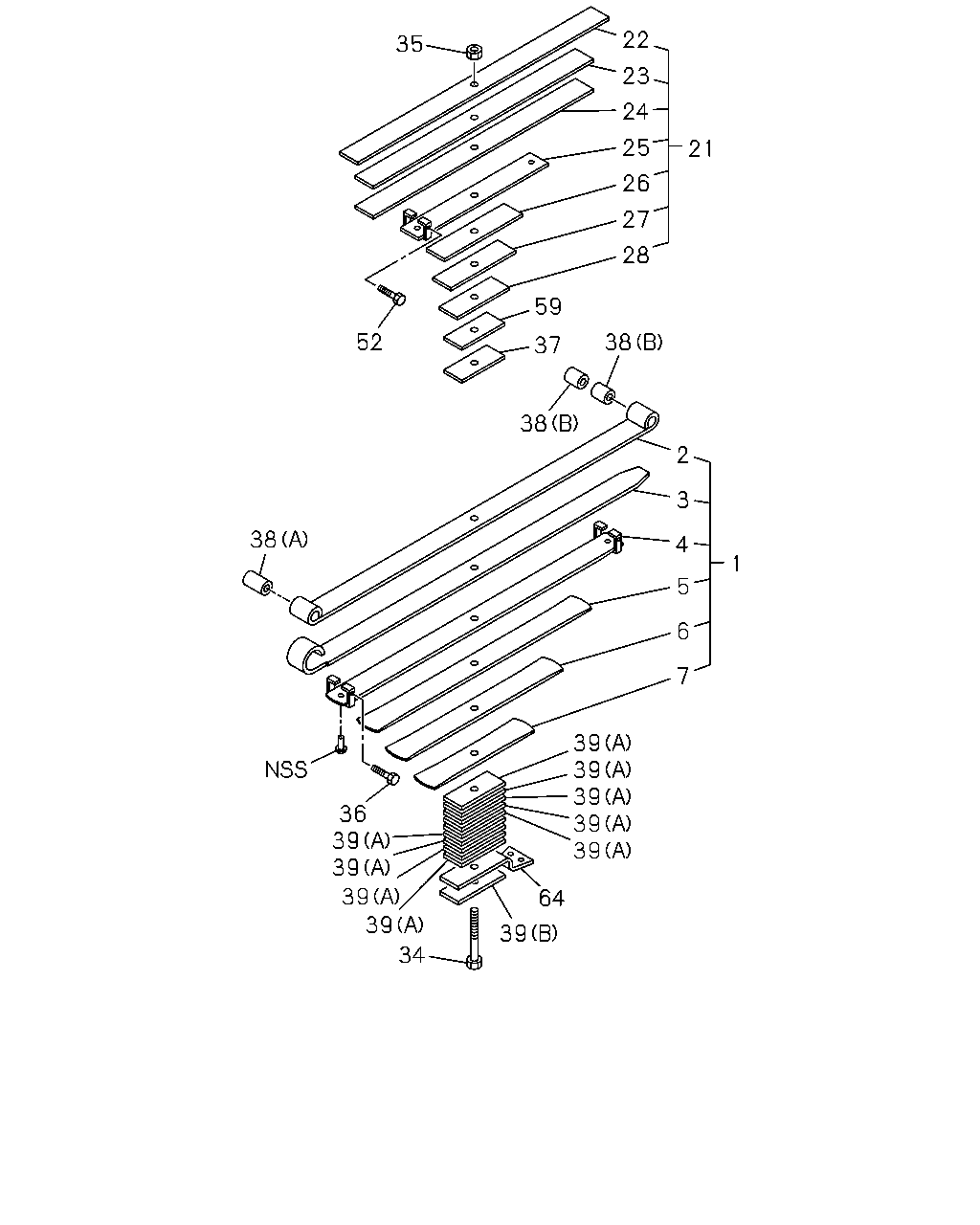

çizim 176726
22 35 23 24 25 21 26 27 28 59 52 38 37 38 2 3 38 4 1 5 6 7 39 39 39 39 39 36 39 39 39 39 64 39 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-402-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-403-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-404-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-405-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-406-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-407-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-408-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-409-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-410-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-411-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-412-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-413-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-414-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-415-0 01 1 -
28 07.505 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 8-98089-683-1, 98089683 		8-98094-416-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: A = 8-98089-683-1, 98089683 		8-98095-022-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98089-683-1, 98089683 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-98089-683-1, 98089683 		8-94407-133-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
ASM PART: A = 8-98089-683-1, 98089683 		8-98095-025-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98089-683-1, 98089683 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98089-683-1, 98089683 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98089-683-1, 98089683 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
(A), T=9 ASM PART: A = 8-98089-683-1, 98089683 		1-51377-139-0 09 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: A = 8-98089-683-1, 98089683 		8-94367-965-0 01 1 -
52 07.506 BOLT; CLIP,LEAF SPR,RR SUB
M8X90.5 ASM PART: A = 8-98089-683-1, 98089683 		8-94407-133-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=6 ASM PART: A = 8-98089-683-1, 98089683 		8-94367-965-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-98089-683-1, 98089683 		8-97044-353-2 01 1 -
